SMX-5 - Microphone Azden - Free user manual and instructions

Product Type	Shotgun Microphone
Brand	Azden
Model	SMX-5
Directional Pattern	Supercardioid
Frequency Response	50 Hz – 18 kHz
Impedance	200 Ω
Sensitivity	-42 dB ± 3 dB (1 kHz, 1 Pa)
Signal-to-Noise Ratio	75 dB
Power Supply	Phantom 48V or 1x AA Battery
Battery Life (AA)	Approx. 100 hours
Dimensions (Length x Diameter)	250 mm x 22 mm
Weight (without battery)	180 g
Connector	3.5 mm TRS or XLR (via adapter)
Cable Length (included)	1.5 m
Key Features	Low-cut filter, shock mount, windscreen
Maintenance	Clean grille with soft brush; store in dry case
Safety	Keep away from moisture; use approved power supply
Spare Parts	Windscreen, shock mount ring, battery compartment cover
Repairability	Authorized service center recommended
Warranty	1 year limited

Frequently Asked Questions - SMX-5 Azden

How do I connect the Azden SMX-5 to my camera?

The SMX-5 typically uses a 3.5mm TRS connector for direct connection to cameras or recorders. If your device has an XLR input, use a suitable adapter or optional XLR module.

What power source does the SMX-5 need?

It supports phantom power (48V) or a single AA battery (not included). The battery provides up to 100 hours of use.

Can I use the SMX-5 indoors and outdoors?

Yes, it is designed for both. The included windscreen reduces wind noise outdoors. Indoors, the low-cut filter helps minimize low-frequency rumble.

What is the pickup pattern of the SMX-5?

It features a supercardioid pattern, providing excellent rejection of off-axis sound, ideal for focusing on a subject in front of the microphone.

How do I adjust the low-cut filter?

The low-cut filter is activated via a toggle switch on the microphone body. It rolls off frequencies below 80 Hz to reduce handling noise and air conditioning hum.

What accessories are included with the SMX-5?

The package typically includes the microphone, a shock mount, windscreen, and a carrying case. Check the box for exact contents.

Can I replace the cable on the SMX-5?

The cable is fixed and not user-replaceable. If damaged, contact Azden support or an authorized service center for repair.

Is the SMX-5 compatible with smartphones?

It can be used with smartphones via a TRRS adapter (not included). However, ensure the phone provides sufficient power; battery operation is recommended.

How do I clean the SMX-5?

Use a soft brush to gently remove dust from the grille. Avoid using liquids. Store in a dry, padded case when not in use.

What is the warranty period for the Azden SMX-5?

Azden offers a 1-year limited warranty against defects in materials and workmanship. Keep your purchase receipt for service.

USER MANUAL SMX-5 Azden

Thank you for purchasing the Azden SMX-5 Electret Condenser Stereo Microphone. Before using the product, please read this opera ng manual thoroughly. Keep this manual along with the warranty card for future reference.

WARNING

☐ Do not use other ba eries than the one speci ed in this manual.
☐ When installing battery, make sure battery polarity is correct as marked inside the battery compartment.
☐ Remove the battery if the product is not used for a long period of me.

BATTERY

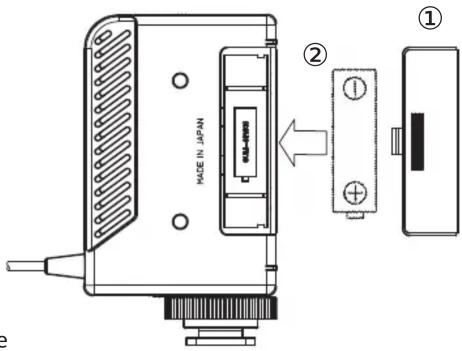

(1) Remove the battery compartment lid by sliding it away from the case.
(2) Insert one fresh alkaline "AAA" battery into the compartment. Make sure the battery polarity is correct as marked inside the battery compartment.

POWER SWITCH

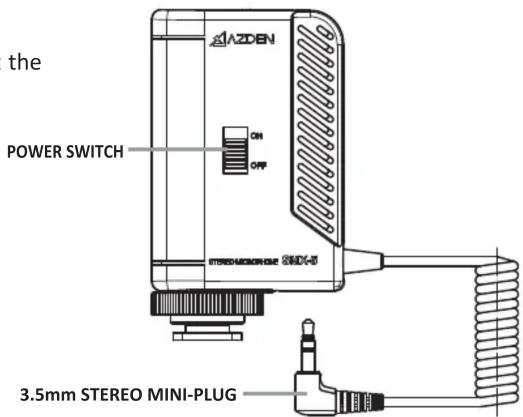

The SMX-5 has a 2-posi on power switch.

OFF: Switch the microphone OFF when not in use to conserve battery life. Set the switch to the OFF position when using plug-in power from camera.

ON: Switch the microphone ON for opera on by battery power.

3.5mm STEREO OUTPUT MINI-PLUG

Insert the plug into the camera's "STEREO EXT. MIC" jack.

SPECIFICATIONS

Type: Electret condenser stereo microphone

Frequency Response: 100–20kHz

Sensitivity: Uni-directional; -40dB at 1kHz (1V/Pa)

Impedance: 1.5kΩ at 1kHz

Maximum SPL Input Level: 100dB SPL (1kHz at 1% T.H.D.)

Signal to Noise Ratio: 60dB (1kHz at 1Pa)

Battery Type: "AAA" Alkaline battery

Battery Life: Approx. 1000 hours

Weight with Battery: 58g/2oz

Dimensions: 76mm(H) x 56mm(W) x 16.5mm(D)

$$ 3 ^ {\prime \prime} (H) x 2 1 / 4 ^ {\prime \prime} (W) x 5 / 8 ^ {\prime \prime} (D) $$

Output Type: 3.5mm mini-jack

Supplied Accessories: Windscreen

FREQUENCY RESPONES

POLAR PATTERN

* Due to constant improvements, speci ca ons are subject to change without no ce.

TWO-YEAR LIMITED WARRANTY

AZDEN CORPORATION warrants to the first consumer purchaser that the Microphone purchased is free from defects in material and workmanship. AZDEN's sole obligation under this warranty shall be to provide, without charge, repair or replacement (at AZDEN's sole discretion), within two years from the date of purchase.

This warranty is the sole and exclusive express warranty given with respect to the product and all other express warranties are hereby excluded. Neither AZDEN nor the dealer who sells the product is responsible for indirect, incidental, or consequential damages.

This warranty does not extend to any defect, malfunction, or failure caused by misuse, abuse, accident, or defective associated equipment for which it was not intended. Please read any instructions carefully.

This warranty is valid only when the Microphones is returned directly to AZDEN at the address below, freight prepaid, together with proof of date of purchase.

AZDEN CORPORATION

147 NEW HYDE PARK ROAD, P.O.BOX 10, FRANKLIN SQUARE, NY 11010

TEL:[phone] FAX:[phone]

e-mail: [e-mail] www.azdencorp.com
