Uragano.FT + kit accessori - Kitchen sink Foster - Free user manual and instructions

Product Type	Kitchen Sink
Brand	Foster
Model	Uragano.FT + kit accessori
Material	Austenitic Stainless Steel AISI 304 (18/10)
Standard	UNI EN 13310:2004
Edge Types	Standard, Flat (3 mm bended), Flush-mount, Undermount
Installation Methods	Built-in (top mount), Flush-mount, Undermount
Fixing System	Fixed bracket, Sliding bracket (S bracket)
Kit Includes	Waste-fitting, Overflow pipe, Automatic waste-fitting command (when applicable), Brackets, Gasket
Maintenance	Wash with water and soap, rinse, dry; use Foster Steel Clean products; avoid abrasive tools and chemicals
Care Recommendations	Avoid shocks, heavy objects, metal utensils; remove tomato, milk, coffee residues; avoid contact with iron objects
Cleaning Products to Avoid	Hydrochloric acid, bleach, steel sponges, metal brushes
Installation Notes	Use template for cut-out; tighten brackets by hand (max 60 N/cm); seal with silicone for undermount
Manufacturer	Foster SpA, via M.S. Ottone, 18/20, 42041 Brescello (RE) - Italy
Warranty	Refer to instruction leaflet and local Assistance Centres

Frequently Asked Questions - Uragano.FT + kit accessori Foster

What material is the Foster Uragano.FT sink made of?

The sink is made of austenitic stainless steel AISI 304 (18/10), meeting UNI EN 13310:2004 standard.

What installation methods are supported?

The sink supports standard top-mount (with flat or bended edge), flush-mount, and undermount installations. Refer to the template and instructions for each type.

How do I clean and maintain the stainless steel sink?

For daily cleaning, use water and soap or dishwashing liquid, rinse thoroughly, and dry. For stubborn stains, use Foster Steel Clean products or warm vinegar. Avoid steel sponges, hydrochloric acid, bleach, and abrasive cleaners.

What should I avoid to prevent damage to the sink?

Avoid dropping heavy objects, using metal utensils that can scratch, leaving iron objects on the surface for long, and contact with chemicals like paint removers or metal cleaners. Prolonged contact with tomato, milk, or coffee residues can cause mild corrosion.

Does the sink come with accessories?

The model is Uragano.FT + kit accessori, so it includes a kit with likely waste-fitting, overflow pipe, brackets, gasket, and possibly an automatic waste-fitting command. Check the package for exact contents.

How do I install the waste-fitting and overflow?

Before installing the sink, position the waste-fitting and overflow pipe (if present). If an automatic waste-fitting command is available, install it at this stage. After sink installation, connect the waste-fitting to the siphon and check for water-tightness.

What is the fixing system used?

The sink uses fixed brackets or sliding brackets (S bracket) provided. Tighten screws by hand with a torque not exceeding 60 N/cm. Avoid using electric screwdrivers.

Are flush-mount and undermount installations recommended for DIY?

Flush-mount and undermount installations require qualified personnel and precision cutting, preferably with a computer-operated machine. It is strongly advised to have them done by experienced installers.

How do I test for water leaks after installation?

Close the basket waste-fitting, fill the sink with water up to the overflow, wait several minutes, then check if water drains. If no drainage occurs, the seal is tight. Empty the sink after testing.

What should I do if the sink gets scratched?

Minor scratches are normal and can be minimized by regular care. Use Foster Steel Clean products for cleaning. For deep scratches, contact Foster Assistance Centres for advice or repair options.

USER MANUAL Uragano.FT + kit accessori Foster

Stainless steel sinks

Foster spa

via M.S. Ottone, 18/20

42041 Brescello (RE) - Italy

Instructions for the installation, use and maintenance of kitchen stainless steel sinks

Sinks' material: austenitic stainless steel AISI 304 - 18/10

UNI EN 13310:2004

(kitchen sinks for domestic use, functional features and tests' methods)

INSTALLATION

Standard and flat (3 mm bended) edge

Before making any cut-out on the worktop, we suggest to verify and lay the sink on the worktop itself and/or on the cabinets in order to verify that the external dimensions of the bowls are compatible with the cabinets themselves, in order to avoid making cut-outs for sinks that cannot be installed.

We also recommend to verify the possibility to install taps and other accessories, by checking the place they need and the place that remains. Also verify the possibility to accede to the water main tap under the sink, and that the positioning of the siphon is feasible. To install the sink, one must make a cut-out on the worktop according to the template included in the packing.

Once the cut-out is made, one must position the gasket around the perimeter of the hole. Before installing the sink, please position the waste-fitting and overflow pipe (when present); when available, also the command of the automatic waste-fitting must be

installed at this stage. Make sure that the external edge of the sink is positioned upon the gasket, so as to create a barrier preventing the infiltration of water and dirt between sink and worktop.

After having positioned the sink on the worktop, fix it by tightening the screws of the brackets which are provided (the screws must be tightened just enough to have

the brackets clamp down on the worktop). Afterwards, remove the excess gasket with a cutter. The taps can be installed before or after the positioning of the sink.

After having installed the sink, connect the waste-fitting with the siphon. Check the water-tightness by closing the basket of the waste-fitting, open the tap and wait until the water level reaches the overflow; shut the tap, and wait several minutes, verifying that the water does not drain away. Empty the sink.

Flush-mount edge

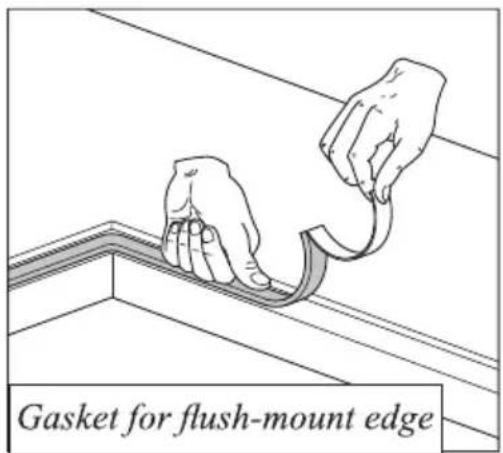

For a correct installation of the flush-mount sinks, please follow strictly the technical sheet (template) provided with the sink; only qualified personnel should make the cut-out, and a computer-operated machine is necessary. It is advisable to accurately clean the seat for the cut-out, and to insert the gasket which is provided, between the sink and the worktop, so as to avoid possible water infiltration into the worktop or the cabinets. The work must be carried out by experienced personnel.

Do not use electric screwdrivers to tighten the brackets. The tightening torque must not exceed 60 N/cm.

It is advisable to install the flush-mount sinks on hydro repellent materials, in order to avoid eventual deformations of the material itself.

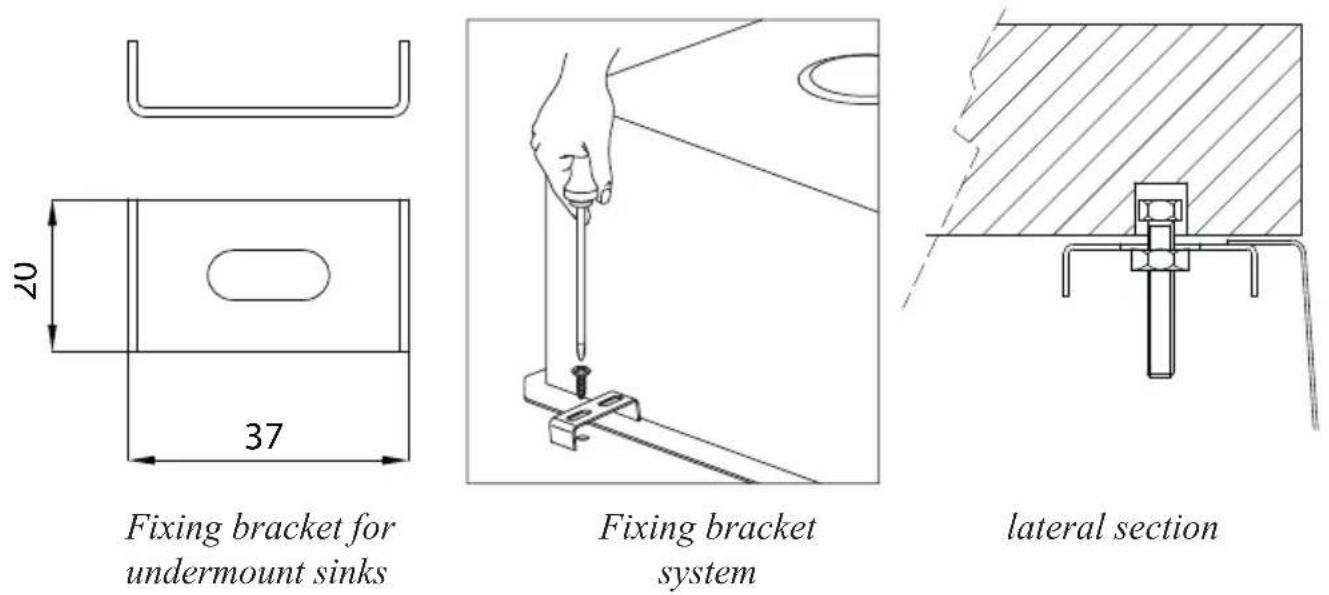

Undermount installation

For the undermount sinks, proceed as for the normal built-in sinks.

Make a cut-out on the worktop following the template and/or instructions provided with the sink. Before installing the sink, seal with silicone. Tighten the brackets.

Fixing system
fixed bracket	FR FI fixed bracket
sliding bracket	S fixed bracket

The Foster collections are the result of a huge experience, and a careful development to meet at best the necessities of the users', so as to obtain a high-quality product. It is important, however, to inform our customers that one must also use the product correctly and maintain it properly.

As all materials, also stainless steel can become dirty; by following very simple instructions, one can bring the sink back to its original shine.

For everyday's maintenance, wash the sink with water and soap, or a product to wash the dishes, rinse abundantly, and do not forget to dry. For more obstinate dirt, the STEEL CLEAN line of products, proposed by Foster and available at all our Assistance Centres throughout the Country, is very suitable to eliminate it without much fuss. Take care to avoid shocks, to drop heavy objects on the sink, and not to use utensils which can scratch the surface. Also avoid the contact with chemicals, cleaners for metal, products to take off paint, metal brushes. Do not leave for long stretches of time tomato residues on the sink, as well as milk, and coffee on the sink; also, avoid long contacts with metal drums with wet bottoms, and iron objects in general. Please note that the long contact of any of the above-mentioned substances with the sink can originate a corrosive attack of electrochemical nature, even though very mild.

TENTION

• Rinse accurately after use, and dry with a clean cloth
• To clean the sink, normal detergent can be used, as long as not containing hydrochloric Acid (commercial Muriatic acid) or its derivates
• In case of persistent staine, try to clean with some warm vinegar or with specific products for Stainless steel (the specific line of products “Foster Steel clean” is suggested)
• Do not use steel sponges to clean the sink, or any other item that could scratch the surface
• Avoid using muriatic acid or bleach
• Do not leave iron objects on the sink for long
• Please keep this instructions leaflet
