PEX300WN2X3 - Adapter / Network Card StarTech.com - Free user manual and instructions

Product Type	PCI Express Wireless Network Adapter
Model	PEX300WN2X3
Brand	StarTech.com
Interface	PCI Express x1
Wireless Standards	IEEE 802.11 a/b/g/n/ac
Frequency Bands	2.4 GHz and 5 GHz
Maximum Data Rate	300 Mbps (2.4 GHz) / 867 Mbps (5 GHz)
Antenna Type	2 x External Detachable Antennas
Wireless Security	WEP, WPA, WPA2, WPA3
Dimensions (L x W x H)	120 mm x 69 mm x 20 mm
Weight	50 g
Power Source	PCI Express Slot
Operating Temperature	0°C to 50°C
Operating Humidity	10% to 90% (non-condensing)
System Compatibility	Windows 7/8/10/11, Linux
Maintenance	Keep dry; clean with a soft, dry cloth
Safety	Install in a well-ventilated slot; avoid liquid contact
Spare Parts & Repairability	Antennas are user-replaceable; internal components not user-serviceable
Package Contents	1 x Adapter, 2 x Antennas, Low-Profile Bracket, Driver CD, Manual

Frequently Asked Questions - PEX300WN2X3 StarTech.com

What operating systems are supported?

The PEX300WN2X3 supports Windows 7, 8, 10, 11, and most Linux distributions. Drivers are included on the CD or available from StarTech.com.

How do I install the adapter?

Turn off your computer, open the case, insert the card into an available PCI Express x1 slot, secure it with the screw, attach the antennas, and close the case. Install the drivers from the CD or website.

What is the maximum speed?

On the 2.4 GHz band, up to 300 Mbps; on the 5 GHz band, up to 867 Mbps. Actual speed depends on network conditions and your router.

Does it support dual-band?

Yes, the adapter operates on both 2.4 GHz and 5 GHz frequencies simultaneously.

Can I use this with a desktop that has no extra PCIe slot?

No, this adapter requires a free PCI Express x1 (or larger) slot. It is not compatible with USB or laptop slots.

What security protocols are supported?

The adapter supports WEP, WPA, WPA2, and WPA3 encryption.

How do I troubleshoot if the adapter is not detected?

Ensure the card is fully seated in the slot, check that drivers are installed correctly, and verify that the antennas are attached. Restart your computer and try a different PCIe slot if available.

Can I replace the antennas with higher-gain ones?

Yes, the antennas are detachable and use a standard RP-SMA connector. You can upgrade to higher-gain antennas for better range.

Does it support Bluetooth?

No, this model is a Wi-Fi-only adapter and does not include Bluetooth functionality.

What is the warranty period?

StarTech.com offers a lifetime warranty on this product. For details, visit their warranty page.

USER MANUAL PEX300WN2X3 StarTech.com

PCI Express Wireless Adapter Card

PCI Express 802.11n 300Mbps Wireless Network Adapter Card - 2T3R

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ....1

Packaging Contents....1

System Requirements ....1

Installation 2

Hardware Installation ....2

Driver Installation ....2

Verifying Installation ....4

Specifications ....5

Technical Support ....6

Warranty Information ....6

Introduction

The StarTech.com PCI Express Wireless 802.11n 300Mbps network adapter adds high speed wireless network connectivity to almost any PCI Express enabled desktop/workstation PC. Using a 2T3R (2 Transmitter/3 Receiver) design, the PCIe adapter card is capable of reaching up to 300Mbps over an 802.11n network, while improving signal reception and range. Backwards compatible with 802.11b/g networks (11/54Mbps), this adapter card is a versatile wireless networking solution. With support for standard and advanced security options such as WEP, WPA, WPA2, WPS and 802.1x along with wireless Quality of Server (QoS) support, this PCI Express 2.0 card is backed by StarTech.com's lifetime warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.

Packaging Contents

• 1 x PEX300WN2X3 adapter card
• 3 x Wireless Antenna
• 1 x Driver Installation CD
• 1 x Instruction Manual

System Requirements

• PCI Express enabled computer with available full profile slot
- Microsoft® Windows® 2000/XP/Vista/Server 2003/Server 2008 R2/7 (32/64-bit), or Linux® kernel 2.4/2.6

Close-up of a green PCI network card with gold connectors and a V port, no visible text or symbols

Installation

WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. Also be careful to handle the PCI Express card by its edges and not the gold connectors.

Hardware Installation

1. Turn your computer off and any peripherals connected to the computer (i.e. Printers, external hard drives, etc.). Unplug the power cable from the rear of the power supply on the back of the computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. See documentation for your computer system for details.
3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the computer case (Refer to documentation for your computer system for details.). Note that this card will work in PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots).
4. Insert the card into the open PCI Express slot and fasten the bracket to the rear of the case. For ease of installation, make sure the antennas are not attached to the card yet.
5. Place the cover back onto the computer case.
6. Attach the included external antennas to the rear bracket of the card.
7. Insert the power cable into the socket on the power supply and reconnect all other connectors removed in Step 1.

Driver Installation

Windows 2000/XP/Server 2003

1. Upon starting Windows, if the Found New Hardware wizard appears on the screen, cancel/close the window and insert the included Driver CD into the computer's CD/DVD drive.

2. AutoPlay should automatically launch the Driver/Software installation splash screen. If not, open My Computer and right-click on the CD/DVD drive the disk is inserted into and select "AutoPlay".

3. Select the option to install the Driver and Utility. This should launch the Ralink Installation wizard.
4. Complete the wizard and this should automatically install all necessary drivers and the Ralink utility (optional to use).

Windows Vista/7/Server 2008 R2

NOTE: Windows 7/Server 2008 R2 have the drivers preinstalled, so installing them separately is not necessary. If problems are encountered with the native drivers, or use of the Ralink Utility is desired, they can be installed per normal installation procedures.

1. Upon starting Windows, if the Found New Hardware wizard appears on the screen, cancel/close the window or choose not to install the drivers and insert the included Driver CD into the computer's CD/DVD drive.
2. AutoPlay should automatically launch the Driver/Software installation splash screen or prompt you to run Setup.exe. If not, open "Computer" and right-click on the CD/DVD drive the disk is inserted into and select "AutoPlay".
3. Select the option to install the Driver and Utility. This should launch the Ralink Installation wizard.
4. Complete the wizard and this should automatically install all necessary drivers and the Ralink utility (optional to use).

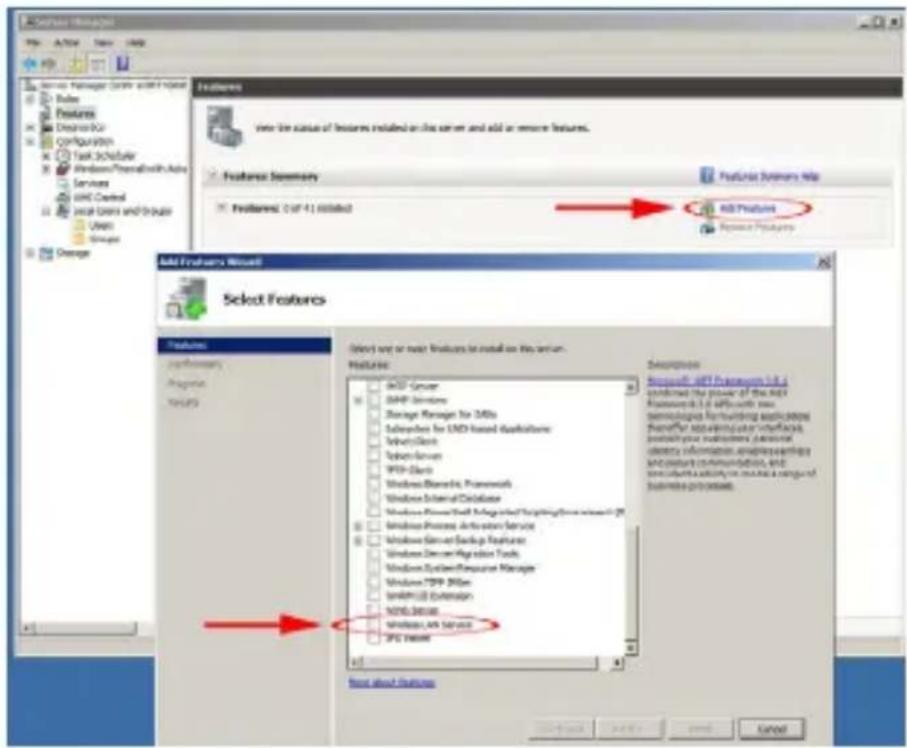

Windows Server 2008 R2 Note:

By default, the Microsoft "Wireless LAN Service" Feature is not installed. Before any wireless networking can be enabled, this feature must be installed through the Windows Server Manager window. Refer to Windows' documentation for details.

Verifying Installation

Windows 2000/XP/Vista/7

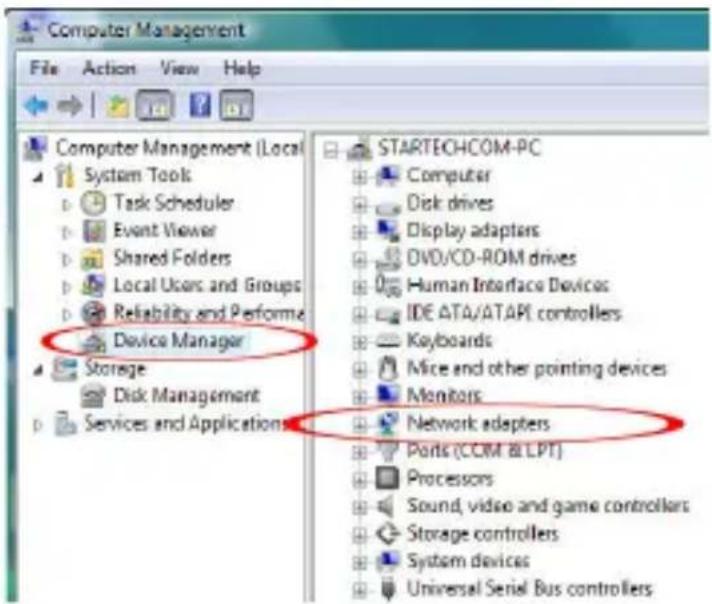

From the main desktop, right-click on "My Computer" ("Computer" in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel.

Double-click on the Network adapters option. A new Wireless adapter should be listed.

Specifications

Bus Interface	PCI Express 2.0(x1 slot connector)
Form Factor	Full Profile
Chipset ID	Ralink RT2890 + RT2820
Connectors	3 x RP-SMA
LEDs	1 x Activity
Supported Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Supported Security Protocols	WEP, WPA, WPA2, TKIP/AES
Maximum Data Transfer Rate	802.11n: 300Mbps
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	0°C ~ 70°C (32°F ~ 158°F)
Humidity	5 ~ 95% RH
Dimensions	102.0mm x 76.5mm x 21.0mm
Weight	106.7 g
Compatible Operating Systems	Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7(32/64-bit), Linux kernel 2.4/2.6

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a lifetime warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
