Everett 52830-91 - Lighting Livex Lighting - Free user manual and instructions

Product Type	Ceiling Lighting Fixture
Brand	Livex Lighting
Model	Everett 52830-91
Power Source	Hardwired (120V)
Number of Bulbs	1
Bulb Type	E26 Standard Base (Not Included)
Maximum Wattage	60W (or as marked on fixture)
Mounting	Ceiling Mount
Usage	Indoor
Safety	UL Listed (assumed)
Material	Metal
Grounding	Required (green screw provided)
Wiring	Requires standard junction box
Assembly	Mounting plate, canopy, screws included
Maintenance	Clean with dry cloth
Customer Service	800-761-8056
Website	www.livexlighting.com

Frequently Asked Questions - Everett 52830-91 Livex Lighting

How do I install this lighting fixture?

First, shut off power at the circuit breaker. Remove old fixture. Attach mounting plate to junction box. Connect wires: match black to black, white to white, and ground wires. Secure with wire nuts. Attach canopy to mounting plate. Install light bulb (not included). Restore power and test.

What type of bulb does the Everett 52830-91 use?

It uses a standard E26 base bulb (medium screw). The bulb is not included. Do not exceed the maximum wattage specified on the fixture, typically 60W incandescent or equivalent LED/CFL.

Is the fixture dimmable?

The manual does not specify dimmability. However, if you use a dimmable bulb and a compatible dimmer switch, it may be dimmable. Consult a licensed electrician for safe installation.

What are the dimensions of the fixture?

Dimensions are not provided in the manual. Please check the product listing or contact Livex Lighting customer service at 800-761-8056 for exact measurements.

Can I use LED bulbs in this fixture?

Yes, you can use LED bulbs with an E26 base as long as they do not exceed the maximum wattage rating (e.g., 60W equivalent). LED bulbs are energy-efficient and produce less heat.

How do I clean the fixture?

Clean the fixture with a soft dry cloth. Avoid using water, cleaners, or abrasive materials that may damage the finish. Always ensure power is off before cleaning.

Does the fixture come with a light bulb?

No, the fixture does not include a light bulb. You need to purchase a bulb separately with the correct E26 base and wattage rating.

What is the warranty on this product?

Warranty information is not included in the manual. For warranty details, contact Livex Lighting customer service at 800-761-8056 or visit www.livexlighting.com.

Can I install this on a sloped ceiling?

The manual does not specifically address sloped ceilings. For proper installation, ensure a level mounting. If your ceiling is sloped, you may need an adapter or consult a professional.

Do I need a professional electrician for installation?

While the fixture can be installed as a DIY project if you have basic electrical knowledge, it is recommended to hire a licensed electrician if you are unsure or uncomfortable working with wiring.

USER MANUAL Everett 52830-91 Livex Lighting

ASSEMBLING & INSTALLATION INSTRUCTIONS

The drawing shown may not exactly match the product enclosed. However, the installation instructions do apply to this product.

52830

◆ WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
♦ ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.

ASSEMBLING THE FIXTURE (Fig.1)

1. Shut off the power at the circuit breaker box. Remove old fixture and all hardware from Junction Box.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Be care not to lose any small parts necessary for installation.
3. Attach the mounting plate to the Junction Box with the two junction box screws as shown. The side of the mounting plate marked "GND" must face out. The junction box is not included.

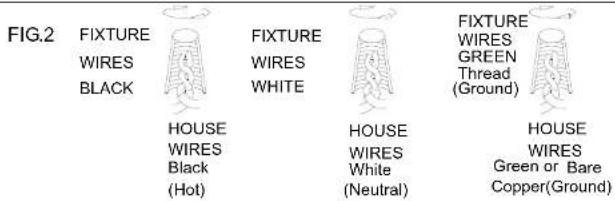

4. While holding the lamp body towards the ceiling, connect the electrical wires as Shown in Fig.2, making sure that all wire nuts are secured. You may have to wrap the connections with electrical tape. If your junction box has a ground wire (green or bare copper), connect the lamp body ground wire to it. Otherwise connect lamp body's ground wire directly to the mounting plate with the green screw provided. After wires are connected, tuck them carefully inside the Junction Box.
5. Install the lamp body's canopy onto the junction box, aligning the side screw hole on mounting plate with mounting holes in canopy, lock it securely with the mounting screws.
6. Install the light bulb(not included) in accordance with the fixture's specifications. NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!

Your installation is now complete. Return power to the junction box and test the fixture.

FIG.1

Thank you for purchasing a LIVEX product.

Need assistance with parts or assembly? Please call customer service at: 800-761-8056

Or visit us online at: WWW.LIVEXLIGHTING.COM
