Product Type	Fiber Optic Connector Inspection System
Brand	JILONG
Model	FIP-600V
Dimensions (L x W x H)	200 x 150 x 100 mm
Weight	0.5 kg
Power Supply	Rechargeable Li-ion battery, USB-C charging
Display	3.5-inch TFT LCD
Magnification Range	200x to 400x
Camera Resolution	5 MP
Supported Connector Types	SC, FC, LC, ST, MPO
Light Source	LED, Class 1 laser (IEC 60825-1)
Internal Storage	Yes, for image capture
Connectivity	USB for data transfer
Battery Life	Up to 8 hours continuous use
Charging Time	Approximately 2 hours
Operating Temperature	0°C to 40°C
Cleaning Instructions	Use lens cleaning wipes; avoid solvents
Safety Compliance	Class 1 laser product (IEC 60825-1)
Calibration	Recommended annually
Spare Parts Available	Replacement tips, battery pack, charging cable
Repair Service	Contact authorized service center

Frequently Asked Questions - FIP-600V JILONG

What connector types are compatible with the FIP-600V?

The FIP-600V supports common connector types such as SC, FC, LC, ST, and MPO. Adapter tips for each type are included.

How do I clean the inspection tip?

Use a lint-free cleaning wipe moistened with isopropyl alcohol. Gently clean the lens surface and allow it to dry before use. Do not use abrasive materials.

Can the FIP-600V be used with single-mode and multimode fibers?

Yes, the system works with both single-mode and multimode fibers. Ensure the appropriate tip is installed for the connector type.

How do I capture an image?

Press the Capture button on the device. The image is saved to internal storage and can be transferred via USB cable to a computer.

What is the battery life and how do I charge it?

The battery lasts up to 8 hours of continuous use. Charge using the provided USB-C cable and a standard 5V USB power adapter.

Is the device laser safe?

Yes, the FIP-600V is a Class 1 laser product per IEC 60825-1. It is safe for normal use and does not require special precautions.

How often should I calibrate the device?

JILONG recommends annual calibration to ensure measurement accuracy. Contact an authorized service center for calibration.

Can I replace the battery myself?

The battery is replaceable but should be done by a qualified technician. Contact support for instructions or service.

What should I do if the display is blank?

First, ensure the device is charged. If still blank, try a reset by pressing and holding the power button for 10 seconds. If the issue persists, contact support.

How do I transfer images to a computer?

Connect the FIP-600V to a computer using the USB cable. The device appears as a removable drive. Copy images directly to your computer.

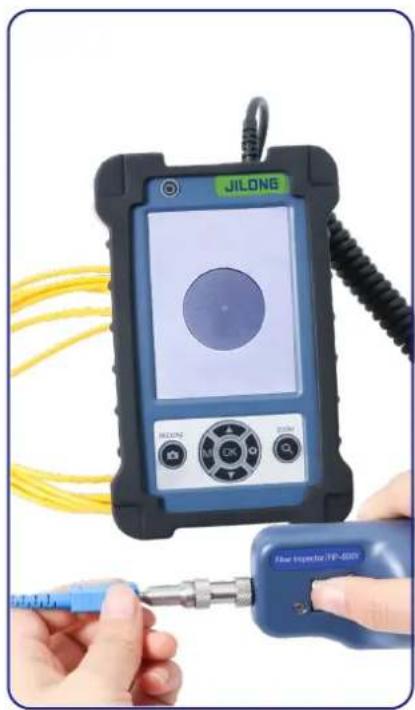

USER MANUAL FIP-600V JILONG

Product characteristics

Rotary metal bracket, stable and convenient
Compatible / FC/SC/ST/LC/SC female connector/LC male connector
4000mAh large capacity lithium power, 20 hours standby
real time video, support extend t-flash card, quick check the pollution degree of female connector and male conector

400 time magnifrcation, the stain is clearly visible.
3.5 inch HD LCD display
1/3 inch sensor, 300,000 effective pixels
removable Silicon Case, reduce the damage by collising or dropping in a certain extent
Small size, one-handed, convenient and fast

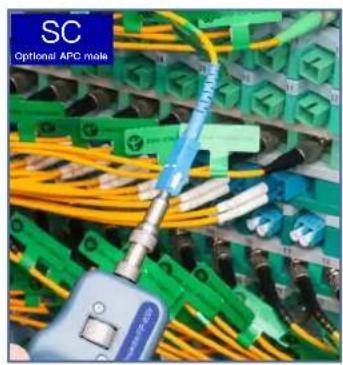

Support SC / FC / St / LC / SC female head / LC female head

Close-up of a blue handheld device with yellow connectors and a blue tip, surrounded by green circuit boards (no visible text or symbols)

Close-up of a FC ST LC cable connector with green and yellow wires in a network (no visible text or symbols)

Close-up of a handheld electronic device with yellow cables and green connectors, no visible text or symbols.

Close-up of a fiber optic cable with a probe inserted, surrounded by green and yellow connectors (no visible text or symbols)

USE DISPLAY

4000mAh recycled 20 hours

The machine is equipped with large capacity lithium-ion batteries with a capacity of up to 4000 mAh. Standby time is up to 20 hours, which is suitable for the needs of workers who go out for a long time. The machine adopts micro USB interface, charging standard is 3.7v, charging is more convenient and simple.

The angle of the bracket can be adjusted by rotation at will, which is stable and convenient. From the perspective of ergonomics, there is no need to watch on a single hand-held screen. In line with ergonomics, comfortable grip, compact, light and durable. Full enclosure design, cushioning impact friction. Close protection, anti-falling, anti-seismic split type design is better on protection, reduce the damage by collising or dropping in a certain extent

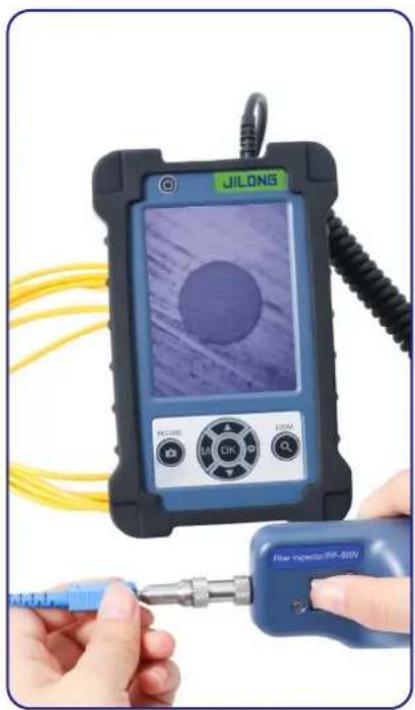

real time video

support extend TF card

Video playback

Real-time video recording and expansion of TF card, convenient and fast recording of measurement informa-tion. Support data playback to facilitate inspection and data statistics. The panel design is concise, the operation is simple and practical, and the use is more humanized.

FIP-600V		Magnification	400X
		Resolution (μm)	surpass 1.0
		Visual range (μm)	0.316*0.285
		Dimension (μm)	235(W)*95(D)*30(H)
		Image Sensor	1/3 480
		Storage Temperattrue	-18°C~35°C
		Weight(kg)	0.11
3.5-inch LCD display	Image	Image size (mm)	22
		Pixels	307200
	Video	Frequency	25FPS
		LCD screen	960*240 LCD
		Video output mode	NTSC/PAL
		Playback Format	AVI
	User interface	Compatible memory cards	TF
		Capacity	8GB
		USB	1.1/2.0
		Hard disk format	FAT32
	Power supply	AC adapter	DC 5V/2A
		Internal Battery	Lithium battery 4000Mah
		Media Player	≥7
Weight(kg)/W*D*H(mm) 0.085/78*22*56

PRODUCT LIST

Exterior view of a handheld electronic device with cables and a display screen (no visible text or symbols)

Four metallic mechanical components arranged in a row against a plain white background (no text or symbols visible)

White plastic container with a blue square button, isolated on white background (no text or symbols)

Two black USB flash drives with a cylindrical lid, shown against a white background (no text or symbols visible)

Black USB cable with metal connector, isolated on white background (no text or symbols)

Black rectangular electronic device case with a small logo on the lid (no visible text or symbols)
