99-8715 - Car kit Metra - Free user manual and instructions

Product Type	Car Installation Kit
Brand	Metra
Model	99-8715
Compatible Vehicles	Smart Fortwo (2008-2010)
Radio Provisions	DIN, ISO Mount, Double DIN, Stacked ISO Mount
Included Pocket	Yes
Required Tools	Phillips Screwdriver, Panel Removal Tool, T-20 Torx Screwdriver
Harness (sold separately)	70-1783 Smart Car Harness
Antenna Adapter (sold separately)	40-VW10 VW Antenna Adapter
Dimensions (approx.)	7 x 4 x 2 inches
Weight (approx.)	0.5 lbs
Material	Plastic, Metal Brackets
Color	Black
Installation Type	Dash Disassembly Required
Wiring Connections	Strip, Splice, Solder, Tape (EIA color code)
Safety Precaution	Disconnect Negative Battery Terminal Before Installation
Maintenance	Clean with a damp cloth, avoid harsh chemicals
Spare Parts Availability	Kit Components Sold Separately
Repairability	Modular design; brackets and housing replaceable
Warranty	1 Year Limited (Typical)

Frequently Asked Questions - 99-8715 Metra

What vehicles is the Metra 99-8715 kit compatible with?

This kit is designed for the Smart Fortwo model years 2008-2010.

What radio mounting options does the kit support?

The kit supports DIN, ISO Mount, Double DIN, and Stacked ISO Mount radio provisions.

Do I need to purchase additional wiring harnesses?

Yes, the 70-1783 Smart Car Harness and 40-VW10 VW Antenna Adapter are sold separately.

What tools are required for installation?

You will need a Phillips screwdriver, a panel removal tool, and a T-20 Torx screwdriver.

Does the kit include a pocket for single DIN radios?

Yes, the kit includes a pocket for use with single DIN and ISO mount radios.

How do I connect the wiring?

Follow the EIA color code provided in the manual. Strip wires 1/2 inch, twist, solder, and tape. Isolate unused wires.

What safety precautions should I take?

Always disconnect the negative battery terminal before starting installation to prevent short circuits.

Can I install a double DIN radio with this kit?

Yes, the kit supports Double DIN radios by cutting the center bar and using provided brackets.

How do I clean and maintain the kit?

Clean with a damp cloth and mild detergent. Avoid abrasive cleaners that may damage the plastic.

Is technical support available?

Contact Metra at 1-800-221-0932 or visit www.metraonline.com for assistance.

USER MANUAL 99-8715 Metra

INSTALLATION INSTRUCTIONS FOR PART 99-8715

APPLICATIONS SMART FORTWO

2008-10

99-8715

KIT FEATURES

• DIN Radio Provision With Pocket
• ISO Mount Radio Provision With Pocket
• Double DIN Radio Provision
- Stacked ISO Mount Units Provision

Interior view of a car dashboard with air filters and a digital audio workstation (no visible text or symbols)

KIT COMPONENTS

Harness & Antenna Connections (sold separately)

• 70-1783 - Smart Car Harness
• 40-VW10 - VW Antenna Adapter

TOOLS REQUIRED:

• Phillips Screwdriver/ Panel Removal Tool
• T-20 Torx Screwdriver

Three line drawings of screwdrivers (no text or symbols)

1-800-221-0932

© COPYRIGHT 2010

www.metraonline.com

METRA ELECTRONICS CORPORATION

TABLE OF CONTENTS

Dash Disassembly

- Smart Fortwo 2008-10 .... 1

Kit Assembly

• DIN Radio Provision with Pocket ....2
• ISO Mount Radio Provision with Pocket .... 3
• Double DIN/Stacked ISO Mount Units Provision. 4

Final Assembly 5

*Note:

Refer also to the instructions included with the aftermarket radio.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.w.installerinstitute.com or call

800-354-6782 for more information and take

steps toward a better tomor row.

SMART FORTWO 2008-10

1 Disconnect the negative battery terminal to prevent an accidental short circuit.
2 Unclip the Hazard button switch panel. (Figure A)
3 Remove (1) T-20 Torx head screw. (Figure B)
4 Carefully unclip the panel surrounding the radio, start at the top of the dash and work your way down. (Figure C)
5 Remove (4) T-20 Torx head screws from around the radio. (Figure D)
6 Remove radio and disconnect the wire harness and antenna.

Continue to kit assembly.

Diagram of a car air conditioner unit with labeled ports and connectors (no text or symbols beyond basic labels)

Line drawing of a car air conditioning unit with controls and gauges (no text or symbols)

DIN RADIO PROVISION WITH POCKET

Note: Refer also to the instructions included with the aftermarket radio.

1 Slide the DIN cage into the radio housing and secure by bending the metal locking tabs outward. (Figure A)
2 Slide the aftermarket radio into the cage until it snaps into place. (Figure B)
3 Snap the pocket into the radio housing. (Figure C)

Continue to final assembly.

Line drawing of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

Technical line drawing of a mechanical device with two ports and mounting brackets (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

ISO MOUNT RADIO PROVISION WITH POCKET

Note: Refer also to the instructions included with the aftermarket radio.

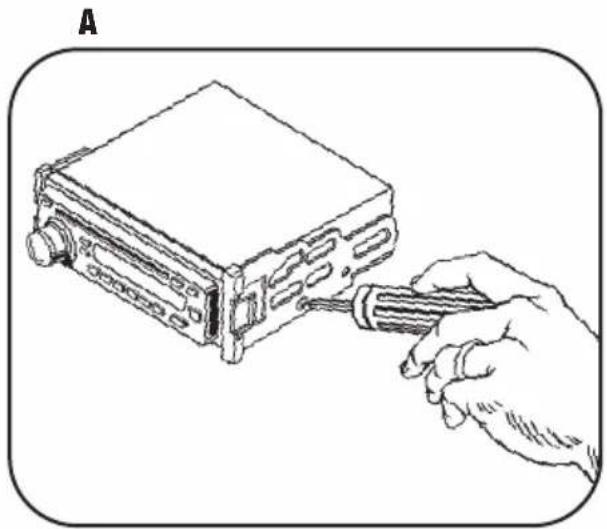

1 Mount the ISO Brackets to the aftermarket radio using the screws supplied with the radio. (Figure A)
2 Slide the radio/bracket assembly into the radio housing until it snaps into place. (Figure B)
3 Snap the pocket into the radio housing. (Figure C)
4 Snap the Trim plate onto the front of the radio housing. (Figure D)

Continue to final assembly.

Line drawing of a hand using a screwdriver to adjust or install a device into a rectangular box (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with mounting brackets and internal components (no text or symbols)

Technical line drawing of a mechanical device with labeled ports and arrows indicating assembly or movement (no readable text or symbols)

DOUBLE DIN/STACKED ISO

MOUNT UNITS PROVISION

Note: Refer also to the instructions included with the aftermarket radio.

1 Cut and remove the center bar from the radio housing. (Figure A)
2 Snap the Double DIN brackets to the inside edge of the radio housing. (Figure B)

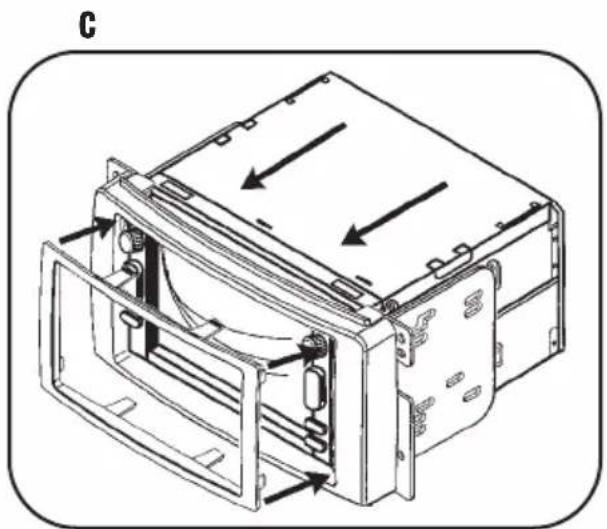

3 Slide the Double DIN or stacked ISO mount unit(s) into the bracket/radio housing assembly and secure the unit(s) to the assembly using the screws supplied with the unit(s). (Figure C)
4 Snap the Double DIN trim plate onto the front of the radio housing. (Figure C)

Continue to final assembly.

Line drawing of a hand holding a device with arrows indicating movement or assembly (no text or symbols)

Technical line drawing of a mechanical housing component with mounting holes and internal ribs (no text or symbols)

Technical line drawing of a computer case with internal components and directional arrows indicating movement (no text or symbols)

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape

1 Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2 Re-connect the negative battery terminal and test the unit for proper operation.
3 Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . Red

12V Batt / Memory.....Yellow

Ground. .... Black*

Power Antenna. . . . . . . . Blue

Amp Turn-On .... Blue / White

Amp Ground. . . . . . . . . . Black / White

Illumination ..... Orange

Dimmer....Orange / White

Right Front (+) ..... Gray

Right Front (-)..... Gray/ Black

Left Front (+) ..... White

Left Front (-). . . . . . . . . . . . . White / Black

Right Rear (+) ..... Violet

Right Rear (-) ..... Violet / Black
