8799 - Electric kettle Bloomfield - Free user manual and instructions

Product Type	Electric Kettle
Brand	Bloomfield
Model	8799
Capacity	1.7 Liters
Power Rating	1500 Watts
Voltage	120 Volts (60 Hz)
Material	Stainless Steel Body and Plastic Base
Cord Length	0.75 Meters
Weight	Approximately 1.2 kg
Dimensions (L x W x H)	22 x 18 x 24 cm
Auto Shut-off	Yes, after boiling
Boil-Dry Protection	Yes
Indicator Light	Yes, power-on indicator
Filter	Removable anti-scale mesh filter
Lid Type	Flip-top with one-touch opening
Base	360° swivel base with cord storage
Color	Silver and Black
Warranty	1 Year Limited
Care Instructions	Wipe with damp cloth; descale regularly with vinegar or citric acid

Frequently Asked Questions - 8799 Bloomfield

How do I descale my Bloomfield 8799 kettle?

Mix equal parts white vinegar and water, fill the kettle, boil, let sit for 15 minutes, then rinse thoroughly. Alternatively, use a commercial descaling agent.

Can I boil milk or other liquids in the kettle?

No, this kettle is designed for water only. Boiling milk or other liquids can damage the heating element and create a safety hazard.

Why does my kettle turn off before the water boils?

This may be due to a build-up of limescale. Descale the kettle. If the problem persists, the boil-dry protection might be tripping if there's insufficient water.

How long does it take to boil a full kettle?

With 1.7 liters of water, it typically takes 3-5 minutes depending on the starting water temperature.

What is the maximum capacity of the kettle?

The maximum capacity is 1.7 liters. Do not fill above the MAX indicator to avoid spillage during boiling.

Is the kettle cord long enough?

The cord is 0.75 meters long. The base also has cord storage underneath to adjust the length.

Can I operate the kettle with the lid open?

No, the kettle must have the lid closed during operation to ensure proper shut-off and safety. The lid has a locking mechanism.

How do I clean the filter?

The mesh filter is removable. Rinse it under running water and scrub gently with a soft brush. Replace if damaged.

Does the kettle automatically keep water warm?

No, this model does not have a keep-warm function. It shuts off automatically once the water reaches boiling point.

What should I do if the kettle won't turn on?

Check that the base is properly connected to power and the kettle is seated correctly. Ensure the lid is closed. If it still won't start, contact customer support or check the warranty.

USER MANUAL 8799 Bloomfield

3-5 Gallon Iced Tea Dispenser Components ..... 5

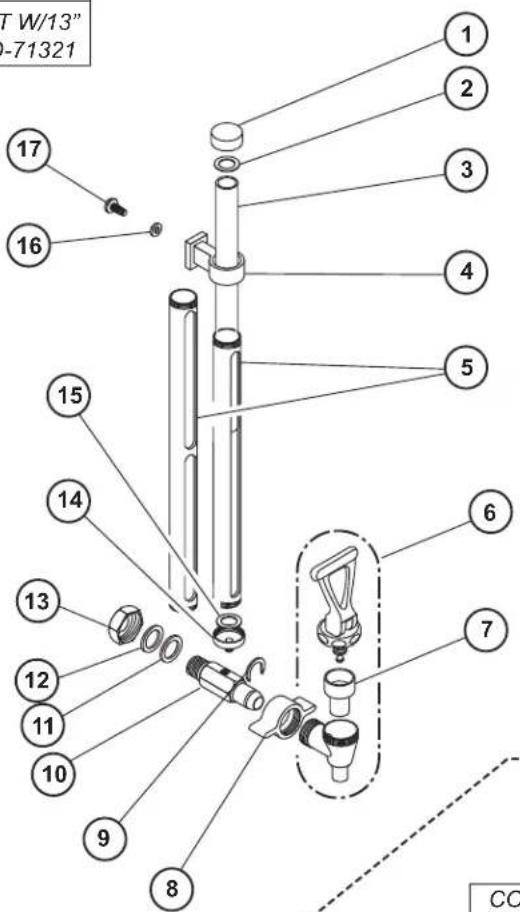

FAUCET COMPONENTS

18

COMPLETE FAUCET W/10" SIGHT GLASS WS-8600-14

COMPLETE FAUCET W/13" SIGHT GLASS DD-71321

COMPLETE FAUCET W/O SIGHT GLASS 2U-70580 19

BLOOMFIELD IL2037

PARTS LIST

FAUCET COMPONENTS

Fig No. Part Number Description Application
1 WS-8	600-17 CAP SHIELD	VENT HL
2 WS-8	700-25J WASHER UPPER TUBE
3	WS-8705-11C TUBE SIGHT-GLASS 10IN
	WS-8601-14A SIGH TUBE 13IN GLASS
4 WS-8	600-21 BRACE BLK SHIELD
5	WS-8600-20 SHIELD 10IN GUAGE
	WS-8601-13 SHIELD GAUGE 13IN
6	WS-8600-15 FAUCET SPB PLASTIC
	WS-85805 FAUCET SS WITH HANDLE
7 2U-7	1460 SEAT CUP TEA DISP FAUCET
8	WS-8600-27P NUT WING, PLASTIC THREADS
	WS-8600-27 NUT WING, METAL THREADS (OPT)
9 WS-8	600-26 C-RING
10	2P-87740	SIGANT GLASS	CAFERINA
	WS-8800-8 W/OUT GLASS
	WS-8600-24 SIGHT GLASS
11 2C-7	0573 WASHER FLAT NYLON
12	2I-70519 GASKET THERMOSTAT BREWERS
	2C-87742 WASHER HARD RUBBER FAUCET CAFERINA, 2U-87737
13	2C-70575 NUT 3/8-18 SPCL FAUCET BRASS
	2C-87743 HEX NUT M17 X 1.5 PLASTIC
14	WS-8705-11G SHIELD BASE
15	WS-8700-25H	WAHSER LOWER TUBE
16	DD-71292	WASHER FLAT RUBBER
17	2C-70379 SCREW 8-32X5/16 PH PAN MS
18	WS-8600-14 FAUCET SG 10IN GLASS
	2U-71321 FAUCET SIGH-GLASS 13IN
19	2U-70580 FAUCET W/O SG
	2U-87737 FAUCET SVC PART DWG CAGE CAFERINA
20	2R-70577 KNOB TEA DISPENSER COVER 3 GALLON
21	2L-70611	COVER 3G TEA DISPENSER (w/KNOB)	3 GALLON
22	2L-76058	COVER 3 GAL TEA DISP MOLDED	3 GALLON
	2L-76059	COVER 5 GAL TEA DISPENSER	5 GALLON
23	WS-8600-14 FAUCET SG 10IN FAUCET 3 GALLON
	2U-71321 FAUCET SG 13IN GLASS COMP 5 GALLON
24	2M-75159	DECAL 3-5G DISP ICE TEA
25	2U-70580 FAUCET W/O SG
26	2M-70592	LABEL DESIGNATION
27	2L-71747	TRAY DRIP AIRPOT RACK

3-GALLON ICED TEA DISPENSER COMPONENTS

ICED TEA DISPENSERS
Model: 8602, 8699, 8799, 8800BL, 8802

BloomfieldIndustriesproudlysupportsCFESA CommercialFoodEquipmentServiceAssociation

SERVICE TRAINING - QUALITY SERVICE

CUSTOMER SATISFACTION

BLOOMFIELD

B loo m field Indu s tries, Inc.
