| Type de produit | Haut-parleur (Speaker) |
| Marque | Celestion |
| Modèle | CF0617M |
| Diamètre nominal | 6.5 pouces (165 mm) |
| Impédance nominale | 8 ohms |
| Puissance admissible (RMS) | 60 W |
| Puissance admissible (programme) | 120 W |
| Réponse en fréquence | 65 Hz - 5 kHz |
| Sensibilité (1W/1m) | 95 dB |
| Dimensions (diamètre x profondeur) | 180 mm x 85 mm |
| Poids | 1.2 kg |
| Matériau du cône | Papier traité |
| Matériau de la suspension | Mousse |
| Type d'aimant | Ferrite |
| Applications recommandées | Enceintes hi-fi, monitoring, sonorisation |
| Entretien et nettoyage | Dépoussiérer avec un chiffon doux et sec ; éviter l'humidité |
| Sécurité | Ne pas exposer à la pluie ou à l'humidité ; respecter la puissance nominale |
| Pièces détachées et réparabilité | Contacter un centre de service agréé pour le remplacement du cône ou de la bobine |
Frequently Asked Questions - CF0617M Celestion
What is the impedance of the Celestion CF0617M speaker?
The nominal impedance is 8 ohms.
What is the power handling of the CF0617M?
The RMS power handling is 60 W, with a program power of 120 W.
What is the frequency response of this speaker?
The frequency response is 65 Hz to 5 kHz.
What type of speaker is the CF0617M?
It is a full-range or mid-bass driver, suitable for hi-fi and PA applications.
Can I use the CF0617M in a car audio system?
Yes, it can be used in car audio as long as the impedance and power match the amplifier specifications.
How do I clean the speaker?
Use a soft dry cloth to remove dust. Avoid moisture and cleaning agents.
What is the diameter of the CF0617M?
The nominal diameter is 6.5 inches (165 mm).
Is the CF0617M compatible with tube amplifiers?
Yes, its 8 ohm impedance makes it suitable for most tube amps, but check power limits.
What does the model number CF0617M indicate?
The '0617' likely refers to the 6.5-inch size and possibly the year or series.
Can I replace the cone if damaged?
Replacement is possible, but it is recommended to contact Celestion service or a professional repair shop.
User questions about CF0617M Celestion
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Loudspeaker in PDF format for free! Find your manual CF0617M - Celestion and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CF0617M by Celestion.
USER MANUAL CF0617M Celestion
- Inverted dustcap for close positioning of phase plug
• High temperature, environmentally robust foam surround
• Copper sleeved pole reduces HF inductive rise - Chassis design allows for fixing of rear cover

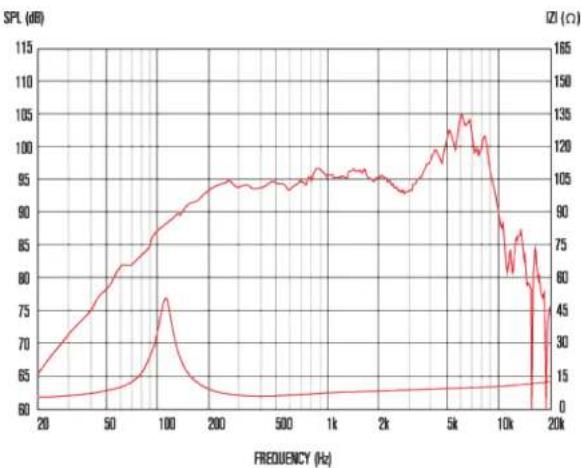

81 Frequency Response
- Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
- Continuous Power Rating is defined as 3dB greater than the AES rating
- Measured on axis at 1W, 1m in 2' anechoic environment.
- Xmax derived from: (voice coil winding width-gap depth)/2.
- Small signal parameters measured after unit subjected to pre-conditioning signal
General Specifications
| Nominal diameter 165mm/6.5in | |
| Power rating | 200Wrms |
| Continuous power rating | 400W |
| Nominal impedance 8 | |
| Sensitivity | 96dB |
| Frequency range 300-7,00Hz | |
| Voice coil diameter 45mm/1.75in | |
| Chassis type Cast Aluminium | |
| Magnet type Ferrite | |
| Magnet weight 0.6kg/220oz | |
| Coil material Edgewound copper clad aluminium | |
| Former material Glass fibre | |
| Cone material Kevlar loaded paper | |
| Surround material Temperature resistant foam | |
| Suspension Single | |
| Xmax | 1.2mm/0.05in |
| Gap depth 6mm/0.24in | |
| Voice coil winding width 8.4mm/0.33in | |
Small Signal Parameters
| D 0.14m/5.5in | |
| Fs 116.6Hz | |
| Mms | 11.59g/0.41oz |
| Qms | 6.93 |
| Qes | 0.48 |
| Mmd | 10.57g/0.373oz |
| Qts | 0.45 |
| Re | 5.3 |
| Vas | 5.39ft/0.19ft3 |
| BI | 9.68Tm |
| Cms | 0.16mm/N |
| Rms | 1.23kg/s |
| Le (at 1kHz) | 1.73mH |
Mounting Information
| Overall diameter | 189mm/7.44in (max) |
| Overall depth | 78.5mm/3.1in |
| Cut-out diameter | 150mm/5.9in |
| Mounting slot dimensions | 7.5mm x 5.5mm/0.3in x 0.22in |
| Number of mounting slots 4 | |
| Mounting PCD range | 173-175mm/6.81-6.89in |
| Unit weight | 1.9kg/4.2lb |
Packed Dimensions & Weight
| Single pack size W x D x H | 190mm x 190mm x 110mm/7.5in x 7.5in x 4.3in |
| Single pack weight | 2.5kg/5.5lb |
| Multi pack size W x D x H | 345mm x 345mm x 190mm/13.6in x 12.4in x 7.5in |
| Multi pack weight | 20kg/44lb |
