JDP36BDCT - Pan GE - Free user manual and instructions
Find the device manual for free JDP36BDCT GE in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Electric Range / Stove |
| Brand | GE |
| Model | JDP36BDCT |
| Dimensions (Approx.) | 30 in (W) x 27 in (D) x 36 in (H) |
| Weight | Approx. 150 lbs |
| Power Supply | 240V, 40 Amp, 60 Hz |
| Cooktop Type | Radiant Electric Coil or Smoothtop (depending on variant) |
| Number of Burners | 4 |
| Oven Type | Electric Self-Cleaning Oven |
| Oven Capacity | 5.0 cu ft |
| Bake/Broil | Yes, with variable broil |
| Control Type | Knobs and digital display |
| Timer | Yes, with delayed bake option |
| Self-Cleaning | Yes, steam clean option available |
| Oven Light | Yes |
| Storage Drawer | Yes, for pots and pans |
| Safety Features | Oven door lock during self-clean, hot surface indicator lights |
| Cleaning and Maintenance | Wipe with damp cloth; use mild cleaner for cooktop |
| Spare Parts Availability | Knobs, heating elements, oven racks available from GE parts |
| Repairability | Modular design; DIY-friendly with proper tools |
| Warranty | 1 year limited parts and labor |
Frequently Asked Questions - JDP36BDCT GE

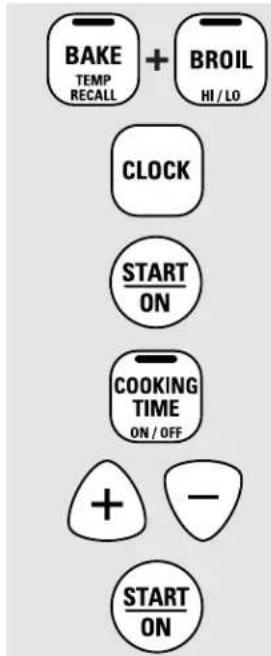

How do I set the oven timer on my GE JDP36BDCT range?
Press the TIMER ON/OFF button, then use the + and - keys to set the desired time. Press TIMER ON/OFF again to start. The oven will beep when time expires.

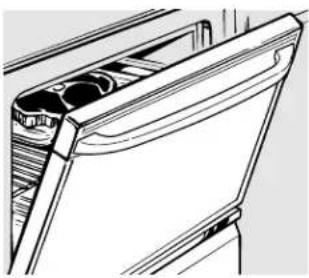

Can I use aluminum foil on the bottom of the oven?
No, do not line the oven bottom with aluminum foil. It can cause poor baking results and damage the oven. Use a foil-lined baking sheet on the rack instead.
How do I clean the ceramic cooktop?
Use a ceramic cooktop cleaner and a non-scratch pad. Apply cleaner, rub gently, then wipe with a dry cloth. Avoid abrasive sponges.
What type of cookware is best for this range?
Flat-bottomed cookware of any material works well. For best performance, use pans with a diameter matching the burner size.
How do I lock the oven door for self-cleaning?
The oven door locks automatically when the self-clean cycle starts. You will hear a click. Do not force the door open until the cycle ends.
Why is my oven not heating?
Check the circuit breaker or fuse. Ensure the oven is set to BAKE or BROIL. If still not heating, the heating element may need replacement.

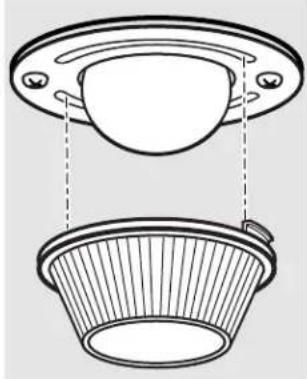

How do I replace a burned-out oven light?
Turn off power to the range. Remove the glass cover (turn counterclockwise). Replace with a 40-watt appliance bulb. Reinstall cover and restore power.
What does the 'Steam Clean' feature do?
Steam Clean uses water and low heat to loosen baked-on soils. Pour 1 cup water on the oven floor, run the cycle for 30 minutes, then wipe clean.
How can I prevent the cooktop from scratching?
Avoid sliding cookware, use pans with smooth bottoms, and clean spills immediately. Never use the cooktop as a cutting board.
Where can I find the model and serial number?
The model and serial number are on a label located behind the storage drawer or on the back panel of the range.
