Product type	Bottle sterilizer
Brand	Haier
Model	HIS-X76SWA1
Dimensions (W x D x H)	595 x 455 x 598 mm
Net weight	27.2 kg
Gross weight	31.2 kg
Rated voltage	AC 220-240 V
Rated frequency	50 Hz
Rated input power	1230 W
Upper cavity capacity	65 ± 5 L
Lower cavity capacity	25 L
Sterilization methods (upper cavity)	Ultraviolet C-ray and broadband light wave
Ultraviolet lamp power / wavelength	15 W / 253.7 nm
Light-wave lamp power / main wavelength	900 W / 250-780 nm
Sterilization temperature (upper cavity)	≥60 °C
Dish-warmer temperature (lower cavity)	≥40 °C
Rated load capacity per rack	7 kg
Average life of light-wave lamp	2000 h
Average life of ultraviolet lamp	5000 h
Functions	Sterilize, Tense sterilize, Cold food sterilize, Dry, Warm-keep, Cup-warm, Dish-warm, Intelligent tracking
Control type	Touch control panel with WiFi module
Safety features	Door lock, automatic shut-off if door open, buzzer alerts, UV protection interlock
Cleaning and maintenance	Wipe with damp cloth; do not use gasoline, alcohol, or abrasive cleaners
Warranty	1 year comprehensive

Frequently Asked Questions - HIS-X76SWA1 HAIER

What should I do if the sterilizer does not start?

Check that the power cord is properly connected and the socket is working. Ensure the door is closed completely. If the problem persists, there may be electromagnetic interference or a faulty control board. Contact Haier customer service.

Why is the ultraviolet lamp not turning on?

First, make sure the door is closed properly, as the lamp only activates when the door is shut. If the lamp still does not light, it may be loose or faulty. Rotate the lamp to ensure good contact, or call a professional for replacement.

Can I sterilize plastic baby bottles in the upper chamber?

Only high-temperature plastics (rated up to 150°C) can be placed in the upper chamber, and they must be at least 22 cm away from the light wave tube. Non-high-temperature plastics should not be used in the upper chamber.

How long does a sterilization cycle take?

The sterilization time depends on the selected mode. For the standard 'Sterilize' function, the time is at least 20 minutes after the temperature reaches ≥60°C. The 'Tense Sterilize' function takes at least 10 minutes at ≥90°C.

What does the 'Intelligent' function do?

The Intelligent tracking function automatically detects the environment inside the upper chamber and runs a sterilization program accordingly. It can also maintain a constant temperature during operation.

Why is the door locked and how do I open it?

The door locks automatically during upper chamber operation to prevent burns and UV exposure. After the program ends, it will unlock once the temperature drops to a safe level. If you need to open it urgently, turn off the power to release the lock, but be cautious of hot surfaces.

Can I use the sterilizer for items other than tableware?

This sterilizer is designed only for household utensils such as dishes, bottles, and cups. Do not put towels, shoes, or other non-utensils inside, as it may cause damage or fire risk.

How do I clean the sterilizer?

Always unplug and let it cool before cleaning. Use a damp cloth to wipe the interior and racks. Avoid harsh chemicals like gasoline, alcohol, or abrasive powders. Dry thoroughly before next use.

What should I do if the light wave lamp is not working?

Check that the connectors are securely attached. If the lamp or door switch is faulty, contact Haier service for replacement. Do not attempt to repair it yourself.

Is the sterilizer safe for use around children?

Children should not be allowed to use or touch the sterilizer. The appliance becomes hot during operation, and the UV light is harmful if exposed. Always supervise and keep children away.

USER MANUAL HIS-X76SWA1 HAIER

INSTALLATION GUIDE/USER GUIDE

CONTENTS

1. Instruction ....3
2. Safety and warnings ......4
3. Technical information & Packing list 5
4. Installation instructions ......7
   5.Operating instructions 9
   6.Cleaning and maintenance 12
   7.Troubleshooting 13

Dear Customer,

Congratulations on your purchase. We aim to make our products exceptionally easy to use and extremely efficient. After reading the instruction manual, we hope operating the sterilizer will be easy.

Before being packaged and leaving the manufacturer, the sterilizer was thoroughly checked with regard to safety and functionality.

These instructions have been compiled in order to help you learn how to handle the appliance. So please read them carefully before you use the appliance for the first time in order to avoid possible accidents.

Please keep the instruction manual and store it in a safe place so that it can be consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible accidents.

Introduction

• The product is equipped with two independent-controlled cavities, and with two control mode: Manual and Intelligent. Upper cavity with ultraviolet C-ray function, broadband light wave pasteurization function, and drying function; Lower cavity with PTC hot air dish-warmer function. The upper two sterilization methods are physical, without producing ozone. No chemical pollution or penetrating harmful rays. Safe and effective to use.
• Principle of sterilization: the upper cavity with ultraviolet C-ray function and broadband light wave pasteurization function. Ultraviolet C-ray can quickly penetrates microbcell membrane, making microorganisms lose the ability to replicate, and at the same time make nuclear proteins coagulate to kill bacteria and viruses; Broadband light wave pasteurization can heat microorganism instantly, cause cellwall to break, inactivate and die, achieve the purpose of sterilization.
  Suitable for sterilization of household utensils, not suitable for sterilization of non-utensils or medical purposes.
  • This product implements the standard:

GB 17988-2008 «Safety and Hygienic Requirements for Tableware Disinfection Cabinet» GB 4706.1-2005 «Safety of Household and Similar Electrical Appliances Part 1: General Requirements»

Q/HZCD J0202 010-2019 «Sterilizer»

Health permit number: Lu Wei Xiao zi Hao (2020) No.0678

Names of principal components HIS-X76SWA1

1. Power cord
2. Touch control panel
3. Door handle

4. Upper door panel

5. Upper rack

6. Lower drawer
7. Lower door panel

Safety and warnings

Icons

Forbidden

Forbid to operate

Warning

Must follow guidance

Attention

Should be aware and notice

Forbidden	When power interruption occur during the process of operation, the cavity is in a high temperature state, Do not immediately open the door to take things, otherwise it may lead accidental injury such as scald.
	Non-professional maintenance personnel is prohibited to change the internal wiring.
	Do not disassemble and repair without permission.If the power cord is damaged, it must be replaced by the manufacturer or its maintenane department or a similar professional.
	Do not soak the sterilizer in water or spray the sterilizer.
	Do not allow children to use, or contact the sterilizer.
	Do not use power sources other than 220~240V or power sockets in bad contact.
	Do not damage or crush the power cord with any heavy objects.
	Do not put non-utensils such as dishwashing towels into the sterilizer.
	Please use a separate socket with rated current above16A and make sure ground reliably.
Attention	When pulling the plug from the socket, you must hold the head of the plug to pull it out. Not pull the power cord. Otherwise it may cause dangers like electric shock, short circuit etc.
	Do not touch the glass surface and border of the door to avoid scalding hand.The door of the cabinet can only be opened after the sterilization is finished for 20min. If it is urgent to open the door, please be careful to prevent burns.
	The door must be closed first ,then turn on the sterilizer. If the door is not closed, not only the sterilization cannot fulfill,It may also pose a risk of hot burns and ultraviolet radiation.
	If it is found that the light emitted by the ultraviolet sterilization lamp can be directly seen without passing through any transparent object in the process of use, please stop using turn off the power immediately, notify the professional for repair. If ultraviolet sterilization lamp is damaged, will have to replace it with the same power and wavelength -gth.

Technical information & Packing list

◆ Technical information

Product		Sterilizer
Model name		HIS-X76SWA1
Rated voltage		AC220-240V
Rated Frequency		50Hz
Rated input power		1230W
Upper cavity	Sterilization level	**
	Capacity/L	65 ± 5
	Light-wave lamp: Power/Main wavelength	900 W /250-780 nm
	Ultraviolet lamp: Power/Wavelength	15 W /253.7 nm
	Ultraviolet radiation illumination	≥70W/cm2
	Sterilization temperature	≥60°C
Lower cavity	Capacity/L	25$
	Power of heater	315 W
	Dish-warmer temperture	≥40°C
Product dimension(Width*Depth*Height) (mm)		595 X 455 X 598
Net/Gross weight		27.2 kg / 31.2 kg
Rated load capacity of each rack		7kg
Average life of light-wave lamp		2000h
Average life of Ultraviolet lamp		5000h

◆ Packing list

Name	Quantity	Name	Quantity
User manual	1	Set screw	2
Sterilizer	1	APP Operation Instruction	1

◆ Circuit diagram

Installation instructions

Warning	Please ground reliably, but do not connect ground wire to gas pipe, lightning rod or telephone line; Unreliable grounding may cause lelectric shock and accidents.
	It should be installed in a place that can bear the weight, otherwise some parts may drop and cause damage or loss.
	Installation should be entrusted to a professional, otherwise it will be dangerous.
Attention	Do not use door handle when carring, it should be lifted from the bottom of the cabinet body,gently lift up and put down.
	Cabinet body, gently lift up and put down.

◆ Preparation and inspection before installation

• Before installation a suitable position on the cabinet should be reserved in accordance with the installation diagram; Installation must be more than 5 cm away from the gas or heating appliances or separated by a partition.
  Before installation, the strength and surface flatness of the installation site must be checked, otherwise the machine may fall off, and the cupboard door may be skew and misplace.
  ● Power socket should be set within 0.3 meters next to reserved position of the sterilizer.
• The impulse current is about 10 amperes, please consider the electrical capacity.
• Test the machine according to the instruction manual.

Installation

Built-in installation should be in accordance with the installation diagram, before use, make sure it is fixed steady.
- Should set vent in appropriate part of the built-in cabinet, the user should decide the position of the vent.
- Install the sterilizer steadily into the reserved position in the cabinet, open the door, use 2 fix screw to fix the sterilizer in the position that is flush with the face of the door.(Attention: do not tilt)

Installation diagram: Sterilizer Dimension and Cabinet dimension (mm)

About dimension of sterilizer and cabinet:

Height of floor cabinet door plate=620mm, when the height of local cabinet door plate is >620mm, it is recommended to add decorative strip on the top of sterilizer to ensure that the height of floor cabinet door plate is level with that of floor cabinet.

Operating instructions

Control panel

Intelligent Upper cavity Function Dry Lower cavity Function Lock

◆ About Control buttons

Touch control button	Function	Operation details
[CSXT]	Turn ON/OFF	Switch on the power of the plug,and the power button icon will be half bright. Touch the button for 1.5 seconds,the power button icon will be fully bright, and the other operable function icons will be half bright.Touch the power button when it is not locked status, the sterilizer will be shut down.
[KW05]	Start/Cancel Upper cavity functions	Touch the button continuously when the machine is ON, the icon will be lit bright,and the function icons of upper cavityos lit up or off in a cycle, the three functions of Sterilize,Tense sterilize and Cold food sterilize are selected or cancell ed respectively.5 seconds after the function selection and without further operation the corresponding function of upper chamber starts to run.When the upper cavity function program runs, by touching the button the upper chamber exits the executing function.
[OTA2]	Start/Cancel Lower cavity functions	Touch the button continuously when the machine is ON, the icon will be lit bright,and the function icons of lower cavityos lit up or off in a cycle, the three functions of Warm-keep, Cup-warm and Dish-warm are selected or cancelled respectively.5 seconds after the function selection and without further operation,the corres ponding function of lower chamber starts to run. When the lower chamber function.
[WBDT]	Start/Cancel intelligent tracking function	Touch the button when the machine is ON,the icon will be lit bright,and the intelligent tracking function starts to run,the upper chamber will automatic -ly detect the environment inside, and according to the detection result aut -omatially run the sterilization program.
[ZDES]	Start/Cancel Dry function	Touch the button when the machine is ON, the icon will be lit bright, and the drying function of upper chamber starts to run.In the process of upper cavi -ty drying,touch the button to exit the function.
[SH2C]	To lock the buttons on the control panel,to prevent misoper -ation	When the machine is on, press the button for 3 seconds to lock the touch buttons on the control panel. Press the button again for 3 seconds to unlock the buttons on the control panel.
[DB4K]	To Set up and display wifi connection	When the machine is off, to set up the network, long press the WIFI button for 5 seconds to enter the setting mode. For specific operation,please refer to the mobile APP operation manual.

• Functional specifications

Functions	Working status			Function effect
	Chamber/Mode		Time/Temperature
[5062] Sterilize	Upper chamber	Ultraviolet and broadband light	time≥ 20min temperature≥60°C	Can kill the common intestinal pathogens, viruses in the kitchen, used for tableware sterilization.
Tense Sterilize	Upper chamber	Ultraviolet and broadband light	time≥ 10min temperature≥90°C	Can kill the common intestinal pathogens, viruses in the kitchen, used for tableware sterilization.
Cold meal	Upper chamber	Ultraviolet	time:20min	To sterilize the surface of tableware, vegetables, fruits and dried fruits at normal temperature.
[XSTY] Dry	Upper chamber	light wave	42min	For drying/dehumidifying tableware.
Warm-keep	Lower chamber	PTC hot air	2 h / ≤50°C	Warm-keeping for tableware and food
Cup-warm	Lower chamber	PTC hot air	5min / ≤50°C	For cups warm-keeping
Dish-warm	Lower chamber	PTC hot air	5min / ≤60°C	For dishes warm-keeping
[AAAT] Lock	When the machine is on, press the button for 3 seconds to ☐ the touch buttons on the control panel.Press the button again for 3 seconds to unlock the buttons on the control panel.

• Door switch protection function: during the work of sterilizer, if the door is not closed, the buzzer will alarm, five minutes without closing the door, the sterilizer will be automatically shut down.
• Buzzer sound function: For effective operation, buzzer beep once; For invalid opera -tion ,buzzer beep twice;At the end of a normal function cycle, the buzzer beep heree times.
• Intelligent tracking function: Touch the button, if 5 seconds without other operation, or after a selected function is finished, the sterilizer will automatically turn into the tracking sterilization state. In the process of intelligent tracking, only the intelligent light flashes. When the intelligent time arrives, the sterilization function starts and the power lamp is always on. After the sterilization is completed, turn back to the intelligent tracking status, and the intelligent light will resume flashing status. To exit the Intelligent tracking function, just touch the "Intelligent" button.
• Intelligent constant temperature function: during the operation of the selected program, when the corresponding chamber temperature reaches the set temperature, the light wave tube will change from "continuous operation" change from "continuous operation (heating)" to "intermittent operation (heating)" and automatically switch to the intelligent constant temperature state.

Note: The sterilization time refers to the time experienced when the central point temperature in the sterilizer reaches the specified value and the timing starts, until the control device stops working when the power is cut off and the sterilization temperature drops below the specified value. The working cycle is the time required when the sterilizer starts to work until the control device cuts off the power supply of the last electrical component producing sterilization material. The working cycle varies with the ambient temperature, and the working cycle does not equal the sterilization time.

Safety door lock function: in the working process of upper chamber, the door will be locked, do not pull the door handle, so as not to damage the door lock structure. After the function is over, when the temperature in the chamber is lowered to the set value, the door lock will open automatically. Please do not open the door in advance. If the power button is turned off during the work, the door lock will open automatically. Please do not put your hand into the sterilizer to avoid burns.

Rack instructions

Attention	First to remove the fixing material and packing materials of accessories before use the Rack.
	After washing the dishes, please drain the water first before put the dishes into the sterilizer, however there is no need to wipe the dishes. Because the surface moisture of the tablewares will be heated into steam, with stronger heat penetration and better sterilization effect.
	To ensure sterilization effect, only one piece of cutlery can be put in each case, and make sure that the cutlery is not crowded together. In upper chamber,for sterilization for high-temperature plastics (150 degrees) and wood tableware, must be placed away from the light wave tube more than 22 cm.For those non-high-temperature tableware, cannot be put in the upper chamber.Do not put towels, shoes and other non - utensils into the sterilizer.

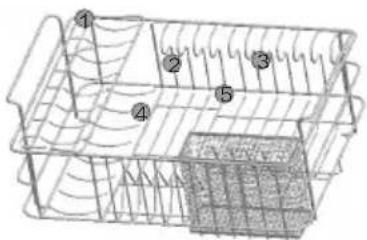

• Upper rack usage (tableware instruction for each area)

① Middle/Small bowl; ② Middle/Small dish;
③ Big dish/Fish dish/Soup bowl;
④ small dish;
⑤ Knife and fork, Spoon, mother and baby area.

- Lower warm-drawer usage

The lower drawer is equipped with Push-out structure, to open the drawer, push the middle area of the glass. To close the drawer, please push the middle area of the glass again.

Cleaning and maintenance

• Before clean and maintenance work, first to turn off the sterilizer, unplug the power plug, and wait for the machine to cool down. Do not use gasoline, alcohol, or other organic solvents, cleaning powder, etc., so as to avoid machine discoloration, surface paint cracks.
• Remove stains from the utensils. To avoid peculiar smell inside the sterilizer, before putting in the tableware, the grease and stains on the surface of the tableware should be cleared up thoroughly.
  In order to extend the service life, please timely clean the cavity and
  • the rack, to remove the surface dirt, water stains, remaining water, etc.

Fault Phenomenon	Possible causes	What to do
The machine doesn't work	Electricity is not connected	Connect the electricity
	Electricity power failure	Change to reliable power supply
	There is a source of electromagnetic interference nearby	Eliminate the source of electromagnetic interference
	The power board or controlboard is broken	Call the aftersales center
The ultraviolet sterilization lamp is not on	The door is not closed well.	Close the door.
	Poor contact of the ultraviolet sterilization lamp	Please rotate the lamp tube and install it in place
	The starter is broken	Call the aftersales center
	The ultraviolet sterilization lamp or the door swith is broken
The light wave sterilization lamp is not on	The connector is not firmly connected
	The light wave sterilization lamp or the door swith is broken

Customer Name :- .... Address :- ....

Serial Number :- Date of Purchase :- Model No. :-

Dealer Seal :-

HAIER WARRANTY

HAIER APPLIANCES (INDIA) PVT. LTD. (here-in-a) or referred to as "the Company") hereby offers the following warranty to the original domes: purchaser commencing from the Date of the Purchase (DOP). The Company at its sole discretion, will free of charge repair or replace any defect part or parts which prove to be defective in workmanship and/or materials and not due to abnormal or improper usage

CONDITIONS OF WARRANTY

1) This warranty will be automatically terminated on the expiry of the warranty period from the Date of Purchase (DOP).
2) The Company is not liable for any delay in servicing due to reasons beyond the control of the Company or any of its authorized service center.
3) Parts replaced or repaired under this warranty are warranted throughout the remaining of the original warranty period.
4) It is entirely le to the Company's discretion to repair/replace parts at the site of installation or at the authorized service center.
5) This warranty shall be strictly limited to the repairs or replacement of the defecte part specified in warranty. This warranty shall not cover any consequen al or resulng liability.
6) This warranty shall not, in any case, extend towards payment of any monetary consideration on whatsoever or replacement or return of the product.
7) The Comp any may repair/supply parts free of cost during the warranty period. This warranty does not cover any Excise duty, Central or Sales tax, Octroi and other local taxes or levies on the components/parts.
8) The parts shall be replaced by functionally operating equivalent material only and not with brand new ones and are likely to be different from the one originally fitted. The parts thus removed shall be taken back by the Company.
9) The Company reserves the right to retain any part or component replaced at its sole discretion during the warranty period.
10) In no event the Company or its authorized service center, be liable for any consequential damages or resulting liability, damage or loss arising directly or indirectly out of any defect in the product.
11) This warranty is not valid in case of the following events.
a) If the Product has been Installed/Serviced/Repaired/Opened or Tampered by any unauthorized personnel.
b) If defects arise/caused by accidents, altera☑n, misuse, neglect, subs☑ul on of original components with spurious/non-genuine components, a☑acked by household pest / rodents, fire, flood, earthquake, lightning and/or any other act of God/natural calamíes.
c) The product is shi ^led outside India.
12) (a) For any service under this warranty beyond city/town/municipal limits from the Company/authorized service center, a fixed charge of Rs. 100 will be collected from the customer in addl on to the actual to and for charges by the shortest route.
(b) Service charges applicable after expiry of comprehensive warranty.
13) Any change of loca on or change in the ownership during the warranty period must be in nated in wrig to the Company.
14) The Company's employees or its authorized representations have no authority to vary the terms of this warranty
15) Brass burners valve carry warranty against any manufacturing defect for 60 months. Warranty is not applicable for De-colora on of the burners.
16) The warranty does not cover rust, oxida ☐n, discolora ☐n, s cratches, and wear & tear, plas ☒, rubber, aesthe ☒, filters, Consumable parts.
17) HOB Tempered glass top have 24 Month warranty for any manufacturing defect. The warrant of glass become null & void in following condi-ons.
a) Glass breakage due to improper use or accidental damage.
b) Use of gas tandoor / Gas Oven / Dosa Tawa.
c) Sprinkling of water on hot Glass surface.
d) Other safety norms / precau☒ on not followed.
18) This warranty is affected in New Delhi and claims, if any, shall be made only before the courts having jurisdiction in New Delhi and no claim shall be made against the Company outside New Delhi not withstanding that the Appliance may have been sold or delivered elsewhere.

Segment	Warranty
	Period Parts not Covered
BUILT - IN - HOB	1 Year Comprehensive(1 + 1 Yr. on Glass) &(1 + 4 Yrs. On Burner & Valve )	Pan Support, Leg, Drlp Tray & Knob,Mixing tube, Plas × c Parts, accidents ordamage, etc.
HYBTID - HOB
TABLET - HOB
HOOD	1 Year Comprehensive	Glass, Duct Cover, Body, Filters, OilCollector & Cleaning, Bulbs, Switches,Knobs, Plas × c Parts, accidents or damage,etc.
BUILT - MWO	1 Year Comprehensive	Outer Body, Cavity, Door, Glass, Handle,Knob/ Touch Panel, bulbs, Plas × c Parts,accidents or damage, etc.
BUILT - IN - OVEN	1 Year Comprehensive
BUILT - STERILIZER	1 Year Comprehensive

Haier Appliances (India) Pvt. Ltd.

Building -1, Okhla Industrial Estate Phase III, New Delhi -110020

Tel- +91-1139496000,30674000,

Fax: [phone]

CUSTOMER CARE

1800-102-9999, 1800-419-9999

(Toll Free - 24x7)

Email: [e-mail]

Whatsapp : [phone]

For Quick Connect to Haier India Scan QR Code

Customer Name :- .... Address :- ....

Serial Number :- Date of Purchase :- Model No. :-

Dealer Seal :-
