USER MANUAL 48-22-3522 MILWAUKEE

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTSREVISED BULLETINDATE
TORQUE LOCKTM PLIERS / CLAMPSApr. 2014
48-22-34055" Curved Jaw48-22-341010" Curved Jaw48-22-35226" Swivel C-Clamp
48-22-34066" Long Nose48-22-35077" Straight Jaw48-22-352111"Swivel C-Clamp
48-22-34077" Curved Jaw48-22-351010" Straight Jaw48-22-353111" C-Clamp
48-22-34099" Long Nose48-22-352010" Curved Jaw48-22-35326" C-Clamp

MILWAUKEE 48-22-3522 - 1

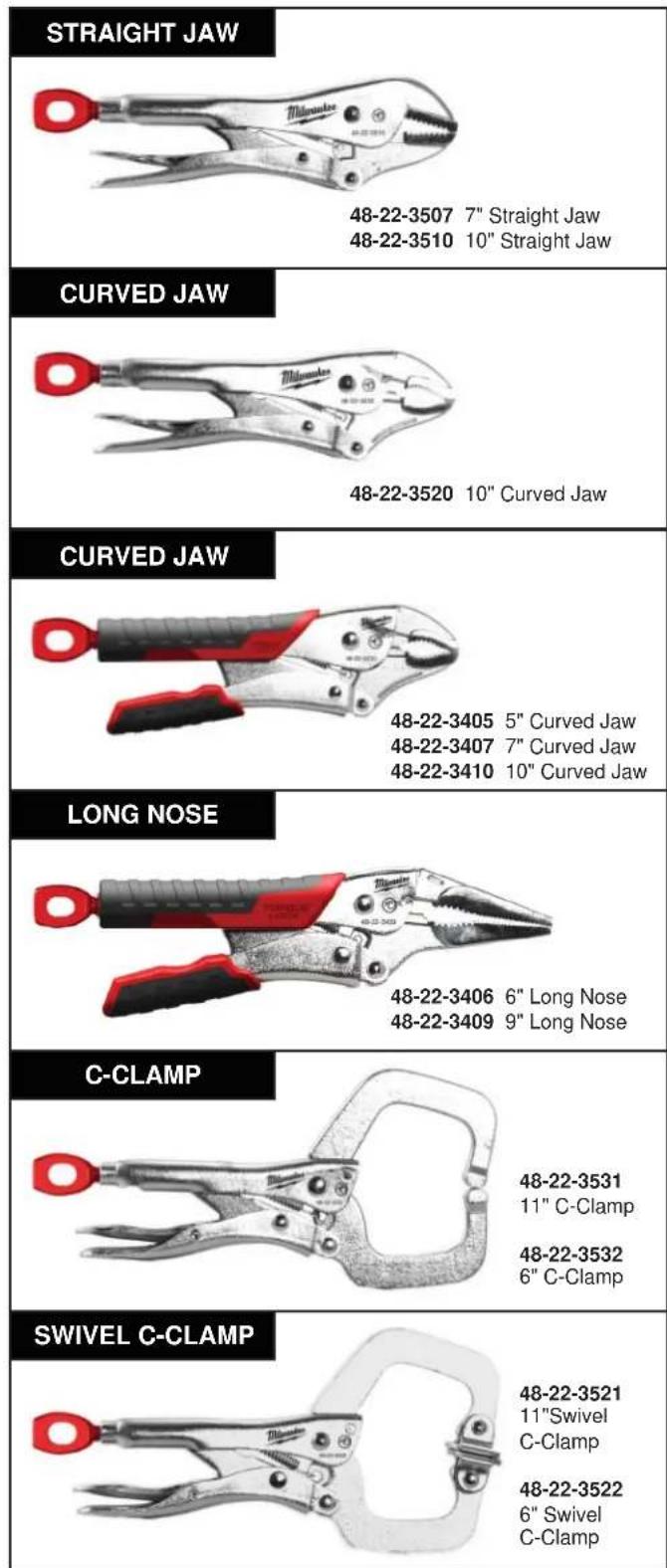

48-22-3507 7" Straight Jaw
48-22-3510 10" Straight Jaw
48-22-3520 10" Curved Jaw
48-22-3405 5" Curved Jaw
48-22-3407 7" Curved Jaw
48-22-3410 10" Curved Jaw
48-22-3406 6" Long Nose
48-22-3409 9" Long Nose
48-22-3531
11" C-Clamp
48-22-3532
6" C-Clamp
48-22-3521
11"Swivel
C-Clamp
48-22-3522
6" Swivel
C-Clamp

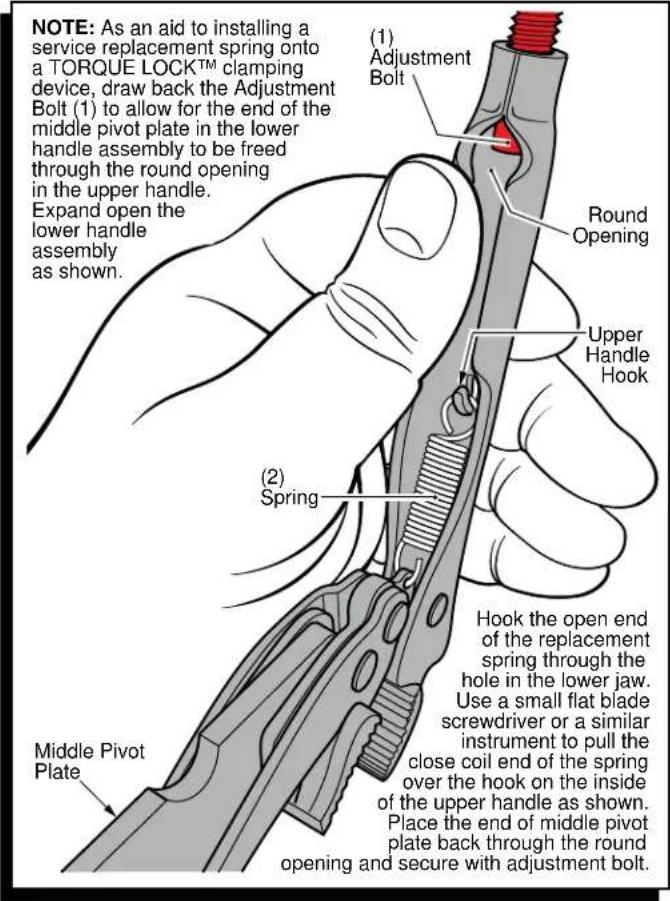

NOTE: As an aid to installing a service replacement spring onto a TORQUE LOCK™ clamping device, draw back the Adjustment Bolt (1) to allow for the end of the middle pivot plate in the lower handle assembly to be freed through the round opening in the upper handle. Expand open the lower handle assembly as shown. (1) Adjustment Bolt Round Opening Upper Handle Hook (2) Spring Middle Pivot Plate Hook the open end of the replacement spring through the hole in the lower jaw. Use a small flat blade screwdriver or a similar instrument to pull the close coil end of the spring over the hook on the inside of the upper handle as shown. Place the end of middle pivot plate back through the round opening and secure with adjustment bolt.

Illustration above serves as an aid for the installation of a Spring Kit in a hand tool without handle grips. See page 2 for the illustration showing spring installation into a hand tool with handle grips.

TOOL NO.TOOL DESCRIPTION SPRING KIT ADJ. BOLT KIT
48-22-34055" Curved Jaw 40-50-093506-14-0115
48-22-34066" Long Nose40-50-093506-14-0115
48-22-34077" Curved Jaw 40-50-094006-14-0110
48-22-34099" Long Nose 40-50-094006-14-0110
48-22-341010" Curved Jaw 40-50-094506-14-0105
48-22-35077" Straight Jaw 40-50-094006-14-0110
48-22-351010" Straight Jaw40-50-0945 0614-0105
48-22-352010" Curved Jaw 40-50-094506-14-0105
48-22-352111" Swivel C-Clamp40-50-094506-14-0105
48-22-35226" Swivel C-Clamp40-50-093506-14-0115
48-22-353111" C-Clamp40-50-094506-14-0105
48-22-35326" C-Clamp40-50-093506-14-0115

MILWAUKEE TOOL • www.milwaukeetool.com

13135 W. LISBON RD., BROOKFIELD, WI 53005

Drwg. 1

NOTE: As an aid to installing a service replacement spring onto a TORQUE LOCK™ clamping device (with handle grip), draw back the Adjustment Bolt (#1 not shown) to create an opening that will allow a clear view and easiest access to the hook that is inside of the upper handle. Feed the open end of the replacement spring through the hole in the lower jaw. Route the spring into the upper handle cavity, under the handle grip. Use a small flat blade screwdriver or a similar instrument to pull the close coil end of the spring over the hook on inside of upper handle as shown. (2) Spring Handle Grip Upper Handle Hook Handle Grip
