Product Type	LCD Monitor
Display Size	30 inches (76.2 cm)
Native Resolution	2560 x 1600 (WQXGA)
Panel Type	IPS (In-Plane Switching)
Aspect Ratio	16:10
Brightness	350 cd/m²
Contrast Ratio	1000:1 (typical)
Response Time	6 ms (gray-to-gray)
Viewing Angle	178° horizontal / 178° vertical
Color Support	1.07 billion colors
Input Connectors	DVI-D, DisplayPort 1.2, HDMI, VGA, USB 3.0 (4 ports)
Adjustability	Tilt, Swivel, Pivot, Height adjustable (150 mm range)
VESA Mount Compatible	Yes, 100 x 100 mm
Built-in Speakers	2 x 3W
Power Consumption	Typical 85 W, Standby < 0.5 W
Dimensions (with stand)	677.4 x 451.2 x 240.6 mm (26.7 x 17.8 x 9.5 in)
Weight (with stand)	12.1 kg (26.7 lbs)
Weight (without stand)	7.9 kg (17.4 lbs)
Certifications	ENERGY STAR, EPEAT Gold, TCO Certified
What's in the box	Monitor, Stand, Power cord, DVI cable, Displayport cable, USB cable, Quick setup guide
Maintenance	Clean with a soft, dry cloth. Avoid harsh chemicals.
Safety	Use supplied power adapter; do not cover vents; place on stable surface.

Frequently Asked Questions - ThinkVision LT3053p LENOVO

How do I connect my Lenovo ThinkVision LT3053p to a computer?

Use the included DisplayPort, DVI-D, or HDMI cable to connect the monitor to your computer. For USB functionality, also connect the USB upstream cable from the monitor to your PC.

What is the maximum resolution supported by the LT3053p?

The native resolution is 2560 x 1600 (WQXGA) at 60 Hz. Ensure your graphics card supports this resolution.

How do I adjust the height and tilt of the monitor?

The stand allows height adjustment (150 mm), tilt (-5° to 30°), swivel (±45°), and pivot (rotation to portrait mode). Use firm but gentle pressure to adjust.

Can I mount this monitor on a wall?

Yes, the monitor is VESA compatible with 100 x 100 mm mounting pattern. Remove the stand to attach a VESA bracket.

How do I clean the screen safely?

Power off the monitor and unplug it. Use a soft, lint-free cloth slightly dampened with water. Do not spray liquid directly on the screen. Avoid alcohol or ammonia-based cleaners.

Why is there no signal on my LT3053p monitor?

Check that the video cable is securely connected to both the monitor and the computer. Ensure the correct input source is selected using the Input Select button. Also verify your computer is powered on and outputting video.

Does the monitor have built-in speakers?

Yes, it has two 3W speakers. Audio can be played via the HDMI or DisplayPort input if your source supports audio over these interfaces.

How do I reset the monitor to factory settings?

Press the Menu button on the bottom bezel, navigate to Setup or Other Settings, and select Factory Reset. Confirm the reset.

What is the warranty period for the ThinkVision LT3053p?

Lenovo typically offers a 3-year limited warranty for this monitor. Check your purchase documentation or Lenovo support for region-specific details.

Can I use a different power adapter?

Only use the Lenovo supplied power adapter or a compatible replacement from Lenovo. Using an incompatible adapter may damage the monitor or cause safety hazards.

USER MANUAL ThinkVision LT3053p LENOVO

LT3053p Wide Flat Panel Monitor User's Guide

Product numbers

60A4-RAR1-WW

CE

First Edition (January 2013)

© Copyright Lenovo 2013.

LENÖVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Contents

Safety information.... iii

General Safety guidelines ....iii

Chapter 1. Getting started ....1-1

Shipping contents.... 1-1

Notice for use....1-2

Product overview 1-4

Types of adjustments.... 1-4

Tilt....1-4

Swivel 1-4

Height Adjustment 1-5

Monitor Pivot 1-5

Monitor controls 1-6

Cable lock slot 1-6

Setting up your monitor 1-7

Connecting and turning on your monitor 1-7

Registering your option 1-14

Chapter 2. Adjusting and using your monitor....2-1

Comfort and accessibility....2-1

Arranging your work area.... 2-1

Positioning your monitor 2-1

Quick tips for healthy work habits 2-2

Accessibility information 2-2

Adjusting your monitor image 2-3

Using the direct access controls 2-3

Using the On-Screen Display (OSD) controls 2-4

Selecting a supported display mode 2-9

Image rotation 2-10

Understanding power management 2-11

Caring for your monitor 2-12

Detaching the monitor base and stand 2-12

Wall Mounting (Optional) 2-12

Chapter 3. Reference information....3-1

Monitor specifications 3-1

Troubleshooting 3-3

Manual image setup 3-4

Manually installing the monitor driver 3-5

Installing the monitor driver in Windows Vista 3-5

Installing the monitor driver in Windows 7....3-6

Installing the monitor driver in Windows 8/8.1....3-7

Installing the monitor driver in Windows 10....3-8

Getting further help 3-8

Service information 3-9

Customer responsibilities 3-9

Service parts 3-9

Appendix A. Service and Support....A-1

Registering your option....A-1

Online technical support A-I

Telephone technical support....A-1

Appendix B. Notices ...... B-1

Recycling information B-2

Trademarks......B-2

Safety information

General Safety guidelines

For tips to help you use your computer safely, go to:

http://www.lenovo.com/safety

Before installing this product, read the Safety Information.

Chapter 1. Getting started

This User's Guide provides detailed operation instructions for the user. For quick instruction overview, please see the Setup Poster for brief information.

Shipping contents

The product package should include the following items:

• Setup Poster
  • Reference and Driver CD
• Flat Panel Monitor
  • P o w e r C o r d
  • D V I C a b l e
• DP Cable
• USB 2.0 Cable
• USB 3.0 Cable
  • Analog(VGA) Interface Cable
• Shading Hood Packet

Notice for use

To set up your monitor, please see the illustrations below.

Note: Do not touch the monitor within the screen area. The screen area is glass and can be damaged by rough handling or excessive pressure.

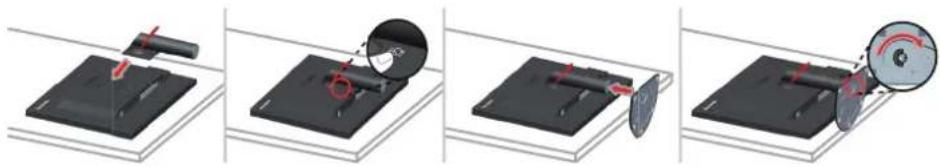

Four-step diagram showing a mechanical assembly with a tool and rotating components, no text or symbols present.

1. Place your monitor with the screen face down on a soft flat surface.
2. Align the stand assembly bracket to the monitor.
3. Insert the bracket towards monitor until it locks in place.

Note: To install a VESA mount, please see "Wall Mounting (Optional)" on page 2-12.

To install monitor shading hood, please see the illustrations below.

1. Lay the top cover ● of the shading hood flat.
2. Align the locks on hood leaf ^① bottom to corresponding hooks on the side of hood cover ^② (Picture 1).
3. Fasten the locks by pushing the hood leaf in the direction of the arrow as indicated in Picture 2, until the hooks are tightly locked in place. Repeat the same procedure

(Picture 1, 2 and 3) to set up the other hood leaf ^3 .

1. Shading hood installation complete.
2. Turn the properly installed shading hood upside down as indicated in Picture 5.
3. Put the shading hood over the monitor, then slide it down into the slide rail on the side of monitor frame until the shading hood stops at bottom.

To uninstall the monitor shading hood, please see the illustration below.

1. Remove the shading hood from the monitor.

2. Turn the shading hood upside down.

3. Unlock the hooks of hood cover by pushing the hood leaf in the direction of arrow as indicated in Picture 6. Repeat the same procedure (Picture 5 and 6) to the other hood leaf.

4. Detach the hood leaves from the hood cover.

5. Shading hood uninstalled. Please store the hood leafs and hood cover in safe place where children cannot reach.

1. The window cover on the top of the shading hood is specially designed for the use of color calibrator.

2. To set up the color calibrator, user needs to first open the window cover on the top of the shading hood, then push the calibrator wire through the rectangular hole.

Note: Pay attention to the following advices when using the monitor shading hood.

1. Do not carry the monitor with the hood attached to monitor. While carrying the monitor, the hood may fall or slip off, which may result in injury or equipment damage.

2. Make sure the open/close cover is closed properly. If the cover is not closed properly, the ventilation slots on the monitor will be blocked and there will not be sufficient airflow for temperature regulation. This may cause overheating inside the monitor and may result in fire, electric shock, or equipment damage.

3. Do not place any object on the hood. If the hood falls or slips off or the monitor falls over, it may result in injury or equipment damage.

4. Do not rotate the monitor screen while the hood is attached. Doing so may cause the hood to slip off, which may result in injury or equipment damage.

Product overview

This section will provide information on adjusting monitor positions, setting user controls, and using the cable lock slot.

Types of adjustments

Tilt

Please see the illustration below for an example of the tilt range.

Swivel

With the built-in pedestal, you can tilt and swivel the monitor for the most comfortable viewing angle.

Height Adjustment

For height adjustment, user needs to first press down the monitor with substantial amount of pressure, then press the round release button before lifting the monitor to the desired height. (refer to the second image as below)

Monitor Pivot

• Adjust the monitor height before rotating the monitor screen. (Make sure that the monitor screen ascent to its highest point, and it inclines backward at 30°)
• then rotate clockwise until the monitor stops at 90°.

Front view of a flat-screen monitor with a red upward arrow pointing to the side (no text or symbols visible)

Illustration of a computer monitor with a 90-degree rotation indicator (no text or symbols on the monitor itself)

Monitor controls

The keypad controls on the front panel are accesses to various functions.

For information on please utilize these keypad controls, image" on page 2-3.

Cable lock slot

Your monitor is equipped with a cable lock slot located on the rear of your monitor.

Setting up your monitor

This section provides information on how to set up your monitor.

Connecting and turning on your monitor

Note: Be sure to read the Safety information located on page iii before carrying out this procedure.

1. Power off your computer and all attached devices, then unplug the computer power cord.

1. Connect the cables according to below icon indication.

1. Connect one end of the analog signal cable to the monitor VGA (Analog) connector and the other end to the computer.

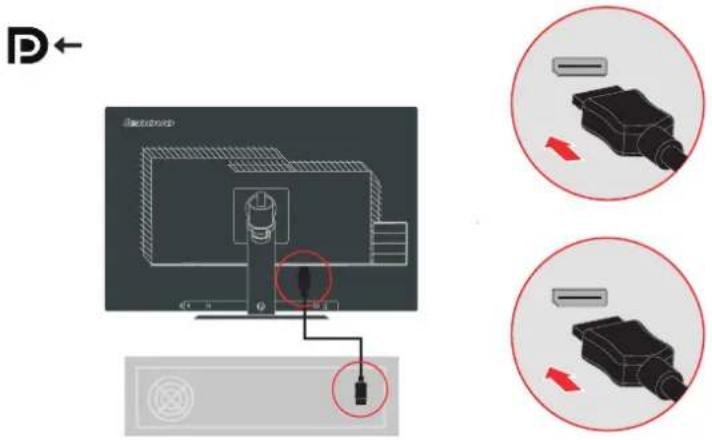

1. Connect one end of the DP cable to the DP connector on the back of the computer, and the other end to the DP connector on the monitor. Lenovo recommends that customers who require to use the Display Port input on their monitor purchase the "Lenovo Display Port to Display Port cable 0A36537".

1. Connect the digital cable to the DVI connector of the monitor and the other end on the back of the computer.

[NO TEXT]

Circular icon with a stylized robot head and upward arrow, no text or symbols present

Diagram of a mechanical device with a textured top and red directional arrow (no text or symbols)

1. Connect one end of the MHL cable to the monitor MHL port and the other end to the mobile phone. MHL(Mobile-High-Definition Link) is an audio/video interface for directly connecting mobile phones and other portable consumer electronic devices to high-definition displays. This allows user to make the viewing of the connected device on the monitor screen while charging it simultaneously.

MHL

Circular icon showing a stylized battery with a red upward arrow, no text or symbols present.

Illustration of a mechanical component with a red upward arrow, enclosed in a circle (no text or symbols)

1. Connect one end of the HDMI cable to the monitor HDMI port and the other end to the computer if it has HDMI output terminal.

HDMI

Circular icon depicting a medical device with a red upward arrow and 'HCG' label (no text or symbols beyond the label)

Illustration of a USB flash drive with a red upward arrow, enclosed in a red circle (no text or symbols)

1. Connect one end of the DP cable to the DP input on the back of another monitor, and the other end to the DP output connector (for daisy chain) on the monitor. Lenovo recommends that customers who require to use the Display Port input on their monitor purchase the "Lenovo Display Port to Display Port cable 0A36537". For more information, go to one of the following:

www.lcnovo.com/support/accessories

www.lenovo.com/support/displayport-cables

www.lenovo.com/accessoriesguide

D →

1. Connect one end of the USB cable to the USB upstream terminal on the back of the monitor, and connect the other end of the USB cable to an appropriate USB port on your computer.

Note: The USB port will stay in function as long as the monitor is connected to power, regardless of whether the monitor is switched on or off.

1. Connect the speaker's audio cable and audio jack of monitor to transfer audio source from Display Port, or HDMI, or MHL.

Note: At the PIP/PBP mode, only main source (Background Screen at PIP mode, Left Screen at PBP mode) can transfer the audio to the jack.

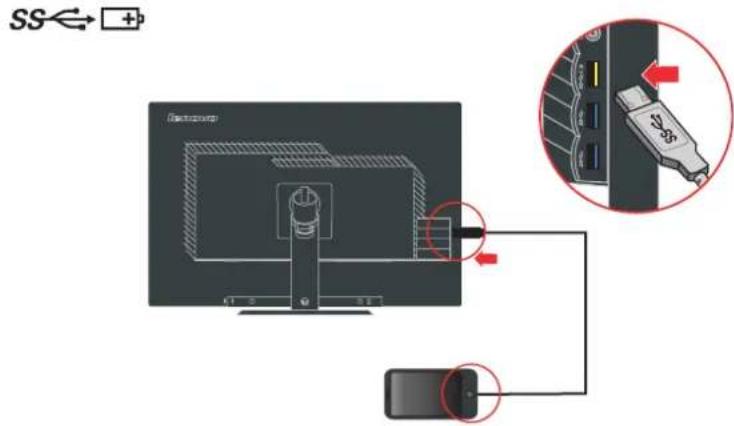

1. The 3 USB ports on the side are the downstream ports dedicate to USB 3.0 Upstream port (on the bottom of monitor), they are compliance with USB 3.0 standard. The top one is compliance USB Battery Charge Standard Version 1.2, that can charge portable device, max to 2A current.

1. The two USB 2.0 downstream ports can be assigned to any of two hosts (USB 2.0 Upstream or USB 3.0 Upstream) by pressing the switching key.

1. Insert the power cord into the monitor, then plug the monitor power cord and the computer cord into grounded electrical outlets.

Note: A certified power supply cord has to be used with this equipment. The relevant national installation and or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G 0.75mm ^2 or H05VVH2-F2 3G 0.75mm ^2 ) shall be used. Alternative a flexible cord be of synthetic rubber according to IEC 60245 (designation H05RR-F 3G 0.75c) shall be used.

1. Assembled Line Cleaner as showed below.

Cross-sectional diagram of a mechanical joint or connector (no text or symbols visible)

1. Power on the monitor and the computer.

[NO TEXT]

Illustration of a flat-screen monitor with two red circular annotations pointing to its sides (no text or symbols present)

Close-up of two finger pressing buttons on a device (no text or symbols visible)

1. To initiate the monitor driver, insert the Reference and Driver CD, click Install driver, and follow the on-screen instructions.

Registering your option

Thank you for purchasing this Lenovo™ product. Please take a few moments to register your Product and provide us with information that will help Lenovo to better serve you in the future. Your feedback is valuable to us in developing product and services that are important to you, as well as in developing better ways to communicate with you. Register your option on the following Web site:

http://www.lenovo.com/register

Lenovo will send you information and updates on your registered product unless you indicate on the Web site questionnaire that you do not want to receive further information.

Chapter 2. Adjusting and using your monitor

This section will give you information on adjusting and using your monitor.

Comfort and accessibility

Good ergonomic practice is important to get the most from your personal computer and to avoid discomfort. Arrange your workplace and the equipment you use to suit your individual needs and the kind of work that you perform. In addition, use healthy work habits to maximize your performance and comfort while using your computer. For more detailed information on any of these topics, visit the Healthy Computing Web site at: http://www.lenovo.com/healthycomputing/.

Arranging your work area

Use a work surface of appropriate height and available working area to allow you to work in comfort.

Organize your work area to match the way you use materials and equipment. Keep your work area clean and clear for the materials that you typically use and place the items that you use most frequently, such as the computer mouse or telephone, within the easiest reach.

Equipment layout and setup play a large role in your working posture. The following topics describe how to optimize equipment setup to achieve and maintain good working posture.

Positioning your monitor

Position and adjust your computer monitor for comfortable viewing by considering the following items:

• Viewing distance: Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20 in to 30 in) and can vary depending on ambient light and time of day. You can achieve different viewing distances by repositioning your monitor or by modifying your posture or chair position. Use a viewing distance that is most comfortable for you.
• Monitor height: Position the monitor so your head and neck are in a comfortable and neutral (vertical, or upright) position. If your monitor does not have height adjustments, you might have to place books or other sturdy objects under the base of the monitor to achieve the desired height. A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated. However, be sure to optimize your monitor height so the line of site between your eyes and the center the monitor suits your preferences for visual distance and comfortable viewing when your eye muscles are in a relaxed state.
• Tilt: Adjust the tilt of your monitor to optimize the appearance of the screen content and to accommodate your preferred head and neck posture.
• General location: Position your monitor to avoid glare or reflections on the screen from overhead lighting or nearby windows.

The following are some other tips for comfortable viewing of your monitor:

• Use adequate lighting for the type of work you are performing.
- Use the monitor brightness, contrast controls, if equipped to optimize the image on your screen to meet your visual preferences.
- Keep your monitor screen clean so you can focus on the screen's contents.

Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to periodically look away from your monitor screen and focus on a far object to allow your eye muscles to relax. If you have questions on eye fatigue or visual discomfort, consult a vision care specialist for advice.

Quick tips for healthy work habits

The following information is a summary of some important factors to consider to help you remain comfortable and productive while you use your computer.

• Good posture starts with equipment setup: The layout of your work area and the setup of your computer equipment have a large effect on your posture while using your computer. Be sure to optimize the position and orientation of your equipment by following the tips outlined in "Arranging your work area" on page 2-1 so you can maintain a comfortable and productive posture. Also, be sure to use the adjustment capabilities of your computer components and office furniture to best suit your preferences now and as your preferences change over time.
• Minor changes in posture can help avoid discomfort: The longer you sit and work with your computer, the more important it is to observe your working posture. Avoid assuming any one posture for an extended period of time. Periodically make minor modifications in your posture to help deter any discomforts that might arise. Make use of any adjustments that your office furniture or equipment provide to accommodate changes in posture.
• Short, periodic breaks help ensure healthy computing: Because computing is primarily a static activity, it is particularly important to take short breaks from your work. Periodically, stand up from your work area, stretch, walk for a drink of water, or otherwise take a short break from using your computer. A short break from work gives your body a welcome change in posture and helps to ensure you remain comfortable and productive while you do work.

Accessibility information

Lenovo is committed to providing greater access to information and technology to people with disabilities. With assistive technologies, users can access information in the way most appropriate to their disability. Some of these technologies are already provided in your operating system; others can be purchased through vendors or accessed at:

https://lenovo.ssbbartgroup.com/lenovo/request_vpat.php

Adjusting your monitor image

This section describes the control features to adjust your monitor image.

Using the direct access controls

The direct access controls can be used when the On-Screen Display (OSD) is not displayed.

	Icon Control Description
1	[SWDA]	Input Source	Switches the video input sourceShift back to previous level when in OSD mode
		DDC-CI	Press and hold for 10 seconds to enable or disable the DDC-CI function
		Exit	Exit and return to previous level
2		USB	Press to switch between the USB input sources
	←	Decrease/Left	Left browsing keyFor decreasing the value on adjPress to move to last item
3	[XHB2]	Brightness	Direct access to Brightness adjustment
	###	Increase/Right	Right browsing keyFor increasing the value on adjustment bar/tune inPress to move to next item
4	[XX78]	Menu	To access OSD menuPress to confirm selectionPress and hold for 10 seconds will lock menu/un-lock menu
	[DD02]	Enter	Press to enter next level on main menu/sub menu status or enter previous level on adjustment bar

Using the On-Screen Display (OSD) controls

To adjust the settings, the user controls can be viewed through the OSD.

To use the controls:

1. Press ☐ to open the main OSD menu.
2. Use or to move among the icons. Select an icon and press to access the selected function. If there is a sub-menu, you can move between options using , or then press to select that function. Use or to make adjustments then press to save.
3. Press to move backwards through the sub-menus and exit from the OSD.
4. Press and hold for 10 seconds to lock the OSD. This will prevent accidental adjustments to the OSD. Press and hold for 10 seconds to unlock the OSD and allow adjustments to the OSD.
5. Enables DDC/CI by default. Use OSD Exit Key, Press and hold for 10 seconds to disable / enable DDC/CI function. The words "DDC/CI disable" shows on the screen.

Table 2-1. OSD functions

OSD Icon on Main Menu	Submenu Description		Controls and Adjustments
[W732]Brightness/Contrast/DCR	Brightness	Adjusts overall screen brightness.	All input ports
	Contrast	Adjusts difference between light and dark areas.
	[61C0]DCR	Enable dynamic contrast ratio.
Image Position	Horizontal Position	Moves image left or right.	VGA(Analog) only
	Vertical Position	Moves image up or down.
Image Setup	Automatic	Optimizes image (size, position, phase and clock).
	Manual	Manually optimizes image. See "Manual image setup" on page 3-4.• C l o c k• P h a s e• S a v e

Table 2-1. OSD functions

OSD Icon on Main Menu	Submenu Description		Con Adjustments
Image Properties	Color	Adjusts intensity of red, green, and blue.Preset modeNeutrals RG BReddishBluishAdobe RGBCustomRed: Increases or decreases the saturation of Red in the image.Green: Increases or decreases the saturation of Green in the image.Blue: Increases or decreases the saturation of Blue in the image.Save: Saves the custom color choices.	All input ports
	Input Signal	Select input from five sources:- VGA (Analog)- DVI (Digital)- DP (Display Port)- MHL-HDMI
	Scaling	Selects type of scaled image.Original ARSame Aspect Ratio with input signal.Full ScreenExpand image to full screen.
	PIP/PBP Setup	Image select menu. For detailed information on PIP/PBP Input Pairing Limitation, please see "PIP/PBP Input Pairing Limitation" on page 2-10PIP/PBP mode: Select single or dual image mode.Single Mode: Enable single source on the screen.

Table 2-1. OSD functions

OSD Icon on Main Menu	Submenu Description		Con Adjustments
Image Properties	PIP/PBP Setup	• PIP Mode: Enable Picture in Picture mode.• PBP Mode:Enable Picture by Picture modePIP/PBP Source: Select secondary source.- Select Analog(VGA)- Select Digital- Select DP(Display Port)- Select MHL- Select HDMIPIP Image Position: Select PiP window position.- Select Top-Left- Select Top-Right- Select Bottom-Left- Select Bottom-RightPIP Size: Select PiP window size: Small, Middle, Large.• Small: PIP image size is 640x480.• Middle: PIP image size is 720x400.• Large: PIP image size is 800x600.PIP Contrast: Adjust PiP window contrast.PBP Ratio: Select PbP ratio: 3:1, 1:1 or 1:3.• 3:1 Mode: Left optimum resolution is 1920x1600. Right optimum resolution is 640x1600.• 1:1 Mode: Left optimum resolution is 1280x1600. Right optimum resolution ia 1280x1600.• 1:3 Mode: Left optimum is 640x1600. Right optimum resolution is 1920x1600.	All input ports
Options	Information	Shows resolution, refresh rate, and product details.Note: This screen offers information only, and (does) not allow for setting changes.

Table 2-1. OSD functions

OSD Icon on Main Menu	Submenu Description		Controls and Adjustments
Options	Menu Language	Changes languages of menu. Note: The selected language only affects the language of the OSD. It has no effect on any software running on the computer.	All input ports
	Menu Position	Adjusts menu location. Default The menu position to the default settings. Custom Horizontal: Changes the horizontal position of the OSD. Vertical: Changes the vertical position of the OSD. Save: Save the custom position choices.
	Factory default	settings. C a n c e Reset	Reset all settings to the default 1 t
	Accessibility	Changes button repeat rate and menu time-out settings. Button repeat rate O f f D e f a u S l o w Menu time out Set the duration of time that the OSD will remain active when no operation is performed( )
	DP Daisy Chain	Select DP 1.1 or 1.2. On: Enable DP 1.2 function. Off: Compatible with DP 1.1.
Exit		Exit from menu.

Selecting a supported display mode

The display mode of the monitor uses is controlled by the computer. Therefore, refer to your computer documentation on how to change display modes.

The image size, position and shape might be changed when the display mode changes. This is normal and the image can be re-adjusted using automatic image setup and the image controls.

Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or Flat Panel technology is inherently flicker-free.

Note: If your system has previously been used with a CRT monitor and is currently configured to a display mode outside the range of this monitor, you may need to reattach the CRT monitor temporarily until you have re-configured the system; preferably to 1920 x 1080 at 60 Hz, which is a common display mode.

The display modes shown below have been optimized at the factory.

Table 2-2. Factory set display modes

Timing Refresh rate(Hz)
640x480 60 Hz
720x400 70 Hz
800x600 60 Hz
1024x768 60 Hz
1280x720 60 Hz
1280x768 60 Hz
1280x800 60 Hz
1280x1024 60 Hz
1280x1600 60 Hz
1360x768 60 Hz
1440x900 60 Hz
1600x900 60 Hz
1680x1050 60 Hz
1920x1080 60 Hz
1920x1200 60 Hz
1920x1600 60 Hz
2560x1600 60 Hz
480p (640x480) 60 Hz
480p (720x480) 60 Hz
576p 50 Hz
720p 50/60 Hz
1080i	50/60 Hz
1080p	50/60 Hz

PIP/PBP Input Pairing Limitation

	HDMI MHL DVI			VGA DP
HDMI No No No	Yes Yes
MHL	No	No	No	Yes	Yes
DVI	No	No	No	Yes	Yes
VGA Yes Yes Yes No Yes
DP	Yes	Yes	Yes	Yes	No

Image rotation

Before rotating the monitor, you should set-up your computer to rotate the image.

Rotating the image may require special rotation software or you may find that your computer is preloaded with video graphic drivers that allows image rotation. Check the Graphic Properties setting on your computer to see if this feature is available.

Try these steps to check if image rotation is available on your computer.

1. Right-click on the desktop and click Properties.
2. Select the Settings tab and click Advanced.
3. If you have ATI, select the Rotation tab and set the preferred rotation. If you have nVidia, click the nVidia tab, in the left-hand column select NV Rotate, and then select the preferred rotation. If you have Intel, select the Intel graphics tab, click Graphic Properties, select the Rotation tab, and then set the preferred rotation. Check with the manufacturer of your computer to see if graphic drivers with image rotation can be downloaded from their support website.

Understanding power management

Power management is invoked when the computer recognizes that you have not used your mouse or keyboard for a user-definable period. There are several states as described in the table below.

For optimal performance, switch off your monitor at the end of each working day, or whenever you expect to leave it unused for long periods during the day.

Table 2-3. Power indicator

State Power	Indicator Screen		Restoring Operation	Compliance
On Green Normal
Standby/Suspend Amber	Blank Press a key or		move the mouseThere may be a slight delay before the image reappears.Note: Standby also occurs if there is no image output to the monitor.	ENERGY STAR
Off Off	Blank Press the power		buttonThere may be a slight delay before the image reappears.	ENERGY STAR

Caring for your monitor

Be sure to turn off the power before you perform any maintenance on the monitor.

Do not:

• Apply water or liquid directly to your monitor.
  • Use solvents or abrasives.
• Use flammable cleaning materials to clean your monitor or any other electrical equipment.
• Touch the screen area of your monitor with sharp or abrasive items. This type of contact may cause permanent damage to your screen.
• Use any cleaner which contains an anti-static solution or similar additives. This may harm the coating of the screen area.

Do:

• Lightly dampen a soft cloth with water and use this to gently wipe the covers and the screen.
• Remove grease or finger marks with a damp cloth and a little mild detergent.

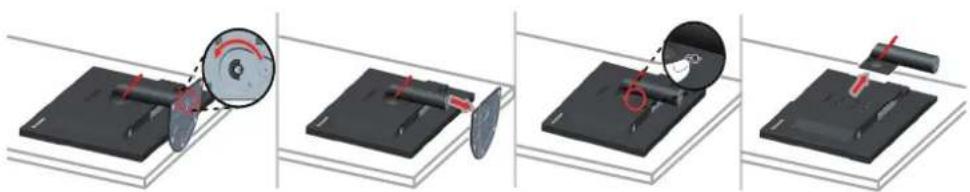

Detaching the monitor base and stand

Step 1: Place the monitor on a soft and flat surface.

Step 2: Remove the screws from base before detaching the base and stand from the monitor.

Four-step mechanical assembly diagram showing a rotating component and a flat base with a circular component, no text or symbols present.

Wall Mounting (Optional)

Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following:

Step 1: Verify that the Power button is turned Off, then disconnect the power cord.

Step 2: Lay the LCD display face down on a towel or blanket.

3D rendered mechanical component with a cylindrical housing and a red arrow indicating direction (no text or symbols)

Step 3: Remove the base and stand from the monitor, refer to "Detaching the monitor base and stand" on page 2-12.

Step 4: Attach the mounting bracket from the VESA compatible wall mounting kit (100mm x100mm distance), the type of VESA mounting screw is M4 x 10 mm.

Step 5: Attach the LCD display to the wall, and follow the instructions in the wall-mounting kit.

For use only with UL Listed Wall Mount Bracket with minimum weight/load: 8kg.

Chapter 3. Reference information

This section contains monitor specifications, instructions to manually install the monitor driver, troubleshooting information, and service information.

Monitor specifications

Table 3-1. Monitor specifications for type-model LT3053pwA

Dimensions Depth	HeightWidth	241.9 mm (9.52 in.)471.0 mm (lowest) (18.55 in.)581.1 mm (highest) (22.88 in.)690.0mm (27.17 in)
Stand Tilt Range: -5° ~ 30°
VESA mount Supported 100 mm x 100 mm (3.94 in. x 3.94 in.)
Image Viewable image size	Maximum heightMaximum widthPixel pitch	756.2 mm (30 in.)400.8 mm (15.78 in.)641.2 mm (25.25 in.)0.25 mm (0.01 in.)
Power input Supply voltage	Max supply current	90-264 V AC (100-240 V AC +/-10%)2 A
Power consumptionNote: figures are for the monitor and the power supply combined	Normal operationStandard/OssorptionOffNote: Webcam/external speaker	<130W<1.2W<0.5W at 100Vac & 240Vac without USB/
Video input (Analog)	InterfaceInput signalHorizontal addressabilityVertical addressabilityClock frequency	VGAAnalog Direct Drive, 75 ohm 0.7V1920 pixels (max)1200 lines (max)205 MHz

Table 3-1. Monitor specifications for type-model LT3053pwA

Video input DVI/HDMI/DP (Digital)	Interface	DVI/HDMI/DP
	Input signal	VESA TMDS (Panel LinkTM)
	Horizontal addressability	2560 pixels (max)
	Vertical addressability	1600 lines (max)
	Clock frequency	300 MHz
MHL	Interface	HDMI
	Horizontal addressability	1920 pixels (max)
	Vertical addressability	1080 lines (max)
	Clock frequency	75 MHz
Communications VESA DDC/CI
Supported display modes Horizontal frequency		30 kHz - 100 kHz
		30 Hz - 75 Hz
		Native Resolution 2560 x 1600 at 60 Hz
Temperature Operating		0° to 40°C (32° to 104°F)
		-20° to 60°C (-4° to 140°F)
		-20° to 60°C (-4° to 140°F)
Humidity Operating		8% to 80% non-condensing
		5% to 95% non-condensing
		5% to 95% non-condensing

Troubleshooting

If you have a problem setting up or using your monitor, you might be able to solve it yourself. Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your problem.

Table 3-2. Troubleshooting

Problem Possible cause Suggested action Reference
The words "Out of Range" are shown on the screen, and the power indicator is flashing green.	The system is set to a display mode which is not supported by the monitor.	If you are replacing an old monitor, reconnect it and adjust the display mode to within the specified range for your new monitor.If using a Windows system, restart the system in safe mode, then select a supported display mode for your computer.If these options do not work, contact the Support Center.	"Selecting a supported display mode"on page 2-9
The image quality is unacceptable.	The video signal cable is not connected with the monitor or system completely.	Be sure the signal cable is firmly plugged into the system and monitor.	"Connecting and turning on your monitor"on page 1-7
	The color settings may be incorrect.	Select another color setting from the OSD menu.	"Adjusting your monitor image"on page 2-3
	The automatic setup function was not performed.	Perfol Adjusting your image setup.	"Adjusting your image monitor image"on page 2-3
The power indicator is not lit and there is no image.	The monitor's power switch is not switched on.The power cord is loose or disconnected.There is no power at the outlet.	Be sure the power cord is connected properly.Be sure the outlet has power.Power on the monitor.Try using another power cord.Try using another electrical outlet.	"Connecting and turning on your monitor"on page 1-7
Screen is blank and power indicator is amber.	The monitor is in Standby/Suspend mode.	Press any key on the keyboard or move the mouse to restore operation.Check the Power Options settings on your computer.	"Understanding power management"on page 2-11

Table 3-2. Troubleshooting

Problem Possible cause Suggested action Reference
The power indicator is amber, but there is no image.	The video signal cable is loose or disconnected from the system or monitor.	Be sure the video cable is connected with the system properly.	"Connecting and turning on your monitor"on page 1-7
	The monitor brightness and contrast are at the lowest setting.	Adjust the brightness and contrast setting on the OSD menu.	"Adjusting your monitor image"on page 2-3
One or more of the pixels appear discolored.	This is the characteristic than five pixels missing, contact the Support Center.		Appendix A."Service and Support"on page A-1
Fuzzy lines in text or a blurry image.Horizontal or vertical lines through the image.	Image setup has not been optimized.Your system Display Properties setting have not been optimized.	Adjust the resolution settings on your system to match the native resolution for this monitor: 1920 x 1080 at 60 Hz.	"Adjusting your monitor image"on page 2-3
		Perform automatic image setup. If automatic image setup does not help, perform manual image setup.	"Selecting a supported display mode"on page 2-9
		When working in the native resolution, you may find additional improvements by adjusting the Dots Per Inch (DPI) setting on your system.	See the Advanced section of your system's display properties.

Manual image setup

If automatic image setup does not establish the image that you prefer, perform manual image setup.

Note: Have your monitor powered on for about 15 minutes, until the monitor warms up.

1. Press ☐ to open the OSD menu.
2. Use or to select ③0 and press to access.
3. Use or to select E0 and press to access.

4. Use or to select Clock or Phase adjustment.

5. Clock: (pixel frequency) adjusts the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the picture does not have the correct width.

6. Phase: adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the picture has horizontal disturbances in light picture.

7. When the image no longer looks distorted, select Save to save the adjustments of Clock and Phase.

8. Press ☐ to leave the OSD menu.

Manually installing the monitor driver

Below are steps for manually installing the monitor driver in Microsoft Windows Vista, Microsoft Windows 7, Microsoft Windows 8/8.1, Microsoft Windows 10.

Installing the monitor driver in Windows Vista

To use the Plug and Play feature in Microsoft Windows Vista, do the following:

Note: You must download file from the Reference and Driver CD to use the Plug and Play feature in Windows Vista.

1. Turn off the computer and all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow your computer to start the Windows Vista operating system.
4. Click Start, Control Panel and then click the Hardware and Sound icon.
5. Click the Personalization icon.
6. Click the Display Settings icon.
7. Click the Advanced Settings button.
8. Click the Monitor tab.

9. Click the Properties button.

10. Click the Driver tab.

11. Click Update Driver, then click Browse the computer to find the driver program.

12. Select Pick from the list of device driver program on the computer.

13. Click the Hard Disk button. Click the Browse button and navigate to the following directory: X:\Monitor Drivers\Windows Vista (where X is the drive letter designator for the CD-ROM drive).

14. Select the "lenlt3053pwa.inf" file and click the Open button. Click the OK button.

15. Select LEN LT3053pwA and click Next. The files will be copied from the CD to your hard disk drive.

16. Close all open windows and remove the CD.

17. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1920 x 1200 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz.

Installing the monitor driver in Windows 7

To use the Plug and Play feature in Microsoft Windows 7, do the following:

Note: You must download file from the Reference and Driver CD to use the Plug and Play feature in Windows 7.

1. Turn off the computer, all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow your computer to start the Windows 7 operating system.

4. Open the Display Properties window by clicking Start, Control Panel, Hardware and Sound icon, and then clicking the Display icon.

5. Click the Change the display settings tab.

6. Click the Advanced Settings icon.

7. Click the Monitor tab.

8. Click the Properties button.

9. Click the Driver tab.

10. Click Update Driver, then click Browse the computer to find the driver program.

11. Select Pick from the list of device driver program on the computer.

12. Click the Hard Disk button. Click the Browse button and navigate to the following directory:

X:\Monitor Drivers\Windows 7 (where X is the drive letter designator for the CD-ROM drive).

1. Select the "lenlt3053pwa.inf" file and click the Open button. Click the OK button.

2. Select LEN LT3053pwA and click Next. The files will be copied from the CD to your hard disk drive.

3. Close all open windows and remove the CD.

4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1920 x 1200 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz.

Installing the monitor driver in Windows 8/8.1

To use the Plug and Play feature in Microsoft Windows 8/8.1, do the following:

Note: You must download file from the Reference and Driver CD to use the Plug and Play feature in Windows 8/8.1.

1. Turn off the computer, all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow your computer to start the Windows 8/8.1 operating system.

4. On the Desktop, move mouse to bottom-right corner of screen, choose Setting, double click Control Panel, then double click the icon of Hardware and Sound, and then clicking Display.

5. Click the Change the display settings tab.

6. Click the Advanced Settings icon.

7. Click the Monitor tab.

8. Click the Properties button.

9. Click the Driver tab.

10. Click Update Driver, then click Browse the computer to find the driver program.

11. Select Pick from the list of device driver program on the computer.

12. Click the Hard Disk button. Click the Browse button and navigate to the following directory:

X:\Monitor Drivers\Windows 8&8.1

(where X is the drive letter designator for the CD-ROM drive).

1. Select the "lenlt3053pwa.inf" file and click the Open button. Click the OK button.

2. Select LEN LT3053pwA and click Next. The files will be copied from the CD to your hard disk drive.

3. Close all open windows and remove the CD.

4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1920 x 1200 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz.

Installing the monitor driver in Windows 10

To use the Plug and Play feature in Microsoft Windows 10, do the following:

Note: You must download file from the Reference and Driver CD to use the Plug and Play feature in Windows 10.

1. Turn off the computer, all attached devices.
2. Ensure that the monitor is connected correctly.
3. Turn on the monitor and then the system unit. Allow your computer to start the Windows 10 operating system.

4. On the Desktop, move mouse to bottom-left corner of screen, right-click choose Control Panel, then double click the icon of Hardware and Sound, and then click Display.

5. Click the Change the display settings tab.

6. Click the Advanced Settings icon.

7. Click the Monitor tab.

8. Click the Properties button.

9. Click the Driver tab.

10. Click Update Driver, then click Browse the computer to find the driver program.

11. Select Pick from the list of device driver program on the computer.

12. Click the Hard Disk button. Click the Browse button and navigate to the following directory:

X:\Monitor Drivers\Windows 10

(where X is the drive letter designator for the CD-ROM drive).

1. Select the "lenlt3053pwa.inf" file and click the Open button. Click the OK button.

2. Select LEN LT3053pwA and click Next. The files will be copied from the CD to your hard disk drive.

3. Close all open windows and remove the CD.

4. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color Matching Profiles.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1920 x 1200 at a refresh rate of 60 Hz, or 640 x 480 at a refresh rate of 60 Hz.

Getting further help

If you still can't solve your problem, please contact the Lenovo Support Center. For more information on contacting the Support Center, please see Appendix A. "Service and Support" on page A-1

Customer responsibilities

The warranty does not apply to a product which has been damaged due to accident, misuse, abuse, improper installation, usage not in accordance with product specifications and instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications.

The following are examples of misuse or abuse and not covered by warranty:

• Images burned onto the screen of a CRT monitor. Burned image is preventable by utilizing a moving screen saver or power management.
  • Physical damage to covers, bezel, base and cables.
• Scratches or punctures on monitor screens.

Service parts

The following parts are for use by Lenovo service, or Lenovo authorized dealers, to support the customer warranty. Parts are for service use only. The table below shows information for model 60A4-RAR1-WW.

Table 3-3. List of service parts

FRU (FIELD REPLACEABLE UNIT) PART NUMBER	DESCRIPTION	Machine Type/Model(MTM)	COLOR
03T8440 LT3053p -FRU M	Monitor (HDMI&DVI)	60A4 Raven Black
03T8441 LT3053p -FRU S	Shading Hood Packet	60A4 Raven Black
03T8442 LT3053p Analog	cable (1.8m, RoHS)	60A4 Raven Black
03T8443 LT3053p USB 3	0 cable (1.8m, RoHS, type A to type B)	60A4 Raven Black
03T8444 USB 2.0 cable (	1.8m, RoHS, type A to type B)	60A4 Raven Black
03T8445 Dual Link DVI-D	cable (1.8m, RoHS, DVI-D to DVI-D)	60A4 Raven Black
03T8446 DP v1.2 cable (1.8m RoHS, DP To DP)		60A4 Raven Black
03T8447 LT3053p -FRU S	stand and Base	60A4 Raven Black

Appendix A. Service and Support

The following information describes the technical support that is available for your product, during the warranty period or throughout the life of your product. Refer to the Lenovo Limited Warranty for a full explanation of Lenovo warranty terms.

Registering your option

Register to receive product service and support updates, as well as free and discounted computer accessories and content. Go to: http://www.lenovo.com/register

Online technical support

Online technical support is available during the lifetime of a product at: http://www.lenovo.com/support

Product replacement assistance or exchange of defective components also is available during the warranty period. In addition, if your option is installed in a Lenovo computer, you might be entitled to service at your location. A Lenovo technical support representative can help you determine the best alternative.

Telephone technical support

Installation and configuration support through the Customer Support Center will be available until 90 days after the option has been withdrawn from marketing. After that time, the support is cancelled, or made available for a fee, at Lenovo's discretion. Additional support is also available for a nominal fee.

Before contacting a Lenovo technical support representative, please have the following information available: option name and number, proof of purchase, computer manufacturer, model, serial number and manual, the exact wording of any error message, description of the problem, and the hardware and software configuration information for your system.

Your technical support representative might want to walk you through the problem while you are at your computer during the call.

Telephone numbers are subject to change without notice. The most up-to-date telephone list for Lenovo Support is always available at: http://www.lenovo.com/support/phone

Country or Region	Telephone Number
Argentina	0800-666-0011(Spanish, English)
Australia	1-800-041-267(English)
Austria	0810-100-654 (For local rate)(German)
Belgium	Warranty service and support: 02-339-36-11(Dutch, French)
Bolivia	0800-10-0189(Spanish)
Country or Region Telephone Number
Brazil Calls made from within the Sao Paulo region: 11-3889-8986Calls made from outside the Sao Paulo region: 0800-701-4815(Portuguese)
Brunei Darussalam Dial 800-1111(English)
Canada	1-800-565-3344(English, French)
Chile	800-361-213(Spanish)
China Technical Support Line: 400-100-6000(Mandarin)
China (852) 3516-8977(Hong Kong S.A.R.) (Cantonese, English, Mandarin)
China 0800-807 / (852) 3071-3559(Macau S.A.R.) (Cantonese, English, Mandarin)
Colombia	1-800-912-3021(Spanish)
Costa Rica 0-800-011-1029(Spanish)
Croatia	385-1-3033-120(Croatian)
Cyprus	800-92537(Grcek)
Czech Republic 800-353-637(Czech)
Denmark Warranty service and support: 7010-5150(Danish)
Dominican Republic 1-866-434-2080(Spanish)
Ecuador	1-800-426911-OPCION 4(Spanish)
Egypt	Primary: 0800-0000-850Secondary: 0800-0000-744(Arabic, English)
El Salvador 800-6264(Spanish)
Estonia	372-66-0-800(Estonian, Russian, English)
Finland Warranty service and support: [phone](Finnish)
France Warranty service and support: 0810-631-213 (hardware)(French)
Germany Warranty service and support: 0800-500-4618 (toll-free)(German)
Greece Lenovo Business Partner(Greek)
Guatemala Dial 999-9190, wait for operator, and request to reach 877-404-9661 (Spanish)
Honduras	Dial 800-0123 (Spanish)
Hungary [phone]	(English, Hungarian)
India Primary: 1800-419-4666 (Tata)Secondary: 1800-3000-8465 (Reliance)Email: [e-mail] (English and Hindi)
Indonesia	1-803-442-42562 213-002-1090 (Standard Charges Apply)(English, Bahasa Indonesia)
Ireland Warranty service and support: 01-881-1444 (English)
Israel Givat Shmuel Service Center: [phone] (Hebrew, English)
Italy Warranty service and support: [phone] (Italian)
Japan	0120-000-817(Japanese, English)
Kazakhstan 77-273-231-427 (Standard Charges Apply)(Russian, English)
Korea 080-513-0880 (Collect call)02-3483-2829 (Toll Call)(Korean)
Latvia	371-6707-360(Latvian, Russian, English)
Lithuania 370 5278 6602	(Italian, Russian, English)
Luxembourg ThinkServer and ThinkStation: 352-360-385-343ThinkCentre and ThinkPad: 352-360-385-222(French)
Malaysia 1-800-88-0013	03-7724-8023 (Standard Charges Apply)(English)
Malta	356-21-445-566(English, Italian, Maltese Arabic)
Mexico 001-866-434-2080	(Spanish)
Netherlands 020-513-3939	(Dutch)
New Zealand 0508-770-506	(English)
Nicaragua	001-800-220-2282(Spanish)
Norway	8152-1550(Norwegian)
Panama Lenovo Customer Support Center: 001-866-434 (toll-free)(Spanish)
Peru 0-800-50-866 OPCION 2(Spanish)
Philippines 1-800-8908-6454 (GLOBE subscribers)1-800-1441-0719 (PLDT subscribers)(Tagalog, English)
Poland Laptops and tablets branded with logo Think: 48-22-273-9777ThinkStation and ThinkServer: 48-22-878-6999(Polish, English )
Portugal 808-225-115 (Standard Charges Apply)(Portuguese)
Romania	4-021-224-4015(Romanian)
Russia	[phone]+7-495-240-8558 (Standard Charges Apply)(Russian)
Singapore	1-800-415-55296818-5315 (Standard Charges Apply)(English, Mandarin, Bahasa Malaysia)
Slovakia ThinkStation and ThinkServer: 421-2-4954-5555
Slovenia	386-1-2005-60(Slovenian)
Spain	34-917-147-833(Spanish)
Sri Lanka 9477-7357-123 (Sumathi Information systems)(English)
Sweden Warranty service and support: 077-117-1040(Swedish)
Switzerland Warranty service and support: 0800-55-54-54(German, French, Italian)
Taiwan	0800-000-702(Mandarin)
Thailand	001-800-4415-734([phone] (Standard Charges Apply)(Thai, English)
Turkey	444-04-26(Turkish)
United Kingdom Standard warranty support: 03705-500-900 (local rate)Standard warranty support: 08705-500-900(English)
United States 1-800-426-7378(English)
Uruguay	000-411-005-6649(Spanish)
Venezuela	0-800-100-2011(Spanish)
Vietnam 120-11072 (Toll Free)84-8-4458-1042 (Standard Charges Apply)(Vietnamese, English)

Appendix B. Notices

Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.

However, it is the user's responsibility to evaluate and verify the operation of any other product, program, or service.

Lenovo may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

Lenovo (United States), Inc.

1009 Think Place - Building One

Morrisville, NC 27560

U.S.A.

Attention: Lenovo Director of Licensing

LENOVO PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or third parties. All information contained in this document was obtained in specific environments and is presented as an illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.

Recycling information

Lenovo encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. For information on recycling Lenovo products, go to:

http://www.lenovo.com/lenovo/environment/recycling

環境配慮に関して

Collecting and recycling a disused Lenovo computer or monitor

If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources. Computers and monitors are categorized as industrial waste and should be properly disposed of by an industrial waste disposal contractor certified by a local government. In accordance with the Law for Promotion of Effective Utilization of Resources, Lenovo Japan provides, through its PC Collecting and Recycling Services, for the collecting, reuse, and recycling of disused computers and monitors. For details, visit the Lenovo Web site at http://www.lenovo.com/recycling/japan. Pursuant to the Law for Promotion of Effective Utilization of Resources, the collecting and recycling of home-used computers and monitors by the manufacturer was begun on October 1, 2003. This service is provided free of charge for home-used computers sold after October 1, 2003. For details, visit the Lenovo Web site at http://www.lenovo.com/recycling/japan.

Disposing of Lenovo computer components

Some Lenovo computer products sold in Japan may have components that contain heavy metals or other environmental sensitive substances. To properly dispose of disused components, such as a printed circuit board or drive, use the methods described above for collecting and recycling a disused computer or monitor.

Trademarks

The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo

The Lenovo logo

ThinkCenter

ThinkPad

ThinkVision

Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of companies.

Other company, product, or service names may be trademarks or service marks of others.
