Type Video projector
Brand Mitsubishi
Model HC100
Display technology DLP (0.55-inch DMD, 854x480 pixels)
Projection lens F2.4–2.7, f=19–23 mm
Light source 200 W high-pressure mercury lamp

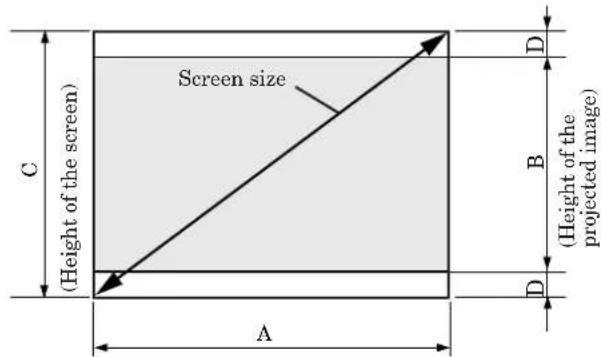

Image size 40–300 inches (diagonal)
Projection distance 1.4–10.7 m
Maximum display colors 16.77 million
Maximum resolution (computer) 1024x768 (compressed)
Video signal compatibility NTSC, PAL, SECAM, 480i/p, 576i/p, 720p, 1080i
Inputs RGB (D-SUB 15-pin), DVI-D (HDCP), Composite video (RCA), S-Video, Component video (RCA), Audio (stereo mini jack x3)
Speaker 2 W mono
Control interface RS-232C (8-pin)
Keystone correction Vertical ±20°
Aspect ratios Auto, 4:3, 16:9, Expand
Lamp life Approx. 2000 h (Standard), up to 3000 h (Low mode)
Power supply AC 100–240 V, 50/60 Hz, 2.9 A
Power consumption 2.9 A (rated)
Dimensions (W x H x D) 310 x 100 x 245 mm (without protrusions)
Weight 2.9 kg
Operating temperature +41°F to +95°F (+5°C to +35°C)
Operating humidity 30–90%
Security Kensington lock, password protection
Accessories included Remote control, power cord, RGB cable, S-video cable, audio/video cable, RS-232C cable, lens cap, batteries

Frequently Asked Questions - HC100 MITSUBISHI

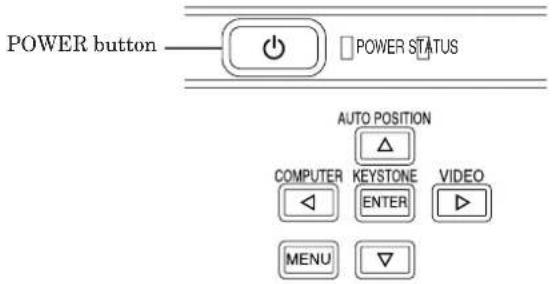

How do I turn on the projector?
Remove the lens cap, connect the power cord, press the POWER button on the projector or the ON (1) button on the remote control. The lamp takes about one minute to light up.
Why is there no image on the screen?
Check that the lens cap is removed, the power is on, and the correct input source is selected. Ensure all cables are securely connected and the connected device is powered on. If using a notebook, enable external output (e.g., pressing Fn + F4).
How do I adjust the keystone distortion?
Press the KEYSTONE button on the projector or remote, then use the ▲/▼ buttons to equalize the top and bottom widths. You can also adjust via the INSTALLATION menu under KEYSTONE.
How do I change the aspect ratio?
Press the ASPECT button on the remote to cycle through Auto, 4:3, 16:9, and Expand. Alternatively, use the FEATURE menu and select ASPECT.
How do I replace the lamp?
Turn off the projector and unplug the power cord. Wait at least one hour for the lamp to cool. Remove the lamp cover, loosen the screws, pull out the old lamp box by the handle, insert a new lamp securely, and tighten the screws. Reset the lamp operation time by pressing ◀, ▶, and POWER simultaneously for three seconds.
What does the STATUS indicator mean when blinking?
Refer to the table: steady green means normal; blinking orange indicates abnormal temperature (check ventilation); blinking green/red signals lamp replacement warning (1500 hours); steady red means lamp life exceeded (2000 hours). If blinking red/green with lamp cover off, close the cover correctly.
How do I clean the lens and projector?
Use a soft, dry cloth for the projector body. For the lens, use a lens-cleaning brush or tissue with lens cleaning fluid. Do not use benzine or thinner. Unplug the power cord before cleaning.
Can I mount the projector on the ceiling?
Yes, use a certified ceiling mount bracket. Set IMAGE REVERSE in the INSTALLATION menu to MIRROR INVERT. Ensure the exhaust vents are not blocked and a circuit breaker is provided.
How do I set up a password?
Go to the FEATURE menu, select PASSWORD FUNCTION, and press ENTER. Choose MENU ACCESS, then set a four-digit password. Confirmation required. To cancel, re-enter the password. If forgotten, press and hold MENU and ENTER on the projector for three seconds.
Why does the projector shut off automatically?
Possible causes: blocked ventilation causing overheating (STATUS blinks orange), lamp life expired (STATUS steady red), or no signal for the set time (AUTO POWER OFF). Check ventilation, replace lamp if needed, or adjust AUTO POWER OFF setting in the INSTALLATION menu.

User questions about HC100 MITSUBISHI

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Video projector in PDF format for free! Find your manual HC100 - MITSUBISHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HC100 by MITSUBISHI.

USER MANUAL HC100 MITSUBISHI

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

MITSUBISHI HC100 - 1

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

MITSUBISHI HC100 - 2

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

NOTE:

SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.

WARNING

Use the attached specified power supply cord. If you use another power-supply cord, it may cause interference with radio and television reception.

Use the attached RS-232C cable and RGB cable with this equipment so as to keep interference within the limit of a FCC Class B device.

This apparatus must be grounded.

DO NOT LOOK DIRECTLY INTO THE LENS WHEN THE PROJECTOR IS IN THE POWER ON MODE.

CAUTION

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.

When using the projector in Europe: COMPLIANCE NOTICE

This Projector complies with the requirements of the EC Directive 89/336/EEC “EMC Directive” as amended by Directive 92/31/EEC and 93/68/EEC, and 73/23/EEC “Low Voltage Directive” as amended by Directive 93/68/EEC.

The electro-magnetic susceptibility has been chosen at a level that gains proper operation in residential areas, on business and light industrial premises and on small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.

WARNING

Use the attached RS-232C cable and RGB cable with this equipment so as to keep interference within the limits of an EN55022 Class B device.

Please follow WARNING instructions.

Important safeguards ....4

Preparing your projector 6

Using the remote control 9

Setting up your projector 10

Viewing video images 12

Viewing computer images 18

Menu operation....21

Adjusting projected images 24

Advanced features 27

Replacing the lamp 28

Asking for installation 30

Troubleshooting 31

Indicators 34

Specifications 35

Declaration of Conformity

Model Number : HC100

Trade Name : MITSUBISHI ELECTRIC

Responsible party : Mitsubishi Digital Electronics America, Inc.

9351 Jeronimo Road, Irvine, CA 92618 U.S.A

Telephone number : +1-(949) 465-6000

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Trademark, Registered trademark

Macintosh is registered trademark of Apple Computer Inc.

DLP™, Digital Micromirror Device and DMD are all trademarks of Texas Instruments.

Other brand or product names are trademarks or registered trademarks of their respective holders.

Please read all these instructions regarding your projector and retain them for future reference. Follow all warnings and instructions marked on the projector.

  1. Read instructions

All the safety and operating instructions should be read before the appliance is operated.

  1. Retain instructions

The safety and operating instructions should be retained for future reference.

  1. Warnings

All warnings on the appliance and in the operating instructions should be adhered to.

  1. Instructions

All operating instructions must be followed.

  1. Cleaning

Unplug this projector from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.

  1. Attachments and equipment

Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

  1. Water and moisture

Do not use this projector near water or in contact with water.

  1. Accessories

Do not place this projector on an unstable cart, stand, tripod, bracket or table. Use only with a cart, stand, tripod bracket, or table recommended by the manufacturer or sold with the projector. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

MITSUBISHI HC100 - Trademark, Registered trademark - 1

natural_image Symbolic illustration of a person using a ladder to lift a weight, enclosed in a circle with no text or symbols.

An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn.

  1. Ventilation

Slots and openings in the cabinet are provided for ventilation, ensuring reliable operation of the projector and to protect it from overheating. Do not block these openings or allow them to be blocked by placing the projector on a bed, sofa, rug, or bookcase. Ensure that there is adequate ventilation and that the manufacturer's instructions have been adhered to.

  1. Power sources

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your appliance dealer or local power company.

  1. Power-cord protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and points where they exit from the appliance. Do not put the power cord under a carpet.

  1. Overloading

Do not overload wall outlets and extension cords as this can result in a fire or electric shock.

  1. Objects and liquids

Never push objects of any kind through openings of this projector as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

  1. Servicing

Do not attempt to service this projector yourself. Refer all servicing to qualified service personnel.

  1. Damage requiring service

Unplug this projector from the wall outlet and refer servicing to qualified service personnel under the following conditions:

(a) If the power-supply cord or plug is damaged.

(b) If liquid has been spilled, or objects have fallen into the projector.

(c) If the projector does not operate normally after you follow the operating instructions. Adjust only those controls that are covered by the operating instructions. An improper adjustment of other controls may result in damage and may often require extensive work by a qualified technician to restore the projector to its normal operation.

(d) If the projector has been exposed to rain or water.

(e) If the projector has been dropped or the cabinet has been damaged.

(f) If the projector exhibits a distinct change in performance - this indicates a need for service.

  1. Replacement parts

When replacement parts are required, be sure that the service technician has used replacement parts specified by the manufacturer or parts having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

  1. Safety check

Upon completion of any service or repair to this projector, ask the service technician to perform safety checks determining that the projector is in a safe operating condition.

WARNING:

Unplug immediately if there is something wrong with your projector.

Do not operate if smoke, strange noise or odor comes out of your projector. It might cause fire or electric shock. In this case, unplug immediately and contact your dealer.

Never remove the cabinet.

This projector contains high voltage circuitry. An inadvertent contact may result in an electric shock. Except as specifically explained in the Owner's Guide, do not attempt to service this product yourself. Please contact your dealer when you want to fix, adjust or inspect the projector.

Do not modify this equipment.

It can lead to fire or electric shock.

If you break or drop the cabinet.

Do not keep using this equipment if you break or drop it. Unplug the projector and contact your dealer for inspection. It may lead to fire if you keep using the equipment.

Do not face the projector lens to the sun.

It can lead to fire.

Use correct voltage.

If you use incorrect voltage, it can lead to fire.

Do not place the projector on uneven surface.

Place the projection on a leveled and stable surface only. Please do not place equipment on unstable surfaces.

Do not look into the lens when it is operating. It may hurt your eyes.

Never let children look into the lens when it is on.

Do not turn off the main power abruptly or unplug the projector during operation.

It can lead to lamp breakage, fire, electric shock or other trouble. It is best to wait for the fan to turn off before turning main power off.

Do not touch Air outlet grille and Bottom plate which becomes hot.

Do not touch them or put other equipment in front of Air outlet grille. The heated Air outlet grille and Bottom plate may cause injury or damage to other equipment. Also, do not set the projector on the desk which is easily affected by heat.

Do not look into the air outlet grille when projector is operating.

Heat, dust etc. may blow out of it and hurt your eyes.

Do not block the air inlet and outlet grilles.

If they are blocked, heat may be generated inside the projector, causing deterioration in the projector quality and fire.

Place of installation

For safety's sake, refrain from setting the projector at any place subjected to high temperature and high humidity. Please maintain an operating temperature, humidity, and altitude as specified below.

  • Operating temperature: between +41^ (+5^) and +95^ (+35^)
  • Operating humidity: between 30 and 90%
  • Never put any heat-producing device under the projector so that the projector does not overheat.
  • Do not attach the projector to a place that is unstable or subject to vibration.

- Do not install the projector near any equipment that produces a strong magnetic field. Also refrain from installing near the projector any cable carrying a large current.

- Place the projector on a solid, vibration free surface: otherwise it may fall, causing serious injury to a child or adult, and serious damage to the product.

- Do not stand the projector: it may fall, causing serious injury and damage to the projector.

- Slanting the projector more than ± 10^ (right and left) or ± 15^ (front and rear) may cause trouble or explosion of the lamp.

- Do not place the projector near air-conditioning unit or heater to avoid hot air to the exhaust and ventilation hole of the projector.

COMPLIANCE NOTICE OF FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced Radio / TV technician for help.
    Changes or modifications not expressly approved by Mitsubishi could void the user's authority to operate this equipment.

COMPLIANCE NOTICE OF INDUSTRY CANADA

This Class B digital apparatus complies with Canadian ICES-003.

Checking accessories

The following accessories are provided with this projector. Check to be sure that all of the accessories are packed in the package.

Cables
MITSUBISHI HC100 - Checking accessories - 1

natural_image Illustration of a coiled cable or wire with multiple connectors (no text or symbols)

Audio/Video cable (246C478-10)

MITSUBISHI HC100 - Checking accessories - 2
S-video cable (246C479-10)

Mini D-SUB 15-pin Mini D-SUB 15-pin

RGB cable for PC (246C521-10)

D-SUB 9-pin 8-pin

RS-232C cable (246C508-10)

■Power supply parts Remot■control parts
MITSUBISHI HC100 - Checking accessories - 5

natural_image Three types of electrical connectors shown in line drawings, no text or symbols present

Power cord (two) (246C483-10, 246C383-20)

MITSUBISHI HC100 - Checking accessories - 6

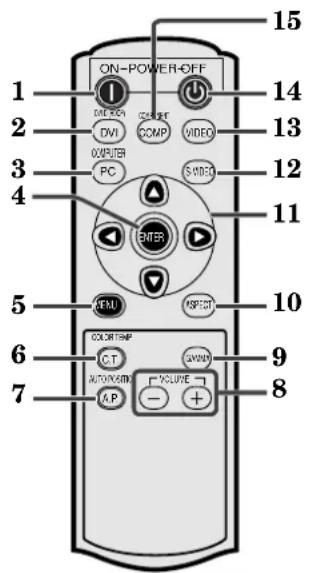

natural_image Line drawing of a remote control with buttons and dials (no text or symbols)

Remote control (290P130-10)

MITSUBISHI HC100 - Checking accessories - 7
R03 (Size-AAA) battery (two)

Others

  • Lens cap (Attached to the projector)
    • User manual (871D423-30)
  • Quick Start up (857D064-50)

Important:

- The attached power cords are to be used exclusively for this product. Never use them for other products.

1
MITSUBISHI HC100 - Important: - 1

3
MITSUBISHI HC100 - Important: - 2

2
MITSUBISHI HC100 - Important: - 3

natural_image Diagram of a remote control device with labeled components and internal structure (no text or symbols)

Inserting the batteries into the remote control

  1. Remove the rear lid of the remote control.
  2. Check the polarity (+), (-) of the batteries, and set them correctly, inserting their (-) side first.
  3. If the battery is inserted from the (+) side first, inserting the (-) side is difficult because the coil spring end hits on the battery side. If the battery is forced to insert in this way, the outer label of the battery may get ripped and it may cause a short-circuit and heating.

  4. Attach the rear lid.

Important:

  • Use two size-AAA batteries (R03).
  • Replace the two batteries with new ones when the remote control is slow to operate.

CAUTION

  • Use of a battery of wrong type may cause explosion.
  • Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.
  • Dispose of used batteries according to your local regulations.
  • Batteries may explode if misused. Do not recharge, disassemble, or dispose of in fire.
  • Be sure to handle the battery according to the instructions.
  • Load the battery with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.
  • Keep batteries out of reach of children and pets.
  • Remove the battery, if the remote control is not used for a long time.
  • Do not combine a new battery with an old one.
  • If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in contact with your eyes, rinse them with water and then consult your doctor.

Overview
12 3 4 5 6 7

8 9 10

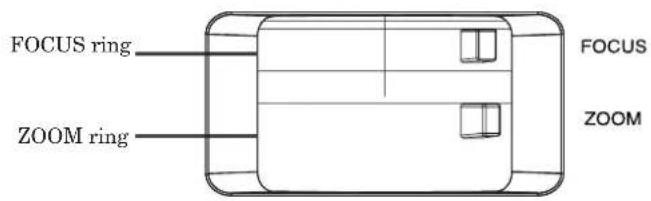

1 FOCUS ring
2 ZOOM ring
3 Control panel
4 Air outlet grille
5 Remote control sensor (Front)
6 Air inlet grille
7 Air outlet grille

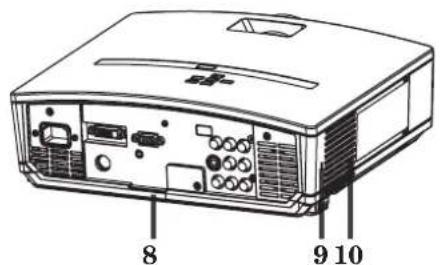

8 Terminal board
9 Kensington Security Lock Standard connector
10 Air inlet grille

Control area
MITSUBISHI HC100 - CAUTION - 3

1 POWER button
2 AUTO POSITION / ▲ button
3 COMPUTER / ◀ button
4 MENU button
5 STATUS indicator
6 POWER indicator
7 KEYSTONE/ENTER button
8 VIDEO/ ▶ button
9 ▼ button

Important:

  • While the menu or the screen for the keystone adjustment or password entry is being displayed the COMPUTER, VIDEO, and AUTO POSITION buttons function as the ◀, ▶, and ▲ buttons respectively.
  • While the menu is on the screen, the KEYSTONE button functions as the ENTER button.

Terminal panel
1 2 3 4 5 6 7 8 9 10 11 6

1 Power jack
2 DVI-D (HDCP) IN terminal (DVI-D 24-pin)
3 COMPUTER IN/ COMPONENT VIDEO IN terminal (Mini D-SUB 15-pin)
4 Remote control sensor (Rear)
5 COMPONENT VIDEO IN and audio input terminals
6 Foot adjustment buttons (Left/Right)
7 Air outlet grille
8 SERIAL terminal (8-pin)
9 AUDIO IN terminal (Mini jack)
10 VIDEO / S-VIDEO and audio input terminals
11 Speaker

Bottom side

1 2 3

1 Adjustment foot (Front)
2 Lamp cover
3 Adjustment feet (Rear)

Caution:

Do not replace the lamp immediately after using the projector because the lamp would be extremely hot and it may cause burns.

Remote control

ON-POWER-OFF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 DVI COMPUTER PC COMP VIDEO S VIDEO ENTER MEMS ASPECT COLOR-TIME C.T. AUTO-PATHLET A.P. VOLUME +

1 ON (1) button
2 DVI-D(HDCP) button
3 COMPUTER button
4 ENTER button
5 MENU button
6 COLOR TEMP button*
7 AUTO POSITION button
8 -, + (VOLUME) buttons
9 GAMMA button*
10 ASPECT button
11 Direction buttons
12 S-VIDEO button
13 VIDEO button
14 OFF (Button
15 COMPONENT button

*: See the below for the picture quality adjusting buttons.

Important:

When you press the any button on the remote control (except ENTER and direction buttons), the buttons on the remote control (except ENTER and direction buttons) are lit. Wait approx. 15 seconds after releasing the button to turn them off.

Using the picture quality adjusting buttons

When you press any of the picture quality adjusting buttons, the screen for adjusting the picture quality appears. Adjust the picture quality by pressing the ▶ and ◀ buttons. The picture quality adjustment can be made alternatively in the IMAGE menu. (See Page 22.) Items in the menus are shown in parentheses below.

GAMMA (GAMMA MODE) ...... Selects one of the preset gamma mode.

COLOR TEMP (COLOR TEMP.) ..... Selects one of the preset color temperatures.

Operational range of the remote control

Front of projector
30°30°

Rear of projector
30°30° ce istance projec- ght ce or he

  • Keep the remote control photo-sensor out of direct sunlight or fluorescent lamp light.
  • Keep the remote control photo-sensor at least 2 m away from fluorescent lamps. Otherwise, the remote control may malfunction.
  • If there is an inverter-operated fluorescent lamp near the remote control, the remote control operation may become unstable. On this occasion, stick the attached protection sticker on one of the photo-sensors that is closer to the fluorescent lamp.

When operating the from the remote cont screen within about 5 remote control, howe tics of the screen.

When operating the remote control, keep the distance from the remote controller to the projector via the screen within about 5m. The operable range of the remote control, however, depends on the characteristics of the screen.

Reception angle

Vertical directions

20° 10° 20° 10°

Vertical directions (ceiling mount)

20° 20°

Setting up the screen

Install the screen perpendicularly to the projector. If the screen can not be installed in such a way, adjust the projection angle of the projector. (See below.)

  • Install the screen and projector so that the projector's lens is placed at the same height and horizontal position of the screen center.
  • Do not install the screen where it is exposed to direct sunlight or lighting. Light directly reflecting on the screen makes the projected images whitish and hard to view.

Basic setup

Determine the distance from the screen to the projector according to the size of the images to be projected. (See

Page 11.)

MITSUBISHI HC100 - Basic setup - 1

natural_image Simple line drawing of a mechanical setup with a vertical beam and a horizontal support (no text or symbols)

W A B A=B

  • Do not place this projector on a carpet or blanket because the exhaust vent and the intake vent on the bottom surface are blocked and the inside of the projector is heated, causing a breakdown or fire.
  • Depending on the installation conditions, warm air that is emitted from the exhaust vents may flow into the intake vent, causing the projector to display “Over Temperature” and then stop projecting images. In such a case, attach the cushion that comes with the projector to the bottom surface of the projector as shown below.

Adjusting the projection angle

This projector is provided with three feet for adjusting the projection angle on the bottom surface.

Adjust the projection angle depending on the position of the projector.

Adjustment of the projection angle

For the best projection, project images on a flat screen installed at 90 degrees to the floor. If necessary, tilt the projector using the two adjustment feet on the bottom of the projector.

Screen Adjustment feet (rear)

  1. Tilt up the project to the appropriate angle.
  2. Press the foot adjustment buttons next to the adjustment feet (rear), and the adjustment feet will come out.
  3. Release the buttons to lock the adjustment feet (rear) to that position.
  4. Rotate the adjustment feet (rear) for fine adjustment.

After using the projector:

  1. Put the adjustment feet (rear) back into the projector by pressing the foot adjustment buttons.
  2. If necessary, rotate the adjustment feet (front) for fine adjustment.

When projected images are distorted to a trapezoid:

When the screen and the projector are not placed perpendicularly to each other, projected images become trapezoidal. If you cannot make the projector and the screen perpendicular to each other by mechanical adjustments, adjust keystone. (See Page 16.)

  • When the keystone adjustment is applied, the correct aspect ratio may not be obtained.
  • When the keystone adjustment is applied, the resolution lowers. In addition, vertical stripes appear and straight lines bend in images with complicated patterns. To prevent such symptoms, keep the screen and the projector perpendicular to each other as much as possible.
  • Though the projected image may be distorted momentarily when you change the setting value of the keystone adjustment, such symptom is not a malfunction.
  • Though the projected image may be distorted depending on the setting value of the keystone adjustment and the type of the input signal, such symptom is not a malfunction. In such a case, adjust the setting value within the range where the projected image is not distorted.
  • The setting value displayed at the time of the keystone adjustment may vary depending on the type of the input signal.

Screen size and projection distance

Refer to the following table to determine the screen size.

Screen size Height of the projected image) A (Width of the projected image) B Hd Center of the lens Projected distance (L)

When the aspect ratio of the screen is 4:3, the positional relation between the projected image and the screen is as shown on the right. Refer to the following table for installation.

Screen size (Height of the screen) C Height of the screen D B Height of the projected image) A D

When the aspect ratio of the screen is 16:9

Screen sizeProjected distance (L)Hd
16:9DiagonalWidth AHeight BMin.Max.
inchcminchcminchcminchminchminchcm
40 102 35 8920 50 551.4 661.79.6 244
60 152 52 13329 7583 2.1101 2.614.436.6
70178611553487972.51183.016.842.7
8020370177391001112.81353.419.248.8
90 229 78 19994 44 112125 3.2152 3.821.6 54.9
100 2554 87 22149 125139 35 169 43 240 61.0
110 2779 96 24454 137154 3.99 186 47 264 67.1
120 305 105266 59 149168 4.3203 5.128.873.2
150 381 131332 74 187210 5.3254 6.436.091.5
200 508 174443 98 249281 7.1339 8.648.0122.0
2506352185531233113518.9--60.0152.5
30076226166414737442210.7--72.1183.0
  • The above figures are approximate and may be slightly different from the actual measurements.

When the aspect ratio of the screen is 4:3

Screen sizeSize of the projected imageBlank space (D)Projected distance (L)Hd
4:3DiagonalWidth AHeight CWidth AHeight BMin.Max.
inchcminchcminchcminchcminchcminchcminchminchminchcm
40 102 32 8124 61 3281 1846 3.0 850 1.361 1.5 88 22.4
60 152 48 122 36 9148 12227 69 45 11 761.9 92 23 13.233.6
70 178 56 142 42 10756 14232 80 53 13 892.3 1082.7 154 39.2
80 203 64 163 48 12264 16336 91 60 15 102 2.6 13 3.1 17.6 44.8
90 229 72 183 54 13772 18341 1036.8 1715 2.9139 3.519.8 50.4
100 2554 80 203 60 152 80 2045 1147.5 19128 3.2155 3.922.0 56.0
110 2779 88 224 66 168 88 224 50 1268.3 21141 3.6170 4.324.2 61.5
120 305 96 244 72 183 96 244 54 1379.0 23154 3.9186 4.726.4 67.1
150 381 120 305 90 229 120305 68171 11.329 1934.9 2335.9 33.083.9
2005081604061203051604069022915.0382576.53117.944.1111.9
25063520050815038120050811328618.8483228.23899.955.1139.9
30076224061018045724061013534322.6573879.8--66.1167.9
  • The above figures are approximate and may be slightly different from the actual measurements.

A. Connecting the projector to video equipment

Preparations:

- Make sure that the power of the projector and that of the video equipment are turned off.

Basic home theater system connection

MITSUBISHI HC100 - Basic home theater system connection - 1

Set-top box or digital tuner

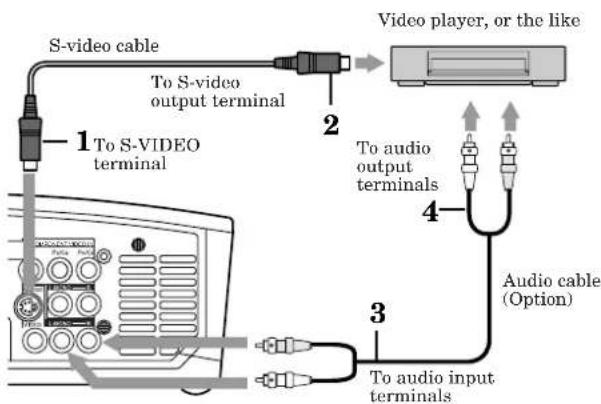

Connecting to a Video player, etc.

Video player, or the like To audio output terminals To video output terminal Audio/video cable 1 To VIDEO terminal 2 To audio input terminals

S-video cable To S-video output terminal 1 To S-VIDEO terminal 2 Video player, or the like To audio output terminals 3 Audio cable (Option) To audio input terminals

  1. Connect one end (yellow) of the supplied audio/video cable to the VIDEO terminal of the projector.
  2. Connect one end (white and red) of the supplied audio/video cable to the audio input terminals (L/MONO, R) of the projector.
  3. Connect the other end (yellow) of the audio/video cable to the video output terminal of the video equipment.
  4. Connect the other end (white and red) of the audio/video cable to the audio output terminals (L, R) of the video equipment.

When the video equipment is equipped with the S-video output terminal, make the connection as follows.

  1. Connect one end of the supplied S-video cable to the S-VIDEO terminal of the projector.
  2. Connect the other end of the S-video cable to the S-video output terminal of the video equipment.
  3. Connect one end (white and red) of an audio cable to the audio input terminals (L/MONO, R) of the projector.
  4. Connect the other end (white and red) of the audio cable to the audio output terminals (L, R) of the video equipment.

  5. Also read the instruction manual of the equipment to be connected.

  6. Contact your dealer for details of connection.

When a TV tuner or VCR is connected:

When you use this projector with a TV tuner or VCR connected, no image may appear or a message of No Signal may appear on the screen when you change the channel via any channel that is not being received. In such a case, set the channels of the TV tuner or VCR again. To avoid such symptom, use the TV tuner or VCR with its channel skip function (that is a function not to display channels that are not being received) enabled.

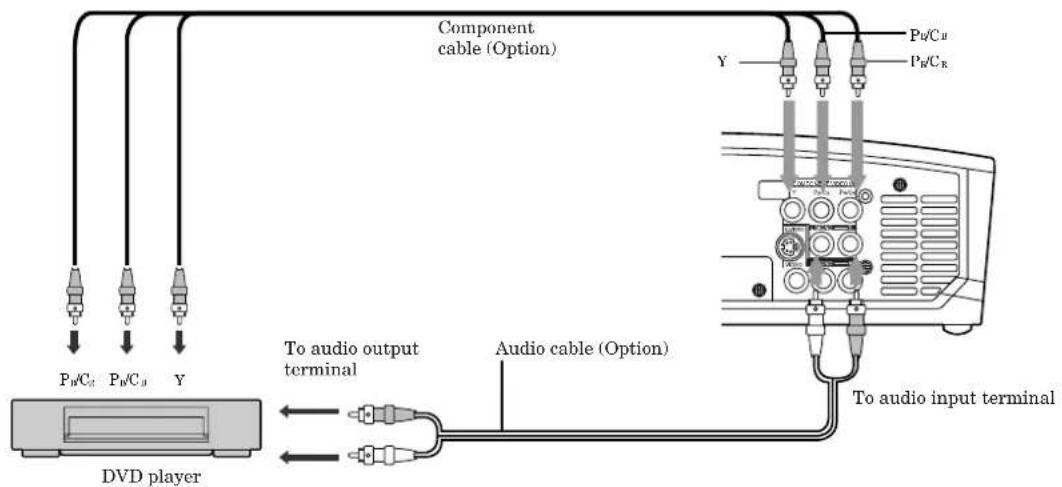

Connecting to a DVD player

To connect this projector to video equipment that has component video output terminals, such as a DVD player, use the COMPONENT terminals.

Component cable (Option) Pn/Cu Pn/CR Y To audio output terminal Audio cable (Option) DVD player To audio input terminal

  • Images may not be projected correctly depending on the type of the DVD player you use.
  • Though it may take some time before an image is displayed on the screen depending on the type of the input signal, such symptom is not a malfunction.

Connecting to video equipment having a DVI-D terminal

You can project high-quality images by connecting the DVI-D terminal of this projector to video equipment having a DVI-D output terminal. In addition, this projector supports HDCP and is able to receive encrypted digital video data that are output from DVD players. Audio cable (Option)

MITSUBISHI HC100 - Connecting to video equipment having a DVI-D terminal - 1
  • For connection to the DVI-D terminal, use a commercially available DVI cable.
  • Select DVI as the input source.
  • Only RGB signals are supported. Component video signals are not supported.
  • HDCP (High-bandwidth Digital Content Protection), developed by Intel Corporation, is a method to encrypt digital video data for the purpose of copy protection.
  • This projector uses stereo mini plug for its audio input.
  • When DVI is selected as the input source, setting of COLOR, TINT, FINE SYNC., TRACKING and HOLD is unavailable.

When you connect this projector and a DVI-Digital device (such as a DVD player) via the DVI terminal, black color may appear light and pale, depending on the type of the connected device.

  • This depends on the black level setting of the connected device. There are two kinds of methods to digitally transfer image data, in which different black level settings are employed respectively. Therefore, the specifications of the signals output from DVD players differ, depending on the type of the digital data transfer method they use.
  • Some DVD players are provided with a function to switch the methods to output DVI-Digital signals. When your DVD player is provided with such function, set it as follows.

NORMAL → EXPAND or ENHANCED

• See the users guide of your DVD player for details.
- When your DVD player does not have such function, adjust BRIGHTNESS of this projector.

B. Plugging in the power cord

Earthing terminal Power cord (Example)

1 Plug the attached power cord into the power cord inlet of this projector.
2 Plug the other end of the power cord into a power outlet.

  • The power cords for use in the U.S. and Europe are included with this projector. Use the appropriate one for your country.
  • This projector uses the power plug of three-pin grounding type. Do not take away the grounding pin from the power plug. If the power plug doesn't fit your wall outlet, ask an electrician to change the wall outlet.
  • The provided power cord for the U.S. is rated at 120 V. Never connect this cord to any outlet or power supply using other voltages or frequencies than rated. If you use a power supply using other voltage than rated, prepare an appropriate power cord separately.

C. Projecting images

Preparation:

  • Remove the lens cap.
  • Turn on the power of the connected video equipment.

FOCUS ring ZOOM ring FOCUS ZOOM

POWER button POWER STATUS AUTO POSITION COMPUTER KEystone ENTER VIDEO VIDEO button MENU

ON (1) button COMPONENT button VIDEO button S-VIDEO button

  1. Confirm the POWER indicator lights up red.

- If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating and the POWER button may not work after the power cord is plugged. (The STATUS indicator blinks green.) After the fan stops rotating, press the power button to turn back on the POWER indicator.

  1. Press the POWER button on the projector or ON (1) button on the remote control.

  2. It may take about one minute for the lamp to light up.

  3. The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.
  4. Do not cover the lens with the lens cap while the lamp is on. Do not strip off the aluminium sheet inside the lens cap.
  5. The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW lamp mode has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute.

  6. Select an input source.

  7. Press the VIDEO button on the projector or the VIDEO, S-VIDEO or COMPONENT button on the remote control that is corresponding to the terminal in use.

  8. The input source is switched between VIDEO, S-VIDEO and COMPONENT at every press of the VIDEO button on the projector.
  9. Though it may take some time before an image is displayed on the screen depending on the type of the input signal, such symptom is not a malfunction.
  10. Some images become easier to view when the setting of aspect ratio is changed. (See Page 17.)

  11. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in their specified sizes.

  12. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See Page 10.)

- When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See Page 10.)

  1. Adjust the size of the projected image by turning the ZOOM ring.

  2. Adjust the focus by turning the FOCUS ring.

Repeat steps 4 to 7, if necessary.

Important :

  • When a 4:3 image is kept displayed for a long time before displaying 16:9 image, the afterimages of the black bars may appear on the 16:9 image screen. Consult your dealer in this case.
  • Do not display a still picture for a long time because the afterimages may persist on the screen.

POWER button POWER STATUS AUTO POSITION COMPUTER KEYSTONE VIDEO ◀◀ ENTER ▶ MENU ▼

OFF (○) button

To stop projecting:

  1. Press the POWER button on the projector or the OFF (Button on the remote control.

  2. A confirmation message is displayed.

  3. To cancel the procedure, leave the projector for a while or press the MENU button.

  4. Press the POWER button on the projector or the OFF (O) button on the remote control again.

- The lamp goes out and the projector goes into a standby mode. In this standby mode, the POWER indicator blinks red.

  1. Wait about one minute for the POWER indicator to be lit in red steadily.

  2. During this period of one minute in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.

  3. Do not unplug the power cord while the POWER indicator is blinking. Unplugging the power cord immediately after use may cause a breakdown.
  4. Though the fan makes loud sounds during cooling, such symptom is not a malfunction.

  5. Unplug the power cord from the outlet.

• Cover the lens with the lens cap to protect it from dust.

When projected images are distorted to a trapezoid:

With the control area of the projector:

  1. Press the KEYSTONE button on the control area of the projector.
  2. Equalize the widths at the top and bottom of the screen by pressing the ▲ or ▼ button on the projector or the ▲, ▼ (or +, -) button on the remote control, viewing the screen.

With the INSTALLATION menu:

(See Page 21 for menu setting.)

  1. Display the INSTALLATION menu.
  2. Select KEYSTONE by pressing the ▲ or ▼ button.
  3. Equalize the widths at the top and bottom of the screen by pressing the ◀ or ▶ button, viewing the screen.

To cancel the menu:

  1. Press the MENU button several times.

SVGA60 INSTALLATION KEYSTONE

Setting the aspect ratio

You can change the aspect ratio of the input video signal (or the ratio of width to height of the image). Change the setting according to the type of the input video signal.

4:316:9EXPAND
Original image sizeProjects images with an aspect ratio of 4:3 when the input signal is 4:3 image.Projects images with an aspect ratio of 16:9.Projects images in the CinemaScope size or Vista size together with subtitles.
MITSUBISHI HC100 - Setting the aspect ratio - 14:3 image (480i, 576i, 480p, 576p, and PC)MITSUBISHI HC100 - Setting the aspect ratio - 2MITSUBISHI HC100 - Setting the aspect ratio - 3MITSUBISHI HC100 - Setting the aspect ratio - 4Available only when the input signal is 480i or 576i.
MITSUBISHI HC100 - Setting the aspect ratio - 54:3 CinemaScope and Vista imageMITSUBISHI HC100 - Setting the aspect ratio - 6MITSUBISHI HC100 - Setting the aspect ratio - 7MITSUBISHI HC100 - Setting the aspect ratio - 8Available only when the input signal is 480i or 576i.
MITSUBISHI HC100 - Setting the aspect ratio - 9Squeezed 4:3 (480i, 576i, 480p, 576p)MITSUBISHI HC100 - Setting the aspect ratio - 10MITSUBISHI HC100 - Setting the aspect ratio - 11MITSUBISHI HC100 - Setting the aspect ratio - 12Available only when the input signal is 480i or 576i.
MITSUBISHI HC100 - Setting the aspect ratio - 1316:9 image (1080i)MITSUBISHI HC100 - Setting the aspect ratio - 14MITSUBISHI HC100 - Setting the aspect ratio - 15Not available.
MITSUBISHI HC100 - Setting the aspect ratio - 1616:9 image (720p)MITSUBISHI HC100 - Setting the aspect ratio - 17MITSUBISHI HC100 - Setting the aspect ratio - 18Not available.

Bold frames are recommended modes.
- DVDs are usually labeled either FULLSCREEN or WIDESCREEN. FULLSCREEN DVDs produce a 4:3 image as shown above, and WIDESCREEN DVDs produce a 16:9 image as shown above, sometimes with or without thin black bars on the top or bottom of the picture. If you are purchasing DVDs for enjoyment with your projector, WIDESCREEN versions of DVDs will fill most of the screen and produce the best viewing results.

How to change the settings:

With the remote control:

  1. Press the ASPECT button.

- Every time the ASPECT button is pressed, the aspect mode changes from AUTO to 4:3, to 16:9, to EXPAND, and back to AUTO.

With the FEATURE menu:

(See Page 21 for menu setting.)

  1. Display the FEATURE menu.
  2. Select ASPECT by pressing the ▲ or ▼ button.
  3. Select your desired aspect ratio by pressing the ◀ or ▶ button.

To cancel the menu:

  1. Press the MENU button.

Important :

- When a 4:3 image is kept displayed for a long time before displaying 16:9 image, the afterimages of the black bars may appear on the 16:9 image screen. Consult your dealer in this case.

FEATURE
MENU POSITION1.
CINEMA MODEAUTO
VIDEO SIGNALAUTO
ASPECTAUTO

A. Connecting the projector to a computer

Preparation:

  • Make sure that the power of the projector and that of the computer are turned off.
  • When connecting the projector to a desktop computer, disconnect the RGB cables that are connected to the monitor.

COMPUTER IN/ COMPONENT VIDEO IN 1 2 to monitor port RGB cable

DVI-D (HDCP) IN 1 2 to DVI DVI cable

For analog connection:

  1. Connect one end of the supplied RGB cable to the COMPUTER IN/COMPONENT VIDEO IN terminal of the projector.
  2. Connect the other end of the RGB cable to the monitor port of the computer.
    • Additional devices, such as a conversion connector and an analog RGB output adapter, are required depending on the type of the computer to be connected.
  3. When viewing images supplied from an analog-connected computer, press the COMPUTER button on the remote control.
  4. This projector does not support 3-line signals (SYNC-ON-GREEN signals).

For digital connection:

  1. Connect one end of a commercially available DVI cable to the DVI-D terminal of the projector.

  2. Connect the other end of the DVI cable to the DVI terminal of the computer.

• Additional devices, such as a conversion connector and an analog RGB output adapter, are required depending on the type of the computer to be connected.
- When viewing images supplied from a digital-connected computer, press the DVI-D(HDCP) button on the remote control.

  • This projector uses stereo mini plug for its audio input. Check the type of the audio output terminal of the connected computer and prepare a proper cable for connection. Some computers don't have the audio output terminal.
  • Turn on the power of the projector before that of the computer.
  • Additional devices, such as a conversion connector and an analog RGB output adapter, are required depending on the type of the computer to be connected.
  • Use of a long cable may decrease the quality of projected images.
  • Also read the instruction manual of the equipment to be connected.
  • Images may not be projected correctly, depending on the type of the connected computer.
  • Contact your dealer for details of connection.

B. Plugging the power cord

Plug the power cord in the same way as in the case of "Viewing video images." (See Page 14.)

C. Projecting images

Preparation:

  • Remove the lens cap.
  • Turn on the power of the connected computer.

FOCUS ring ZOOM ring FOCUS ZOOM

POWER button POWER STATUS AUTO POSITION COMPUTER button COMPUTER KEYSTONE VIDEO ENTER MENU

ON (1) button DVI-D(HDCP) button COMPUTER button

  1. Confirm the POWER indicator lights up red.

- If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating and the POWER button may not work after the power cord is plugged. (The STATUS indicator blinks green.) After the fan stops rotating, press the power button to turn back on the POWER indicator.

  1. Press the POWER button on the projector or ON (1) button on the remote control.

  2. It may take about one minute for the lamp to light up.

  3. The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.
  4. Do not cover the lens with the lens cap while the lamp is on. Do not strip off the aluminium sheet inside the lens cap.
  5. The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW lamp mode has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute.

  6. Select an input source.

  7. Press the COMPUTER button on the projector or the COMPUTER or DVI-D(HDCP) button on the remote control that is corresponding to the terminal in use.

  8. The input source is switched between COMPUTER and DVI at every press of the COMPUTER button on the projector.
  9. Though it may take some time before an image is displayed on the screen depending on the type of the input signal, such symptom is not a malfunction.
  10. Images may not be projected in the correct position, depending on the type of the input signal. In such a case, press the AUTO POSITION button. (See Page 20.)

  11. Adjust the position of the projector to keep an appropriate projection distance with which images are projected in their specified sizes.

  12. Adjust the position of the projector so that the projector and the screen are perpendicular to each other. (See Page 10.)

- When the projector cannot be positioned perpendicularly to the screen, adjust the projection angle. (See Page 10.)

  1. Adjust the size of the projected image by turning the ZOOM ring.

  2. Adjust the focus by turning the FOCUS ring.

Repeat steps 4 to 7, if necessary.

Important :

  • When a 4:3 image is kept displayed for a long time before displaying 16:9 image, the afterimages of the black bars may appear on the 16:9 image screen. Consult your dealer in this case.
  • Do not display a still picture for a long time because the afterimages may persist on the screen.

POWER button POWER STATUS AUTO POSITION COMPUTER KEYSTONE VIDEO ◀◀ ENTER ▶ MENU ▼

ON-POWER KEY OFF (Button) OK Cancel USB START 9.0.3 10.0.3 11.0.3 12.0.3 13.0.3 14.0.3 15.0.3 16.0.3 17.0.3 18.0.3 19.0.3 20.0.3 21.0.3 22.0.3 23.0.3 24.0.3 25.0.3 26.0.3 27.0.3 28.0.3 29.0.3 30.0.3 31.0.3 32.0.3 33.0.3 34.0.3 35.0.3 36.0.3 37.0.3 38.0.3 39.0.3 40.0.3 41.0.3 42.0.3 43.0.3 44.0.3 45.0.3 46.0.3 47.0.3 48.0.3 49.0.3 50.0.3 51.0.3 52.0.3 53.0.3 54.0.3 55.0.3 56.0.3 57.0.3 58.0.3 59.0.3 60.0.3 61.0.3 62.0.3 63.0.3 64.0.3 65.0.3 66.0.3 67.0.3 68.0.3 69.0.3 70.0.3 71.0.3 72.0.3 73.0.3 74.0.3 75.0.3 76.0.3 77.0.3 78.0.3 79.0.3 80.0.3 81.0.3 82.0.3 83.0.3 84.0.3 85.0.3 86.0.3 87.0.3 88.0.3 89.0.3 90.0.3 91.0.3 92.0.3 93.0.3 94.0.3 95.0.3 96.0.3 97.0.3 98.0.3 99.0.3

To stop projecting:

  1. Press the POWER button on the projector or the OFF (Button on the remote control.

  2. A confirmation message is displayed.

  3. To cancel the procedure, leave the projector for a while or press the MENU button.

  4. Press the POWER button on the projector or the OFF (O) button on the remote control again.

- The lamp goes out and the projector goes into a standby mode. In this standby mode, the POWER indicator blinks red.

  1. Wait about one minute for the POWER indicator to be lit in red steadily.

  2. During this period of one minute in the standby mode, the intake fan and exhaust fan rotate to cool the lamp.

  3. Do not unplug the power cord while the POWER indicator is blinking. Unplugging the power cord immediately after use may cause a breakdown.
  4. Though the fan makes loud sounds during cooling, such symptom is not a malfunction.

  5. Unplug the power cord from the outlet.

- Cover the lens with the lens cap to protect it from dust.

AUTO POSITION button

When the image supplied from the computer is displaced, carry out the following procedure.

  1. Display a bright image (such as a full-screen display of the Recycle Bin window).
  2. When the screen saver has been enabled, disable it.
  3. Press the AUTO POSITION button.

The projector automatically makes optimum positional settings for the input signal.

  • If the image is not projected in the correct position even after you press the AUTO POSITION button several times, change the settings in the SIGNAL menu to put the image in the correct position. (See Page 26.)
  • When you carry out this procedure with a dark image, the image may be displaced.

When connecting to a notebook computer:

When the projector is connected to a notebook computer, images may not be projected in some cases. In such cases, set the computer so that it can output signals externally. The setting procedure varies depending on the type of the computer. See the instruction manual of your computer.

Example of the setting procedure for external output

Press the [Fn] key and any of the keys [F1] to [F12] at the same time. (The key to be pressed depends on the type of the computer you use.)

- Menus are not displayed when no signal is supplied to the projector.

MITSUBISHI HC100 - Example of the setting procedure for external output - 1

    R["INSTALLATION"] --> S["KEYSTONE"]
    R --> T["AUTO POWER ON"]
    R --> U["AUTO POWER OFF"]
    R --> V["SPLASH SCREEN"]
    R --> W["BACK COLOR"]
    R --> X["LAMP MODE"]
    R --> Y["IMAGE REVERSE"]
    R --> Z["± 20"]
    R --> AA["ON , OFF"]
    R --> AB["OFF, 5, 10, 15, 30, 60 min"]
    R --> AC["ON , OFF"]
    R --> AD["BLUE, BLACK"]
    R --> AE["STANDARD, LOW"]
    R --> AF["OFF, MIRROR, INVERT, MIRROR INVERT"]

    G --> AG["FEATURE MENU POSITION 1 (Upper left), 2 (Lower right)"]
    G --> AH["CINEMA MODE *3"]
    G --> AI["VIDEO SIGNAL *4"]
    G --> AJ["ASPECT *2"]
    G --> AK["PASSWORD FUNCTION"]
    G --> AL["LANGUAGE"]
    G --> AM["RESET ALL OK"]
    G --> AN["日本語, English, Español, Deutsch, Français, Italiano, 中文, 한국어, PYCCKIN PORTUGUÊS"]
    G --> AO["LOCK"]
    G --> AP["UNLOCK"]
    G --> AQ["OK ▼"]
    G --> AR["OK ▼"]

    AS["SIGNAL"] --> AT["HORIZ POSITION*7"]
    AS --> AU["VERT POSITION*7"]
    AS --> AV["FINE SYNC.*6"]
    AS --> AW["TRACKING *6"]
    AS --> AX["COMPUTER INPUT *6"]
    AS --> AY["SET UP *2"]
    AS --> AZ["HOLD *6"]
    AS --> BA["ON ▼"]
    AS --> BB["OFF"]
    AS --> BC["BEGIN"]
    AS --> BD["END"]
    AS --> BE["OR √ 99"]
    AS --> BF["OR √ 99"]
    AS --> BG["OR √ 99"]
    AS --> BH["OR √ 99"]
    AS --> BI["OR √ 99"]
    AS --> BJ["OR √ 99"]

    AK --> BK["OR √ 99"]
    AL --> BL["OR √ 99"]

    AM --> BM["HORIZ POSITION*7"]
    AM --> BN["VERT POSITION*7"]
    AM --> BO["FINE SYNC.*6"]
    AM --> BP["TRACKING *6"]
    AM --> BQ["COMPUTER INPUT *6"]
    AM --> BR["SET UP *2"]
    AM --> BS["HOLD *6"]

    BT["USER *6"] --> BU["OR ▼"]

    BV["OR √ 99"] --> BW["BEGR, YCBCR / YPBPR"]
    BV --> BX["OFF, 3.5%, 7.5%"]

    BY["OR √ 99"] --> BZ["BEGR, YCBCR / YPBPR"]

    CA["OR √ 99"] --> CB["BEGR, YCBCR / YPBPR"]

* 1: Not available when sRGB is set to ON.

* 2: Not available with certain signals.

* 3: Available only when the input signal is TV50, TV60, 480i, 576i.

* 4: Available only when the source is a VIDEO or S-VIDEO.

* 5: Setting range differs depending on the input signals.

* 6: Not available when the source is a VIDEO or S-VIDEO or DVI.

* 7: Not available when the source is a DVI from COMPUTER.

* 8: Available only when the input signal is 480i, 480p, 576i, 576p.

How to set the menus:

Following describe how to set AUTO POWER OFF time as an example.

  1. Press the MENU button.

- When no signal is input, the menu does not appear.

MITSUBISHI HC100 - How to set the menus: - 1

  1. Press the ◀ or ▶ button to select a menu to use.

MITSUBISHI HC100 - How to set the menus: - 2

  1. Press the ENTER button (or ▼ button).

SVGA60 INSTALLATION R1 KEYSTONE 0 AUTO POWER ON OFF

  1. Press the ▲ or ▼ button to select an item to adjust.

MITSUBISHI HC100 - How to set the menus: - 4

  1. Set the selected item by pressing the ◀ or ▶ button.

MITSUBISHI HC100 - How to set the menus: - 5

To cancel the menu:

  1. Press the MENU button several times.

Important:

  • When the MENU button doesn't function, unplug the power cord from the wall outlet. Wait about 10 minutes, plug the power cord in, and try again.
  • After selecting the items marked with ☐, press the ENTER button.

Available settings in the menus

Set the following items on their relevant menus.

  1. IMAGE menu 2. INSTALLATION menu 3. FEATURE menu 4. SIGNAL menu
CONTRAST0
BRICHNESS 0
ClearRichColorAUTO
3RGBOFF
COLOR TEMP.6200K
COLOR0
TINT0
0SHARPRESS
GAMMA MODEAUTO
INSTALLATION
(A) KEYSTONE0
AUTO POWER ONOFF
AUTO POWER OFFOFF
SPLASH SCREENON
BACK COLORBLUE
STANDARDLAMP MODE
IMAGE REVERSEOFF
FEATURE
MENU POSITION1.
CINEMA MODEAUTO
VIDEO SIGNALAUTO
ASPECTAUTO
PASSWORD FUNCTIONMENU ACCESS
LANGUAGEEnglish
RESET ALLOK
SIGNAL
HORIZ. POSITION0
VERT. POSITION0
FINE SYNC.0
TRACKING0
COMPUTER INPUTRGB
SET UPAUTO
HOLDON
USEROK

1. IMAGE menu

ITEM SETTING FUNCTION

CONTRAST 0 - 60 Use to adjust the contrast of the projected image. (See Page 24.)
BRIGHTNESS±30Use to adjust the brightness of the projected image. (See Page 24.)
CineRichColorAUTO / 0 - 10Use to adjust the white level of the projected image. Select AUTO for normal use. (See Page 24.)
sRGBON / OFFSelect whether or not to project emphasizing on the color reproducibility.
COLOR TEMP.4 positionsUse to adjust the color temperature. (See Page 25.)
COLOR0 - 20 Use to adjust the color thickness of the projected image. (See Page 24.)
TINT±10Use to adjust the color tint of the projected image. (See Page 24.)
SHARPNESS0 - 10 Use to adjust the sharpness of the projected image. (See Page 24.)
GAMMA MODEAUTOThe proper gamma mode is automatically selected depending on the input signal. Default is AUTO. THEATER1 is automatically selected for VCR image input signals such as 480i and 720p and STANDARD for computer image input signals such as XGA and SVGA.
STANDARDSelect to secure the contrast even when the room lighting is increased to some extent.
THEATER1Select when watching movies in dim lighting as in a theater.
THEATER2Select to gain the halftone to make the skin color more vibrant even in a dark scene. This mode is suitable for TV viewing.
  • For more enhanced color reproduction, set CineRichColor to 0. The white portion of the color wheel will be disabled and you can reproduce true-to-life images.

2. INSTALLATION menu

ITEM SETTING FUNCTION

KEYSTONE ±20 AUTO POWER ON ON / OFFUse to correct vertical keystone distortion. When ON is chosen, the lamp is automatically lit when the power cord is plugged in the wall outlet. Choose ON when using the projector mounted on the ceiling. The projector is in the stand-by mode when the lamp is off. Use the remote control to turn on the lamp.
AUTO POWER OFFOFF / 5 - 60minUse to set the time elapsed before the projector enters the stand-by mode when there is no signal input from the source.
SPLASH SCREENON / OFFChoose ON to display the splash screen when the power is turned on.
BACK COLORBLUE / BLACKUse to change the color of the screen that appears when no signal is supplied.
LAMP MODESTANDARD LOWSelect this option in normal use. Select to moderate the intensity of the lamp. The operating sound is reduced and the lamp lifetime becomes longer. Frequent switching of the lamp mode may damage the lamp.
IMAGE REVERSEOFFSelect when viewing images from the front with the projector installed on the floor.
MIRROR Selectwhen viewing images projected from the behind of the screen with the projector installed on the floor.
INVERTSelect when viewing images projected from the behind of the screen with the projector installed on the ceiling.
MIRROR INVERTSelect when viewing images from the front with the projector installed on the ceiling.
  • The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW lamp mode has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute.

3. FEATURE menu

ITEM SETTING FUNCTION

MENU POSITION 2 positions Use to change the position of the menu.
CINEMA MODE AUTOThe film mode will be automatically activated when a film source signal is inputted.
OFF The film mode will not be activated.
VIDEO SIGNAL 8 positionsWhen AUTO is selected, the appropriate video format is automatically selected depending on the input signal. If the image isn't displayed correctly, select the desired video format manually.
ASPECT AUTO Select to change the aspect ratio automatically depending on the input signal.
4:3 Select to project images with an aspect ratio of 4:3 when the input signal is 4:3 images.
16:9 Select to project images with an aspect ratio of 16:9.
EXPAND Select to enlarge and project images of CinemaScope size or Vista size.
PASSWORD FUNCTIONUse to enable or cancel the password lock. See page 27 for details.
LANGUAGE 10 languages Use to select the language used in the menus.
RESET ALL Use to reset the settings of the menu (excluding PASSWORD FUNCTION, and LANGUAGE) to the factory setting values.

4. SIGNAL Menu

ITEM SETTING FUNCTION

HORIZ. POSITION * Use to adjust the horizontal position of the projected image.
VERT. POSITION * Use to adjust the vertical position of the projected image.
FINE SYNC. Use to eliminate flickering or blur, if appears, viewing the projected image.
TRACKINGUse to eliminate vertical wide stripes, if appears, viewing the projected image.
COMPUTER INPUTRGBSelect this option when connecting the projector to high definition video equipment having R, G, and B output terminals.
YC_BC_R/YP_BP_R Select this option when connecting the projector to a DVD player or other device having Y, CB, and CR (or Y, PB, and PR component video output terminals.
SET UPOFF Select to make black area becomes lighter.3.5%/7.5% Select to make black area becomes thicker.
When 7.5% is chosen, the brightness is decreased by set-up cancel function for U.S. Choose OFF, when the image is darkness. (The default setting is 7.5%.)
HOLDUse to adjust the image when flagging occurs near the top of the screen.
USER
CLAMP POSITION/CLAMP WIDTHUse to correct solid white or solid black in the projected image.
LPFUse to whether or not to enable the LPF.
  • Though horizontal strips may appear on the enlarged projected image, such symptom is not a malfunction.
  • Options marked with * become unavailable depending on the type of the input signal.
  • When you change the horizontal or vertical position to a large extent, noise may appear.
  • The adjustable range of the vertical position varies depending on the type of the input signal. Though the image may stay in the same position even when the setting value is changed, such symptom is not a malfunction.

To adjust the brightness (CONTRAST and BRIGHTNESS):

You can make adjustments for the brightness of the projected image using the menu.

(See Page 21 for menu setting.)

  1. Display the IMAGE menu.
  2. Select CONTRAST or BRIGHTNESS by pressing the ▲ or ▼ button.
  3. Adjust the selected item by pressing the ◀ or ▶ button.

To cancel the menu:

  1. Press the MENU button.

CONTRAST

Select to adjust the contrast of the image. Every time the ▶ button is pressed, the image becomes brighter and more defined. Every time the ◀ button is pressed, the image becomes darker and less defined.

BRIGHTNESS

Every time the ▶ button is pressed, the image becomes brighter. Every time the ◀ button is pressed, the image becomes darker.

To adjust the color (COLOR and TINT):

You can adjust the color of the projected image using the menu.

(See Page 21 for menu setting.)

  1. Display the IMAGE menu.
  2. Select COLOR or TINT by pressing the ▲ or ▼ button.

- COLOR is unavailable when the computer or DVI-D is selected as the input source.

- TINT is available only when the NTSC signal is input.

  1. Adjust the selected item by pressing the ◀ or ▶ button.

To cancel the menu:

  1. Press the MENU button.

COLOR

Use to adjust the color thickness of the projected image. Every time the ▶ button is pressed, the color becomes thicker. Every time the ◀ button is pressed, the color becomes lighter.

- COLOR is unavailable when the computer or DVI-D is selected as the input source.

TINT

Use to adjust the tint of the projected image. Every time the ▶ button is pressed, the image appears more greenish. Every time the ◀ button is pressed, the image appears more reddish.

To sharpen or soften the projected image (SHARPNESS):

You can adjust the sharpness of the projected image using the menu.

(See Page 21 for menu setting.)

  1. Display the IMAGE menu.
  2. Select SHARPNESS by pressing the ▲ or ▼ button.
  3. Adjust the selected item by pressing the ◀ or ▶ button.

To cancel the menu:

  1. Press the MENU button.

To enhance or weaken the white level of the projected image (CineRichColor):

Use to enhance only the white level of the image. Level 10 enhances the white level most. Default is AUTO. Level 3 is automatically selected for VCR image input signals such as 480i and 720p and level 10 for computer image input signals such as XGA and SVGA. (See Page 21 for menu setting.)

  1. Display the IMAGE menu.
  2. Select CineRichColor by pressing the ▲ or ▼ button.
  3. Adjust the selected item by pressing the ◀ or ▶ button.

To cancel the menu:

  1. Press the MENU button.

To adjust the tone of white (COLOR TEMP.):

You can select a preset color temperature (white tone) using the menu.

(See Page 21 for menu setting.)

  1. Display the IMAGE menu.
  2. Select COLOR TEMP. by pressing the ▲ or ▼ button.
  3. Select your desired color temperature by pressing the ▲ or ▼ button.

To cancel the menu:

  1. Press the MENU button.

To adjust the tone of white (To customize the color temperature):

To customize (and store) the color temperature to your preference, carry out the following procedure. (See Page 21 for menu setting.)

  1. Select COLOR TEMP. in the IMAGE menu.
  2. Press the ◀ or ▶ button to select USER □
  3. Press the ENTER button.
  4. Press the ▲ or ▼ button to select the desired item.
  5. Press the ◀ or ▶ button to adjust the selected item.
  6. Repeat steps 4 and 5 for optimum adjustment results.
USER
CONTRAST R0
CONTRAST B 0
BRIGHTNESS R 0
BRIGHTNESS B 0

To cancel the menu:

  1. Press the MENU button.

To enable the stored color temperature:

  1. Select USER by pressing the COLOR TEMP button on the remote control.

About color temperature

There are different kinds of white color. Color temperature is a way to show the differences in white. White of which temperature is low appears reddish. When the color temperature rises, white appears bluish. This projector adjusts this color temperature by changing the values of contrast blue and red.

To rise the color temperature:

Increase the CONTRAST B (blue) and decrease the CONTRAST R (red).

To reduce the color temperature:

Decrease the CONTRAST B (blue) and increase the CONTRAST R (red).

This projector automatically and properly projects video signals supplied from the computer. However, some video signals may not be projected, depending on the type of the computer. In such a case, press the AUTO POSITION button. (See Page 20.) When the signal is still not projected properly, adjust the projected image using the SIGNAL menu.

How to adjust the image supplied from the computer using the menu:

Carry out the following procedures according to the symptoms.

Wide strips appear. .... Adjust TRACKING in the SIGNAL menu.

The projected image flickers.

The projected image is blurred. .... Adjust FINE SYNC. in the SIGNAL menu.

The projected image is displaced horizontally..... Adjust HORIZ.POSITION in the SIGNAL menu. Every time the

◀ button is pressed, the image moves to the right. Every time the ▶ button is pressed, the image moves to the left.

The projected image is displaced vertically. .... Adjust VERT.POSITION in the SIGNAL menu. Every time the

◀ button is pressed, the image moves down. Every time the ▶ button is pressed, the image moves up.

  1. Display the SIGNAL menu.
  2. Press the ▲ or ▼ button to select an item to adjust.
  3. Adjust the selected item by pressing the ◀ or ▶ button.

To cancel the menu:

  1. Press the MENU button.

- Do not change the settings of the SIGNAL menu in normal use.

Simple method to adjust the image position

To adjust the horizontal position:

  1. Align the left edge of the image with the left side of the screen by adjusting HORIZ.POSITION. Then, align the right edge of the image with the right side of the screen by adjusting TRACKING.
  2. Repeat step 1 above to complete the adjustment of the horizontal position.

To adjust the vertical position:

  1. Align the upper edge of the image with the upper side of the screen by adjusting VERT.POSITION.

LPF (Progressive filter)

You can select whether or not to enable the LPF. This item is set to OFF normally.

Vertical or horizontal streak noise may appear on the projected image, depending on the type of the DVD player you use. In such a case, you can reduce such streak noise by enabling the LPF. However, projected images become softened slightly.

  1. Display the SIGNAL menu.
  2. Press the ▲ or ▼ button to select USER.
  3. Press the ENTER button.
  4. Press the ▲ or ▼ button to select LPF.
  5. Press the ◀ or ▶ button to choose ON or OFF.

To cancel the menu:

  1. Press the MENU button.
USER
CLAMP POSITION0 →
CLAMP WIDTH 1
LPF OFF

Password function

This projector is equipped with the password function that is designed for wrong operation by children and restriction on operation by other than specified users.

MENU ACCESS...... All the buttons except for the POWER button on the projector are disabled. (The buttons on the remote control are enabled.) You can use this mode as a measure of prevention of wrong operation by children and restriction on operation by other than specified users.

To enable the password function:

  1. Display the FEATURE menu.

  2. Press the ▲ or ▼ button to select PASSWORD FUNCTION.

  3. Press the ENTER button.

- The screen for setting the password function will appear.

MITSUBISHI HC100 - To enable the password function: - 1

- When the password has already been set, the screen for canceling the password function will appear.

  1. Press the ENTER button.

- The screen for entering a password will appear.

PASSWORD CONFIRM O K CANCEL

  1. Press the ▲ or ▼ button to select a number from 0 to 9.

  2. Press the ▶ button.

- You can set the next digit.

  1. Repeat steps 5 and 6 to set a four-digit password.

  2. Enter the password again for confirmation using the same steps.

  3. Select OK, and press the ENTER button.

  4. If the entered passwords don't match, an error message will appear.

  5. To cancel the procedure, select CANCEL, and press the ENTER button.
  6. You can cancel the procedure by pressing the MENU button alternatively.

To cancel the password function:

  1. Display the FEATURE menu.

  2. Press the ▲ or ▼ button to select PASSWORD FUNCTION.

  3. Press the ENTER button.

- The screen for canceling the password function will appear.

MITSUBISHI HC100 - To cancel the password function: - 1

  1. Press the ENTER button.

- The screen for entering the password will appear.

MITSUBISHI HC100 - To cancel the password function: - 2

  1. Press the ▲ or ▼ button to select a number from 0 to 9.

  2. Press the ▶ button.

- You can set the next digit.

  1. Repeat steps 5 and 6 to enter the four-digit password.

  2. Press the ▶ button, select OK, and press the ENTER button.

  3. If you enter a wrong password, an error message will appear.

  4. To cancel the procedure, press the ▶ button, select CANCEL, and press the ENTER button.
  5. You can cancel the procedure by pressing the MENU button alternatively.

Important:

- If you forget your password, keep pressing the MENU and ENTER buttons on the control panel at the same time about three seconds to cancel the password function.

This projector is equipped with a lamp to project images. This lamp is a consumable. It may burn out or its brightness may decrease during use. In such cases, replace the lamp with a new one as soon as possible. Be sure to replace the lamp with a new lamp separately sold that is exclusive to this projector. Contact your dealer for purchase of the lamp.

WARNING:

  • Be careful not to drop the lamp fixing screws into the inside of the projector. Don't put a metal piece or flammable object into the projector. Using the projector with any foreign object present inside may result in electric shock or fire. When you can't remove the foreign object from the inside, contact your dealer for removal.
  • Be sure to install the lamp securely. When the lamp isn't installed properly, it won't illuminate. Improper installation may also result in fire.
  • Don't shake the removed lamp or don't lift it above your face. You may be injured in your eye by flying or falling glass fragments.
  • Don't replace the lamp immediately after use because the lamp cover is very hot. You may get burned. Turn off the power using the POWER button. After the lamp goes out, wait about two minutes until the intake and exhaust fans for cooling the lamp stop rotating. Then unplug the power cord, and wait at least one hour to allow the lamp to cool down enough to the touch.

Interval of lamp replacement

The recommended interval of lamp replacement is about 2000 hours ^1 ^2 of consecutive use. Such interval differs depending on the operating environment and may be shorter than 2000 hours ^1 ^2 . Decrease in luminescence and/or color brightness indicates that the lamp needs to be replaced. When the lamp operation time exceeds 1500 hours ^1 , the indicator will blink alternately green and red while the lamp is lit (while the lamp is not lit, the indicator will blink red only) and the lamp replacement message will appear on the screen for one minute every time the lamp is turned on. When the lamp has been used for about 1900 hours ^1 , the replacement message (LAMP EXCHANGE) will appear on the screen for one minute every 10 hours ^*1 thereafter.

When the lamp operation time exceeds 2000 hours ^1 ^2 , the projector automatically shuts off and can't be used until the lamp is replaced and the lamp operation time is reset.

*1 When LAMP MODE of the INSTALLATION menu is set to STANDARD. When it is set to LOW, this duration will be extended.

*2 When LAMP MODE is set to LOW, this duration will be extended up to 3000 hours.

Caution:

  • Don't remove the lamp for any purpose other than replacement. Unnecessary removal of the lamp may result in a breakdown.
  • This projector uses a high-pressure mercury lamp as the light source. The high-pressure mercury lamp may explode or fail to illuminate permanently because of an impact, scratch, or deterioration through use. The period of time until explosion or permanent failure to illuminate varies considerably from lamp to lamp, depending on operation conditions. Therefore, the lamp may explode soon after the start of use.
  • The possibility of explosion of the lamp increases if you use it beyond its replacement period. When the instruction of lamp replacement appears, replace it with a new one immediately even if the lamp is still lighting normally.
  • When the high-pressure mercury lamp explodes, glass fragments will scatter inside or outside the lamp box and the gas charged inside the lamp will diffuse inside or outside the projector. The gas inside the lamp contains mercury. Be careful not to breathe it or avoid it from entering your eye or mouth. If you should breathe it or if it should enter your eye or mouth, see a doctor immediately.
  • In the event that the high-pressure mercury lamp has exploded, glass fragments may have been scattered inside the projector. Ask your dealer to replace the lamp and to inspect the inside of the projector. When you clean or replace the lamp by yourself, be sure to hold the handle of the lamp. You may get injured by glass fragments.
  • Don't replace the lamp with the projector installed on the ceiling. Glass fragments may fall from the projector, entering your eye or mouth causing injury.
  • When placing the projector upside down to replace the lamp or conduct maintenance, ensure that the projector is securely placed before working with it.

To replace the lamp:

Technical diagram showing exploded view of a projector with labeled components (a), (b), (c), and directional arrows indicating assembly steps.

  1. Reverse the projector gently.
  2. Loosen the screw (a) using a Phillips screwdriver (+), and remove the lamp cover (b).
  3. Loosen the screws (c) using a Phillips screwdriver (+).
  4. Pull up the handle.
  5. Pull out the lamp box by the handle while holding the projector.

  6. Pull the lamp box out of the projector slowly. If it is pulled out quickly, the lamp may break scattering glass fragments.

  7. Do not spill liquid on the removed lamp box or do not place it near any flammable object or where children can reach to prevent injury or fire.

  8. Load a new lamp box securely into the projector in the right orientation.

  9. Put the handle back to the original position.

• Make sure that the handle is locked.

  1. Tighten up the screws (c) using a Phillips screwdriver (+).
  2. Tighten up the screw (a) using a Phillips screwdriver (+) to secure the lamp cover.

Reset of the lamp operation time

Plug in the power cord, turn on the lamp, and reset the lamp operation time by keep pressing the ◀, ▶, and POWER buttons on the control panel at the same time about three seconds.

Important:

  • Unless these three buttons are pressed at the same time, the lamp operation time isn't reset.
    • Make sure that the STATUS indicator is lit twice and the lamp operation time is reset successfully.
  • The projector doesn't turn on if the lamp cover isn't attached securely.
  • Be sure to reset the lamp operation time whenever you replace the lamp.
  • Do not reset the lamp operation time unless you replace the lamp.
  • This projector uses a lamp that contains mercury. Disposal of the lamp or the projector with the lamp may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. (For US only).

Maintenance

Caution:

Be sure to turn off the lamp and unplug the power cord from the wall outlet before you perform any maintenance on the projector.

Cleaning of the projector and the ventilation slots

Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become dirty, wipe them with a soft cloth dampened with diluted mild detergent, and then wipe them with a dry cloth.

To protect the surface of the projector from fading or deteriorating:

  • Do not spray insecticide on or inside the projector.
  • Do not use benzine or thinner to clean it.
  • Do not let rubber or plastic materials contact with projector.

Cleaning of the lens

Use a standard lens-cleaning brush or a piece of lens tissue dampened with lens cleaning fluid. The lens surface is fragile. Use only recommended, nonabrasive lens-cleaning materials. Do not touch the lens with your fingers.

To view images projected by the ceiling-mounted projector from the front:

When the projector is installed on the ceiling, the special ceiling mount bracket, which is separately sold, is required. Be sure to ask a certified installation specialist for installation of the projector. Contact your dealer for details.

- Mitsubishi assumes no responsibilities for any damage caused by use of other manufacturer's ceiling bracket and by inadequate installation conditions even within the warranty period.

MITSUBISHI HC100 - To view images projected by the ceiling-mounted projector from the front: - 1

natural_image Pure technical diagram showing a vehicle-mounted device connected to a beam, with no text or symbols present.
  • When installing the projector on the ceiling, set IMAGE REVERSE in the INSTALLATION menu to MIRROR INVERT.
  • Ask your installation specialist to provide a breaker. When you do not use the projector, be sure to shut down the main power by the breaker.
  • When the projector is installed on the ceiling, projected images may appear darker than those projected when the projector is installed on the floor. This symptom is not a malfunction.
  • Do not install the projector where the exhaust vents are exposed to air emitted by an air conditioning. Such installation may cause a breakdown.
  • Do not install the projector near a fire alarm because it emits hot air from its exhaust vents.

To view images projected on the translucent screen from behind:

Be sure to ask a certified installation specialist for installation of the projector. Contact your dealer for details.

MITSUBISHI HC100 - To view images projected on the translucent screen from behind: - 1

natural_image Simple line drawing of a right triangle with an adjacent rectangular structure (no text or symbols)

- To view images projected from behind the screen, set IMAGE REVERSE in the INSTALLATION menu to MIRROR.

Dimension Drawings (unit : mm)

MITSUBISHI HC100 - Dimension Drawings (unit : mm) - 1

Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be sure to unplug the power plug, and then contact your dealer.

No image appears on the screen.

ProblemSolution
Power can not be turned on.Check whether the indicators are on or off and how they are lightning.
POWERSTATUSSolution
OffOffConnect the power cord to the projector.Plug the power cord into a wall outlet.
Steady redOffIf any objects are blocking the air inlet or outlet grille, remove them and carry out the following.Unplug the power cord from the wall outlet.Make sure that the projector has cooled off.Plug the power cord into the wall outlet.Press the POWER button.
Blinking orangeIf any objects are blocking the air inlet or outlet grille, remove them.Don't expose the air outlet grilles to hot air emitted from a heating appliance.
Blinking greenAfter the STATUS indicator stops blinking, press the POWER button.If you unplug the power cord while the fan is rotating, the lamp may not turn on about one minute when you plug the power cord next time.The lamp can't turn on again for one minute after it goes out.Press the POWER button several times.
Steady redReplace the lamp. (The lamp is at the end of its life.)
Blinking red / greenOffAttach the lamp cover on the bottom.
Steady or BlinkingUnplug the power cord from the wall outlet and contact your dealer.
No image appears on the screen.Check that the lens cap is removed.It may take about one minute for the lamp to light up.The lamp fails to light up on rare occasions. In such a case, wait for a few minutes and then try again.If the projector was turned off before the lamp was cooled down sufficiently last time, the fan may start rotating and the POWER button may not work after the power cord is plugged. After the fan stops rotating, press the POWER button to turn back on the POWER indicator.Check that the intake vent is clean.Check that the lamp cover is closed. (See Page 29.)Check that the cables connected to the external devices are not broken.When an extension cable is being used, replace it with the supplied cable for check. When images are displayed correctly, add an RGB signal amplifier to the extension cable.
Projected images suddenly disappear.This problem may occur when the intake vent and/or exhaust vents are blocked. (In such a case, the STATUS indicator brink orange.)→Remove the objects blocking the intake vent and/or exhaust vents and then carry out the following procedure.Wait for the intake fan and/or exhaust fan to stop. (Wait until the STATUS indicator goes out.)Unplug the power cord from the wall outlet.Wait about 10 minutes.Plug the power cord into the wall outlet.Press the POWER button.When the STATUS indicator is steady red, it is indicating that the lamp should be replaced. Replace the lamp in this case.
"NO SIGNAL" is displayed.Turn on the power of the connected device, or check whether there is something wrong with the connected device.Check whether the external device outputs signals. (Check this especially when the external device is a notebook computer.)Check that the cable connected to the external device isn't defective.Check that the projector is connected to the external device using the correct terminals.Check that the connected device is correctly selected as the input source.When an extension cord is being used, replace it with the supplied cable and check whether images are projected correctly. If images are projected correctly, use an RGB signal amplifier along with the extension cord.

Images are not displayed correctly.

ProblemSolution
Projected images are shaking.Projected images are displaced.Check that the cable connected to the external device isn't intermittent.Connect the cable's plug with the external device's connector firmly.Press the AUTO POSITION button.Some computers output out-of-spec signals on rare occasion. Adjust the SIGNAL menu. (See page 26.)
Projected images are distorted.Adjust the projector and the screen so that they are perpendicular to each other.(See Page 11.)
Projected images are dark.Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See Page 24.)Replace the lamp. (See Page 28.)
Projected images are blurred.Adjust the focus. (See Pages 15 and 19.)Clean the lens.Press the ▶ or ▶ button on the remote control to eliminate flicker.Adjust TRACKING and FINE SYNC. in the SIGNAL menu. (See Page 26.)Adjust BRIGHTNESS and CONTRAST in the IMAGE menu. (See Page 24.)Adjust the projector and the screen so that they are perpendicular to each other.(See Page 11.)
White dots are seen on projected images.Black dots are seen on projected images.This symptom is normal for a DLP projector and is not a malfunction. (A very small number of pixels may stay lit or out, but such symptom is not a malfunction. Pixels of 99.99% or more are effective.)
Rainbow effect is seen on projected images.This is due to color breaking noise that occurs in a DLP system and is not a malfunction.
Fine streaks are seen on projected images.This is due to interference with the screen surface and is not a malfunction. Replace the screen or displace the focus a little.
Projected images become wavy.Connect the plugs of the cables to external devices securely.Keep the projector away from devices that emit interfering radio waves.When the keystone adjustment is carried out, the image may not be displayed correctly because of the type of input signal. This isn't a product malfunction. In this case, readjust the keystone so that the amount of keystone correction is as small as possible.
Hue is not appropriate.Check that the cables connected to the external devices are not broken.
Tint in projected images is incorrect.Check that COMPUTER INPUT in the SIGNAL menu is correctly set. (See page 23.)Check that the cable connected to the external device isn't broken.
Only the motion areas in the images supplied from the computer aren't displayed.This is caused by the computer being used. Contact the manufacturer of your computer.
Projected images are obscured.Match the output resolution of your computer with the resolution of the projector. For the method to change the output resolution of the computer, contact the manufacturer of your computer. (See page 36.)Some images and texts appear obscured during the keystone adjustment. In such cases, use the projector without applying the keystone adjustment. (See page 10.)

Others

ProblemSolution
The exhaust vents emit warm air.This air comes out after cooling the inside of the projector. You may feel hot, but this is not a malfunction.
No audio is output.Check that the volume isn't set to low.
The menu can't be used.The microcomputers inside the projector may be wrongly operating because of noise.→Press the POWER button to turn off the lamp and unplug the power cord from the wall outlet. Wait about 10 minutes, plug the power cord in, and try again.
“TEMPERATURE!!” is displayed.This indication appears when the ambient temperature rises high. When the ambient temperature stays high, the lamp goes out.→Eliminate any causes of the rise in the ambient temperature.This indication appears when the air inlet or outlet grille is blocked. When they are kept blocked, the lamp goes out.→Remove the objects blocking the air inlet or outlet grille.
The Qmark appears.This mark appears when ineffective operation is carried out. This isn't a product malfunction.
The remote control doesn't function easily or at all.Check that the battery is loaded in the remote control or the battery isn't weak.(See page 8.)Check that the remote control sensor isn't exposed to direct sunlight or fluorescent light. (See page 8.)Use the remote control within its operation range. (See page 8.)Use the remote control at least 10 cm away from the projector.
The buttons on the control panel (except for the POWER button) don't function.The password function is working.→Cancel the password lock or contact the person in charge of management of the projector. (See page 27.)
Abnormal sound is heard.Because the color wheel spins at a high speed, metallic sounds may be heard in rare occasions. Such symptom is not a malfunction.

If the following problem occurs after the lamp is replaced, check the following first.

ProblemSolution
The projector does not turn on.Fit the lamp cover securely. (See Pages 28 and 29.)Reset the lamp operating time. (See Page 29.)
The STATUS indicator blinks.Reset the lamp operating time. (See Page 29.)

Kensington Lock

This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System. Refer to the information that came with the Kensington System for instructions on how to use it to secure the projector. Please contact Kensington Technology Group below.

Kensington Technology Group

2855 Campus Drive

San Mateo, CA 94403, U.S.A.

Phone : +1- (650)572-2700 Fax : +1- (650)572-9675

This projector has two indicators, each of which shows the operation condition of the projector.

The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your dealer.

POWER indicator STATUS indicator POWER STATUS

Normal condition

POWERSTATUSCONDITIONNOTE
Steady redOffStand-by
Steady greenBlinking greenLamp stand-by (about 1 minute)The POWER button cannot be used to switch between on and off.
Steady greenSteady greenThe power is on. (Normal condition)

Abnormal condition

POWERSTATUSCONDITIONPOSSIBLE SOLUTION
[7108]S [X345]J [237Z]MITSUBISHI HC100 - Kensington Lock - 2[T47X]Steady redBlinking orangeAbnormal temperatureThe ventilation grilles is clogged with dust or dirt.The room temperature is high.Clean the ventilation grilles.Relocate the projector to a cooler place.
[450C]St MITSUBISHI HC100 - Kensington Lock - 3Blinking greenThe protection circuit is working or the lamp is in an abnormal condition.Wait until the STATUS indicator goes out, then press the POWER button.If the above solution is not effective, replace the lamp.
MITSUBISHI HC100 - Kensington Lock - 4S [Y36Z]J MITSUBISHI HC100 - Kensington Lock - 5Blinking green/redLamp operation time warning. (Total lamp operation time reached 1500 hours ^1 while the power was on.)Replace the lamp.Change with a new lamp if this problem recurs.
MITSUBISHI HC100 - Kensington Lock - 6St MITSUBISHI HC100 - Kensington Lock - 7Blinking redLamp operation time warning. (Total lamp operation time reached 1500 hours ^1 while the power was off.)
[T780]St [T7AT]Steady redLamp operation time warning. (Total lamp operation time reached 2000 hours ^1,*2 while the power was off.)
[H22K]B MITSUBISHI HC100 - Kensington Lock - 8gr [W0DH]OffThe lamp cover isn't closed.Close the cover correctly.
[8W6Y]B MITSUBISHI HC100 - Kensington Lock - 9gr [KWX8]MITSUBISHI HC100 - Kensington Lock - 10Steady orBlinkingAbnormal.Contact your dealer.

When LAMP MODE of the INSTALLATION menu is set to STANDARD. When it is set to LOW, this duration will be extended.
*2 When LAMP MODE is set to LOW, this duration will be extended up to 3000 hours.

The specifications and outside appearance of the projector are subject to change without prior notice.

Type DLP^TM projector
ModelHC100
Display Technology0.55-inch Single chip DMD (Aspect ratio 16:9)Pixel 854 x 480 = 409920 pixels
Projection lensF 2.4 - 2.7 f= 19 - 23 mm
Light-source lamp200 W
Image size (Projection distance)40" min. to 300" max. (Projection distance 1.4 to 10.7 m)
Maximum number of display colors16770000 (full-color display)
Maximum resolutionComputer signalMaximum resolution : 1024 x 768 dots (Analog) / compressedPanel resolution : 854 x 480 dots
Video signalNTSC / PAL / NTSC 4.43 / PAL-M / PAL-N / PAL-60 / SECAM
Component signal480i, 480p, 576i, 576p, 720p, 1080iPanel resolution : 854 x 480 dots
Computer input[Signal type] [Terminal type] [Line]Analog RGB D-SUB 15P 1Digital RGB DVI 1
Video input[Signal type] [Terminal type] [Line]Video input RCA 1S-Video input S 1Component video input RCA 1
Audio input[Signal type] [Terminal type] [Line]RGB Stereo mini jack ( 3.5 ) 1Component RCA (L, R) 1Video/S-video RCA (L, R) 1
Speaker2 W Mono Round type 4.5cm × 1
Control terminal/OthersRS-232C (8-pin)
Operating temperatures+41°F (+5°C) to +95°F (+35°C)
Rated voltageAC100 - 240V, 50/60Hz
Power consumption2.9A
Dimensions310 mm (W) x 100 mm (V) x 245 mm (D) * Not included protrusion.
Weight2.9 kg
OthersS-video inputLuminance signal : Vp-p=1.0 V 75Ω (negative sync)Chrominance signals : Vp-p=0.286 V 75Ω (burst signal)
Video inputVp-p=1.0 V 75Ω (negative sync)
Component video input Y_CBC_R : Vp-p=1.0 V 75Ω (Y) (negative sync)Vp-p=0.7 V 75Ω ( C_B , C_R )
Analog inputRGB : Vp-p=0.7 V 75Ω (negative sync) Y_CBC_R : Vp-p=1.0 V (Y) (negative sync) Vp-p=0.7 V ( C_B , C_R )HD/CS : TTL-level (negative or positive polarity)VD : TTL-level (negative or positive polarity)
Digital input (DVI)DVI-D interface (TMDS single link)
Audio input350 mVrms, 10 kΩ or more

Specification of RGB signals in each computer mode of the projector

Signal modeResolution (H x V)Horizontal frequency (kHz)Vertical frequency (Hz)Normal mode (H x V)*1
TV60, 480i(525i) - 15.73 59.94 854 x 480
TV50, 576i(625i) - 15.63 50.00 854 x 480
1080i 60 (1125i 60) - 33.75 60.00 854 x 480 *2
1080i 50 (1125i 50) - 28.13 50.00 854 x 480
480p (525p) - 31.47 5994 854 x 480 *2
576p (625p) - 31.25 5000 854 x 480 *2
720p 60 (750p 60) - 4500 60.00 854 x 480 *2
720p 50 (750p 50) - 3750 50.00 854 x 480
PC98 640 x 400 24.82 56.42 768 x 480
CGA84 640 x 400 37.8684.13 768 x 480
CGA85 640 x 400 37.8685.08 768 x 480
VGA60 640 x 480 31.4759.94 640 x 480
VGA72 640 x 480 37.8672.81 640 x 480
VGA75 640 x 480 37.5075.00 640 x 480
VGA85 640 x 480 43.2785.01 640 x 480
SVGA56 800 x 600 35.16 56.25 640 x 480
SVGA60 800 x 600 37.88 60.32 640 x 480 *2
SVGA72 800 x 600 48.08 72.19 640 x 480
SVGA75 800 x 600 46.88 75.00 640 x 480
SVGA85 800 x 600 53.67 85.06 640 x 480
XGA60 1024 x 768 48.36 60.00 640 x 480 *2
XGA70 1024 x 768 56.48 70.07 640 x 480
XGA75 1024 x 768 60.02 75.03 640 x 480
XGA85 1024 x 768 68.68 85.00 640 x 480
MAC13 640 x 480 35.0066.67 640 x 480
MAC16 832 x 624 49.7274.55 640 x 480
MAC19 1024 x 768 60.24 75.02 640 x 480
HP75 1024 x 768 62.9474.92 640 x 480

*1: When ASPECT in the FEATURE menu is set to AUTO.
*2 : Available for the signal for DVI-D terminal.

Important:

  • Some computers aren't compatible with the projector.
  • The projector's maximum resolution is 854 x 480 pixels. It may not display images of higher resolutions than 854 x 480 correctly.
  • If the resolution and frequency of your computer aren't shown on the table, find the compatible resolution and frequency by changing the resolution of your computer.

  • Set COMPUTER INPUT in the SIGNAL menu to RGB when inputting the HDTV signal as RGB signal.

  • TV60 and TV50 are equivalent to 480i and 576i respectively. When these signals are supplied to the VIDEO or S-VIDEO signal, the signal mode is indicated as TV60 or TV50. When they are supplied to the COMPONENT terminal, the signal mode is indicated as 480i or 576i.

Connectors
SERIAL (8-pin)
MITSUBISHI HC100 - Important: - 1

Pin No.NameI/O
1TXDIN
2--
3--
4GND-
5--
6--
7RXDOUT
8--

COMPUTER IN / COMPONENT VIDEO IN (Mini D-SUB 15-pin)
MITSUBISHI HC100 - Important: - 2

Pin No.Spec.
1 R( RED) /C_R
2G(GREEN)Y
3B(BLUE)/Cr
4GND
5GND
6GND
7GND
8GND
9DDC5V
10GND
11GND
12DDC Data
13HD/CS
14VD
15DDC Clock

DVI-D (HDCP) (DVI-D 24-pin)
MITSUBISHI HC100 - Important: - 3

PIN No.SPECPIN No.SPEC
1DATA 2-13-
2DATA 2+14+5V Power
3DATA 2 Shield15Ground
4-16Hot Plug Detect
5-17DATA 0-
6DDC Clock18DATA 0+
7DDC Data19DATA 0 Shield
8-20-
9DATA 1-21-
10DATA 1+22Clock Shield
11DATA 1 Shield23Clock+
12-24Clock-

MITSUBISHI Projector Contact Information

North America

MESCA (Mitsubishi Electric Sales Canada Inc.)

http://www.mitsubishielectric.ca

Information Technologies Group, 4299 14th Avenue, Markham, Ontario L3R

0J2, Canada

Sales Phone :+1-(905) 475-7728

Fax: +1-(905) 475-7958

E-mail: projectors@mitsubishielectric.ca

Technical Phone :+1-(905) 475-7728

Fax :+1-(905) 475-7958

Customer Care

E-mail :support@mitsubishielectric.ca

MDEA (Mitsubishi Digital Electronics America, Inc.)

(Warranty Registration)

http://www.mitsubishi-presentations.com/

Presentation Products Division, 9351 Jeronimo Road, Irvine, CA 92618 U.S.A

Phone Main Line :+1-(949) 465-6000

Technical :+1-(888) 307-0309

Product Information :+1-(888) 307-0312

Technical Support

E-mail :tsupport@mdea.mea.com

Europe

MEU-FRA (Mitsubishi Electric Europe B.V French Branch)

25, Boulevard des Bouvets 92 741, Nanterre CEDEX, France

Sales Phone :+33 (0)1 55-68-55-07

Fax :+33 (0)1 55-68-57-31

Technical Phone :+33 (0)1 41-02-83-24

Fax: +33 (0)1 49-01-07-23

MEU-GER (Mitsubishi Electric Europe B.V. German Branch)

http://www.mitsubishi-evs.de/

Gothaer Strasse 8, 40880 Ratingen, Germany

MEU-IR (Mitsubishi Electric Europe B.V. Irish Branch)

http://www.mitsubishi.ie/

Westgate Business Park, Ballymount, Dublin 24, Ireland

Sales Phone :+353-(0)1-4198844

Fax: +353-(0)1-4564422

Technical Phone :+353-(0)1-4198807

Fax :+353-(0)1-4198895

MEU-IT (Mitsubishi Electric Europe B.V. Italian Branch)

Agrate Brianza, Italy

Sales Phone :+39-(0)39-60531

Fax :+39-(0)39-6053214

E-mail :info.projector@it.mee.com

MEU-NL (Mitsubishi Electric Europe B.V. Benelux Branch)

http://www.mitsubishi.nl/LCD/ProdFrame.html

Sales Phone :+31-297-282461

Fax :+31-297-283936

E-mail:info.lcd@nl.mee.com

Technical Phone :+31-297-282461

Fax:+31-297-283936

E-mail :info.led@nl.mec.com

MEU (MITSUBISHI ELECTRIC EUROPE B.V.)

http://www.mitsubishi-projector.ru/

Moscow Representative Office, 12/1 Goncharnaya St. 109240, Moscow, Russia

Sales Phone :+7 (095) 915 8602

Fax:+7(095)9158603

MEU-SP (Mitsubishi Electric Europe B.V. Spanish Branch)

http://www.mitsubishielectric.es/

Ctra. de Rubi, 76-80, 08190 Sant Cugat del Valles, Barcelona, Spain

Sales Phone :+34-93.565.31.54

Fax: +34-93.589.43.88

E-mail :mitsubishi.profesional@sp.mee.com

Technical Phone :+34-93.586.27.51

Fax: +34-93.699.74.45

E-mail :mitsubishi.profesional@sp.mee.com

MEU-SWE (Mitsubishi Electric Europe B.V Scandinavian Branch)

Hammarbacken 14, Box 750, S-19127, Sollentuna, Sweden

Sales Phone :+46-(0)8-6251070

Fax :+46-(0)8-6251036

Technical Phone :+46-(0)8-6251052

Fax:+46-(0)8-6251036

MEU-UK (Mitsubishi Electric Europe)

http://www.mitsubishi.co.uk/evs/

Visual Information Systems Division, Travellers Lane, Hatfield, Hertfordshire,

AL10 8XB

Sales

Phone :+44 (1707) 278684

Fax: +44 (1707) 278541

E-mail :projector.info@meuk.mee.com

Technical Phone :+44 (870) 606 5008

Fax: +44 (1506) 431927

E-mail :projector.info@meuk.mee.com

Russia (Mitsubishi Electric Europe B.V Moscow Representative Office)

52, bldg.5, Kosmodamianskaya Nab, 113054, Moscow, Russian Federation

Sales Phone :+7 (095) 721 2070

Fax: +7 (095) 721 2071

Technical Phone :+7 (095) 721 2070

Fax :+7 (095) 721 2071

Asia

MITSUBISHI ELECTRIC RYODEN AIR-CONDITIONING & VISUAL INFORMATION SYSTEMS (HONGKONG) LTD.

- Hong Kong Office

Units 5-10, 20/F., Ever Gain Plaza, Tower One
88 Container Port Road, Kwai Chung, New Territories, Hong Kong. Technical Support

Phone :+852 2510 0777

Fax :+852 2510 0463

- Beijing Office

9/F, Office Tower 1, Henderson Centre, 18 Jianguomennei Dajie, Dongcheng District, Beijing, 100005, China

Sales & Technical Support

Phone :+86 (10) 6518 2930

Fax :+86 (10) 6518 2530

- Shanghai Office

10/F, Shanghai Square Office Tower, 138 Huai Hai Zhong Road, Lu Wan District, Shanghai, 200021, China

Sales & Technical Support

Phone :+86 (21) 6327 2228

Fax :+86 (21) 6327 4918

• Shenzhen Office

Unit 01-04, 13/F, Building A, Tian An International Building, Renmin Road South, Shenzhen, 518005, China

Sales & Technical Support

Phone :+86 (755) 518 6386

Fax :+86 (755) 218 4775

- Chengdu Office

Block B-1, 23/F., Chuan Xin Mansion, 18 Section 2, Renmin Road South, Chengdu, 610016, China

Sales & Technical Support

Phone :+86 (28) 619 9730

Fax :+86 (28) 619 9801

MEAP (Mitsubishi Electric Asia Pte Ltd)

http://www.mitsubishielectric.com.sg

307 Alexandra Road, Mitsubishi Electric Building, 289245, Singapore

Main Line Phone :+65 6 473 2308

Fax :+65 6 475 9503

Sales & Technical Support

E-mail :peripherals@asia.meap.com

AMS (Antah Melco Sales & Services Sdn Bhd

(A Joint-Venture Company of Mitsubishi Electric Corporation))

http://www.antahmelco.com.my

6, Jalan 13/6, Petaling Jaya, Selangor Darul Ehsan, Malaysia

Main Line Phone :+603-7955 2088

Fax :+603-7956 3950

:+603-7958 2576

Technical Support

Phone :+603-7955 2088

E-mail :anmelco@po.jaring.my

Product Information

Phone :+603-7955 2088

ME-TWN (Mitsubishi Electric Taiwan Co., Ltd.)

http://www.mitsubishi-electric.com.tw

9th Floor., 90 Sec. 6, Chung Shan N. Rd., Taipei, Taiwan

Sales Support Phone :+886 (0) 2 2832 8255

Fax : +886 (0) 2 2833 9813

KYW (Kang Yong Watana Co., Ltd.)

http://www.mitsubishi-kyw.in.th

28 Krungthep Kreetha Road, Huamark Bangkapi, Bangkok, 10240, Thailand

Sales Support Phone :+66 (2) 731 6901

Fax :+66 (2) 379 4763

STC (Setsuyo Astec Corp. Seoul Branch)

Dongseo Game Channel Bldg, 660-11, Deungchon-dong, Kangseo-ku, Seoul, Korea

Main Line Phone :+82 (0) 2 3665 4964

Fax :+82 (0) 2 3665 4965

Oceania

ME-AUST (Mitsubishi Electric Australia)

http://www.mitsubishi-electric.com.au/prod.asp?prod=proj

348 Victoria Road, Rydalmere, N.S.W. 2116, Australia

Sales Phone :+(612)9684-7777

Fax :+(612)9898-0484

E-mail :ped@meaust.meap.com

BDT (Black Diamond Technologies Ltd.)

(Warranty Registration) http://www.bdt.co.nz/projectors/warranty.asp

1 Parliament St, Lower Hutt, Wellington, New Zealand

Sales Phone :+64-(0)4-560-9100

Manufactured by Mitsubishi Electric Corporation

1 Zusho Baba, Nagaokakyo-City, Kyoto Japan

MITSUBISHI HC100 - Oceania - 1

MITSUBISHI ELECTRIC CORPORATION

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : MITSUBISHI

Model : HC100

Category : Video projector
