Product Type Car Speaker
Brand Sony
Model EXS-113
Speaker Type Coaxial 2-Way
Size (Diameter) 6.5 inches (165 mm)
Power Handling (RMS) 50 Watts
Power Handling (Peak) 150 Watts
Impedance 4 Ohms
Frequency Response 50 Hz – 20 kHz
Sensitivity 90 dB (1W/1m)
Cone Material Polypropylene
Surround Material Rubber
Magnet Type Ferrite
Mounting Depth 60 mm (2.36 in)
Cutout Diameter 145 mm (5.71 in)
Weight (per speaker) 1.0 kg (2.2 lbs)
Color Black
Warranty 1 Year
Package Contents 2 speakers, mounting hardware, manual

Frequently Asked Questions - EXS-113 SONY

What is the size of the Sony EXS-113 speaker?
The Sony EXS-113 is a 6.5-inch (165 mm) car speaker, which fits most standard vehicle speaker locations.
What is the power handling of this speaker?
It handles 50 Watts RMS and 150 Watts peak power, suitable for most factory and aftermarket head units.
Is the EXS-113 compatible with my car?
It fits any car with 6.5-inch speaker cutouts. Check mounting depth (60 mm) and impedance (4 ohms) to ensure compatibility.
What type of speaker is it?
It is a coaxial 2-way speaker, combining a woofer and a tweeter in one unit for easy installation.
How do I install the Sony EXS-113?
Installation is straightforward: remove old speaker, connect wires to terminals (matching polarity), and screw into place using the included mounting hardware.
What is the frequency response?
The frequency response ranges from 50 Hz to 20 kHz, covering bass to treble well.
Is the speaker waterproof?
No, it is not waterproof. It is designed for indoor vehicle use and should not be exposed to moisture.
What materials are used in the cone and surround?
The cone is made of polypropylene for durability, and the surround is rubber for long-lasting flexibility.
Does it come with a warranty?
Yes, Sony provides a 1-year warranty against manufacturing defects.
Can I use this speaker with an aftermarket amplifier?
Yes, its 4-ohm impedance and 50W RMS rating make it compatible with most aftermarket amplifiers.

User questions about EXS-113 SONY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Car speaker in PDF format for free! Find your manual EXS-113 - SONY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EXS-113 by SONY.

USER MANUAL EXS-113 SONY

Sony Corporation © 1996 Printed in Hong Kong

Specifications

Speaker10 cm, Dual cone type
Maximum input power50 watts
Rated power15 watts
Impedance4 chms
Sensitivity88 dB/W/m
Frequency response50 – 18,000 Hz
Massapprox. 340 g perspeaker (incl. grille)

Design and specifications subject to change without notice.

Spécifications

2

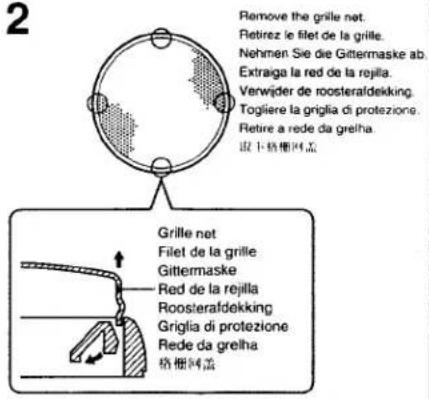

2 Remove the grille net. Retirez le filet de la grille. Nehmen Sie die Gittermaske ab. Extraiga la red de la rejilla. Verwider de roosterafdekking. Togliere la griglia di protezione. Retire a rede da grelha. 脱下格栅网盖 Grille net Filet de la grille Gittermaske Red de la rejilla Roosterafdekking Griglia di protezione Rede da grelha 格栅网盖

3

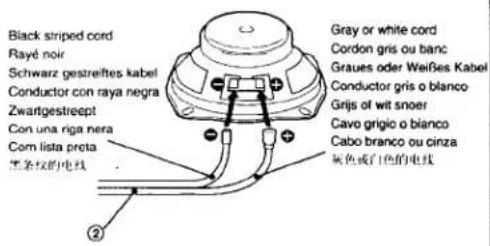

Black striped cord Rayé noir Schwarz gestreiftes kabel Conductor con raya negra Zwartgestrecept Con una riga nera Com lista preta 黑色纹的电线 Gray or white cord Cordon gris ou banc Graues oder Weißes Kabel Conductor gris o blanco Grijs of wit snoer Cavo grigio o bianco Cabo branco ou cinza 灰色或白色的电线

4

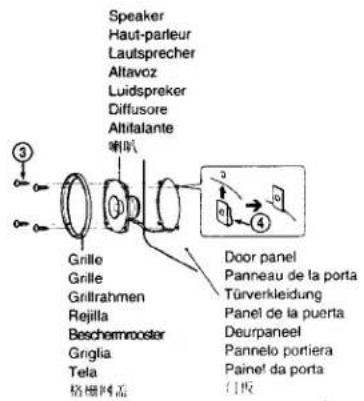

Speaker Haut-parleur Lautsprecher Altavoz Luidspreker Diffusore Altitalante 喇叭 Grille Grille Grillrahmen Rejilla Beschermrooster Griglia Tela 格栅网盖 Door panel Panneau de la porta Türverkleidung Panel de la puerta Deurpaneel Pannelo portiera Painef da porta 门板

5

Push the edges of the grille net. Pousser les extrémités du treillis de la grille. Zum Aufsetzen an der Kante der Gittermaske drücken. Presione los extremos de la red de la rejira. Duw de hoeken van de roosterafdekking naar binnen. Fare pressione sui bordi della griglia di protezione. Faça pressão sobre as extremidades da rede da grelha. 推揮护胸邊沿
Grille net Filet de la grille Gittermaske Red de la rejilla Roosterafdekking Griglia di protezione Rede da grelha 格栅网盖

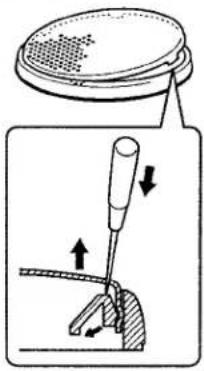

How to remove the grille net. Comment retirer le treillis de la grille. Zum Abnehmen der Gittermask Cómo extraer la red de la rejilia Het verwijderen van de roosterafdekking. Como togliere la griglia di protezione Como retirar a rede da grelha 栅框网子装法

Diagram illustrating a mechanical or laboratory procedure with labeled components and directional arrows indicating movement or force.

Precautions

  • Be careful not to drive the speaker over the maximum input power.
  • Keep recorded tapes, watches, or personal credit cards using magnetic coding away from the speaker to prevent them from possible damage caused by the magnets in the speakers.

If you cannot find an appropriate mounting location, check with your car dealer or consult the nearest Sony dealer.
