Product Type	Free-standing electric range
Brand	ELEKTRO HELIOS
Model	SK6167
Manufacturing Origin	Sweden
Width	600 mm
Depth	600 mm
Height	850 mm
Weight	Approximately 60 kg
Power Supply	230 V, 50/60 Hz
Total Power Consumption	10.5 kW
Hob Type	Glass ceramic induction
Number of Cooking Zones	4
Oven Type	Electric oven with grill
Oven Capacity	Approximately 65 liters
Grill Function	Yes, integrated grill element
Control Type	Rotary knobs
Oven Light	Replaceable lamp, 25 W, E14 base
Safety Features	Child lock, automatic shut-off, residual heat indicators
Cleaning	Enamel oven interior, removable oven door
Energy Efficiency Class	A (estimated)
Spare Parts Availability	Heating elements, knobs, oven lamp, door hinges
Repairability Index	8/10 (replaceable parts, accessible)

Frequently Asked Questions - SK6167 ELEKTRO HELIOS

How do I install the SK6167 range?

Ensure proper electrical connection by a qualified electrician (230 V, 50/60 Hz). Place the range on a level surface with adequate ventilation. Refer to the Electrical connection section in the manual.

How do I clean the glass ceramic hob?

Use a specific glass ceramic cleaner and a soft cloth. Avoid abrasive sponges. Clean after each use once the hob has cooled down. For burnt residues, use a scraper included with the appliance.

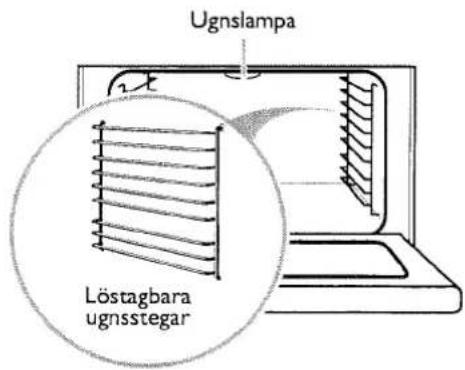

How do I replace the oven lamp?

Disconnect the power. Remove the lamp cover by turning it counterclockwise. Replace with a 25 W, 230 V, E14 base oven bulb. Reinstall the cover and restore power.

What oven functions are available?

The oven offers conventional heating, grill, and combined functions. Use the rotary knob to select the desired mode. Refer to the Grillning section for grilling tips.

Why does the hob indicator light stay on after cooking?

The residual heat indicator remains on until the hob zone cools below 60°C. This is a safety feature to prevent burns. Do not touch the zone until the light goes off.

Can I use the oven and grill simultaneously?

Yes, but keep in mind that the total power consumption may trip the circuit breaker if other high-power appliances are on the same circuit. It is recommended to use them sequentially.

How do I adjust the oven door hinge?

If the door is misaligned, open the door fully and locate the hinge screws on both sides. Tighten or adjust them using a screwdriver. Refer to the Ugnsluckan section in the manual.

What is the correct way to store oven accessories?

Store baking trays and grill racks inside the oven when not in use. Ensure they are clean and dry. Do not store flammable materials in the oven.

How do I set the child lock?

Press and hold the lock button (if equipped) for 3 seconds until the indicator lights up. To unlock, repeat the same process. Refer to the Safety section for details.

Where can I find spare parts for this model?

Contact ELEKTRO HELIOS customer service or authorized dealers. Common spare parts include heating elements, knobs, oven lamp, and door seals. Have the model number SK6167 ready.

USER MANUAL SK6167 ELEKTRO HELIOS

Made in Sweden

Spis

B R U K S A N V I S N I N G

SK 6167

SK 7167

Elektro EH Helios

Säkerhet

Glaskeramikhällen

Grillning

Ugnsluckan

Ugnstillbehören

Lamporna

Byte av ugnslampa

Kontrollamporna

Service

Uppackning

Elektrisk anslutning

Placering i ugn
