Product Type	Active Optical HDMI Cable
Model	CLS-AOCH/XL-262
Brand	Kramer
Cable Length	26.2 ft (8 m)
Connector Type	HDMI (Male) to HDMI (Male)
Maximum Resolution	4K@60Hz (4:4:4)
Bandwidth	18 Gbps
HDMI Standard	HDMI 2.0
HDCP Support	HDCP 2.2
Power Source	Bus-powered via HDMI port
Power Consumption	0.5 W (typical)
Cable Diameter	4.5 mm
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Weight	150 g (0.33 lbs)
Main Functions	Transmits HDMI signals over long distances with low latency, supports 4K UHD, HDR10, and multi-channel audio
Care and Cleaning	Wipe connectors with a dry cloth; avoid bending cable excessively
Safety	Use only with compatible devices; do not expose to moisture
Spare Parts and Repairability	No user-serviceable parts; contact Kramer for replacement
General Information	Active optical technology for reliable signal transmission up to 100 m (using repeaters); plug-and-play installation

Frequently Asked Questions - CLS-AOCH/XL-262 Kramer

What is the maximum length of the Kramer CLS-AOCH/XL-262 cable?

The cable is 26.2 ft (8 meters) long. For longer distances, Kramer offers other models or you can use repeaters.

Does this cable support 4K resolution?

Yes, it supports 4K@60Hz with 4:4:4 chroma subsampling, as well as HDR10 content.

Is the cable compatible with HDMI 2.1 devices?

The CLS-AOCH/XL-262 is based on HDMI 2.0 and supports up to 18 Gbps bandwidth. For HDMI 2.1 features like 8K, consider Kramer’s newer cable models.

Does the cable require an external power source?

No, it is bus-powered through the HDMI connection. However, for longer active optical cables, external power may be needed.

Can I use this cable for gaming?

Yes, it supports high bandwidth and 4K@60Hz, making it suitable for gaming. Latency is low due to optical transmission.

Is the cable directional?

Yes, active optical cables are directional. The source should be connected to the end marked 'Source' and the display to the end marked 'Display'.

What is the typical lifespan of the cable?

With proper use, the cable should last many years. Avoid kinking or crushing the cable to maintain performance.

Does it support HDR (High Dynamic Range)?

Yes, it supports HDR10 with wide color gamut for enhanced picture quality.

Can I connect a 4K source to a 1080p display?

Yes, it is backward compatible. The cable will negotiate the best resolution supported by both devices.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format.

USER MANUAL CLS-AOCH/XL-262 Kramer

Installation Instructions

MODELS:

CLS-AOCH/xI (Low Smoke Version)

CP-AOCH/xI (Plenum Version)

Fiber Optic High Speed Pluggable HDMI Cable

P/N:

Rev:

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

www.kramerAV.com

[e-mail]

CLS-AOCH/xI / CP-AOCH/xI Fiber Optic High Speed Pluggable HDMI Cable

Congratulations on purchasing your Kramer CLS-AOCH/xI / CP-AOCH/xI Plug and Play active Fiber Optic High Speed Pluggable HDMI Cable which is suited for critical and versatile installations.

The CLS-AOCH/xI / CP-AOCH/xI provides an extremely high quality signal over a wide range of resolutions, up to 4K@60Hz (4:2:0) / 4K@ 30Hz (4:4:4). This cable is available in different lengths from 33ft (10m) to 328ft (100m). The CLS-AOCH/xI / CP-AOCH/xI has a slim design to let you pull the cables easily (together with the supplied pulling tool) through small-sized conduits.

Two identical 3D renderings of a KRAMER device with USB labels, no visible text or symbols on the devices themselves.

Figure 1: HDMI Connector plugs (Source and Display)

The CLS-AOCH/xI / CP-AOCH/xI is ideal for long distance transmission in professional AV systems, indoor and outdoor digital signage and kiosks, home theater systems, surgical theaters, facility automation systems and whenever high resolution video and audio are required.

Features

The CLS-AOCH/xI / CP-AOCH/xI:

• Supports a wide range of resolutions up to 4K@60Hz (color space 4:2:0) and 4K@30Hz (color space 4:4:4) Full HD, 3D, Deep Color
  • Supports Multi-channel audio, Dolby True HD, DTS-HD Master Audio
  • Is HDMI compliant: EDID, CEC, HDCP
• Features K-Lock Pull-Resistant Connectors that provide 15lbs of restraining force for a non-slip connection
• Reduced EMI and RFI
• Has built-in powering with low power consumption
• Includes a micro USB port to connect to an external 5V power supply (mostly on the display side)
• Has high pulling strength and compression load
• Has Source / Display clearly printed on the connector as well as tagged on the cable for easy identification

Cable Dimensions

The CLS-AOCH/xI / CP-AOCH/xI includes four optical fibers and six AWG 28 wires with compact size HDMI connectors. On the source side, the micro HDMI connector enables smooth pulling of the cable. The SOURCE end connects to the source (for example, a DVD, Blu-ray or game console box) and the DISPLAY end to the acceptor (for example, a projector, an LCD display or a tablet device),

see Figure 2 (note that SOURCE appears here as an example).

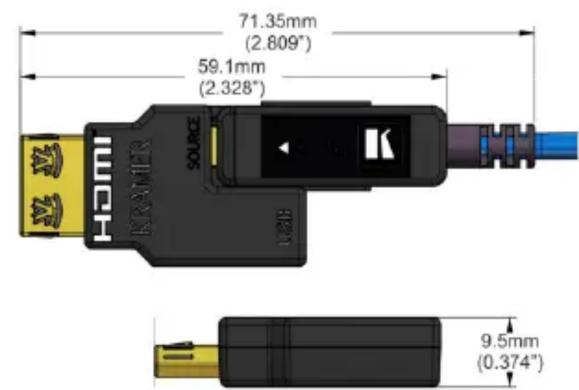

Figure 2: HDMI Connectors – SOURCE and DISPLAY (with Dimensions in mm)

CLS-AOCH/xI / CP-AOCH/xI Plug and Play Installation

Before installing the cable, make sure that you have an HDMI graphic card or devices with an HDMI port (for example, a PC, laptop, DVD/Blue-ray player or any other video/audio signal source device).

Optical fiber cable is not robust physically compared to conventional copper cable materials. Even though this cable is designed to be resistant to artificial strengths on the cable, CLS-AOCH/xI / CP-AOCH/xI can be damaged if it is excessively pinched, twisted or kinked when being installed and after being installed. Take care not to bend or twist the cable tightly.

When CLS-AOCH/xI / CP-AOCH/xI is installed into the conduit, the fiber pulling strength and the bending radius are the key conditions to safe installation of the cable.

Do not disassemble or modify the products, especially the HDMI connector head parts.

To install the CLS-AOCH/xI / CP-AOCH/xI:

1. Unpack the cable from the package with care and remove the cable tie.
2. Place the micro-HDMI (Type D) connector inside the Pulling Tool and close its cover.

Note that you can pull the cable either from the display side or the source side (as shown in Figure 3), but you have to make sure that the cable polarity is correct (tagged Source if pulling the source side or Display if pulling the display side).

1. Attach the pulling cable to the Pulling Tool.

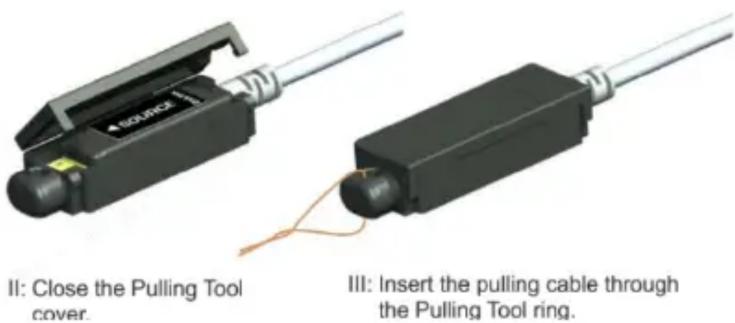

Figure 3: Attaching the Pulling Tool

1. Carefully install the cable (for example, in the wall or conduit or under the floor).

2. Once the cable installation is complete, plug the SOURCE connector head of the cable into the source devices.

Do not plug the SOURCE connector to the display device.

1. Plug the DISPLAY connector head of the cable into the display devices.

Do not plug the DISPLAY connector to the source device.

1. Switch on the power of the source and display devices.

2. If required, connect an external power source via the micro USB connector on the Display side.

Troubleshooting

If you have encountered a problem, check that:

• The source and display devices are both switched on
- Both HDMI connector heads are fully plugged into the devices
• The cable or its jacket is not physically damaged
• The cable is not bent or kinked

Note that it is important to connect the cable correctly as marked on the end of each connector: SOURCE to the source side and DISPLAY to the acceptor side.

Specifications

Audio and Power
VIDEO RESOLUTION:	4K@60Hz (4:2:0), 4K@30Hz (4:4:4), 1080p Full HD Deep Color 48bit, 3D
EMBEDDED AUDIO SUPPORT:	PCM 8ch, Dolby Digital True HD, DTS-HD Master Audio
HDMI COMPLIANCE: HDCP 2.2, EDID, CEC
Cable Assembly
HDMI CONNECTOR:	Male HDMI Type A Connector
DIMENSIONS:	Micro HDMI port: 1.23cm x 4.9cm x 0.8cm (0.484" x 1.93" x 0.31") W, D, HType A HDMI port: 3.1cm x 4cm x 0.95cm (1.22" x 1.57" x 0.37") W, D, HAssembly: 2.22cm x 7.1cm x 0.99cm (0.874" x 2.79" x 0.39") W, D, H
CABLE STRUCTURE: Hybrid Optical Fiber	Cable
CABLE JACKET MATERIAL:	UL Plenum (CMP-OF) and LSHF (Low Smoke Halogen Free)
CABLE JACKET COLOR: UL Plenum: gray; LSHF: blue
CABLE DIAMETER: 3.4mm
CABLE BENDING RADIUS: 6mm
CONNECTOR MAX. PULLINGSTRENGTH:	100N (10kg, 22lbs)
CABLE PULLING STRENGTH:	500N (50kg, 110lbs)
MICRO USB CABLE	External 5V power supply cable (for optional use)
Power
POWER SUPPLY HDMI:	Draws current from the source. If required, power can be also supplied from an external USB connector on the display side.
POWER CONSUMPTION:	0.25W max.
General
OPERATING TEMPERATURE: 0° to +50°C (32° to 122°F)
STORAGE TEMPERATURE:	-30° to +70°C (-22° to 158°F)
OPERATING HUMIDITY: 5% to 85%, RHL	non-condensing
AVAILABLE SIZE:	33ft (10m), 50ft (15m), 66ft (20m), 98ft (30m), 131ft (40m), 164ft (50m), 197ft (60m), 230ft (70m), 262ft (80m), 295ft (90m) and 328ft (100m)
