Product Type	Rackmount Enclosure
Brand	Atlona
Model	AT-RACK-1RU
Category	Rack 1U
Rack Unit	1U (1.75 inches / 44.45 mm)
Width	19 inches (482.6 mm) - Standard EIA
Depth	12 inches (305 mm) - Typical
Weight	3.5 kg (7.7 lbs) - Approximate
Material	Steel with black powder coat finish
Color	Black
Mounting Hardware	Includes rack screws and cage nuts
Load Capacity	Up to 25 kg (55 lbs) static load
Ventilation	Perforated front panel for airflow
Front Panel Design	Removable screw-on faceplate with blank cover
Accessibility	Front and rear access to mounted equipment
Cable Management	Not integrated - use external tie wraps
Safety	Ensure proper ventilation and secure mounting
Maintenance	Clean with a dry, lint-free cloth
Spare Parts	Screws and cage nuts available separately
Repairability	No user-serviceable parts; contact Atlona support
General Information	Compatible with standard 19-inch rack equipment

Frequently Asked Questions - AT-RACK-1RU Atlona

How do I install my equipment in the AT-RACK-1RU?

Place the rack on a stable surface. Use the included screws and cage nuts to mount standard 19-inch equipment. Ensure the equipment does not exceed the load capacity of 25 kg.

What is the weight capacity of this rack?

The AT-RACK-1RU can support a static load of up to 25 kg (55 lbs) when properly mounted to a rack frame.

Is the AT-RACK-1RU ventilated?

Yes, the front panel has perforations to allow airflow for cooling your mounted equipment. Ensure there is clearance on all sides.

Can I mount the AT-RACK-1RU on a wall?

This rack is designed for standard 19-inch racks. Wall-mounting is not recommended unless you use additional brackets not included.

What tools are needed for installation?

You will need a Phillips screwdriver to tighten the rack screws. No other tools are required for basic mounting.

Is the AT-RACK-1RU compatible with all 19-inch equipment?

Yes, it conforms to the EIA-310 standard for 19-inch racks, so it fits most professional audio/video and IT equipment.

How should I clean the rack?

Use a dry, lint-free cloth to wipe the surface. Avoid harsh chemicals or abrasive materials that could damage the finish.

Does the rack come with mounting screws?

Yes, it includes a set of rack screws and cage nuts sufficient for most equipment. Extra screws can be purchased separately.

Can I stack multiple AT-RACK-1RU units?

Yes, you can stack them in a standard rack enclosure. Each unit takes 1U of vertical space. Ensure total weight does not exceed the rack's limit.

What is the warranty on this product?

Atlona typically offers a limited warranty. Check the official website or contact support for specific terms.

USER MANUAL AT-RACK-1RU Atlona

Heavy-Duty Rack Mount Shelf

AT-RACK-1RU

Black server rack unit with mounting flanges and ventilation slots (no text or symbols visible)

The Atlona AT-RACK-1RU is a heavy duty, 1U rack shelf designed for installation of one or two Gain 120 (AT-GAIN-120) power amplifiers in an equipment rack. This rack shelf accessory is also ideal for side-by-side rack placement of many other Atlona products, including the SW Series switchers, HDVS-300 systems, Gain 60 (AT-GAIN-60) power amplifier, UHD-CAT Series DAs, and more.

Package Contents

1 x AT-RACK-1RU

16 x 6-mm screws

1 x Installation Guide

Mounting Instructions

IMPORTANT: Before attaching a product to the AT-RACK-1RU, remove any rubber feet that may be attached to the bottom of the unit.

Compatible Half-Rack Products

1. Place the Atlona product upside down on a flat surface.
2. Turn the AT-RACK-1RU upside down and line up the mounting holes of the AT-RACK-1RU with the mounting holes of the product.

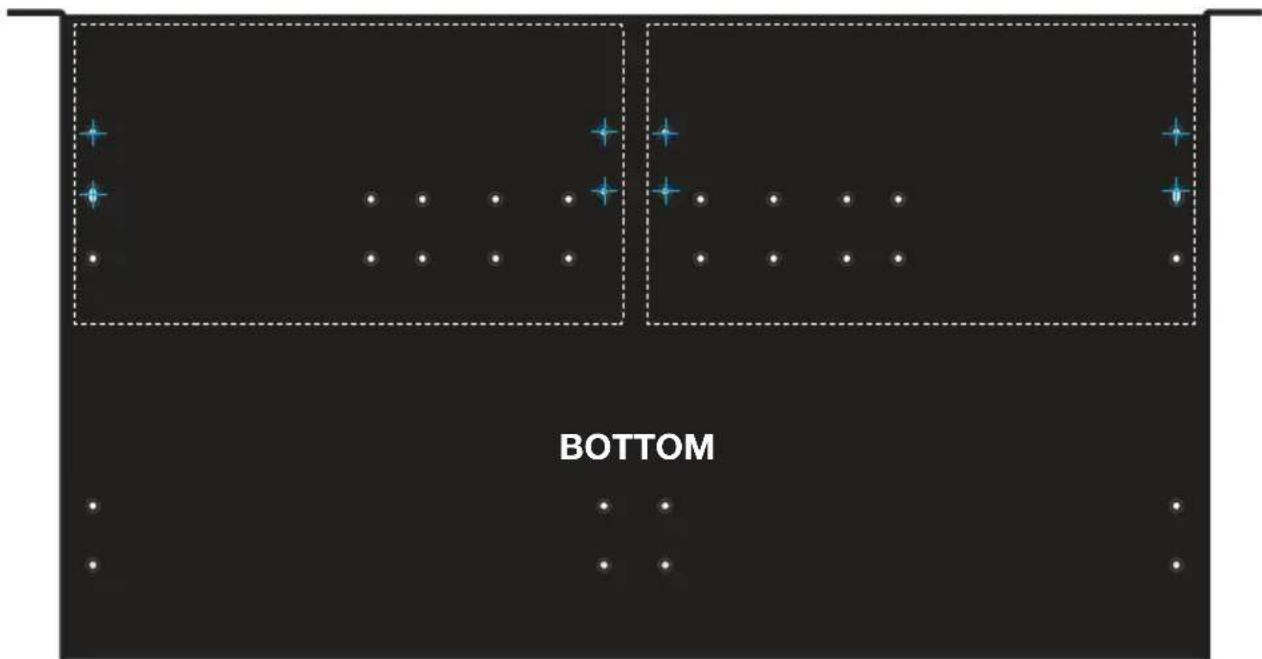

The illustration below identifies the correct holes for mounting half-rack units. A maximum of two half-rack units can be mounted to the AT-RACK-1RU.

Front of rack tray

1. Use the included 6-mm screws to secure the product to the AT-RACK-1RU. The example on the next page, shows proper alignment of the mounting holes on the AT-GAIN-120 with the AT-RACK-1RU. Up to two Atlona half-rack compatible products can be mounted to the AT-RACK-1RU.

IMPORTANT: Do not over-tighten or use high-torque devices on the screws. Doing so may damage the screw and/or the mounting holes of the AT-RACK-1RU and the unit being mounted.

Example: Mounting two units

AT-GAIN-120 and AT-UHD-SW-510W

Two AT-VGW-250 units can also be mounted in a similar way, using the following holes:

Example: Mounting two AT-VGW-250 units

Front of rack tray

AT-GAIN-60 (and other compatible products)

1. Place the AT-GAIN-60 upside down on a flat surface.
2. Turn the AT-RACK-1RU upside down and line up the mounting holes of the AT-RACK-1RU with the mounting holes of the product.

Up to three AT-GAIN-60 units can be mounted to the AT-RACK-1RU. The examples below identify the mounting holes for three and two AT-GAIN-60 units.

Example: Mounting Three AT-GAIN-60 units

Front of rack tray

Black industrial rack-mounted server unit with multiple ports and indicator lights (no visible text or labels)

Example: Mounting Two AT-GAIN-60 units

1. Use the included 6-mm screws to secure the product to the AT-RACK-1RU.

IMPORTANT: Do not over-tighten or use high-torque devices on the screws. Doing so may damage the screw and/or the mounting holes of the AT-RACK-1RU and the unit being mounted.
