GW45115 - Glass door Gewiss - Free user manual and instructions

Product Type	Door for electrical enclosure
Brand	Gewiss
Model	GW45115
Height	1600 mm
Width	850 mm
Depth (Door Thickness)	1.5 mm (typical)
Material	Steel sheet
Finish	Epoxy polyester powder coating, RAL 7035 (light grey)
Weight	Approx. 12 kg
Protection Degree	IP55 (typical)
IK Impact Resistance	IK10
Standards	CE, IEC 61439
Mounting	Wall mounting with fixing brackets
Door Opening Angle	180°
Hinge Type	Reversible hinge for left or right opening
Locking	Handle with lock (key or wing)
Accessories Included	Mounting brackets, fixing screws
Operating Temperature	-25°C to +60°C
Maintenance	Clean with damp cloth; do not use abrasive cleaners
Safety	Ensure enclosure is properly grounded before installation
Spare Parts Availability	Hinges, handles, locks, and gaskets available

Frequently Asked Questions - GW45115 Gewiss

What are the dimensions of the Gewiss GW45115 door?

The door has a height of 1600 mm and a width of 850 mm.

What material is the GW45115 door made of?

It is made of steel sheet with an epoxy polyester powder coating, typically in RAL 7035 light grey.

What is the IP rating of this door?

The door offers protection to IP55, meaning it is dust-protected and jet-proof water-protected.

Can the door opening direction be changed?

Yes, the hinges are reversible, allowing the door to open either left or right.

What is the weight of the GW45115 door?

The weight is approximately 12 kg.

Is the door impact resistant?

Yes, it has an IK10 impact resistance rating, capable of withstanding 20 joules.

What type of lock does the door have?

The door comes with a handle and lock, available in key or wing versions.

How should I clean the door?

Clean the surface with a damp cloth. Avoid using abrasive or chemical cleaners as they may damage the coating.

What spare parts are available for the GW45115?

Spare parts include hinges, handles, locks, and sealing gaskets. Contact Gewiss for ordering.

What is the operating temperature range for this enclosure?

The door can be used in temperatures from -25°C to +60°C.

USER MANUAL GW45115 Gewiss

Technical line drawing of a door with height dimension labeled H and width dimension labeled 850 (no text or symbols beyond measurement labels)

H (mm) Cod.		H (mm) Cod.		H (mm) Cod.		H (mm) Cod.
1600	GW 45 107	1600	GW 45 117	1600	GW 45 127	1600	GW 45 137
1800	GW 45 108	1800	GW 45 118	1800	GW 45 128	1800	GW 45 138
2000	GW 45 109	2000	GW 45 119	2000	GW 45 129	2000	GW 45 139

3

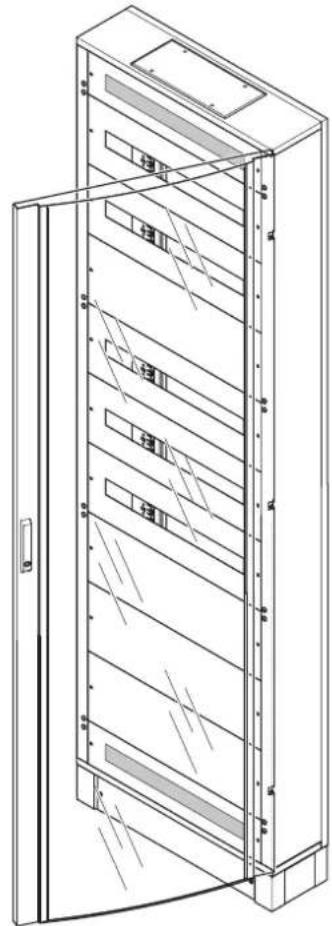

Technical line drawing of a multi-level cabinet or rack unit with diagonal panels and ventilation grilles (no text or symbols)

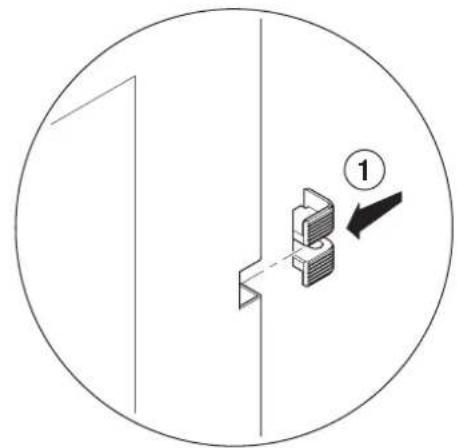

Technical line drawing of a door hinge mechanism with no text or symbols
