RPA266 - Flat Panel Mount Chief - Free user manual and instructions

Product Type	Flat Panel Mount
Brand	Chief
Model	RPA266
Compatible Screen Sizes	Up to 65 inches (estimated)
VESA Compatibility	VESA 200x200, 400x400, 600x400 (estimated)
Material	Steel with powder coat finish
Color	Black
Weight Capacity	Up to 150 lbs (68 kg) (estimated)
Mounting Type	Fixed / Tilt (estimated)
Depth from Wall	Approximately 2-4 inches (estimated)
Installation Hardware Included	Interface bracket, M4 x 20mm screws, 10-24 thumb nuts, spacers, security hex key
Security Features	All-Points Security Kit included
Compatible Mounts	Chief Series Projector Mounts
Included Accessories	SSB-266/SSM-266/SLB-266/SLM-266 Interface Brackets, security kit
Warranty	Limited lifetime warranty
Certifications	UL listed (estimated)
Country of Origin	USA (estimated)
Manual Languages	English

Frequently Asked Questions - RPA266 Chief

What is the weight capacity of the Chief RPA266 mount?

The estimated weight capacity is up to 150 lbs (68 kg), but always verify with the specific model specifications.

Is the Chief RPA266 compatible with VESA 400x400?

Yes, it is expected to support VESA patterns including 200x200, 400x400, and 600x400 based on typical Chief mounts.

Does the RPA266 come with all necessary hardware for installation?

Yes, it includes interface brackets, M4 x 20mm screws, 10-24 thumb nuts, spacers, and a security hex key.

Can the RPA266 mount be used for projectors?

Yes, it is designed for use with Chief Series Projector Mounts and includes interface brackets for that purpose.

What security features does the RPA266 offer?

It includes an All-Points Security Kit and security screws to deter theft.

How do I tighten the screws on the RPA266?

Do not overtighten. Use the provided 5/32" security hex key and follow the manual to avoid damaging parts.

Is the RPA266 mount compatible with Samsung TVs?

Yes, as long as the TV has VESA holes that match the included interface bracket patterns.

What is the depth of the mount from the wall?

The estimated depth is approximately 2 to 4 inches depending on the installation configuration.

Can I install the RPA266 mount on a concrete wall?

Yes, but you must use appropriate anchors (not included) for concrete installation.

Does the RPA266 support tilting?

The mount is likely a fixed or tilt design; please check the specific model details for tilt capability.

USER MANUAL RPA266 Chief

INSTALLATION INSTRUCTIONS

SSB-266, SSM-266, SLB-266 and SLM-266 Interface Brackets

SSB-266, SSM-266, SLB-266 and SLM-266 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific installation instructions provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

(1) Interface Bracket (4) Screw, Phillips Flat Head, Machine, M4 x 20mm
(4) 10-24 Thumb Nuts ** (4) Spacer, 1/2 x .194 x 1/2
(1) All-Points Security Kit (1) 5/32" Security Hex Key

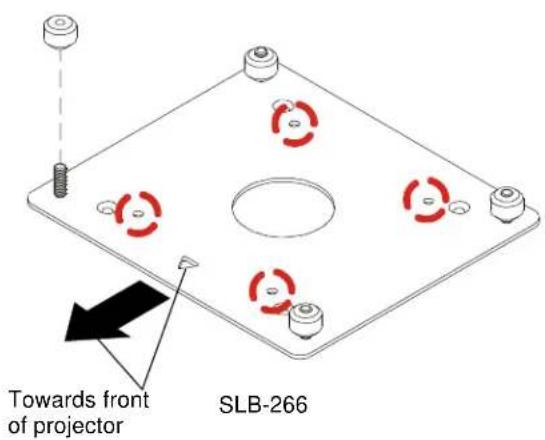

Note: SSB-style interface bracket connections are circled.

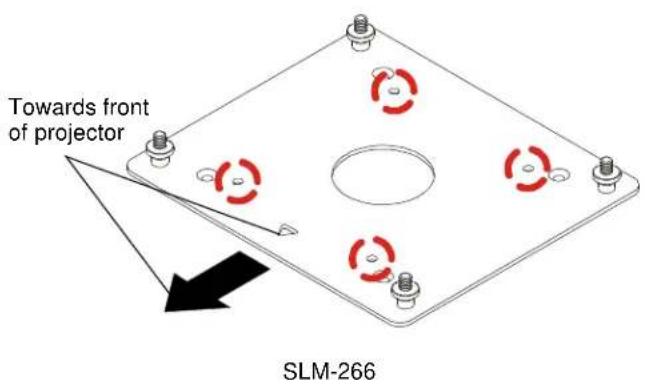

Note: SSM-style interface bracket connections are circled.

**Only used when installing SLB/SSB interface brackets.

NOTE: Specific to SSB-style and SSM-style interface bracket installation: All appropriate screws come pre-installed in the circled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.

Installation Instructions

WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.

NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.

1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place four spacers over threaded inserts in bottom of projector.
4. Place the interface bracket onto the spacers on bottom of the projector, aligning the mounting holes in the bracket with spacers and threaded inserts in bottom of projector and ensuring that triangle in bracket points towards front of projector.
5. Position M4 x 20mm mounting screws into the four spacers and threaded inserts. Tighten all fasteners at this time, securing the bracket to the projector.

NOTE: Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation instructions in the All-Points Security Kit.

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

CHIEF®

Our Mounts. Your Vision.

Chief Manufacturing, a products division of Milestone AV Technologies

8401 Eagle Creek Parkway, Savage, MN 55378

• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918

8802-002064 Rev00

©2010 Milestone AV Technologies,

a Duchossois Group Company

09/10
