d:fine FID-B Slim - Microphone DPA - Free user manual and instructions

Product Type	Headset Condenser Microphone
Directional Pattern	Supercardioid
Frequency Response	20 Hz – 20 kHz
Sensitivity	6 mV/Pa; –44.5 dB re 1 V/Pa
Equivalent Noise Level	Typ. 23 dB(A) re 20 µPa (max. 26 dB(A))
Max SPL	144 dB SPL (peak)
Dynamic Range	Typ. 121 dB
Connector	TA4F (mini XLR) or MicroDot, depending on version
Cable Length	1.2 m (4 ft)
Weight	14 g (0.49 oz) including cable and boom
Dimensions (W x H x D)	Boom length: 120 mm (4.7 in); Capsule diameter: 5.4 mm
Power Supply	Phantom power 48 V or DPA preamplifier (e.g., DPA d:vice)
Material	Steel boom, POM (polyoxymethylene) ear hooks
Color	Black (standard), beige available
Operating Temperature	−10 °C to +45 °C (14 °F to 113 °F)
Storage Temperature	−20 °C to +70 °C (−4 °F to 158 °F)
Relative Humidity	Up to 90% non-condensing
Maintenance & Cleaning	Wipe with soft cloth; use mild soap if needed; dry before storage; replace windscreen when soiled
Safety	Keep away from moisture; do not drop; store in protective case
Spare Parts	Available: replacement boom, ear hooks, windscreen, cable assembly
Repair	Contact DPA or authorized service center; user‑replaceable parts: windscreen, ear hooks

Frequently Asked Questions - d:fine FID-B Slim DPA

How do I connect the d:fine FID-B Slim to my wireless transmitter?

The microphone typically uses a TA4F (mini XLR) or MicroDot connector. Use a compatible adapter cable for your transmitter. Ensure the transmitter provides phantom power (48 V) or pair it with a DPA d:vice preamplifier.

Can I use the d:fine FID-B Slim with a standard XLR input?

Yes, with the appropriate adapter cable (e.g., TA4F to XLR). The microphone requires 48 V phantom power for operation. If your mixer does not provide phantom power, use an external phantom power supply or DPA preamp.

What is the difference between supercardioid and cardioid?

Supercardioid offers a narrower pickup angle with better rejection of side sounds, making it ideal for noisy environments. It has a small rear lobe, so placement is critical. The d:fine FID-B Slim uses supercardioid for focused audio and reduced feedback.

How do I clean the microphone?

Gently wipe the capsule and boom with a soft, lint-free cloth slightly dampened with water or mild soap. Do not use alcohol or abrasives. For the windscreen, remove and wash with warm soapy water, rinse, and allow to dry completely before reattaching.

Can I replace the cable myself?

Yes, the cable assembly is replaceable. Order a genuine DPA replacement cable and follow the installation guide. For non‑standard connectors, consult DPA or an authorized technician to ensure proper soldering.

Is the microphone sweat‑proof?

The microphone is designed for live performance and can withstand moderate moisture. However, it is not fully waterproof. Wipe away sweat after use and store in a dry case to prolong lifespan. Use a protective windscreen to reduce moisture on the capsule.

What is the recommended distance from the mouth?

For optimal audio quality, position the microphone capsule 3–5 cm (1–2 inches) from the corner of your mouth. Adjust the boom for a comfortable fit and avoid plosives by using a suitable windscreen.

Does the microphone work with DPA d:vice preamplifiers?

Yes, the d:fine FID-B Slim is fully compatible with DPA d:vice preamplifiers (e.g., d:vice 4099). This combination allows connection to smartphones or wireless systems without phantom power. Use the d:fine FID-B to d:vice adapter cable.

How do I adjust the ear hooks for a secure fit?

The ear hooks are flexible and can be bent to conform to your ear shape. For a stable fit, position the hook behind the ear, then adjust the boom length by sliding the capsule holder. Ensure the microphone remains firmly planted during movement.

What spare parts are available for this microphone?

DPA offers replacement windscreens (foam and fur), ear hooks, boom assemblies, and cable assemblies. Contact DPA or your dealer for genuine parts. The capsule itself is not user‑replaceable, but can be serviced by DPA.

USER MANUAL d:fine FID-B Slim DPA

d:fine™ In-Ear Broadcast Headset Microphone

dpamicrophones.com

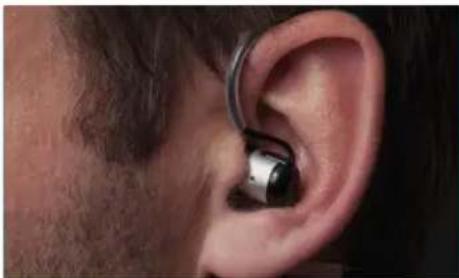

Place the in-ear plug in the ear one of two ways Wind excess cable around the in-ear plug.

Lengthen headset mount:

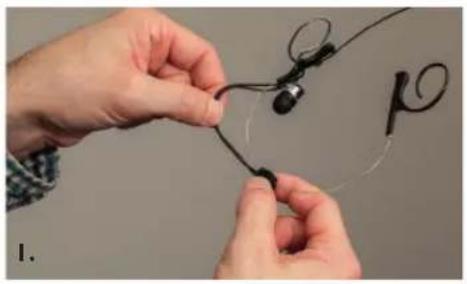

1. Hold cable lock and draw cables to create excess:
2. Draw the ear hooks away from each other to the desired sizes:

Shorten headset mount:

1. Draw small coils on headset mount away from each other to the desired size
2. Hold the cable lock and draw the cables back to fit the shape of the headset mountmounts:

The microphone cable can be changed independently of the headset mount. Dismount the microphone boom and open the cable lock to release the microphone cable.

Specifications, In-Ear

Connector

3.5 mm stereo Mini-Jack.

Single In-Ear: Signal at Mini-Jack Tip

Dual In-Ear: Signal at Mini-Jack Tip (Left - microphone boom side) and Ring (Right)

Type

Dynamic earplug

Sensitivity

107 dB

Nominal impedance

18Ω

Two sizes ear-adapters are included
