Product Type	Wall-mount remote control for DXT 3000 system
Brand	RCF
Model	RC 3005
Height	84 mm (3.31 inches)
Width	117 mm (4.61 inches)
Depth	15 mm (0.59 inches)
Net Weight	0.26 kg (0.57 lbs)
Material	Metal
Color	White (RAL 9016)
Power Supply	Not required (passive device)
Mounting	Wall mount, compatible with standard electrical boxes
Connection	CAT5 UTP cable (or higher), daisy chain up to 4 units
Maximum Distance from Master Unit	300 m
Functions	Volume Up/Down, Previous/Next Track, Play/Pause
Compatibility	RCF DXT 3000 Master Unit (MX 3250, MX 3500)
Cleaning Instructions	Use a dry soft cloth; do not use solvents or abrasive cleaners
Safety Precautions	Read installation manual; follow all safety instructions in main unit manual
Spare Parts	No user-serviceable parts; contact RCF for repairs
Repairability	Refer to qualified service personnel; do not disassemble
Documentation	Part of DXT 3000 system manual; keep for future reference

Frequently Asked Questions - RC 3005 RCF

How do I install the RC 3005 remote control?

Fix the rear plate to the wall using the multiple hole configuration, ensuring the central squared hole is left free for cabling. Connect via CAT5 UTP cable to the Master Unit or daisy chain to another RC 3005.

How many RC 3005 units can be connected to one Master Unit?

Up to 4 RC 3005 units can be connected to a single Master Unit via daisy chaining.

What is the maximum cable distance between the Master Unit and the last RC 3005?

The maximum distance is 300 meters when using CAT5 UTP cable or higher.

What functions does the RC 3005 control?

It controls the MP3 audio source integrated in the DXT 3000 front panel, including Volume Up/Down, Previous/Next Track, and Play/Pause.

Does the RC 3005 require a power supply?

No, the RC 3005 is a passive device and does not require an external power supply.

What are the dimensions of the RC 3005?

Height: 84 mm (3.31 in), Width: 117 mm (4.61 in), Depth: 15 mm (0.59 in).

What material and color is the RC 3005?

It is made of metal and comes in white (RAL 9016).

Can the RC 3005 be used with other RCF systems?

The RC 3005 is specifically designed for the DXT 3000 system (MX 3250 and MX 3500 main units). It may not be compatible with other systems.

How do I clean the RC 3005?

Use a dry, soft cloth to wipe the surface. Do not use solvents, abrasive cleaners, or water.

Where can I find the full user manual?

The full manual is part of the DXT 3000 system documentation. Refer to the MX 3250 and MX 3500 user manual for complete safety and operational instructions.

USER MANUAL RC 3005 RCF

USER MANUAL MANUALE D'USO

RC 3005

DXT 3000 WALL MOUNT REMOTE CONTROL

CONTROLLO REMOTO DA MURO PER DXT 3000

TABLE OF CONTENTS INDICE

ENGLISH

SAFETY PRECAUTIONS

INSTALLATION

CABLING

FUNCTIONS

TECHNICAL SPECIFICATIONS

ITALIANO

AVVERTENZE PER LA SICUREZZA E PRECAUZIONI D'USO

INSTALLAZIONE

COLLEGAMENTI

FUNZIONALITÀ

SPECIFICHE TECNICHE

SAFETY PRECAUTIONS

IMPORTANT

This manual is an addendum to DXT 3000 user manuals. Refer to the MX 3250 and MX 3500 main units user manual for safety precautions and system use.

Before installing teh remote control RC 3005, please read this instruction manual carefully and keep it on hand for future reference, as it is to be considered a part of the DXT 3000 system and must accompany it when it changes ownership as a reference for correct installation. RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use.

IMPORTANT

INSTALLATION

Fix the rear plate on the wall.

The multiple holes configuration makes the control compatible with most of the standard electrical boxes.

Be sure to leave the central squared hole (grey) free for cabling.

Simple diagram with a central square and surrounding circles, no text or symbols present

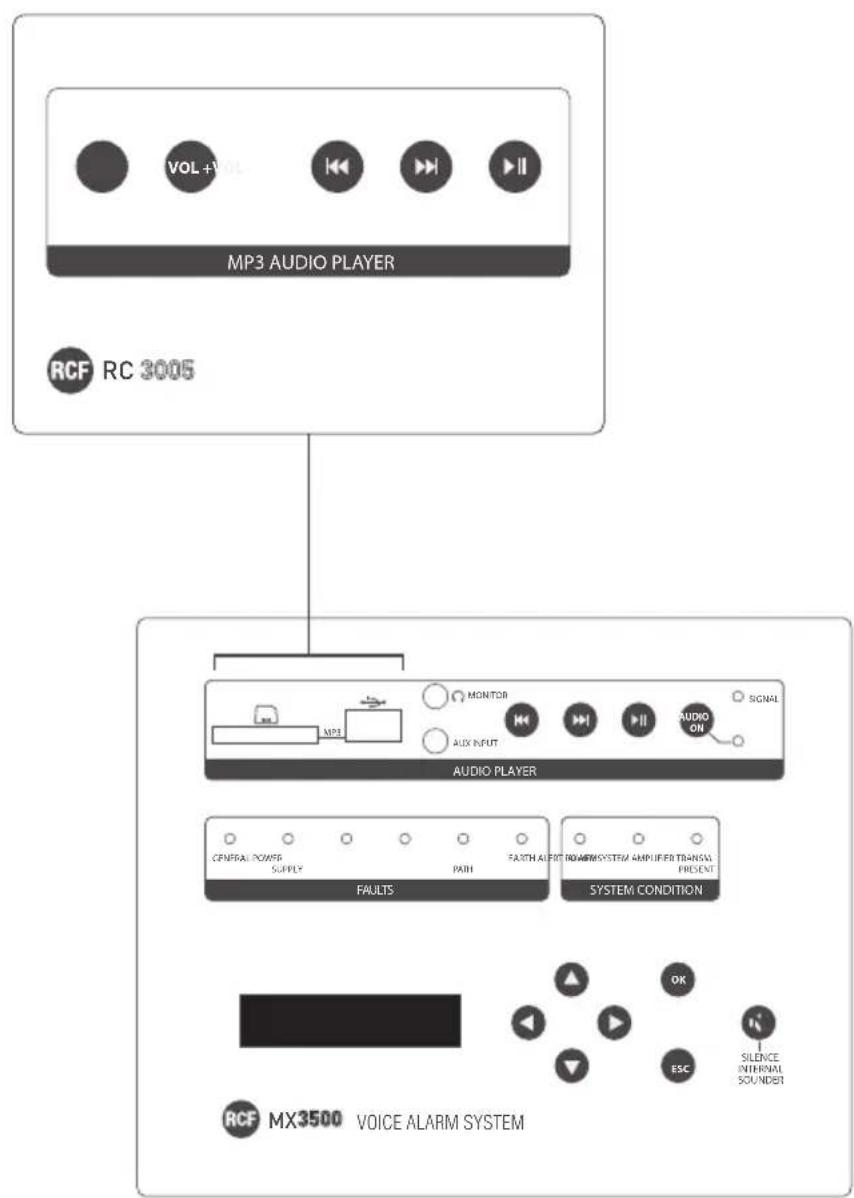

Up to 4 RC 3005 can be connected to the same Master Unit.

The first RC 3005 shall be connected to the Master Unit front panel, and the other ones can be daisy chained.

The maximum distance between the Master Unit and the last RC 3005 is 300m (CAT 5 UTP cable or higher).

When connected to the Master Unit, RC 3005 allows to control the MP3 audio source integrated in the front panel.

Functions available are:

• VOLUME DOWN
• VOLUME UP
• PREVIOUS TRACK
• NEXT TRACK
• PLAY / PAUSE
GENERAL SPECIFICATIONS

Mechanics:

Power Supply:

universal wall mounting

not required

PHYSICAL SPECIFICATIONS

Cabinet/Case Material:

Colour:

metal

white - RAL 9016

DIMENSIONS AND WEIGHT

Height:

Width:

Depth:

Net weight:

84 mm / 3.31 inches

117 mm / 4.61 inches

15 mm / 0.59 inches

0.26 kg / 0.57 lbs

AVVERTENZE PER LA SICUREZZA E PRECAUZIONI D'USO

IMPORTANTE

Simple diagram with a central gray rectangle and surrounding circles, no text or symbols present.

Except possible errors and omissions.

RCF S.p.A. reserves the right to make modifications without prior notice.

www.rcf.it
