NVR-1132CM - Coffee maker NEVIR - Free user manual and instructions

Product Type	Coffee Maker
Brand	Nevir
Model	NVR-1132CM
Power Supply	220-240 V, 50/60 Hz (estimated typical)
Power Consumption	1000 W (estimated typical)
Water Tank Capacity	1.2 L (approx. 12 cups of 100 ml each)
Coffee Type	Ground coffee
Filter Type	Permanent filter (washable, reusable)
Carafe Material	Glass
Keep Warm Function	Yes (warming plate stays on while appliance is on)
Anti-drip Mechanism	Yes (prevents dripping when carafe is removed)
Indicator Light	Yes (illuminated on/off switch)
Water Level Indicator	Yes (marked in cups)
Control Type	On/off switch
Cleaning Instructions	Wipe exterior with damp cloth; hand wash carafe with mild soap; do not immerse appliance in water
Dishwasher Safe (Carafe)	No
Safety Features	Anti-drip, auto shut-off not specified
Spare Parts Availability	Contact authorized Nevir service for replacement parts
Repairability	Take to authorized Nevir service for repairs
Included Accessories	Permanent filter, glass carafe
Dimensions (approx.)	25 cm (W) x 20 cm (D) x 30 cm (H) (estimated)
Weight (approx.)	1.8 kg (estimated)

Frequently Asked Questions - NVR-1132CM NEVIR

How do I use the coffee maker for the first time?

Fill the water tank with cold water (no coffee), place the empty carafe on the warming plate, and turn on the switch. Let the water run through to clean the system. Then discard the water.

How much coffee should I use?

Use approximately 6-7 grams of ground coffee per cup. The water level indicator shows cups (1 cup = 100 ml). Adjust to taste.

Can I use paper filters with this coffee maker?

The coffee maker comes with a permanent filter. You can use a paper filter if it fits, but the permanent filter is washable and reusable.

Why is the coffee not hot?

Ensure the warming plate is on (the switch light should be illuminated). The carafe must be placed on the plate to keep coffee hot. If the coffee is cold, check that the plate is working.

How do I clean the coffee maker?

Unplug the appliance first. Wipe the exterior with a damp cloth. Wash the carafe and permanent filter with warm water and mild soap. Do not immerse the main unit in water.

Can I put the carafe in the dishwasher?

No, the glass carafe should be hand washed. Dishwasher use is not recommended as it may damage the glass.

How often should I descale the coffee maker?

Descaling is recommended every 1-2 months, depending on water hardness. Use a descaling solution or a mixture of water and vinegar. Run the cycle without coffee, then rinse thoroughly.

What does the anti-drip function do?

The anti-drip mechanism prevents coffee from dripping onto the warming plate when you remove the carafe during brewing. It allows you to pour a cup without making a mess.

What should I do if the coffee maker is not working?

Check that the power cord is plugged in and the switch is on. If it still doesn't work, contact an authorized Nevir service center. Do not attempt to repair it yourself.

How do I dispose of this appliance at the end of its life?

Do not dispose of it with regular household waste. Follow local regulations for electronic waste (WEEE). Remove any batteries if present and recycle separately.

USER MANUAL NVR-1132CM NEVIR

Black and white photo of a Nevir coffee maker with clear glass lid and water drop filter (no visible text or symbols)

Atención

Black NEVIR coffee maker with clear glass lid and water drop filter (no visible text or symbols)

INSTRUCTION MANUAL

Dear customer:

We would like to thank you for buying this coffee maker. You have selected the best model on its class. Its technological characteristics, and features with high requirement, will give you a complete satisfaction. The materials used in the manufacture of coffee are completely recyclable which is time; you should use the appropriate containers for each type of material to proceed recycling. (Green Point).

Useful tips and precautions

-Please read these instructions before using the appliance.

- Unpack the package and check that it is fully complete and there is no damage.

Using the coffee machine for the first time

When using the appliance for the first time put water and turn it on (no coffee or filter). Connect the brewer to the power outlet. Remove the lid of the jar and fill it with water. Use only cold water. Pour the water from the jug to the tank and put the jar (with lid) on the hot plate (base of the pot). Start the process by turning on the coffee maker, press the switch.

To make coffee

Lift the tank lid and fill with water, depending on the number of cups of coffee to be prepared. The water level indicator shows the number of cups (1 cup = 100 ml).

Place the permanent filter and add coffee grounds. Place of 6-7 grams of coffee per cup. To use the thermal jar, place it (with the lid on) in the hot plate just below the strainer. Close the lid. The light will illuminate, indicating that the appliance is on. Once it's done the coffee will stay warm in the jar while the coffeemaker is on. The anti-drip mechanism droplets prevents heat the plate once remove jar.

Cleaning

Always unplug the appliance before cleaning! To clean the appliance with a damp cloth Do not immerse the appliance in water.

The jar can be washed with warm water, mild soap and do not put in a dishwasher

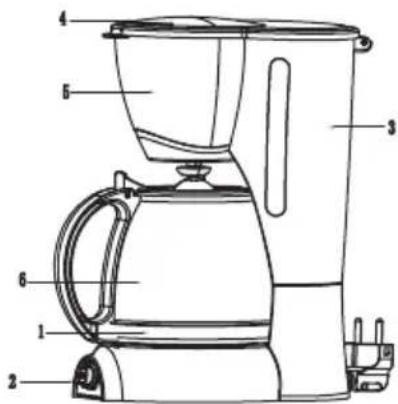

MAIN COMPONENTS

1. Warming plate
2. Lighted on/ off switch
3. Water level indicator
4. Water tank lid
5. Permanent filter
6. Glass carafe

Attention

The voltage must match that found at the base of the pot.

Use cold water only.

If you want to make coffee several times in a row in his coffee, first let it idle for at least 5 minutes before the next use. The coffee in the jar will keep the coffee hot while power is on.

Always unplug the appliance before cleaning.

Keep the appliance out of the reach of children.

To turn the appliance off using the power button. The light goes off indicating that the brewer is not in use.

Your coffee maker can only use the filter which is equipped

Faults and repairs

If the cord is frayed or damaged, do not attempt to replace it yourself if you have no knowledge. It is recommended that you take the unit to an authorized NEVIR service. Do the same with any other abnormality.

The European Directive 2002/96 /EC on Waste Electrical and Electronic

Equipment (WEEE) required that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the material they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product remind you of your obligations that when you dispose of the appliance, it must be separately collected.

Besides that, waste batteries and/or accumulator must be removed prior to delivery of WEEE, thought the separated collection channels provided for this purpose (distributors and/or facilities from Local Authorities)

nevir®

NVR-1132CM

Black and white photo of a Nevir coffee maker with glass lid and side panel, no visible text or symbols on the device itself.

Atenção
