SVBM0212ACC - Blender SVAN - Free user manual and instructions

Product Type	Blender
Brand	SVAN
Model	SVBM0212ACC
Power	400 W
Capacity	1.5 L
Speed Settings	2 speeds plus pulse
Main Functions	Blending, mixing, pureeing, crushing ice
Material	Plastic body, glass jug
Dimensions	20 x 17 x 38 cm
Weight	2.5 kg
Cord Length	1.2 m
Safety Features	Non-slip feet, overload protection
Cleaning	Detachable jug, hand wash recommended
Warranty	2 years

Frequently Asked Questions - SVBM0212ACC SVAN

What is the maximum capacity of the SVBM0212ACC blender?

The blender has a maximum capacity of 1.5 liters, suitable for making smoothies, soups, and sauces.

How do I clean the blender jug?

Remove the jug from the base and wash it with warm soapy water. The jug is dishwasher safe (top rack) but hand washing is recommended to prolong its life.

Can the blender crush ice?

Yes, the pulse function can be used to crush ice. Add ice cubes and press the pulse button in short bursts until desired consistency is reached.

What should I do if the blender stops working during use?

The blender has overload protection. If it stops, unplug it, let it cool down for 15 minutes, then try again. Ensure you are not exceeding the maximum capacity.

Is the blender jar made of glass or plastic?

The blender jar is made of glass, which is durable and resistant to scratches and odors.

How many speed settings does the blender have?

It has 2 speeds (low and high) and a pulse function for precise control.

Can I blend hot liquids?

It is not recommended to blend hot liquids directly as pressure may build up. Let liquids cool to room temperature before blending.

What is the power of the SVBM0212ACC blender?

The blender has a power rating of 400 watts, sufficient for everyday blending tasks.

Does the blender have a warranty?

Yes, the blender comes with a 2-year warranty against manufacturing defects. Keep your receipt for proof of purchase.

How do I attach the jug to the motor base?

Place the jug on the base aligning the tabs, then twist it clockwise until it locks into place. Ensure it is secure before operating.

USER MANUAL SVBM0212ACC SVAN

Product photo of kitchen utensils including a hand mixer, blender, and blender with no visible text or labels

BATIDORA DE MANO

SVBM0212 - SVBM0212ACC

DESCRIPCION:

Mechanical assembly diagram showing a cylindrical component being processed with a curved arrow indicating motion (no text or symbols present)

Illustration of a handheld digital water leveler with a clear stopper and control panel (no text or symbols)

Close-up of a mechanical knob or dial with no visible text or symbols

Illustration of a digital brush with a black tip and metallic body, emitting liquid from a glass (no text or symbols visible)

3D rendered image of a metallic mechanical component with a cylindrical shaft and base (no text or symbols visible)

3D rendering of a mechanical component with a conical top and a cylindrical base, showing internal flow direction (no text or symbols)

Illustration of a mechanical device with a handle and base, showing motion arrows (no text or symbols)

3D rendering of a mechanical component with a conical top and a base, showing internal structure (no text or symbols)

Illustration of a mechanical device with a handle and base, showing motion arrows (no text or symbols)

Illustration of a whisk and cylindrical object with arrows indicating motion (no text or symbols)

Illustration of a hand mixer with whisk and handle (no text or symbols)

Illustration of a digital brush applying liquid to a container (no text or symbols)

Mechanical component diagram showing a shaft with a flanged end and directional arrows indicating motion (no text or symbols)

Product photo of kitchen utensils including a hand mixer, blender, and blender with no visible text or labels

HAND BLENDER

Please read carefully and keep the instruction well

SVBM0212 - SVBM0212ACC

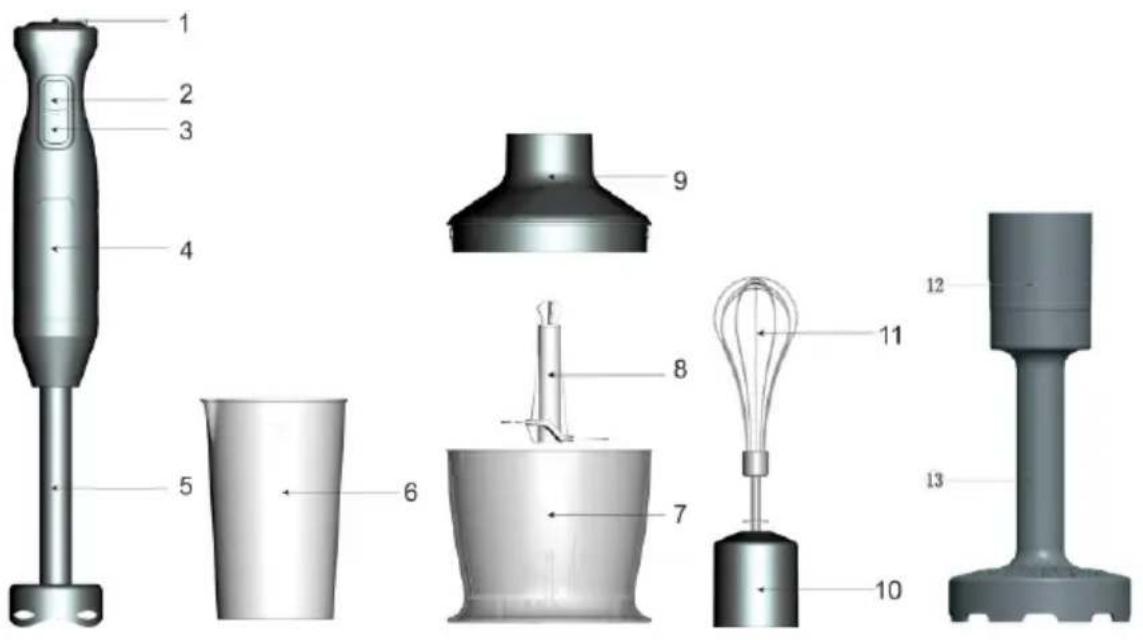

DESCRIPTION

1.Speed controller	8. Chopper blade unit *
2.Switch I	9. Chopper coupling unit *
3.Switch II	10. Whisk coupling unit *
4. Motor unit	11. Whisk *
5. Blender bar	12.Potato rod coupling unit *
6. Beaker	13.Potato masher *
7. Chopper bowl *

*Only SVBM0212ACC

SAFETY

When using this electrical appliances, in order to reduce the risk of fire and electric shock and/or injury to persons, basic safety precautions should be followed. Please ensure you read these instruction before you operate this product, they have been written to ensure you get the very best from your purchase.

You should respect the following safety warnings

1. Read all instructions.
2. Before plugging into a socket, check whether your voltage corresponds to the rating label on the appliance
3. Close supervision is necessary when any appliance is used near children. Children should not use this appliance.
4. Blades are sharp. Handle carefully.
5. Never let the appliance run unattended.
6. If the plug or power cable is damaged, or the appliance is faulty, do not attempt to repair, please contact with our technical assistance service.
7. The use of accessory attachments not recommended or sold by the manufacturer may result in fire, electric shock or personal injury.
8. Do not let cord hang over edge of table or counter, or touch hot surface including the stove.
9. Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.

10. Short-time operating. Use the appliance for no longer than 1 minute, and don't operate hard food for no longer than 10 seconds.

11. The appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

12. Do not process more than three batches without interruption. Let the appliance cool down to room temperature before you continue processing.
13. Do not use outdoors.
14. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
15. To protect against fire, electric shock and personal injury, do not immerse blender, its cord or plug, in water or other liquid.
16. This appliance is intended for household only.

INSTRUCTIONS

A, PRELIMINARY CHECKS

1. After removing the packaging, make sure the product is complete and undamaged and that all accessories are present. Do not use the appliance if it is visibly damaged. Contact with the technical assistance service.
2. Connecting the appliance

Check that the mains power supply voltage corresponds to the value indicated on the rating label.

If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type, or change the plug by a qualified professional.

B, USING BLENDER

The hand blender is perfectly suited for preparing dips, sauces,

soups, mayonnaise and baby food as well as for mixing and milk shakes.

1. Insert the blender bar into motor unit, turn clockwise to lock it into motor unit.

Mechanical assembly diagram showing a cylindrical component being cut with a curved arrow indicating rotation (no text or symbols)

1. Put ingredients in the beaker, to prevent splattering, immerse the blade guard completely in the ingredients.

You can use the hand blender in the beaker and just as well as in any other vessel.

Illustration of a handheld digital device with a clear blue control panel, mounted on a cylindrical base (no text or symbols visible)

1. Switch the appliance on by pressing the switch I or switch II, you can adjust speed by top button when pressing the switch I.

Close-up of a black and gray electronic device with a circular top and handle (no visible text or symbols)

1. Blend the ingredients by moving the appliance slowly up, down and in circles.

Illustration of a blender with liquid and a black lid, no text or symbols present

C, USING CHOPPER

The chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.

CAUTION: The blades are very sharp! Be very careful when handling the blade unit.

1. Put the chopper blade unit in the chopper bowl, press down the blade unit and lock bowl.

Illustration of a candle placed on top of a cylindrical object (no text or symbols)

1. Put the ingredients in the chopper bowl, solid ingredients should not be larger than 2cm pieces.

2. Put the chopper coupling unit onto the chopper bowl.

3D rendering of a mechanical component with a conical top and a base, showing internal structure (no text or symbols)

1. Fasten the motor unit onto the chopper bowl, installation reference "using blender".

Illustration of a mechanical device with a handle and base, showing motion arrows (no text or symbols)

1. Switch the appliance on by pressing the switch I or switch II.

D, USING WHISK

The whisk is intended for whipping cream, beating egg whites and mixing sponges and ready-mix desserts.

1. Insert the whisk into the whisk coupling unit.

Illustration of a micelle whisking with a cylindrical top and arrow indicating direction (no text or symbols)

1. Connect the coupling unit to the motor unit, installation reference "using blender".

Mechanical device with whisk and handle, no visible text or symbols

1. Press the switch I to activate the hand blender, and press the switch II after approx 30 seconds to prevent ingredients splashing.

Illustration of a laboratory brush applying liquid to a beaker (no text or symbols)

E, USING POTATO MASHER

The potato masher is intended for potato mash.

1. Connect the coupling unit to the motor unit, installation reference "using blender".

Mechanical component with directional arrows indicating motion or force (no text or symbols)

1. Switch the appliance on by pressing the switch I or switch II, you can choose speed "1"- "8" when pressing the switch I.

CLEANING AND MAINTENANCE

1. Before cleaning, unplug the appliance and detach the accessories.
2. Wipe the motor unit, do not immerse it in water. The beaker can be put into the dishwasher or the water clean.
3. If food is not easily rinsed off the blade, place a drop of dish detergent in the mixing container with water. Plug cord into outlet . Immerse the blade end portion or whisk and operate the unit for about 10 seconds. Unplug, rinse under running water, and then dry.
4. When will not use long time, keep this appliance well ventilated at the aridity of place to prevent the motor of appliance is affected with damp.

CAUTION:

The cutting edges of the blades are very sharp, cleaning it must be carefully.

TECHNICAL SPECIFICATION

Model No.	SVBM0212 & SVBM0212ACC
Rated voltage	220-240V~ 50/60Hz
Rated power	1000W

svan
