Product Type	HDMI to USB 3.0 Capture Box
Brand	DataVideo
Model	CAP-2

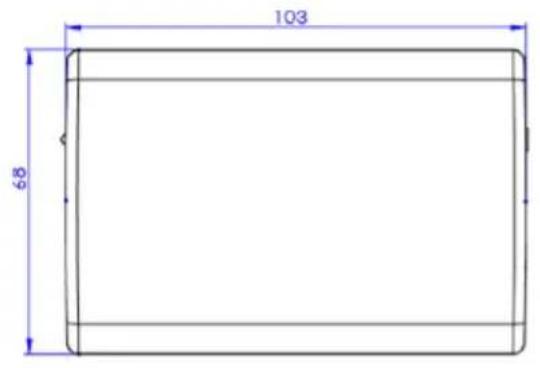

Dimensions (L x D x H)	105 x 68 x 23 mm
Weight	70 g
Power Supply	Via USB (bus-powered)
Power Consumption	2 W
Video Input	1x HDMI
Video Output	1x USB 3.0 (Micro B)
Supported Input Resolutions	Up to 1920x1080p60, includes 1080i deinterlaced
Supported Output Resolutions	Up to 1920x1080p60, multiple lower resolutions
Audio Input	HDMI embedded audio and 3.5 mm stereo jack
Audio Format	2-channel, 44.1/48 kHz, up to 24-bit PCM, fixed 48 kHz output
Captured Video Format	YUY2 (USB 3.0), MJPG (USB 2.0/3.0)
Plug and Play	Yes, with automatic video format detection
Firmware Update	Via USB port using UVC V1.3 software
Software Compatibility	OBS, Skype, Zoom, Xsplit, VLC, QuickTime, Google Plus Hangout, etc.
Supported OS	Windows 7/8.1/10, macOS 10.13+ (or 10.10+), Linux Ubuntu 14.04+
Safety	Do not expose to water, use only supplied cables, avoid blocking ventilation
Maintenance	Clean with a damp cloth; unplug before cleaning
Spare Parts & Repairability	Use only Datavideo-supplied USB cables; no user-serviceable parts inside
Warranty	1 year standard, 3 years if registered within 30 days
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 60 °C
Humidity	20 to 90% RH (non-condensing)

Frequently Asked Questions - CAP-2 DataVideo

Why is my CAP-2 not detected by the computer?

Ensure your OS meets requirements (Windows 7 SP1/8.1/10, macOS 10.13+, Ubuntu 14.04+). Also verify the USB 3.0 port supplies at least 900 mA current. Use the Datavideo-supplied USB 3.0 cable.

How do I connect the CAP-2 for live streaming?

Connect an HDMI source (e.g., camera) to the CAP-2 HDMI IN. Then connect the CAP-2 USB 3.0 OUT to a computer USB 3.0 port using the provided cable. Install streaming software like OBS and add the CAP-2 as a video capture device.

Why is there no picture in my streaming software?

Check that the HDMI source is powered on and properly connected. Confirm the CAP-2 is selected as the video capture device in your software. Ensure no other application is using the CAP-2 (it can only be used by one app at a time).

How can I select between HDMI embedded audio and external audio?

Use the AUDIO SWITCH toggle on the front panel. Push left (AUDIO IN) for the external 3.5mm audio source; push right (EMBED) for HDMI embedded audio.

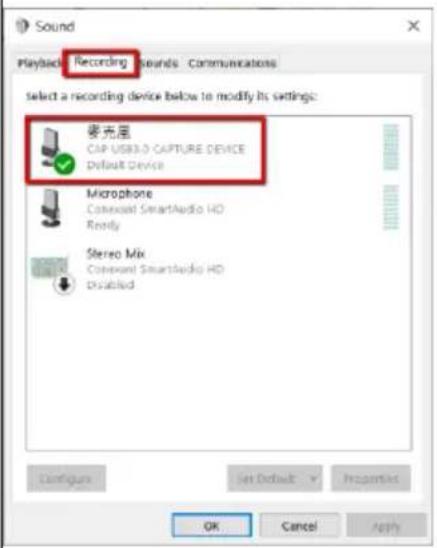

Why is there no audio or very low audio?

First, check the audio source selection switch. Then verify the audio device settings in your OS: set the CAP-2 as the default recording device and ensure the level is set to 100. In OBS, add an Audio Input Capture and select the CAP-2 device.

What are the minimum system requirements?

For PC: Intel Core i5-4440 3.10 GHz + NVIDIA GeForce GTX 660 or higher. For laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher. 4 GB RAM or more recommended. A USB 3.0 port is required.

Can I use the CAP-2 with USB 2.0?

Yes, but video format will be limited to MJPG (no YUY2). For best performance, use USB 3.0.

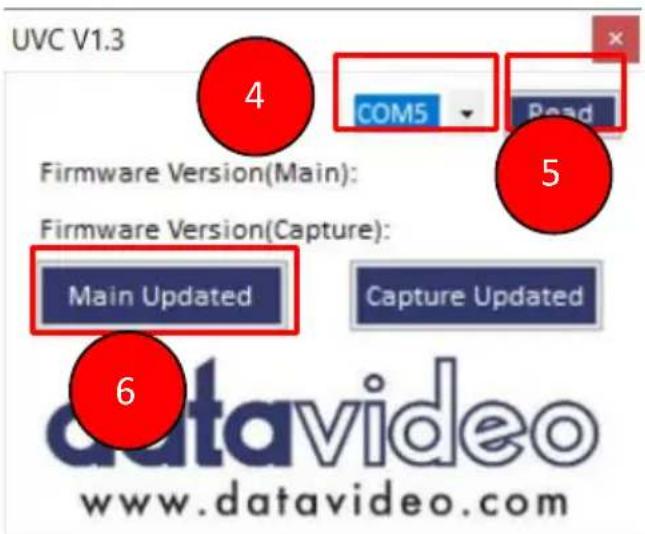

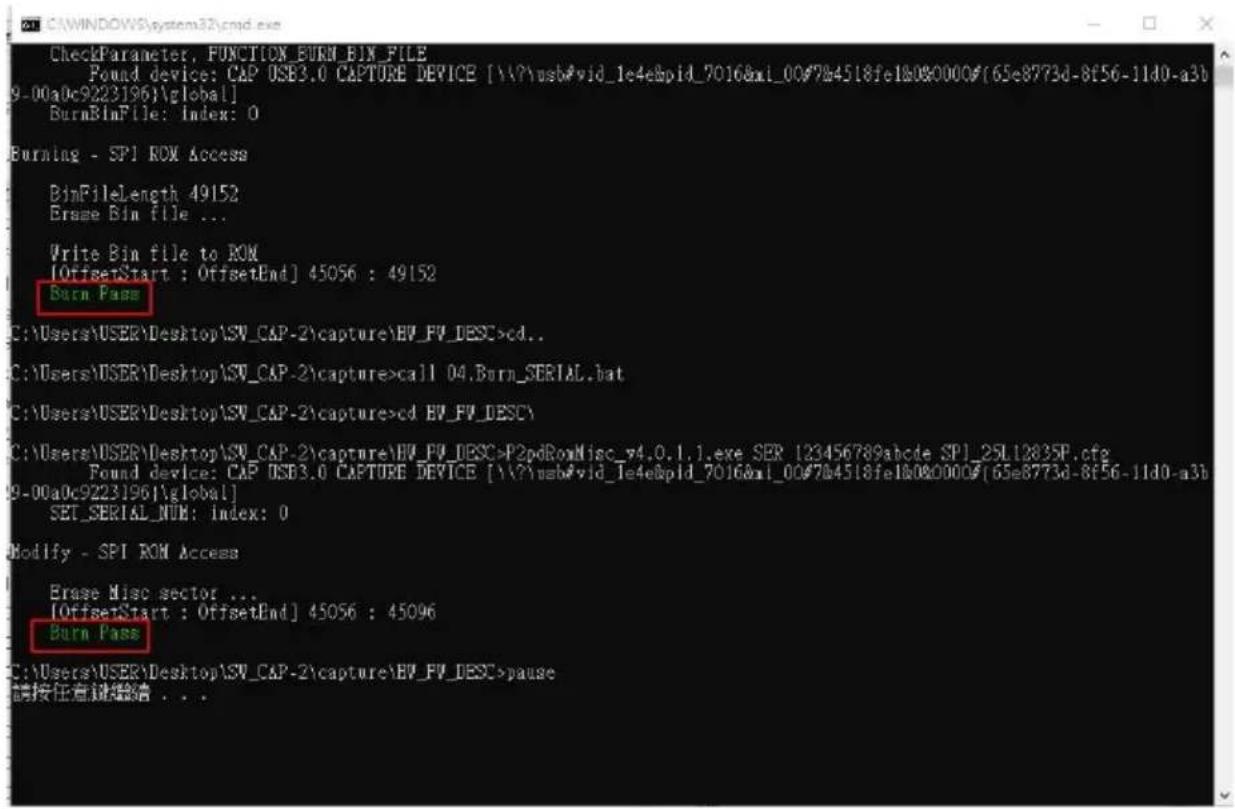

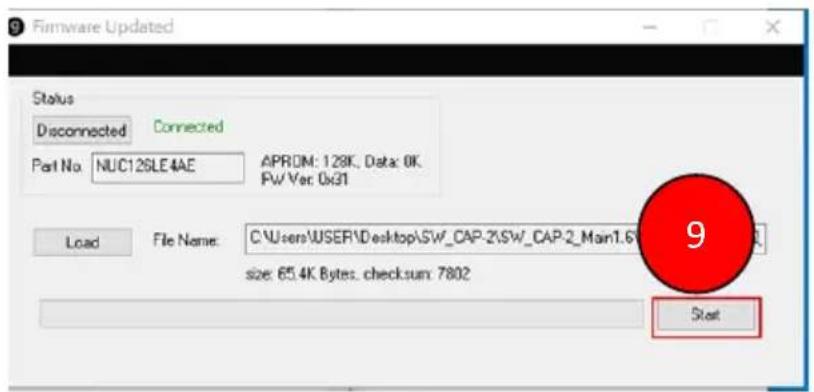

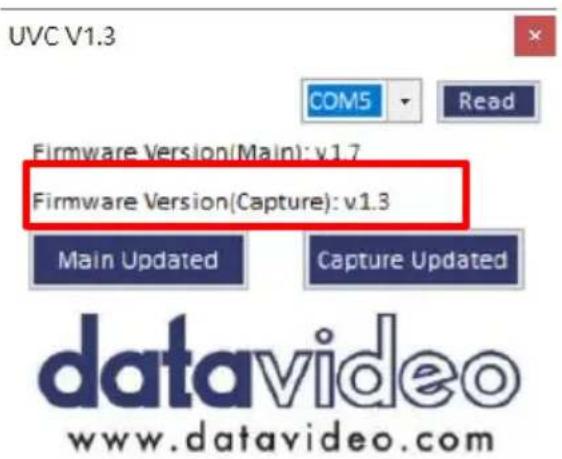

How do I update the firmware on the CAP-2?

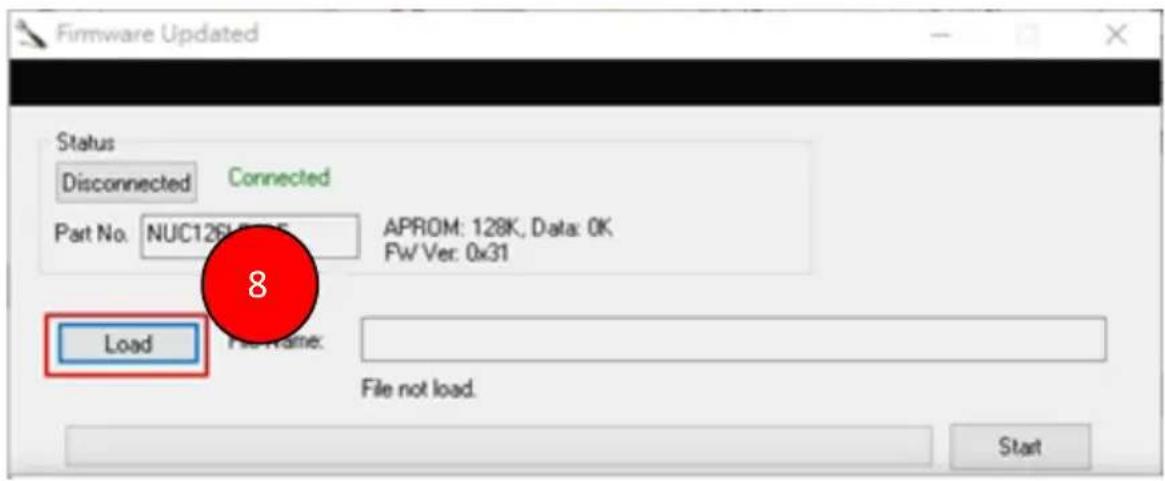

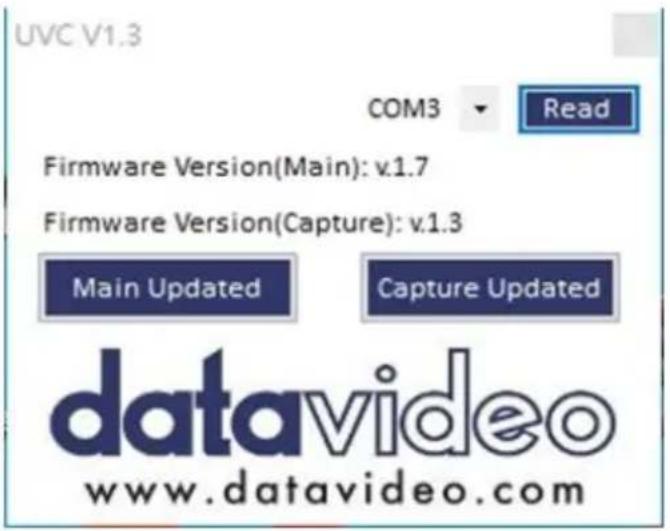

Download the UVC V1.3 software and latest firmware from Datavideo. Connect the CAP-2 via USB, open UVC, select the correct COM port, and follow the steps in the manual to update the main and capture firmware.

What should I do if the CAP-2 overheats?

Ensure the ventilation slots are not blocked. Do not place the device on soft surfaces like beds or sofas. Keep it away from heat sources. If overheating persists, stop use and contact support.

Is the CAP-2 compatible with Mac and Linux?

Yes. It supports macOS 10.13.5/10.14.6 (or 10.10+) and Linux Ubuntu 20.04 (or 14.04+). For Mac, note that some versions (e.g., A1706 2018) may have no audio output. For Linux, check compatibility with third-party software.

USER MANUAL CAP-2 DataVideo

WARNINGS AND PRECAUTIONS 4

WARRANTY 6

STANDARD WARRANTY....6

THREE YEAR WARRANTY....6

DISPOSAL 7

1. PRODUCT OVERVIEW....8

1.1 FEATURES 8

1.2 SYSTEM DIAGRAM....9

2. CONNECTIONS AND CONTROL .... 10

2.1 FRONT PANEL....10

2.2 REAR PANEL....11

3. BASIC SETUP 12

3.1 HOW TO CONNECT YOUR CAP-2 12

4. OBS STREAMING SOFTWARE.... 13

4.1 HOW TO INSTALL THE OBS STREAMING SOFTWARE 13

4.2 HOW TO SET THE VIDEO AND AUDIO OF THE OBS STREAMING SOFTWARE....19

5. CAP-2 COMPATIBILITY TABLE FOR THIRD-PARTY SOFTWARES 30

6. FIRMWARE UPDATE .... 31

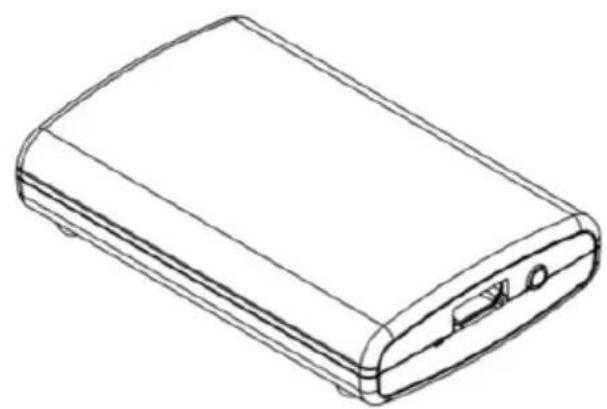

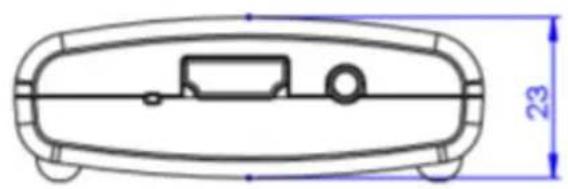

1. DIMENSIONS.... 39

2. FREQUENTLY-ASKED QUESTIONS 40

3. SPECIFICATIONS 46

SERVICE AND SUPPORT 48

Disclaimer of Product and Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord's rating.
10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.
11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.
12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked "Do Not Remove" may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been damaged;

f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
• The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
• The product warranty period begins on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.
• All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.
• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.
• Viruses and malware infections on the computer systems are not covered under warranty.
• Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
• All mail or transportation costs including insurance are at the expense of the owner.
• All other claims of any nature are not covered.
• All accessories including headphones, cables, and batteries are not covered under warranty.
• Warranty only valid in the country or region of purchase.
• Your statutory rights are not affected.

Three Year Warranty

- All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.

• Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.
• The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européenne" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in all EU official documents.

1. Product Overview

Datavideo CAP-2 is an HDMI to USB 3.0 Capture Box for supporting fast capturing up to 1080p50/60 input video resolution. Moreover, it supports plug & play operation. Datavideo CAP-2 supports many OS platforms. Moreover, it provides AUDIO IN interface for connecting external connected AUDIO IN source. Furthermore, the CAP-2 provides AUDIO SWITCH/AUDIO IN EMBED audio source toggle switch for users to select for different audio source. The embedded audio source or the external connected Audio in source can be used for the audio source of the CAP-2. It gives higher flexibility for CAP-2 compared to general UVC devices.

1.1 Features

Big Five Features

• Supports USB 3.0
• Video Input Interface: HDMI x 1
• Supports up to 1080p60 video streaming through the USB 3.0 interface.
• Supports HDMI 1.4 Protocol Audio and Video Capturing
- Supports Plug & Play Operation with Automatic Video Format Detection Capability.

1.2 System Diagram

2. Connections and Control

2.1 Front Panel

Front view of a white electronic device with a black rectangular component and a dark rectangular lens (no text or symbols visible)

White electronic device with a small black component and a blue display screen (no visible text or symbols)

	Micro USB 3.0 OUT(Second Generation)Please connect a micro USB 3.0 Type B to USB 3.0 Type A adapter cable from this interface to the USB 3.0 interface of your laptop or PC.Note: Please use the Micro USB 3.0 cable which is bundled in the CAP-2.
	USB 3.0 OUT (First Generation)Please connect this port to the USB 3.0 interface of your Notebook PC or PC by using a USB 3.0 cable.Note: Please use the USB 3.0 cable which is bundled in the CAP-2.
	AUDIO SWITCH(AUDIO IN/EMBED)This toggle switch allows users to select their desired audio source for streaming. Pull the toggle switch to the left side for selecting the AUDIO IN external connected audio source to the the streaming audio source. Pull the toggle switch to the right side for selecting the HDMI IN embedded audio source to be the streaming audio source.

2.2 Rear Panel

Front view of a white electronic device rear panel showing an I/O port and a black connector (no text or symbols visible)

	LED IndicatorThis is the LED indicator for the input signal.
	HDMI INPlease connect this port to an HDMI input source.
	AUDIO INPlease connect to an external connected audio source with 3.5mm analog stereo audio plug.

3. Basic Setup

This chapter will show users how to connect the CAP-2 HDMI to USB 3.0 Capture Box.

3.1 How to Connect Your CAP-2

Please follow following steps for connecting your CAP-2 to an HDMI video source and a Notebook PC.

1. Please turn on the power of your Notebook PC.
2. Please connect your HDMI video source (Cameras, etc.) to the HDMI interface of the CAP-2 by using an HDMI cable. In this case, the Datavideo SE-650 is used as an example.
3. Please connect from the USB 3.0 OUT interface of the CAP-2 to the USB 3.0 interface of your Notebook PC by using a Micro USB-B to USB-A ( 2^nd Generation) or an USB-A to USB-A ( 1^st Generation) cable.

4. OBS Streaming Software

The Datavideo CAP-2 HDMI to USB 3.0 Capture Box allows users to capture the HDMI input source and then to convert this input source by a USB 3.0 interface to be an input source for the Notebook PC. After that, users can stream the input source to many mainstream streaming platforms such as Youtube and Facebook by using OBS or Xsplit Broadcaster streaming software. This chapter will show you how to install and set the streaming software by using OBS as an example.

Windows OS Platform: For Windows platform user, it is recommended to use the OBS streaming software for streaming. Please download the OBS software from following website and then please install the software.

OBS : https://obsproject.com/

4.1 How to Install the OBS Streaming Software

Please follow following steps for installing the OBS streaming software. This chapter take Windows platform as an example. The following example will take OBS Studio 24.0.3 (64bit) version as an example.

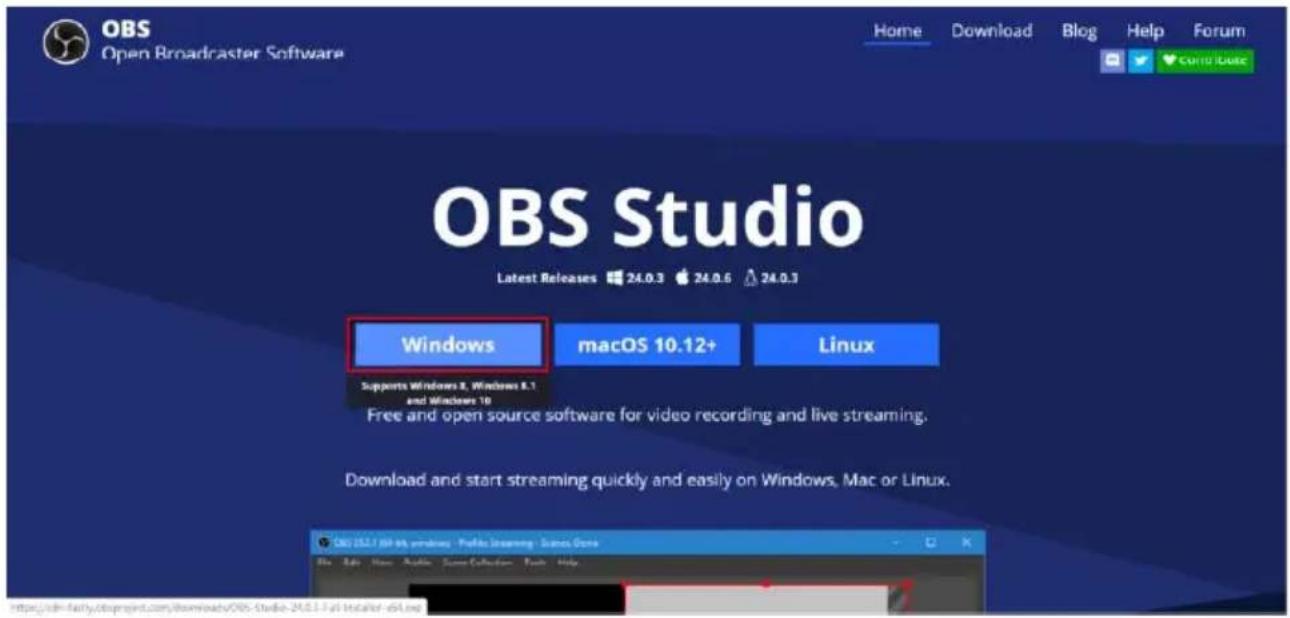

1. Please visit the OBS website https://obsproject.com/ and then please click the "Windows" button for downloading the OBS software.

1. Please click the area with the red rectangular for installing the OBS software.

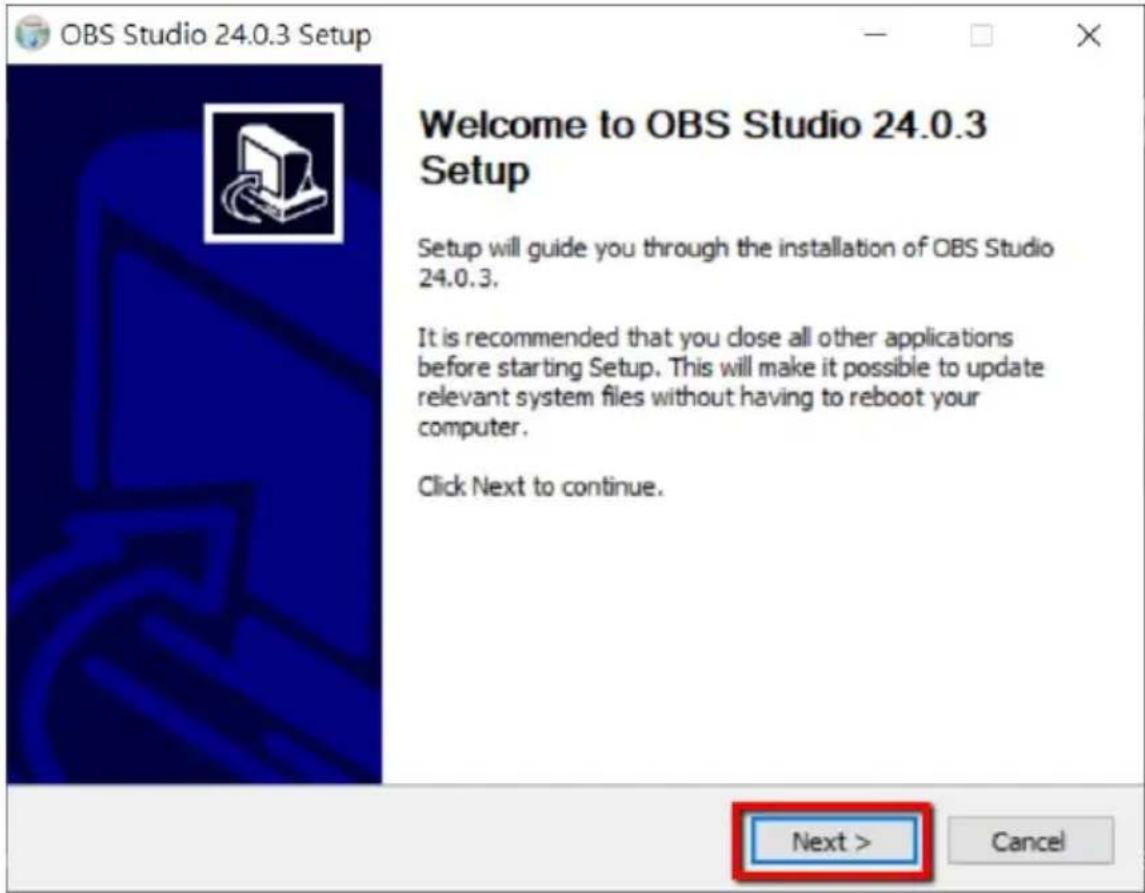

1. Please press the "Next" button for starting the installation.

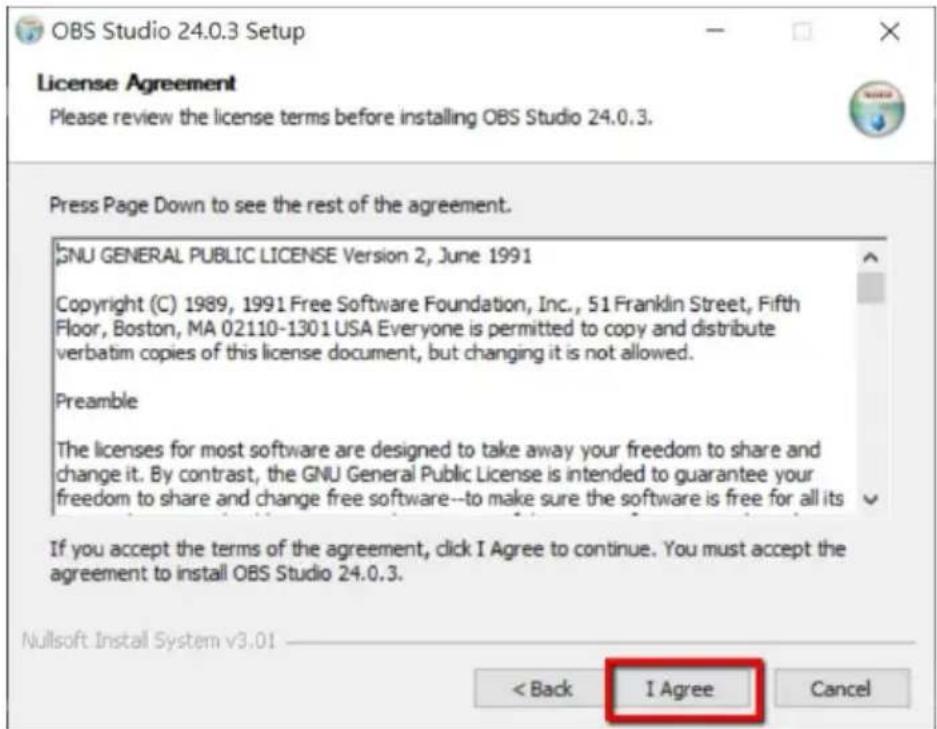

1. Please press the "I Agree" button.

5. Please press the "Next" button.

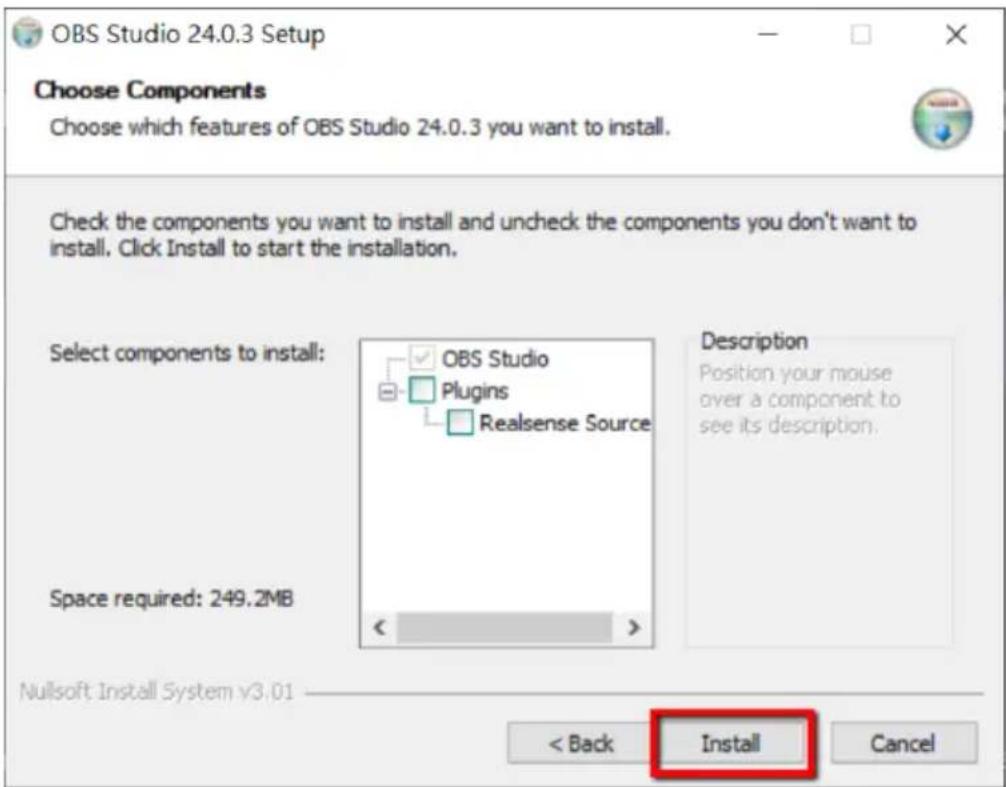

6. Please press the "Install" button.

1. Users can see that the installation of the OBS software is started.

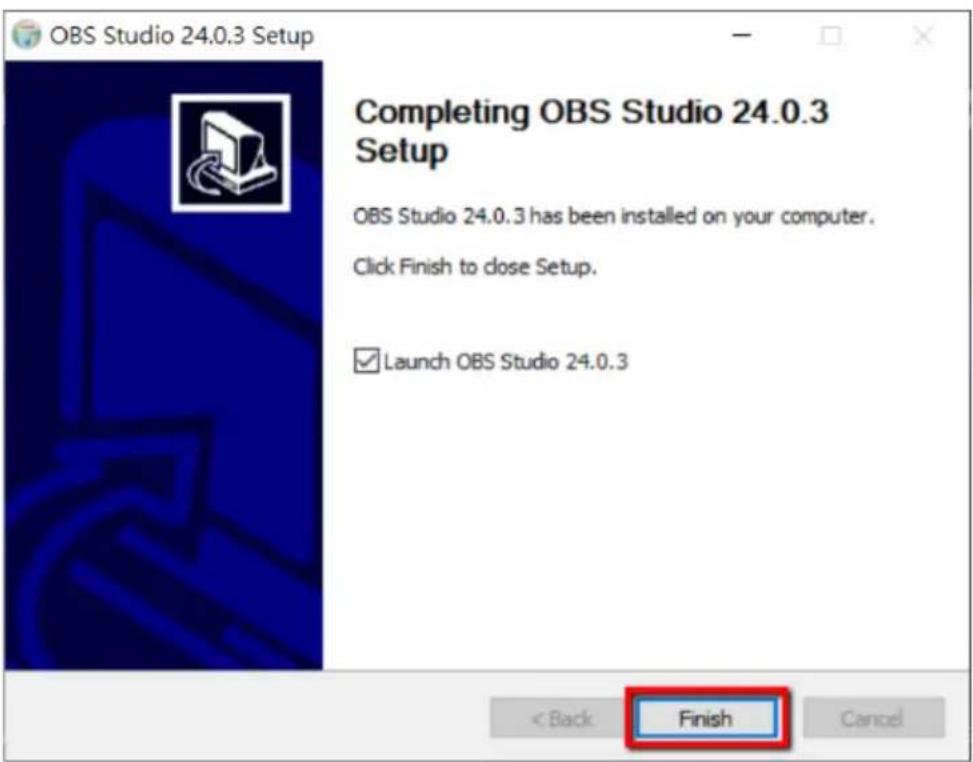

1. Please press the "Finish" button for completing the installation.

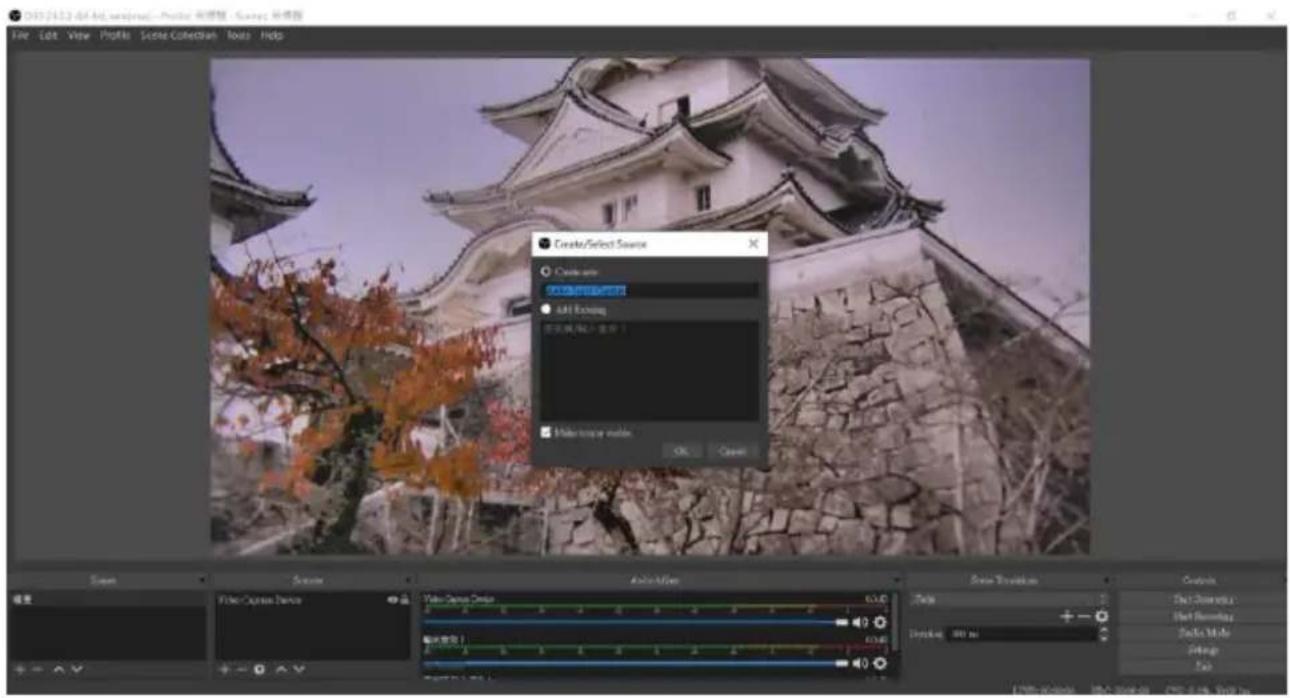

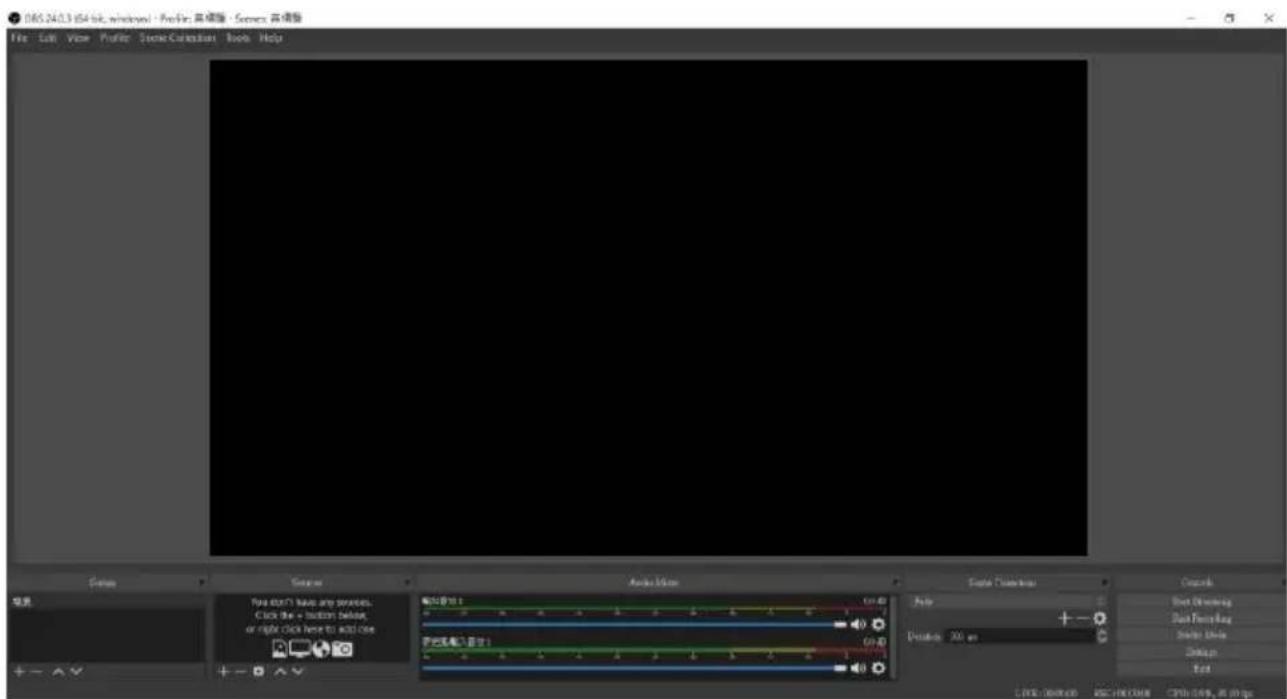

1. After the installation is finished, users can see the main interface of the software which is shown as following diagram.

4.2 How to Set the Video and Audio of the OBS Streaming Software

Please follow following steps for setting the video and audio of the OBS streaming software.

Video Setup

1. At first, please click the OBS icon for opening the OBS software.

1. Users can see the main interface of the OBS software.

1. Please press the "Add" button from the "Source" pane to open the "Source" menu.

1. Please select "Video Capture Device" option.

1. There is a "Create/Select Source" popup window that will be shown for users to name the video source. Please press the "OK" button. It is recommended that the "Make source visible" checkbox must be checked.

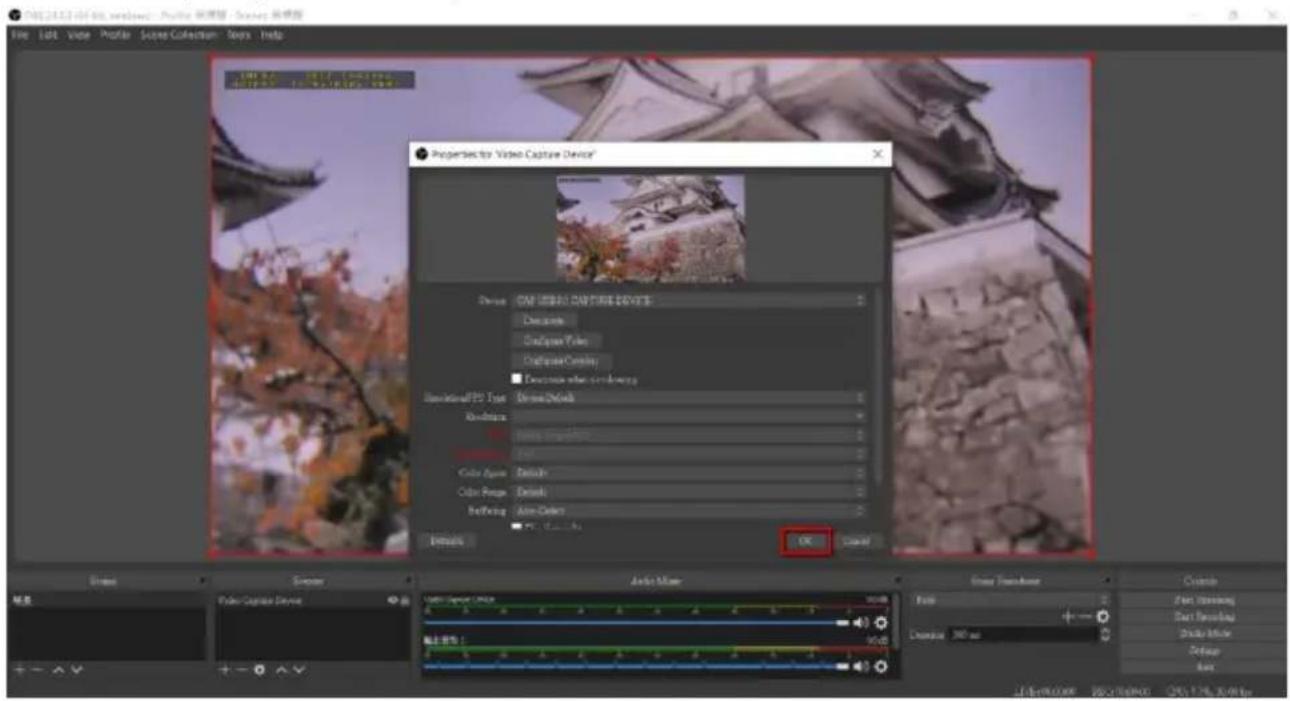

1. There is a “Properties for ‘Video Capture Device’” popup window that will be shown. Please select “CAP USB3.0 CAPTURE DEVICE”, which is the CAP-2, from the “Device” drop-down menu to be the streaming video capturing device.

1. After the device is selected, users can see the captured screen which is shown as following diagram. Please press the "OK" button.

1. Please press the "OK" button and then the following screen will be shown.

Audio Setup

Please follow following steps for setting the audio of the OBS streaming software.

- Use the Embedd Audio of the HDMI video input source.

1. Please press the "Add" button from the "Sources" pane to open the "Source" menu.

1. Please select "Audio Input Capture" option.

1. There is a "Create/Select Source" popup window that will be shown for users to name the audio source. Please press the "OK" button. It is recommended that the "Make source visible" checkbox must be checked.

1. There is a "Properties for 'Audio Input Capture'" popup window will be shown. Please select "Default", which is the CAP-2, from the "Device" drop-down menu to be the streaming audio capturing device.

1. Users can see that the video and audio sources are successfully set in the OBS main interface which is shown as following diagram.

● Use CAP-2 external Connected Audio Source

1. Please press the "Add" button from the "Source" pane to open the "Sources" menu.

1. Please select "Audio Input Capture" option.

1. There is a "Create/Select Source" popup window that will be shown for users to name the audio source. Please press the "OK" button. It is recommended that the "Make source visible" checkbox must be checked.

1. There is a “Properties for ‘Audio Input Capture’” popup window will be shown. Please select “麥克風(CAP USB 3.0 CAPTURE DEVICE)”, which is the CAP-2, from the “Device” drop-down menu to be the streaming audio capturing device.

1. Users can see that the video and audio sources are successfully set in the OBS main interface which is shown as following diagram.

Note: For the detailed operating instructions for the recording and streaming related functions of the OBS software, please refer to the OBS websitehttps://obsproject.com/wiki/

5. CAP-2 Compatibility Table for Third-Party Softwares

Please refer to following diagram for the compatibility for applying the CAP-2 with various third-party softwares by different OS platforms.

Datavideo Full Series of Capture Box

	CAP-1	CAP-2
	datavideo win7/USB 3.0 capitalus 8.0	datavideo win7/USB 3.0 capitalus 8.0
Product Name	SDI to USB 3.0 Capture Box	HDMI to USB 3.0 Capture Box
OBS Studio	Windows/Mac OS X/Linux*
Skype	Windows/Mac OS X/Linux**
Zoom.us	Windows/Mac OS X/Linux
AMCap	Windows
Xsplit Broadcaster	Windows
Quick Time	Mac OS X
Google Plus Hangout	Windows
Teamviewer	Windows
Media Player Classics	Windows
Microsoft Teams	Windows/Linux*
Facetime	Mac OS X
Potplayer	Windows
VLC	Windows/Mac OS X/Linux
Windows	Win7/8.1/10 (The driver is required for Win7)
Mac OS X	10.13.5/10.14.6 (at least 10.13 or above)
Linux	Ubuntu 20.04 (at least 14.04 or above)

*With MAC: A1706, produced in 2018, OS ver.:10.14, it has no audio output.

**When the input resolution is 1080i, the output setting must be 1080p or 720p.

***Microsoft Teams can only output resolution 640x360.

**** The compatibility issue cannot be fixed via hardware or firmware revision. VLC doesn't work smoothly and well on most Windows, MAC OS, and Linux.

6. Firmware Update

Please follow following steps for updating the firmware for CP-2.

Requirements

a) CAP-2 x 1
b) Notebook PC x 1
c) USB 3.0 Cable x 1 (Please use the cable which is bundled with the CAP-2)
d) Application Software: UVC V1.3

e) Latest Firmware

CAP-2_Main_Vx.x.bin
CAP-2_Capture_Vx.x.bin

System Diagram

Please follow following steps for updating the CAP-2 firmware.

Firmware Update Procedure

● Main Firmware Update

1. Please connect an USB 3.0 cable from CAP-2 to your laptop.
2. Users can see the connected CAP-2 from the "Device Manager" of the Windows OS.

1. Please double-click to open the CAP-2 application software "UVC V1.3".

2020/6/11 下午 02:10

2020/6/9 下午 07:30

2020/4/22 下午 02:11

1. Please select the correct COM port.
2. Please click the "Read" button.
3. Please click the "Main Updated" button.

1. Please press the "Connect" button.

1. Please re-plug the USB cable and then please press the "Load" button to load the "CAP-2_Main_VX.X.bin" file.

CAP-2\_Main\_V1.7.bin

1. Please press the "Start" button and then please wait until the progress bar reaches 100%, the firmware update procedure is finished. After the "Programming flash,OK!" pop-up window is shown, please press the "OK" button.

1. After the firmware update procedure is finished, users can see the latest firmware version No. which is shown as following diagram.

● Capture Firmware Update

Please follow following steps for updating the Capture firmware.

1. Please re-plug the USB 3.0 cable.
2. Please launch the "UVC" software.
3. Please select correct COM port.
4. "Please press the "Capture Updated" button.

1. Please wait until the green sentence "Burn Pass" is shown.

1. The firmware update procedure for the Capture function is finished.
2. After the firmware update procedure is finished, users can check the Capture firmware version which is shown as following diagram.

7. Dimensions

Line drawing of a rectangular electronic device with a flat top and side panel (no text or symbols)

Technical line drawing of a mechanical component with dimension标注 (no text or symbols)

Top-down schematic of a device casing with internal components (no text or symbols)

Unit: mm

8. Frequently-Asked Questions

This section describes problems that you may encounter while using the CAP-2. If you have questions, please refer to related sections and follow all the suggested solutions. If problem still exists, please contact your distributor or the service center.

No.	Problems	Solutions
1.	Why the CAP-2 HDMI to USB 3.0 Capture Box can not be detected?	Please make sure that the OS system of your computer is qualified for the CAP-2 application. Please refer to the OS versions which are listed in the Specifications. Moreover, please make sure that the USB 3.0 connector of your Laptop can supply up to 900mA current.
2	Why the USB 3.0 Cable cannot be detected?	Please use the USB 3.0 cable which is supplied by Datavideo.
3	Why the “No Picture” issue will happen when using the CAP-2 with the third-party software such as OBS, Zoom and Skype?	Please check that whether the power of your input source is turned on. Moreover, please check whether the HDMI connector of the CAP-2 is connected correctly or not. Furthermore, please check whether the UVC device is detected and occupied by the third-party software in your system. If the answer is Yes, it will cause the issue that the video can not be opened by other third-party software correctly.
4	If there is no audio, how to check whether the audio setting of the OS is 48KHz or not?	Please follow following steps for confirming the audio settings of the OS (For Windows 10)1. Please search “Settings”.2. Please select “System”.3. Please click “Sound” button.4. Please click the “Sound Control Panel” which is located at the top-right side.

1. Please click "Recording", and then please click Microphone "CAP USB3.0 CAPTUR DEVICE".

1. Please click "Properties".

Properties

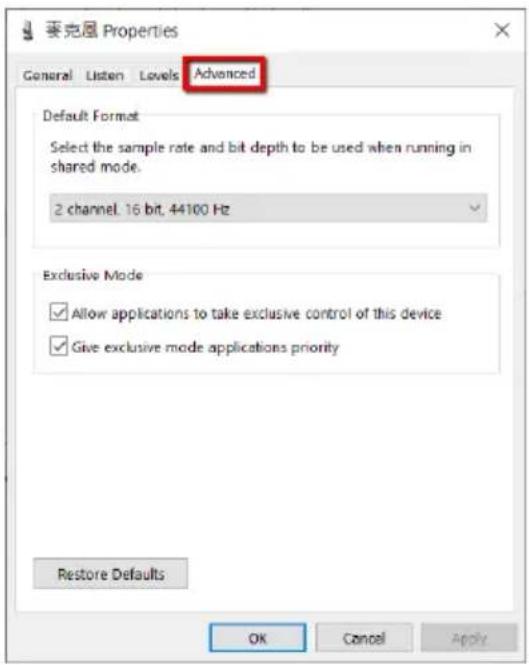

1. Please click "Advanced".

		8. Users can check the recording sampling rate of the CAP-2 external connected microphone. Moreover, users can select the sampling rate from the drop-down menu.2 channel, 16 bit, 44100 Hz2 channel, 16 bit, 48000 Hz (DVD Quality)2 channel, 16 bit, 44100 Hz
5	How to solve the issue that the Audio level is too low?	When the audio level is too low, please confirm that whether the audio level setting of your PC is 100 or not. Please follow following steps for confirming the audio level.Please click “Settings” button from the Start Menu of the Windows OS (Take Windows 10 as an example).Please click “System”.3. Please click “Sound”.

1. Please click "Sound Control Panel" option Sound Control Panel, and then the Sound Control Panel will be shown as following diagram, please click the "Recording" button.

1. Please double-click "CAP USB3.0 CAPTURE DEVICE" option.

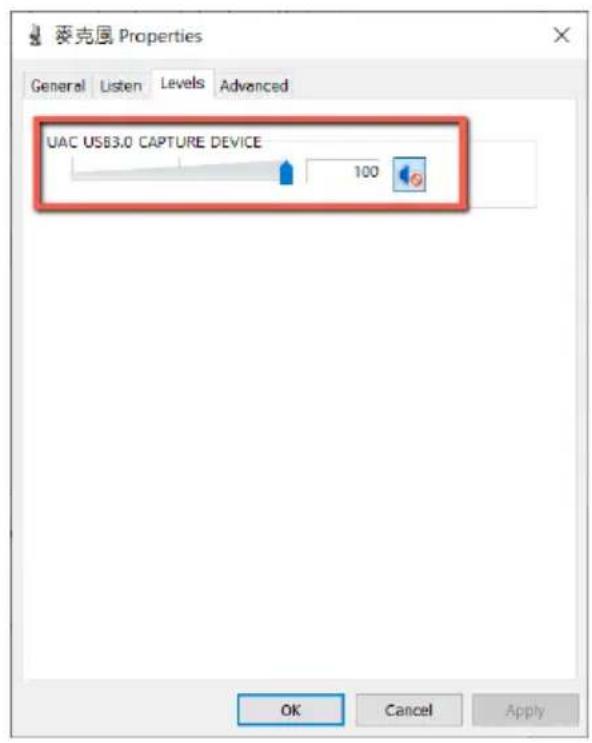

1. Please click the "Levels" button and then adjust the sound level to 100 by the slider.

9. Specifications

CAP-2
Model	CAP-2
Product Name	HDMI to USB 3.0 Capture Box
Input	1x HDMI
Output	1x USB 3.0 (Micro B)
Input Video Bandwidth	150MHz (pixel clock rate)
Output Video Bandwidth	Up to 350Mbps (USB)
Supported InputVideoFormats	1920 x 1080p60/59.94/50/30/29.97/25/24/23.9761920 x 1080i 60/59.94/50 (de-interlaced out)1680 x 1050p 601600 x 1200p 601440 x 900p 75/601400 x 1050p 601366 x 768p 601360 x 768p 601280 x 1024p 75/601280 x 720p 60/59.94/501024 x 768p 75/60800 x 600p 75/60720 x 576p 50720 x 480p 60640 x 480p 60
Supported Output VideoFormats	1920 x 1080p 60/50/30/25/241680 x 1068p 601440 x 1080p 601440 x 896p 601360 x 768p 601280 x 768p 601280 x 720p 60/501024 x 768p 60960 x 536p 60848 x 480p 60768 x 576p 60720 x 480p 60/50640 x 480p 60640 x 360p 60
Audio Input	HDMI Embedded Audio & 3.5 mm stereo in
Audio Format	2-Channel, 44.1KHz and 48KHz sample rate embedded in, up to 24-bit PCM, fixed 48KHz output
Captured Video Format	YUY2 (USB3.0), MJPG (USB2.0/3.0)
Firmware Update	Via USB Port
Others
Software Compatibility	·Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us·Linux: VLC, OBS·Mac OS X: OBS, Quicktime player, VLC, Facetime
Supported OS	Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04
Power Supply	Via USB
Power Consumption	2W
Operation Temperature	0~40°C
Storage Temperature	-20~60°C
Humidity	20~90% RH (no condensation)
Mnimum System Requirements	Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64)Note: The driver is required for Windows 7 OS OS X (10.10 or above)Linux Ubuntu 14.04PC: Intel® CoreTM i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higherLaptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher4GB RAM or higher
Dimensions	105 (L) x 68 (D) x 23 (H) mm
Weight	70g

Service & Support

It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to common questions, support requests or contact your local office below.

Please visit our website for latest manual update. https://www.datavideo.com/product/CAP-2

datavideo

www.datavideo.com

@DatavideoUSA @DatavideoIndia2016

@DatavideoEMEA @Datavideojapan

@DatavideoTaiwan @DatavideoLatam

@DatavideoAsia @DatavideoBrasil

@Datavideo

@Datavideo EMEA

@Datavideo Taiwan

@DatavideoUSA

@DVTWDVCN

@DatavideoUSA

@DatavideoEurope

All the trademarks are the properties of their respective owners.

Datavideo Technologies Co., Ltd. All rights reserved 2020
