HHE 100 - Freezer HOOVER - Free user manual and instructions

Product Type	Chest Freezer
Model	HHE 100
Brand	Hoover
Energy Supply	220-240V / 50Hz AC, 10A dedicated socket
Refrigerant	R600a (Isobutane)
Climate Class	SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C)
Freezing Capacity	Refer to type plate (not specified in manual)
Temperature Control	Thermostat knob with settings 1-6
Indicator Lights	Green Power light, Red Alarm light
Interior Light	15W bulb (max 15W), replaceable
Defrost Method	Manual defrost
Door Seals	Magnetic, removable for cleaning
Installation Clearances	Top >70cm, sides and back >20cm
Energy Saving Features	Good ventilation, avoid direct sunlight, minimize door opening, regular cleaning
Safety Features	Earthed plug, child lock (by design), anti-tip stability
Maintenance Cleaning	Soft cloth with mild detergent, no abrasives or organic solvents
Warranty	Refer to warranty conditions in manual

Frequently Asked Questions - HHE 100 HOOVER

What should I do if the freezer does not operate?

Check that the freezer is properly plugged in and the power socket is switched on. Ensure the thermostat knob is not set to 'OFF'. Verify the circuit breaker has not tripped. If the voltage is too low (<220V), use a 750W voltage regulator.

How can I reduce energy consumption?

Place the freezer in a well-ventilated area away from heat sources and direct sunlight. Keep the lid closed as much as possible. Allow hot food to cool before storing. Defrost regularly when frost layer exceeds 5mm. Clean dust from ventilation openings periodically.

Why does the compressor run continuously?

During hot summer months, longer operation is normal. Avoid overloading the freezer with warm food at once. Ensure the lid is not opened frequently. If frost is thick, defrost the freezer. Also check that the door seals are intact.

What causes bad odors inside the freezer?

Odors usually come from spoiled or improperly wrapped food. Always store food in airtight containers or sealed bags. Clean the interior with a mild detergent and warm water, then dry thoroughly. Activated charcoal can help absorb odors.

How do I defrost the freezer?

Unplug the freezer and remove all food and drawers. Open the lid and let frost melt naturally. Place a container under the drainage hole to collect water. Use a plastic scraper to speed up the process, but never use mechanical or electrical devices. Wipe dry before plugging back in.

Why is the door difficult to open?

This is a normal physical phenomenon caused by pressure difference after cooling. Wait a few seconds, then try again. If persistent, check that food packages are not blocking the seal and that the freezer is level.

What should I do if the alarm light comes on?

The red alarm light indicates the internal temperature is too high, often after loading fresh food or leaving the lid open too long. Check that the lid is closed properly and allow the freezer to cool down. If the light stays on, contact service.

Can I use an extension cord?

No, extension cords or adapters are not recommended for safety reasons. Use a dedicated, properly earthed wall socket with a minimum rating of 10A.

How do I replace the interior light bulb?

Disconnect the freezer from the mains. Remove the cover panel by sliding it in the direction of the arrow. Replace the bulb with a 15W max bulb of the same type. Reattach the cover panel and reconnect power.

What does the climate class mean?

The climate class indicates the ambient temperature range where the freezer performs optimally. For example, SN (Subnormal) is +10°C to +32°C, N (Normal) +16°C to +32°C, ST (Subtropical) +16°C to +38°C, T (Tropical) +16°C to +43°C. Check the type plate for your model.

USER MANUAL HHE 100 HOOVER

English (Page from 1 to 18)

Turkish (Page from 20 to 36)

Line drawing of a rectangular refrigerator with lid and control buttons (no text or symbols)

■ Safety warnings

Meaning of safety warning symbols 1
Electricity related warnings 3
Related warnings for use 6
Electrical connection 7
Warnings related to placing items 9
Scrapping old appliance 10

Sacing energy

■ Proper use of freezers

Names of components 12
Climate rating 13
Thermostat 14
Placement 14
tartS 14

Freezer

Notes on freezing

■ Maintenance of freezers

Cleaning 16
Deforst 16
Stop using 16

Equipment

■ Frequently asked questions

DEAR CUSTOMER:

Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements. When disposing of any freezer equipment please contact your local waste disposal department for advice on safe disposal. This appliance must be only used for its intended purposes.

Safety warnings

Meaning of safety warning symbols

Prohibition symbols

The symbols indicate prohibited matters, and those behaviors are forbidden.

Non-compliance with the instructions may result in productdamages or endanger the personal safety of users.

Warning symbols

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

Note symbols

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

This manual contains lots of important safety information which shall be observed by the users.

Safety warnings

"This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision."

This product is intended solely for household use or similar application such as: the kitchen area for personnel in shops, offices and other working environment on farms, by clientele of hotels, motels and other environments of a residential type at bed and breakfast (B&B) or catering services and similar applications not for retail sale. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

This manual contains lots of important safety information which shall be observed by the users.

Safety warnings

▶ Electricity related warnings

Do not perform repairs on this product. All interventions must be performed solely by qualified personnel. Before performing any operation, unplug the power cord from the power socket. Do not use extension cords or adapter. It is recommended to keep the plug clean, any excessive dust residues on the plug, can be cause fire.

• Do not pull the power cord when pulling the power plug of the freezer. Please firmly grasp the plug and pull out it from the socket directly.
• Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.
• Worn or damaged power cord shall be replaced in manufacture-authorized maintenance stations.

Safety warnings

- Please use a dedicated three-hole power socket which is 10A or more and the power socket shall not be

shared with other electrical appliances.

- The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

Simple line drawing of a room with a window and a cabinet, no text or symbols present

- The refrigerator adopts 220\~240V/50HzAC power, voltage fluctuations over the range

of 220\~240V10% will cause malfunction or even damage, so a 750 W automatic voltage regulator must be installed in concert with the AC power.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Safety warnings

Simple line drawing of a box with a small box on top and warning symbols (no text or labels)

- To ensure safety, it is not recommended that to place regulators, rice cookers, microwave

ovens and other appliances at the top of the freezer those recommended by the manufacture are not included. Do not use electrical appliances in the food pantry.

▶ Related warnings for use

Simple line drawing of a box with a circular mark and surrounding symbols (no text or labels)

- Authorized demolition or renovation of the refrigerator is not prohibited. It is forbidden to damage the refrigerant lines and the repair and maintenance of the refrigerator must be carried out by professionals.

- Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a box with a starburst on the side and an exclamation mark in the corner (no text or symbols)

- The surrounding of the appliances around or the embedded structure shall not be obstructed while good ventilation shall be maintained.

Safety warnings

- The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the freezer door to avoid falling articles.

- Do not pick foods or containers in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Electrical connection (for U.K. only)

Plug your freezer into the power socket.

If the plug we supply does not fit :

■ CUT IT OFF AND DESTROY IT!

You can't use it on other appliances, and the exposed wires could be dangerous if anyone plugged it in.

■ Fit a suitable plug, as follows:

Connect to the terminal in the plug
Green and yellow wire	Marked with the letter E,OR marked with the Earth symbol, [IMAGE]OR coloured green,OR coloured green and yellow.
Blue wire	Marked N,OR coloured black.
Brown wire	Marked L,OR coloured red.

WARNING!

THIS APPLIANCE MUST BE EARTHED.

Fuses and plugs

This appliance should be used only on a socket with a minimum rating of 13 Amp.

Our ready-fitted plug is already equipped with a 13 amp fuse which is BS 1362 ASTA approved.

Any replacement should be exactly the same.

If the fuse cover is lost, do not use the plug until it is replaced.

A correct replacement fuse cover (obtainable from your dealer or Electricity board) must be the same colour as shown or named on the insert on the base of the plug.

This product contains a refrigerant gas (R600a : Isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are however inflammable.

Safety warnings

Cartoon illustration of a child sleeping inside a box with a warning symbol (no text or labels)

- Do not allow children to enter or climb the freezer to prevent that children are sealed in the freezer or children are injured by the falling freezer.

- Do not spray or wash the freezer ; do not put the freezer in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the freezer.

Cartoon illustration of a sad, anthropomorphic object with a grid on top and a frowning face (no text or symbols)

- Do not place heavy objects on the top of the freezer considering that objectives may fall when switching the door, and accidental injuries might be caused.

- Please pull of the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

Do not place containers filled with water on the top of appliance.

Safety warnings

- Warnings related to placing items

- Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents.

- Do not place flammable items near the freezer to avoid fires.

- This product is household freezers and shall be only suitable for the storage of foods. According to national standards,

household freezers shall not be used for other purposes, such as storage of blood, drugs or biological products.

Mechanical or electrical devices shall not be used to accelerate the process of defrost, with the exception of ice scraper available with the freezer.

- Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the

freezer to prevent bursts and other losses.

Do not touch the internal parts of frozen food with moist or wet hands as it cause burns.

▶ Warnings related to disposal

The freezer's R600a refrigerant and cyclopentane foam materials are combustible materials and discarded refrigerators should be isolated from fire sources and can not be burned.

Please transfer the freezer to qualified professional recycling companies for processing to avoid damages to the environment or other hazards.

Please remove the door of the freezer and shelves which shall be properly placed to avoid accidents of children entering and playing in the freezer.

Scrapping old appliance

By ensuring that this product is properly disposed of, you will help prevent potential negative consequences for the environment and human health, which could otherwise arise due to inappropriate waste handling of this product on reaching the end of its working life.

With proper disposal of the appliance, it is possible to recover valuable raw materials!

This appliance is marked as conforming to the European Directive 2012 on 9th site of Electrical and Electronic Equipment (WEEE).

The symbol on the product indicates that this appliance may not be treated as normal househ waste; it must, instead, be delivered over to the nearest collection point for the recycling of elec trical and electronic equipment.

Disposal must be effectuated in accordance with the environmental regulations in force for waste disposal.

For more detailed information about treatment, recovery and reing of this product, contact the competent public office (Department of Ecology and Environment), your home household waste disposal service, or the shop where you purchased the product.

Cut and dispose of the power cord with the plug.

Up until appropriate disposal, do not damage the tubing because they contain the refrigerant gas.

For the disposal of packing materials, follow local regulations.

WEEE contains both polluting substance (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials

Indiciduals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

-WEEE should not be handed over to the relevant collection points managed by the municipality or by registered copanies.in many countries,forlarge WEEE,home collection could be present.

-when you buy aa new appliance,the old one may returned to the retailer who has collect it free of charge on a one-to-one basis,as long as the equipment is of equivalent type and hsa the same functions as the supplied equipment.

CE

This equipment, in the parts intended to come into contact with food products, is in conformity with the requirements of EC Regulation NO. CE 1935/2004. Apparatus conforms with European Directive 20014/1 08/EC, 2006/95EC and successive amendments.

Sacing Energy

• Always ensure good ventilation.Do not cover ventilation openings or grille.
• Avoid positioning the appliance in dirance in direct sunlighe or near cookers, radiators and similar sources of heat
• The energy consumption depends on the installation conditions, e.g the ambient temperature
• Keep the time the appliance in open to a minimum
• Store food logically.
• Keep all food properly packed and covered so as to avoid its frosting up on the outside.
• Always allow hot food to cool to room temperature before placing in the appliance.
• if there is a thick layer of frost in the appliance:defrost the appliance

Accumulated dust increases the energy consumption:

- Regularly clean the motor compartment ventilation opening to keep them free from dust.

Proper use of freezers

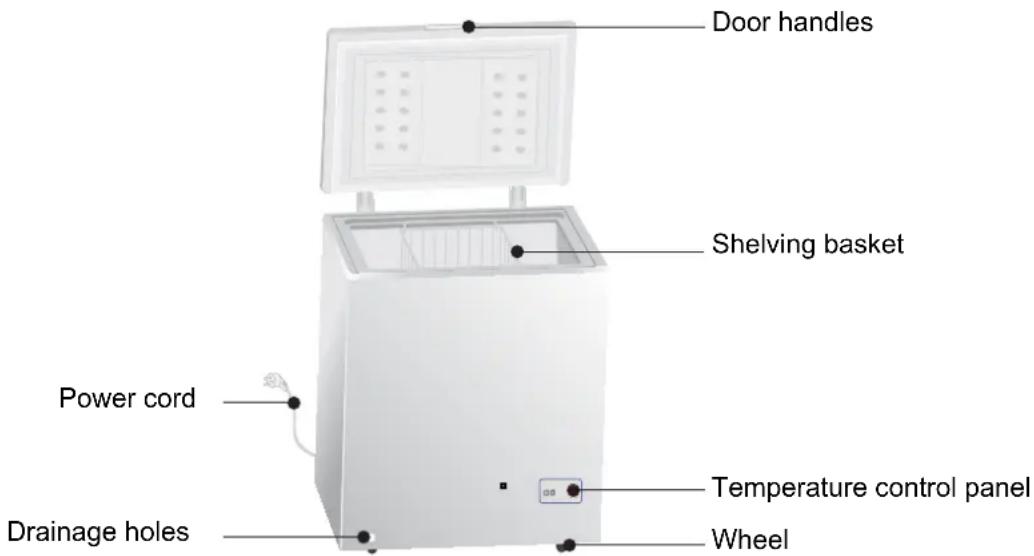

▶ Names of components

• The low temperature of freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezer is suitable for storage of meat, fish, shrimp, dumplings, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.

The features and accessories of the freezer you bought may be not entirely consistent with the legend, please refer to the packing list.

Product features

• Reliable properties: the refrigerator adopts branded efficient compressor which has excellent performance and high reliability;
• Foam door structure;
  ● Built-in mosaic door seals for dustproof which is easy to remove and clean;

Climate rating

The climate rating indicates the room temperature at which the appliance may be operated in order to achieve full refrigeration performance.

The climate rating is indicated on the type plate.

HOOVER		CHEST FREEZER MODEL:###
VOLTAGE: 220V-240V-FREQUENCY: 50HzRATED CURRENT: /REFRIGERANT: /VOLUME:CLIMATE CLASS: /FREEZING CAPACITY: /TYPE OF PREVENTING FROM ELECTRIC SHOCK: INET WEIGHT: /		ELECTRIC DIAGRAM

The position of the type plate is shown in the section entitled Description of the appliance.

Climate rating	Room temperature
SN	+10°C to +32 °C
N	+16°C to +32 °C
ST	+16°C to +38 °C
T	+16°C to +43 °C

Proper use of freezers

▶ Thermostat

• Connect the freezer to power supply and "Power" indicator will shine, "ALARM" indicator light when the inside temperature is too high. Please note that POWER is green light and ALARM is red light.
• The temperature of the chamber is adjusted through the thermostat knob. The number "1, 2, 3, 4, 5, 6," do not mean a specific temperatures, the lower the number is, the higher the temperature inside will be and verse versa. The user can choose the right temperature zone according to their needs.
• “” OFF stands for inoperation.

Placement

Simple line drawing of a person lifting a large box next to a smaller box (no text or symbols)

●Before using the freezer, remove all packaging materials including bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer body.

Simple line drawing of a box and a door, no text or symbols present

● The freezer is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy.

Cartoon illustration of a sad cube with flames and sun, next to a potted plant (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

- The top space of the freezer shall be greater than 70cm, and the distances from both sides and backside shall be more than 20cm to facilitate the opening and closing and heat dissipation. - Wipe the freezer inside and outside with warm moist rag (add a small amount of detergent in the warm water and wipe clean finally with clean water).

▶ Start

Simple line drawing of a box with a smiley face and a small plug, no text or symbols present.

• The freezer shall stay for half an hour before connecting 220\~240V/50Hz power when it is firstly started.
• The freezer shall run 2 to 3 hours before loading fresh or frozen foods; the freezer shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

Freezing

Fresh food should be frozen to the core as rapidly as possible. his is provided by the SuperFrost facility.

The maximum amount of food in kg which can be frozen in 24 hours is shown on the type plate (Freezing capacity).

HOOVER		CHEST FREEZERMODEL:###
VOLTAGE: 220V-240V~FREQUENCY: 50HzRATED CURRENT: /REFRIGERANT: /VOLUME:CLIMATE CLASS: /FREEZING CAPACITY: /TYPE OF PREVENTINGFROM ELECTRIC SHOCK: 1NET WEIGHT: /	ELECTRIC DIAGRAM

Notes on freezing

.Always store identical food items together

. Pack food which you are freezing yourself quantities appropriate to your household. To ensure that the food freezes right through, the following quantities should not be exceeded perpackage fruit, vegetables: up to 1 kg, meat: up to 2.5kg
. Do not allow fresh food which is to be frozen to come into contact with food already frozen. Always keep packs dry in order to avoid them sticking together.
. Always write the date and contents on the pack and do not exceed the stated storage time for the food.
. Do not freeze bottles and cans which contain carbonated drinks as they might burst.
. Only take out as much food as is immediately required for thawing. Use food which has been thawed in prepared meals as quickly as possible.

Frozen food can be in

• In a fan oven the following ways:
• 1 n a microwave oven
• At room temperature
• 1 n the refrigerator

Maintenance of freezers

▶ Cleaning

- Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the freezer should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.

Illustration of various household items including a gas jar, alcohol spray bottle, and a kettle with steam rising (no text or symbols)

- Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

- Do not rinse with water so as not to affect the electrical insulation properties. Please use a dry cloth when cleaning temperature control knob and electrical components.

Please unplug the for defrost and cleaning.freezer

Defrost

- Freezer shall be manually defrosted.

Unplug the freezer and open the freezer door, remove foods and drawers before defrosting; Open the outflow holes and drainage holes (and place water container at the outflow holes); indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth. When the frost softens, an ice scraper might be used to the accelerate de-icing process.

- Please remove the food and put in a cool place when defrosting before removing accessories.

Other mechanical devices or electrical devices shall not be used to accelerate except those recommended by the manufacturer. Do not damage the refrigerant circuit.

▶ Stop using

Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the freezer.

Please unplug the freezer left unused for a long time for cleaning. Keep the door open to avoid the bad odor.

Do not turn upside, horizontally place or vibrate the refrigerator, the carrying angle can not be greater than 45. Please hold the door and hinge when moving.

Continuous operation is recommended when the freezer is started. Please do not move the freezer under normal circumstances so as not to affect the freezer's service life.

Equipment

Interior light

The interior light switches on automatically when the lid is opened and switches off again when it is closed.

Bulb data:

15W (never use a bulb rated at more than 15W). The voltage should agree with the details on the type plate.

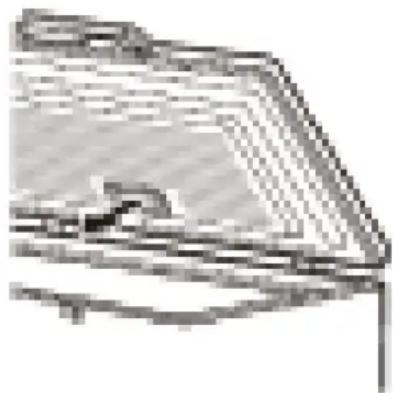

Replacing the bulb:

Disconnect from the mains or switch off or unscrew the fuse.

• Remove the cover panel in the direction of the arrow.
• Change the bulb.
• Replace the cover panel.

Frequently asked questions

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation	Whether the freezer is plugged and connected to power;Low voltage;Whether temperature control knob is in the work areaFailure power or tripping circuit
Odor	Odorous foods should closely wrapped;Whether foods are rotten;Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that freezer operates for longer time in summer when the ambient temperature is higher;Do not put too much food in the freezer at one time;Do not put foods until they are cooled;Frequent opening of freezer door.Thick frost layer (defrost is needed)
Illuminating light does not shine	Whether the freezer is connected to power, whether the indicator light is damaged.
The freezer door can not be properly closed.	The freezer door is stuck by food packages;Too much food;Tilt freezer.
Loud noises	Whether the food is leveled, whether the freezer is balanced;Whether the freezer parts are properly placed.
Transient difficulty in door opening	After refrigeration, there will be pressure dif ference between the inside and outside of the refrigerator to result in transient dif ficulty in door opening. This is a normal physical phenomenon

Warm tips:

◆The freezer enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
◆ Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
◆ Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect.
◆Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.
◆ Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation.

içİNDEKİLER

Güvenlik uyarıları

Simple line drawing of a room with a monitor and cabinet, no text or symbols present

Simple line drawing of a box with a hand and starburst mark on the lid, no text or symbols present.

Cartoon illustration of a child sleeping inside a box with a warning symbol (no text or labels)

Cartoon illustration of a sad, anthropomorphic character with a grid on top and a warning symbol (no text or labels)

Illustration of a person lifting a large cardboard box next to a smaller box (no text or symbols)

Simple line drawing of a box and a door with a lid, no text or symbols present

Cartoon illustration of a sad cube with a frowning face, surrounded by sun and a potted plant (no text or symbols)

Simple line drawing of a cube with vertical lines and measurement annotations (no text or symbols)

Simple line drawing of a smiling cube with a small plug and cable attached (no text or symbols)

Illustration of various cooking and beverage items including a gas, alcohol, and kettle (no text or symbols)

Illustration of a laptop with a screen and keyboard (no visible text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)
