MiTab Hamburgo - Tablet Wolder - Free user manual and instructions

Product Type	Tablet
Brand	Wolder
Model	MiTab Hamburgo
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Processor	Quad-core 1.5 GHz
RAM	2 GB
Internal Storage	32 GB
Expandable Storage	microSD up to 128 GB
Operating System	Android 9.0 Pie
Battery Capacity	5000 mAh
Dimensions	240 x 170 x 9 mm
Weight	510 g
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Ports	Micro USB, 3.5 mm headphone jack
Cameras	Rear: 5 MP, Front: 2 MP
Sensors	Accelerometer, G-sensor
Power Supply	DC 5V 2A via micro USB
Cleaning Instructions	Wipe screen with soft dry cloth; avoid liquids near ports.
Safety Precautions	Do not expose to extreme temperatures or moisture.
Spare Parts & Repairability	Battery and screen replaceable by qualified technician.

Frequently Asked Questions - MiTab Hamburgo Wolder

How do I turn on the Wolder MiTab Hamburgo for the first time?

Press and hold the power button located on the side or top edge until the screen lights up. Follow the on-screen setup wizard to select language, connect to Wi-Fi, and sign in to your Google account.

How can I increase battery life on my tablet?

Reduce screen brightness, disable unnecessary background apps, turn off Wi-Fi and Bluetooth when not in use, and enable battery saver mode in Settings > Battery.

What should I do if the screen is unresponsive?

First, try a forced restart by pressing and holding the power button for 10-15 seconds. If that doesn't work, charge the device for at least 30 minutes, then try again. If the issue persists, perform a factory reset (backup data first).

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, toggle it on, and select your network. Enter the password if required, then tap Connect. The tablet will remember the network for future use.

Can I expand the storage?

Yes, the MiTab Hamburgo supports microSD cards up to 128 GB. Insert the card into the microSD slot (usually located under the back cover or on the side).

How to take a screenshot?

Press and hold the Power button and the Volume Down button simultaneously for 1-2 seconds. You will see a brief animation and the screenshot will be saved to the Gallery.

Why is my tablet running slow?

Clear app caches, uninstall unused apps, and restart the device. If it persists, check for software updates in Settings > System > System Update or perform a factory reset as a last resort.

How do I update the Android system?

Go to Settings > System > System Update, then tap Check for Updates. If an update is available, download and install it over a Wi-Fi connection while the battery is above 50%.

What are the best cleaning practices for the touchscreen?

Turn off the tablet and use a soft, lint-free microfiber cloth slightly dampened with water or a screen cleaner. Wipe gently in circular motions. Avoid abrasive materials or excessive moisture.

Where can I find the user manual for this tablet?

The user manual is available for free download on notice-facile.com in PDF format. You can also request a translated version via email on the manual page.

USER MANUAL MiTab Hamburgo Wolder

- microSD (up to 32GB)

· JPG, GIF, BMP, PNG

-Android 4.4

· MPEG-1,MPEG-2, MPEG-4 SP/ASP GMC/DIVX3,H.263, H.264 BP/MP/HP, XVID, H.263, ,WMV7/8, WMV9/VCI BP/MP/AP,VP6/8, AVS, JPEG/MJPEG, ,3GP, AFS, ,FLV, MPG, ,TS, .VOB

· Cargador /Charger / Carregador

· Cable USB /USB Cable / Cabo USB

- Manual/ Manual / Manual

Discover you new Wolder device. Welcome to our family :)

Thank you for choosing us. To turn on your tablet and start enjoying an intuitive and enriching experience hold and press for a few seconds the power button. To turn it off hold and press the same button until the device options appear on the screen.

Introducing miTab HAMBURGO

1. Reset
2. Speaker
3. Front Camera
4. Back Camera
5. Micro USB
6. Earphones
7. Micro SD

8. Back

9. Power button (hold and press to switch on or off or airplane mode/press for sleep mode)

How is miTab HAMBURGO? Technical features

· 7" IPS 16:9
· 1024 × 600 px
· Multitouch

·188×109×9mm
· 272 gr.

· Flash 8GB
·RAM 512 MB

· CPU QUAD Core 1.3 GHZ

·WIFI 802.11 b/g/n

· 2700 mAh.
·4.5 HVideo

-2 Mpx
.5 Mpx

· microUSB 2.0 OTG
· mini Jack 3.5mm
· microSD (up to 32GB)

• Acelerómetro G-SENSOR
  Accelerometer G-SENSOR
• Acelerómetro G-SENSOR

· Multiuser

· JPG, GIF, BMP, PNG

- Android 4.4

· MPEG-1,MPEG-2, MPEG-4 SP/ASP GMC/DIVX3,H.263, H.264 BP/MP/HP, XVID, H.263, ,WMV7/8,WMV9/VCI BP/MP/AP,VP6/8, AVS,JPEG/MJPEG, .3GP, .AFS, .FLV, .MPG, .TS, .VOB

· Cargador /Charger / Carregador
· Cable USB /USB Cable / Cabo USB
· Manual/ Manual / Manual
· Garantía / Warranty / Garantía
· Auriculares/Headphones/Auriculares stereo

:MP2,MP3,WMA,OGG,APE,FLAC,AAC,M4A,MA4,3GP,WAV

For your safety

• Do not expose your miTab to high temperatures, humidity or dust. Keep it away from direct sunlight.
• Do not drop the tablet. Any hit on the device may cause damage or malfunction.
• Use miTab at an appropriate volume to never use the headphones at high volume.
• As long as your tablet is in file transfer mode, do not disconnect the unit suddenly. You can cause system errors.
• Do not disassemble the tablet for yourself. This device must be manipulated by qualified personnel.
• Do not use alcohol, thinner or benzene to clean miTab.
• Do not use the tablet in place in which the use of electronic devices is restricted.
• Do not use miTab while driving or walk down the street.

Charge and use of the battery

Remember that it is recommended to fully charge the battery of your tablet before first use. To do this, simply plug the adapter or the USB cable to your tablet and plug it into the wall outlet. For the first two loads, you will need at least 6 hours. Then, with just 4 hours will be enough.

【NOTE】: During charging, the battery icon appears on the screen moving. When the battery is fully charged, the icon will remain static.

【NOTE】: To ensure a longer life to your battery, it is advisable to consume it completely before recharging. What's more, in the event that you will not use the tablet for a long period of time, charge and use the tablet once a month. This way you will avoid damage to the battery. 2. When the battery is fully consumed, connect the adapter and wait a few moments before it has enough charge to access the main menu. 3. While charging the battery, the unit goes into standby mode until it has sufficient charge. The screen consumes a considerable amount of energy, so the charging time will be greater if it stays on during charging. When the tablet is on, you can turn off to save battery. Just press the power button once to turn off the screen. Press again the power button to turn on the screen.

Getting connected to the Internet

Another one of the connectivity options that miTab Wolder gives you is the ability to connect to the Internet via Wi-Fi. To do so, you just have to go to the 🎨 button and slide the tab to the right to enable connection through Wi-Fi. When wireless connection is on, the tablet will look for and display a list of available wireless networks.

Choose which one you want to connect to. If the network is open, the tablet will display a message to confirm if you want to connect to that network. Click "Connect" to confirm.

Once the connection to the wireless network has been established, and icon of wireless network signal will be displayed in the notification bar.

NOTE: If the access point has security settings, you will need to provide a password.

Surf on the Internet

Once you have connected to the Internet, you can use the browser 📄, to surf on the websites you want to.

Install Apps

Your tablet has a number of preloaded apps to improve your user experience. But you can download all you want and need. You will have to use the marketplace you'll find on your device or download them directly from the Internet, on the official website of each App.

To manage the applications you have installed (in case, for instance, that you want to delete) you have to go to the button ⚙️, select the Apps option and, once there, the app you want to manage.

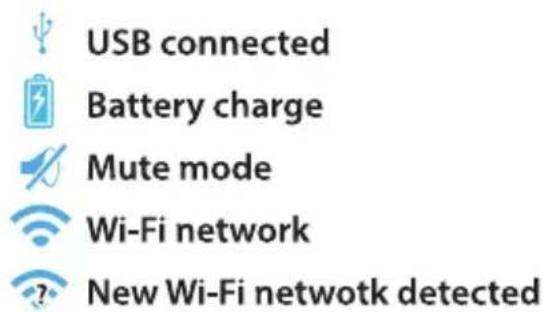

Status and notification icons

Your tablet will tell you what's going on by showing you simple icons. Here's what they mean:

Setting up miTab HAMBURGO for the first time

- Unlock your screen

The screen of your tablet Wolder will lock every time the screen is suspended. To unlock just drag the closed padlock icon.

- Modify Settings

Pressing Menu Key, you will have access to all applications installed on your tablet. Among them you can find the button from which you can configure the main settings of your device: keyboard, language, sound, brightness and contrast of the screen, data usage, Internet, storage options, rotating screen (to make your screen rotate according to the position of your tablet-vertically or horizontally), etc.

Connecting miTab to a PC

miTab Wolder offers multiple connectivity options. Through the mini USB plug you can connect your tablet to a computer (for battery charging or to use it as a storage unit). USB connection notification will be automatically displayed on the screen of your device.

In order to use your tablet as an external disk select the Enable USB storage option you'll find at the bottom of your screen. This way you can share files between the PC and the tablet.

More info and support

For more information about our products, practical advices, frequent questions, users manuals, updates, etc. visit http://www.wolderelectronics.com.

To contact our technical support visit:

http://www.wolderelectronics.com/soporte/servicio-tecnico

Declaration of conformity

GLOBAL WOLDER GROUP S.L, Polígono Industrial de Barros n°29, 39408 Barros, Cantabria. España, certifies that this product, referenced as miTab ARIZONA, complies with the provisions of the Directive 99/05/CE about Radio Equipment and Telecommunications Terminal (R&TTE), the Directive 2006/95/CEE about Low Voltage and the Directive 2011/65/EU about Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.

See you :)

Bem - vindo

miTab

HAMBURGO

- microSD (up to 32GB)

· JPG, GIF, BMP, PNG

-Android 4.4

· MPEG-1, MPEG-2, MPEG-4 SP/ASP

GMC/DIVX3.H.263,H.264 BP/MP/HP,XVID,

H.263.,WMV7/8,WMV9/VCI BP/MP/AP,VP6/8.

AVS, JPEG/MJPEG, .3GP, .AFS, .FLV, .MPG, .TS, .VOB

· Cargador /Charger / Carregador

· Cable USB /USB Cable / Cabo USB

· Manual/ Manual / Manual
