MiTab Berlin - Tablet Wolder - Free user manual and instructions

Product Type	Tablet
Brand	Wolder
Model	MiTab Berlin
Display	10.1" HD (1024x600 pixels), capacitive multi-touch
Processor	Octa-core up to 2.0 GHz
RAM	1 GB
Storage	8 GB Flash, expandable via microSD up to 64 GB
Operating System	Android 5.1 Lollipop
Front Camera	2 MP
Rear Camera	5 MP
Battery	5000 mAh, up to 5 hours video playback
Connectivity	Wi-Fi 802.11 b/g/n, microUSB 2.0 OTG, 3.5mm audio jack
Sensors	G-sensor / Accelerometer
Dimensions	258 x 149 x 10.5 mm
Weight	586 g
Image Formats	JPG, GIF, BMP, PNG
Video Formats	MPEG-1/2/4, H.263, H.264, XVID, WMV, VP6/8, AVI, FLV, etc.
Audio Formats	MP2, MP3, WMA, OGG, APE, FLAC, AAC, M4A, WAV, etc.
Multiuser Support	Yes
Box Contents	Tablet, charger, USB cable, manual
Safety Precautions	Keep away from heat, moisture, dust; do not disassemble; use qualified personnel for repairs
Cleaning	Do not use alcohol, thinner, or benzene; use a soft dry cloth

Frequently Asked Questions - MiTab Berlin Wolder

How do I turn on the tablet for the first time?

Press and hold the power button for a few seconds until the screen turns on. To turn it off, press and hold the same button until the power options appear.

How should I charge the battery for optimal performance?

For the first two charges, charge for at least 6 hours. Subsequent charges take about 4 hours. It is recommended to fully discharge the battery before recharging to prolong its life.

How do I connect the tablet to a PC?

Use the microUSB cable to connect to a PC. The tablet will display a USB connection notification. Select 'Enable USB storage' to transfer files.

How do I connect to a Wi-Fi network?

Go to Settings, slide the Wi-Fi switch to on. The tablet will scan for available networks. Choose your network and enter the password if required, then tap Connect.

How can I install new apps?

You can download apps from the preloaded app marketplace or directly from the internet. To manage or delete apps, go to Settings > Apps and select the app.

What is the screen resolution and size?

The tablet has a 10.1-inch HD display with a resolution of 1024x600 pixels. It supports multi-touch.

How do I clean the tablet safely?

Do not use alcohol, thinner, or benzene. Use a soft, dry cloth to wipe the screen and body. Keep away from liquids and dust.

Is the tablet water-resistant?

No, the tablet is not water-resistant. Avoid exposure to moisture, rain, and high humidity. If it gets wet, power off immediately and dry it thoroughly.

How do I reset the tablet?

To perform a factory reset, go to Settings > Backup & reset > Factory data reset. This will erase all data, so back up important files first.

What should I do if the tablet freezes or becomes unresponsive?

Press and hold the power button for about 10 seconds until the device restarts. If the problem persists, try a factory reset or contact technical support.

USER MANUAL MiTab Berlin Wolder

- microSD (up to 64GB)

• Acelerómetro G-SENSOR
• Accelerometer G-SENSOR
• Acelerómetro G-SENSOR

· Multiuser

· JPG, GIF, BMP, PNG

- Android 5.1

Discover you new Wolder device. Welcome to our family :)

Thank you for choosing us. To turn on your tablet and start enjoying an intuitive and enriching experience hold and press for a few seconds the power button. To turn it off hold and press the same button until the device options appear on the screen.

Introducing miTab BERLIN

1. Reset
2. Speaker
3. Front Camera
4. Microphone
5. Back Camera
6. Micro USB
7. Earphones
8. Micro SD

9. Back

10. Power button (hold and press to switch on or off or airplane mode/press for sleep mode)

How is miTab BERLIN? Technical features

·10,1" HD·G+P

· 1024 × 600 px

- Multitouch

·258×149×10.5 mm

· 586 gr.

· Flash 8GB

-RAM1GB

- CPU Octa-Core (up to 2.0 GHz.)

·WIFI 802.11 b/g/n

· 5000 mAh.

· 5h video

·2 Mpx

.5 Mpx

- microUSB 2.0 OTG

· mini Jack 3,5mm

· microSD (up to 64GB)

· JPG, GIF, BMP, PNG

-Android 5.1

· MPEG-1, MPEG-2, MPEG-4 SP/ASP

GMC/DIVX3,H.263,H.264 BP/MP/HP,XVID,

H.263.,WMV7/8,WMV9/VCI BP/MP/AP,VP6/8,

AVS, JPEG/MJPEG, .3GP, AFS, .FLV, .MPG, .TS,

.VOB

· Cargador /Charger / Carregador

· Cable USB /USB Cable / Cabo USB

· Manual/ Manual / Manual

• Do not expose your miTab to high temperatures, humidity or dust. Keep it away from direct sunlight.
• Do not drop the tablet. Any hit on the device may cause damage or malfunction.
• Use miTab at an appropriate volume to never use the headphones at high volume.
• As long as your tablet is in file transfer mode, do not disconnect the unit suddenly. You can cause system errors.
• Do not disassemble the tablet for yourself. This device must be manipulated by qualified personnel.
• Do not use alcohol, thinner or benzene to clean miTab.
• Do not use the tablet in place in which the use of electronic devices is restricted.
• Do not use miTab while driving or walk down the street.

Charge and use of the battery

Remember that it is recommended to fully charge the battery of your tablet before first use. To do this, simply plug the adapter or the DC cable to your tablet and plug it into the wall outlet. For the first two loads, you will need at least 6 hours. Then, with just 4 hours will be enough.

【NOTE】: During charging, the battery icon appears on the screen moving. When the battery is fully charged, the icon will remain static.

【NOTE】: To ensure a longer life to your battery, it is advisable to consume it completely before recharging. What's more, in the event that you will not use the tablet for a long period of time, charge and use the tablet once a month. This way you will avoid damage to the battery. 2. When the battery is fully consumed, connect the adapter and wait a few moments before it has enough charge to access the main menu. 3. While charging the battery, the unit goes into standby mode until it has sufficient charge. The screen consumes a considerable amount of energy, so the charging time will be greater if it stays on during charging. When the tablet is on, you can turn off to save battery. Just press the power button once to turn off the screen. Press again the power button to turn on the screen.

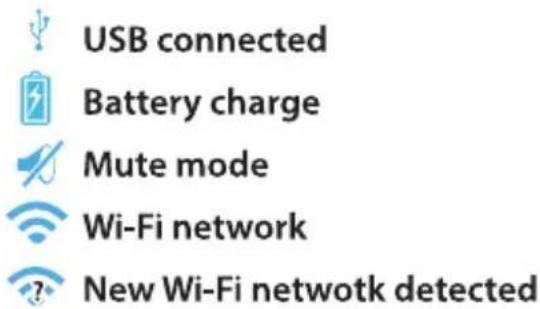

Status and notification icons

Your tablet will tell you what's going on by showing you simple icons. Here's what they mean:

Setting up miTab BERLIN for the first time

- Unlock your screen

The screen of your tablet Wolder will lock every time the screen is suspended. To unlock just drag the closed padlock icon.

- Modify Settings

Pressing Menu Key, you will have access to all applications installed on your tablet. Among them you can find the button from which you can configure the main settings of your device: keyboard, language, sound, brightness and contrast of the screen, data usage, Internet, storage options, rotating screen (to make your screen rotate according to the position of your tablet-vertically or horizontally), etc.

Connecting miTab to a PC

miTab Wolder offers multiple connectivity options. Through the mini USB plug you can connect your tablet to a computer (for battery charging or to use it as a storage unit). USB connection notification will be automatically displayed on the screen of your device.

In order to use your tablet as an external disk select the Enable USB storage option you'll find at the bottom of your screen. This way you can share files between the PC and the tablet.

Getting connected to the Internet

Another one of the connectivity options that miTab Wolder gives you is the ability to connect to the Internet via Wi-Fi. To do so, you just have to go to the button and slide the tab to the right to enable connection through Wi-Fi. When wireless connection is on, the tablet will look for and display a list of available wireless networks.

Choose which one you want to connect to. If the network is open, the tablet will display a message to confirm if you want to connect to that network. Click "Connect" to confirm.

Once the connection to the wireless network has been established, and icon of wireless network signal will be displayed in the notification bar.

NOTE: If the access point has security settings, you will need to provide a password.

Surf on the Internet

Once you have connected to the Internet, you can use the browser 📄, to surf on the websites you want to.

Install Apps

Your tablet has a number of preloaded apps to improve your user experience. But you can download all you want and need. You will have to use the marketplace you'll find on your device or download them directly from the Internet, on the official website of each App.

To manage the applications you have installed (in case, for instance, that you want to delete) you have to go to the button ⚙️, select the Apps option and, once there, the app you want to manage.

More info and support

For more information about our products, practical advices, frequent questions, users manuals, updates, etc. visit http://www.wolderelectronics.com.

To contact our technical support visit:

http://www.wolderelectronics.com/soporte/servicio-tecnico

Declaration of conformity

GLOBAL WOLDER GROUP S.L, Polígono Industrial de Barros n°29, 39408 Barros, Cantabria. España, certifies that this product, referenced as miTab ARIZONA, complies with the provisions of the Directive 99/05/CE about Radio Equipment and Telecommunications Terminal (R&TTE), the Directive 2006/95/CEE about Low Voltage and the Directive 2011/65/EU about Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.

See you :)

Bem - vindo

Apresentamos-Ihe miTab BERLIN

· JPG, GIF, BMP, PNG

· Cargador /Charger / Carregador

· Cable USB /USB Cable / Cabo USB

- Manual/ Manual / Manual

- microSD (up to 64GB)

- Multiuser

- Android 5.1

·MPEG-1,MPEG-2,MPEG-4 SP/ASP

GMC/DIVX3,H.263,H.264 BP/MP/HP,XVID,

H.263, WMV7/8, WMV9/VCI BP/MP/AP, VP6/8,

AVS, JPEG/MJPEG, .3GP, AFS, FLV, MPG, TS,

.VOB

MP2,MP3,WMA,OGG,APE,FLAC,AAC,M4A,

MA4,3GP,WAV
