LAM-230 - Flashlight Steren - Free user manual and instructions

Product Type	LED Flashlight
Brand	Steren
Model	LAM-230
Dimensions (L x W x H)	Approx. 15 x 3 x 3 cm
Weight	Approx. 120 g (with batteries)
Power Source	3 x AAA batteries (not included)
Light Source	High-brightness LED
Luminous Flux	Up to 200 lumens
Beam Distance	Up to 100 meters
Modes	High, Low, Strobe
Switch Type	Tail cap push button
Body Material	Aluminum alloy with anodized finish
Water Resistance	IPX4 (splash resistant)
Battery Life	Approx. 6 hours (high mode), 12 hours (low mode)
Maintenance	Clean with dry cloth; remove batteries if not used for long periods
Safety	Do not look directly into beam; keep away from children
Spare Parts	Contact Steren customer service for replacement batteries or LEDs
Repairability	Limited; non-user-serviceable LED module; battery compartment accessible
Warranty	1 year limited warranty
Country of Origin	China
Package Contents	Flashlight, user manual

Frequently Asked Questions - LAM-230 Steren

What batteries does the Steren LAM-230 flashlight use?

The flashlight requires 3 AAA batteries (not included). Use alkaline for best performance.

How do I turn on the flashlight?

Press the tail cap button to cycle through modes: High, Low, Strobe. Press and hold to turn off from any mode.

Is the flashlight waterproof?

It has an IPX4 rating, meaning it is splash resistant but not submersible. Avoid heavy rain or immersion.

Can I replace the LED bulb?

The LED is a non-replaceable component. If it fails, please contact Steren support for repair or replacement under warranty.

How bright is the flashlight?

The maximum output is approximately 200 lumens, with a beam distance of up to 100 meters.

How long does the battery last?

Battery life varies by mode: about 6 hours on high, 12 hours on low. Strobe mode uses less power but is intermittent.

Why is my flashlight not working?

Check that batteries are inserted correctly (observe polarity) and that they are fresh. Clean battery contacts with a dry cloth.

Can I use rechargeable batteries?

Yes, you can use NiMH rechargeable AAA batteries. However, brightness may be slightly lower due to lower voltage.

How do I clean the flashlight?

Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents. Keep the lens clean for optimal light output.

Is there a warranty?

Yes, Steren provides a 1-year limited warranty against manufacturing defects. Retain your proof of purchase.

USER MANUAL LAM-230 Steren

Line drawing of a camera with a strap (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

ESPECIFICACIONES

4,5 V --- (3xAAA)

Consumo nominal: 864 Wh/día

Cale 2a, Juárez 7836, Cerim, 22000, Tijuana B.C.N. RFC EST990909NUS

Line drawing of a camera with a strap (no text or symbols)

Zoom LED headlamp

V3.0 / 0116m

IMPORTANT

• Do not expose to extreme temperatures.
• Use a soft and dry cloth to clean the equipment.
• Be sure to remove the batteries when the product is not to be used for a long period of time.
• The headlamp can generate excessive heat because it uses technology of ultra-bright LEDs.

PARTS

1. Power on button
2. Optical zoom
3. Batteries compartment
4. Plate of adjustment position
5. Adjustable elastic band

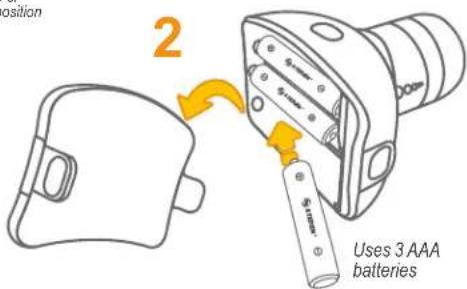

PLACE AND REPLACE BATTERIES

Pull the plate of adjustment position
Check the polarity to replace the batteries.

POWER ON BUTTON

With the headlamp off:

- Press once

Power on / High light

- Press twice

Low light

- Press thrice

Sparkling light

Press one more time to power off

PLACE THE HEADLAMP

1. Place the headlamp on your forehead and adjust the elastic band.

1. Adjust the desired position of the flashlight.

OPTICAL ZOOM

Use optical zoom to adjust the illuminated area. This will help to illuminate different areas.

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

SPECIFICATIONS

4.5 V --- (3xAAA)

Nominal consumption: 864 Wh/day

Stand-by power consumption: not applicable

STEREN®

Product: Zoom LED headlamp

Number part: LAM-230

Brand: Steren

This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase.

CONDITIONS

1. This warranty card with all the required information, invoice or purchase ticket, product box or package, and product, must be presented when warranty service is required.

2. If the product is in the warranty time, the company will repair it free of charge.

3. The repairing time will not exceed 30 natural days, from the day the claim was received.

4. Steren sell parts, components, consumables and accessories to customer, as well as warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries, failure to follow enclosed instructions, improper repair by unauthorized

personnel, improper safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.

b) If you lose the warranty card, we can reissue it. If you show the invoice or purchase ticket.

RETAILER INFORMATION

Name of the retailer

Address

Product

Brand

Serial number

Date of delivery

In case your product fails or have

questions, please contact your

nearest dealer

If you are in

Mexico, please

call to our Call

Center.

01 800 500 9000
