| Product Type | Car Speaker |
| Brand | Hifonics |
| Model | Hercules HS65CX |
| Category | Coaxial Speaker |
| Speaker Size | 6.5 inches |
| Outer Diameter (A) | 6.8 in (178.2 mm) |
| Mounting Depth (B) | 2.5 in (63.5 mm) |
| Impedance | 4 ohms (typical) |
| Installation Type | Coaxial (direct replacement) |
| Tweeter | Integrated coaxial tweeter |
| Crossover | Built-in |
| Warranty | 1 year limited warranty |
| Safety | Consult professional installer; avoid wire contact with metal edges |
| Care & Cleaning | Clean with dry cloth; avoid excessive moisture |
| Installation Considerations | Check depth clearance; use factory boots for wiring |
| Mounting Options | Factory location or custom mounting with professional help |
| Included Accessories | Speaker wires, mounting screws (assumed) |
| Compatibility | Most vehicles with 6.5-inch speaker openings |
| Repairability | Return to retailer for warranty service |
Frequently Asked Questions - Hercules HS65CX Hifonics
User questions about Hercules HS65CX Hifonics
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Car Speaker in PDF format for free! Find your manual Hercules HS65CX - Hifonics and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Hercules HS65CX by Hifonics.
USER MANUAL Hercules HS65CX Hifonics
Congratulations on your choice of a Hifonics speaker. This "Quick Start Installation" guide is meant to help you "hook up" and play music. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit the website at Hifonics.com
CAUTION
Always consider consulting a professional audio installer before installing new speakers. Many car manufacturers locate speakers behind interior panels that require special tools to remove those panels to access the speakers. Some panels will be screwed in, some will use plastic fasteners, many will have both. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires through the factory boot. Do not let speaker wire make contact with metal edges of doors or other access holes.
Speaker Dimensions
| A B C | D E F | |||||
| HS35CX | X1.7(4) | 12.3(59.28) | 6(3.1(79.0)4) | (87) | ||
| HS46CX | X2.0(5) | 12.3(59.31) | 7(6.3.5.7) | (90/144) | 3.978.0" (98/153) | |
| HS5768CX | X2.5"(8) | 9.0"(77.36) | 9(24.8.7.2) | (121/183) | 5.577.5" (140/192) | |
| HS6.2C | 6.8"(178.2) | 6(63.26.(71) | 8(892.5.7(14) | 6.8"(167) | ||
| HS65CX | 6.8"(178.2) | 6(63.0(75) | 6(692.5.7(14) | 6.8"(167) | ||
| HS693 | 7.1"(10.2) (179/260) | 3.4"(87.4) | 1(1014.6"(11) | 5.8"(9.7) | (150/220) | 6.579.1" (165/230) |
Before you start
It's a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools. Be careful as you go.
Factory Speaker Removal
A Access and remove factory door speakers Most modern vehicles have speakers that are mounted directly to the structure of the door. Access is achieved by the removal of the door panel. Some vehicles may only require the removal of a small panel around the speaker itself.
B Access and removal of rear factory speakers
Most rear speakers are accessed from within the trunk. Some may require the removal of the rear package tray. Hatchbacks and SUV's will usually require the removal of a side panel.
C Fit and Wiring
Once the factory speakers are removed, check the fit and determine if there is enough depth clearance for the new speaker. A good way to do this is to roll the window down and back up while holding the speaker in place. If you decide to run wires, make sure to use factory harness boots and grommets where ever possible.

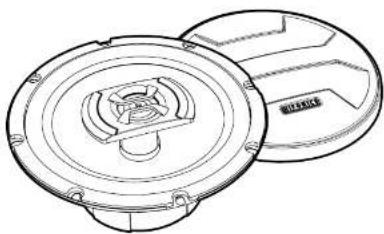

Coax installation
A Factory location behind door panel
Once you are sure the speaker tits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace door panel.
B Factory location behind small panel
Once you are sure the speaker fills and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace speaker cover panel.
Custom location
Some vehicles may not have a door speaker location. While it is possible to install the speakers in this situation, it is more difficult. Consider using a professional for custom installations.
D Rear factory locations
Mount the speakers in same way that the factory speaker was mounted. Attach the positive and negative wires to the proper terminals. Make sure any wires are secured properly.
Component installation
Factory location
behind door panel
Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeter if possible.
Custom location
If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary. Before making any permanent changes to your vehicle make sure there is adequate mounting depth.
Tweeter mounting
There are three primary ways the tweeter can be mounted. Surface, Flush and Custom mounting. The flush mount configuration is shown here.
Crossover wiring
The crossover is necessary for the proper operation of the component speaker system. Make sure the wires are securely attached and that there are no stray strands of wire contacting other terminals. Mount the crossover to a secure surface that is free of interference from window mechanisms and excessive moisture.
Hifonics.com
POWERFROMTHEGODS
WARRANTY
Maxosonics USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxosonics USA Inc. will, at it's discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxosonics USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The sale price is based on the price of the product, and the value of the product is subject to change in the price of the product. Maxosonics USA Inc. This warranty is limited to defective parts and specifically excludes any incidents or consequential damages connected therewith. To view the full warranty, please visit the website.
Hifonics products are designed and engineered in the USA by
MAXXSONICS
847-540-7700
www.maxxsonics.com
HF HE QEG 01 - p#1
HIFONICS
HERCULES
Quick Start
Installation Guide
HS35CX
HS46CX
HS5768CX
H56.2C
HS65CX
HS693
