Livenza - Milk frother TAURUS - Free user manual and instructions

Product Type	Milk Frother
Brand	Taurus
Model	Livenza
Net Weight	0.90 kg
Gross Weight	1.20 kg
Capacity (Approx.)	250 ml
Voltage (Est.)	220-240 V ~ 50/60 Hz
Power (Est.)	500 W
Materials	Stainless steel (hot frothing accessory), plastic (cold frothing accessory), plastic body
Functions	Hot milk frothing, cold milk frothing, milk warming (with hot attachment)
Operation	Pulse switch: press for hot (red light) or press 2.5 s for cold (blue light)
Accessories Included	Spiral stainless steel frothing attachment (hot), plastic frothing attachment (cold)
Safety Features	Do not operate when empty, do not immerse in water, auto shut-off not specified
Cleaning	Lid is dishwasher safe; body and attachments clean with damp cloth; do not submerge
Warranty	Standard manufacturer warranty (check local terms)
Power Cord Storage	Cable compartment on underside
Usage	Household use only, not for commercial use
Country of Origin	Spain (brand headquarters)

Frequently Asked Questions - Livenza TAURUS

How do I use the milk frother for hot frothing?

Attach the spiral stainless steel accessory, pour milk up to the MAX level, close the lid, plug in, and press the pulse switch. The red light will indicate hot frothing.

How do I use it for cold frothing?

Attach the plastic accessory, pour milk, press the pulse switch for 2.5 seconds until the blue light turns on. It froths without heating.

What is the maximum milk capacity?

The maximum capacity is indicated by the MAX line inside the jug. Do not exceed it to avoid spillage. Approximate capacity is 250 ml.

Can I wash the milk frother in the dishwasher?

Only the lid is dishwasher safe. The body and attachments should be cleaned with a damp cloth and mild detergent. Do not submerge the base or body in water.

Why is the milk not frothing properly?

Ensure you are using the correct accessory (spiral for hot, plastic for cold) and that milk is refrigerated (for cold froth) or fresh. Do not overfill. Also check that the attachments are properly fitted.

What type of milk can I use?

Any type of milk works, but whole milk or barista blends produce the best foam. Skim milk also froths but produces lighter foam.

Can I use the frother to heat milk without frothing?

Yes, by using the hot frothing attachment (spiral) and pressing the pulse switch. It will heat and froth. To heat without frothing, you may need to stop early, but the design primarily froths.

Is the appliance safe to leave unattended?

No, never leave the appliance unattended while plugged in. Unplug after use. The manual warns against using timers or leaving connected.

What should I do if the power cord is damaged?

Discontinue use immediately. The cord must be replaced by an authorized service center to avoid hazard. Do not attempt DIY repairs.

How do I store the frother?

Allow it to cool fully, clean it, and store in a dry place. The power cord can be wrapped in the underside cable compartment. Keep out of reach of children.

USER MANUAL Livenza TAURUS

Line drawing of a portable electric kettle with handle and side panel (no text or symbols)

Fig.1

Line drawing of a small ceramic water heater with handle and base, no text or symbols present

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

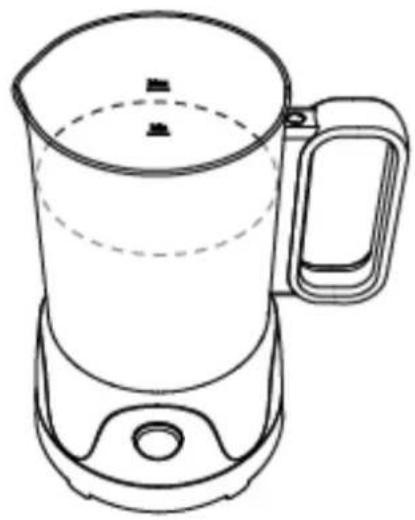

Description

A	Lid
B	Handle
C	Body
D	Power switch
E	Cable housing
F	Accessory for hot milk frothing(in Stainless Steel in a spiral form)
G	Accessory for cold milk frothing(in plastic)

Safety advice and cautions

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident. - Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

Working environment:

The appliance should be used and kept over a flat and stable surface.

- Do not use the appliance in association with a programmer, timer or other device that automatically switches it on, as there is a risk of fire if the appliance is covered or incorrectly situated.

Electrical safety:

• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug.
• Only use the appliance with the specific electric base / connector, supplied with the appliance.
• Do not use or store the appliance outdoors.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.
• Do not allow the power cord to come into contact with the appliance's hot surfaces.
• Do not touch the plug with wet hands.

Personal safety:

- The temperature of the accessible surfaces may be high when the appliance is in use.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the parts or accessories are not properly fitted.
• Do not use the appliance when empty.
• Do not use the appliance if the on/off switch does not work.
• Do not move the appliance while in use.
• Respect the MAX and MIN levels. (Fig.?)
• Unplug the appliance from the mains before replacing any accessory.
• Unplug the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional or industrial use.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.
• Do not store the appliance if it is still hot.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

• Make sure that all the product's packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

Use:

• Unroll the cable completely before plugging it in.
• Attach the appliance to its base / connector making sure that it is correctly fitted into place.
• Open the Lid
• Pour in the milk taking care to observe the MAX level.
• Close the Lid
• Connect the appliance to the mains.
• Per a warm frother (warming up the milk), user must place the accessory for hot milk frothing (in Stainless Steel in a spiral form) and press the pulse switch button and the red pilot light will switch on.
• Per a cool frother (no warming up the milk), user must place the accessory for cold milk frothing (in plastic)
  and press the pulse switch button during 2,5 seconds and the blue pilot light will switch on.
• Turn the appliance off by using the on/off switch.
• Open the lid

Once you have finished using the appliance:

- Unplug the appliance from the mains.

- Clean the appliance.

- Unplug the appliance from the mains. - Clean the appliance.

Cable compartment

- This appliance has a cable compartment situated on its underside.

Cleaning

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Never submerge the appliance in water or any other liquid or place it under running water.

- The following pieces may be washed in a dishwasher:

- Lid.

Anomalies and repair

- Take the appliance to an authorised technical support service if problems arise.

Do not try to dismantle or repair without assistance, as this may be dangerous.

- If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the

appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

- This symbol means that; should you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from

Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.

surface plane et stable.

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with no text or symbols

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Blank gray image with no visible content, text, or symbols

taurus

taurus

Avda. Barcelona, s/n

E 25790 Oliana

Spain

www.taurus.es

Product weight (approximate)

LIVENZA:

N.W.: 0,90 Kgs

G.W.: 1,20 Kgs
