Product Type	Kitchen Sink
Brand	Foster
Model	Master 86.1V.FT
Material	Stainless Steel 18/10
Finish	Brushed
Number of Basins	1
Installation Type	Undermount / Drop-in
Overall Dimensions (L x W x D)	860 x 450 x 190 mm (approx)
Cutout Dimensions (if drop-in)	840 x 430 mm (approx)
Weight	Approx. 11 kg
Drain Hole Diameter	3 1/2 inches (90 mm)
Included Accessories	Fixing clips, cutout template, installation manual
Warranty	Limited lifetime warranty
Sound Deadening	Yes, undercoating pads
Cleaning Instructions	Use mild soap and water; avoid abrasive cleaners
Heat Resistance	Up to 300°C (brief contact)

Frequently Asked Questions - Master 86.1V.FT Foster

What is the exact size of the Foster Master 86.1V.FT sink?

The sink has approximate outer dimensions of 860 x 450 x 190 mm. The cutout for undermount installation is typically 840 x 430 mm. Always refer to the full manual for precise measurements.

Can this sink be installed as a drop-in?

Yes, the Master 86.1V.FT is designed for both undermount and drop-in installation. The kit includes fixing clips and a cutout template for either method.

What material is the sink made of?

The sink is crafted from high-quality stainless steel 18/10 with a brushed finish, offering durability and resistance to rust and stains.

Does the sink include a drain?

The sink comes with a standard 3 1/2 inch (90 mm) drain hole. The drain assembly is not included but can be purchased separately.

How do I clean and maintain the sink?

Clean the sink regularly with mild soap and water using a soft cloth or sponge. Avoid abrasive scrubbers, steel wool, or harsh chemicals that can damage the surface.

What is the warranty period?

Foster offers a limited lifetime warranty against manufacturing defects for the original purchaser. Contact Foster customer service for details.

Is the sink pre-drilled for a faucet?

No, the sink does not have pre-drilled faucet holes. You may need to drill holes or use a wall-mounted faucet depending on your countertop setup.

Can I install a garbage disposal with this sink?

Yes, the 3 1/2 inch drain is compatible with most standard garbage disposals. Ensure the disposal unit is supported adequately.

Does the sink have soundproofing?

Yes, the sink is equipped with sound-deadening pads on the underside to reduce noise from water and utensils.

Are replacement parts available?

Yes, Foster provides replacement parts such as fixing clips, drain strainers, and seals through authorized dealers. Check the official website for part numbers.

USER MANUAL Master 86.1V.FT Foster

Stainless steel sinks

Foster spa

via M.S. Ottone, 18/20

42041 Brescello (RE) - Italy

Instructions for the installation, use and maintenance of kitchen stainless steel sinks

Sinks' material: austenitic stainless steel AISI 304 - 18/10

UNI EN 13310:2004

(kitchen sinks for domestic use, functional features and tests' methods)

INSTALLATION

Standard and flat (3 mm bended) edge

Before making any cut-out on the worktop, we suggest to verify and lay the sink on the worktop itself and/or on the cabinets in order to verify that the external dimensions of the bowls are compatible with the cabinets themselves, in order to avoid making cut-outs for sinks that cannot be installed.

We also recommend to verify the possibility to install taps and other accessories, by checking the place they need and the place that remains. Also verify the possibility to accede to the water main tap under the sink, and that the positioning of the siphon is feasible. To install the sink, one must make a cut-out on the worktop according to the template included in the packing.

Once the cut-out is made, one must position the gasket around the perimeter of the hole. Before installing the sink, please position the waste-fitting and overflow pipe (when present); when available, also the command of the automatic waste-fitting must be

installed at this stage. Make sure that the external edge of the sink is positioned upon the gasket, so as to create a barrier preventing the infiltration of water and dirt between sink and worktop.

After having positioned the sink on the worktop, fix it by tightening the screws of the brackets which are provided (the screws must be tightened just enough to have

the brackets clamp down on the worktop). Afterwards, remove the excess gasket with a cutter. The taps can be installed before or after the positioning of the sink.

After having installed the sink, connect the waste-fitting with the siphon. Check the water-tightness by closing the basket of the waste-fitting, open the tap and wait until the water level reaches the overflow; shut the tap, and wait several minutes, verifying that the water does not drain away. Empty the sink.

Flush-mount edge

For a correct installation of the flush-mount sinks, please follow strictly the technical sheet (template) provided with the sink; only qualified personnel should make the cut-out, and a computer-operated machine is necessary. It is advisable to accurately clean the seat for the cut-out, and to insert the gasket which is provided, between the sink and the worktop, so as to avoid possible water infiltration into the worktop or the cabinets. The work must be carried out by experienced personnel.

Do not use electric screwdrivers to tighten the brackets. The tightening torque must not exceed 60 N/cm.

It is advisable to install the flush-mount sinks on hydro repellent materials, in order to avoid eventual deformations of the material itself.

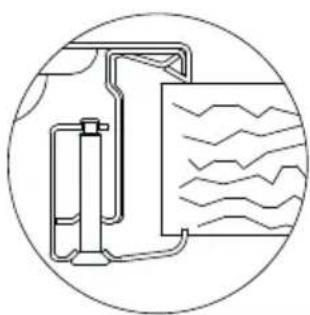

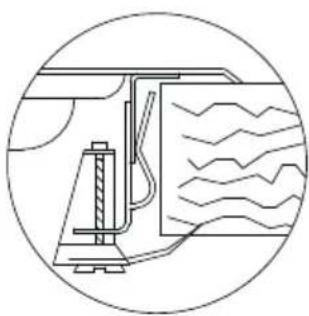

Undermount installation

For the undermount sinks, proceed as for the normal built-in sinks.

Make a cut-out on the worktop following the template and/or instructions provided with the sink. Before installing the sink, seal with silicone. Tighten the brackets.

Fixing system
fixed bracket	FR FI fixed bracket
sliding bracket	S fixed bracket

The Foster collections are the result of a huge experience, and a careful development to meet at best the necessities of the users', so as to obtain a high-quality product. It is important, however, to inform our customers that one must also use the product correctly and maintain it properly.

As all materials, also stainless steel can become dirty; by following very simple instructions, one can bring the sink back to its original shine.

For everyday's maintenance, wash the sink with water and soap, or a product to wash the dishes, rinse abundantly, and do not forget to dry. For more obstinate dirt, the STEEL CLEAN line of products, proposed by Foster and available at all our Assistance Centres throughout the Country, is very suitable to eliminate it without much fuss. Take care to avoid shocks, to drop heavy objects on the sink, and not to use utensils which can scratch the surface. Also avoid the contact with chemicals, cleaners for metal, products to take off paint, metal brushes. Do not leave for long stretches of time tomato residues on the sink, as well as milk, and coffee on the sink; also, avoid long contacts with metal drums with wet bottoms, and iron objects in general. Please note that the long contact of any of the above-mentioned substances with the sink can originate a corrosive attack of electrochemical nature, even though very mild.

TENTION

• Rinse accurately after use, and dry with a clean cloth
• To clean the sink, normal detergent can be used, as long as not containing hydrochloric Acid (commercial Muriatic acid) or its derivates
• In case of persistent staine, try to clean with some warm vinegar or with specific products for Stainless steel (the specific line of products “Foster Steel clean” is suggested)
• Do not use steel sponges to clean the sink, or any other item that could scratch the surface
• Avoid using muriatic acid or bleach
• Do not leave iron objects on the sink for long
• Please keep this instructions leaflet
