Product Type	Heavy-Duty Passenger Side Mount Kit
Brand	Havis
Model	PKG-PSM-211
Compatible Vehicles	2010 Ford Focus (example), typical passenger-side seat mounting
Material	Steel with corrosion-resistant coating
Dimensions (approx.)	Pole: 1.5" diameter, adjustable height; Base: 10" x 8"
Weight (approx.)	15 lbs (6.8 kg)
Power Supply	None (mechanical mount); optional ChargeGuard power management system
Main Functions	Mount laptop dock or tablet on passenger side; adjustable height, swing arm, and rotation
Installation Method	Bolts to vehicle floor using OEM seat bolts, with spacer options
Required Tools	Metric socket set, wrenches, Allen wrenches, Phillips screwdriver
Included Components	HDM Base, offset bracket, pole, adaptor plate, swing arm, docking station, hardware
Optional Accessories	C-HMD-409 Offset Plate, two-piece support collar, ChargeGuard system
Adjustability	Height via shaft collar, rotation via motion device (90° or 180°)
Safety Features	Heavy-duty construction, lockable docking latch, check for obstructions before installation
Maintenance	Periodically check and tighten bolts; clean with damp cloth
Repairability	Replaceable parts: shaft collar, motion device, adaptor plate; contact Havis for spare parts
Warranty	Limited lifetime warranty (Havis standard)
Manual Languages	English (PDF available for download)

Frequently Asked Questions - PKG-PSM-211 Havis

What vehicles is the PKG-PSM-211 compatible with?

The PKG-PSM-211 is designed for passenger side mounting in vehicles with seat bolt patterns, such as the 2010 Ford Focus shown in the manual. It fits many cars, trucks, and vans. Check your vehicle's seat bolt spacing for compatibility.

What tools are required for installation?

You will need a large metric socket set (1/2" drive), a small metric and US standard socket set (1/4" drive), a 7/8" wrench, 1/2" wrench, 7/16" wrench, US standard Allen wrench set, and a Phillips head screwdriver.

Can I mount a laptop without the docking station?

Yes, you can attach a universal laptop mount (UT-X or C-3090 series) directly to the motion device instead of the docking station.

How do I adjust the height of the mount?

The inner pole has a shaft collar that can be loosened and moved up or down. After adjusting to desired height, fully tighten the collar.

What is the motion device rotation range?

The motion device offers two hole patterns: a 3-bolt pattern allows 90° rotation, and a 2-bolt pattern allows 180° rotation. Choose according to your needs.

Is the PKG-PSM-211 compatible with the ChargeGuard power system?

Yes, an optional ChargeGuard Power Management System can be installed. Instructions are included in the ChargeGuard box.

How do I attach the docking station?

First remove the mounting bracket from the bottom of the docking station. Then attach it to the motion device, and finally attach the docking station to the bracket.

What should I do if I need the mount closer to the vehicle center?

Use the optional C-HMD-409 Offset Plate to shift the mount assembly toward the center of the vehicle.

Is the mount safe for passenger side airbags?

Always check for obstructions like wires, brake lines, and fuel tanks before installing. The mount should not interfere with airbag deployment; install according to vehicle guidelines.

Can I download the manual in other languages?

On the notice-facile.com page, you can request a translated version by selecting your language and providing your email.

USER MANUAL PKG-PSM-211 Havis

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

Required tools to complete installation.

• Large Metric Socket Set (1/2" drive)
- Small Metric and US Standard Socket Set (1/4" drive)
- 7/8" Wrench
• 1/2" Wrench
- 7/16" Wrench
• US Standard Allen Wrench Set
• Phillips head Screwdriver

Interior view of a vehicle's seat and dashboard assembly (no visible text or symbols)

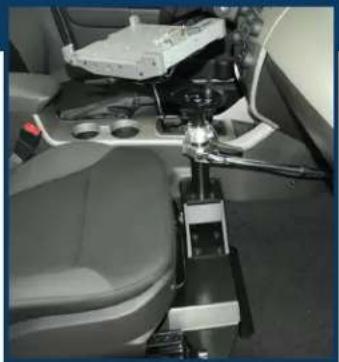

Complete assembly in vehicle (2010 Ford Focus)

Required parts to complete assembly Optional parts for assembly

For installation of Havis products, ALWAYS...

• Read all instructions before installing any Havis, Inc. Products.
• Check for obstructions (wire, brake lines, fuel tank, etc.)
• Use hardware provided with install kit

Close-up of hands installing a black electronic component with a red arrow indicating the pin (no text or symbols visible)

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

1

Close-up of a hand using a tool to adjust or install a mechanical component, with inset showing close-up details (no visible text or symbols)

A) Remove the plastic caps that cover the seat bolts. Remove the OEM seat bolts, seat nuts and seat studs, making sure to keep the seat bolts for HDM Base installation (Step 3).
B) Remove all rubber thread protectors from the mounting holes on the HDM Base.

3

Close-up of hands using a wrench to adjust the internal components of a vehicle gear (no visible text or symbols)

Align the HDM Base mounting holes to seat bolt locations and loosely attach the seat bolts. Use caution to avoid stripping the threads. Fully tighten the bolts once HDM Base is properly in place.

NOTE: Some HDM Bases mount under the vehicle seat bracket and reuse OEM seat bolts (A), while other HDM Bases mount over the top of vehicle seat bracket and use provided spacers and bolts (B).

5

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

Attach the assembled Offset Bracket and Pole to the HDM Base inside the vehicle, using supplied 5/16" x 3/4" hex bolts, lock washers, and flat washers. Make sure to adjust Offset Bracket to desired position before all hardware is fully tightened.

NOTE: If your application needs to be closer to center of vehicle, see optional C-HMD-409 Offset Plate.

2

Close-up of a car seatbelt with a hand adjusting the compartment (no visible text or symbols)

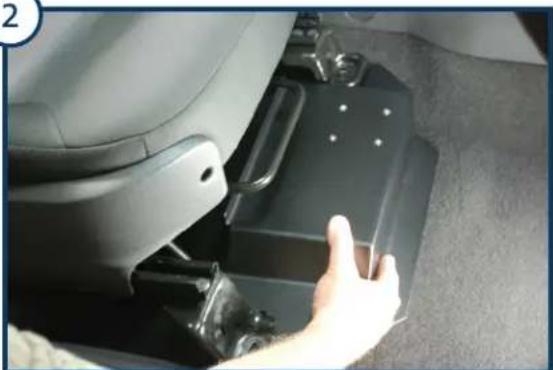

Lift the seat to place the HDM Base between the seat brackets and the floor.

NOTE: Loosening rear seat bolts may be required for ease of installation.

4

On the workbench, assemble the Offset Bracket and Pole using supplied 5/16" x 1" hex bolts, lock washers, and nuts (x4). Make sure all hardware is fully tightened. Attach the shaft collar anywhere on the inner pole, making sure to leave the shaft collar loose in order to adjust Pole height once installed in vehicle (Step 12).

6

Two-panel image showing a hand holding a tool next to a mechanical device, and a close-up of a mechanical assembly with no visible text or symbols.

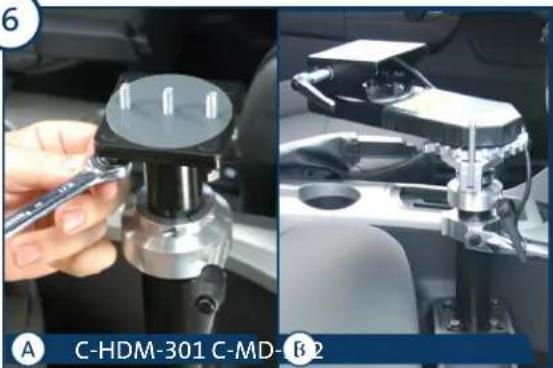

A) Align the Adaptor Plate mounting studs to the top of the inner pole, then attach using the supplied 5/16" lock washers, flat washers, and nuts. Place the large plastic washer on top of Adaptor Plate.

B) Align Swing Arm with Motion Device mounting holes to the top of the inner pole, then attach using 1/4" lock washers, flat washers, and bolts.

NOTE: Make sure all hardware is fully tightened.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

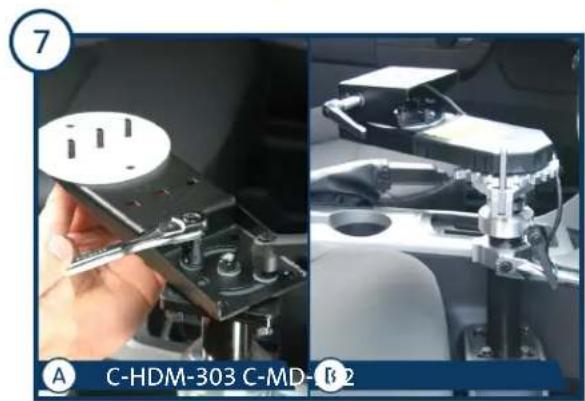

A) Install the Top Offset with the supplied hardware and handle. Tighten the hardware to allow minimal motion. Place the large plastic washer on the Top Offset.

B) No adjustment required, please proceed to Step 8.

A) Connect the Motion Device assembly to the Top Offset. Tighten the hardware to allow minimal motion. NOTE: Motion Device has two (2) sets of holes.
3-bolt pattern allows for 90 rotation.
2-bolt pattern allows for 180 rotation.
B) Motion Device is already connected, please proceed to step 10.

Attach the Docking Station to the mounting bracket.

Remove mounting bracket (a) from the bottom of the Docking Station and attach to the Motion Device (b). NOTE: If attaching a Universal Laptop Mount (UT-X Series or C-3090 Series), mount directly to the Motion Device.

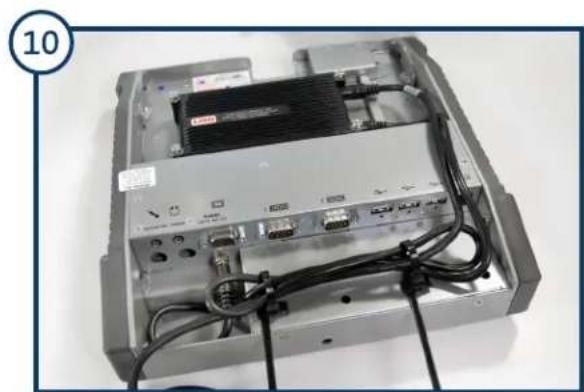

Attach the Power Supply to the designated mounting location on the Docking Station.

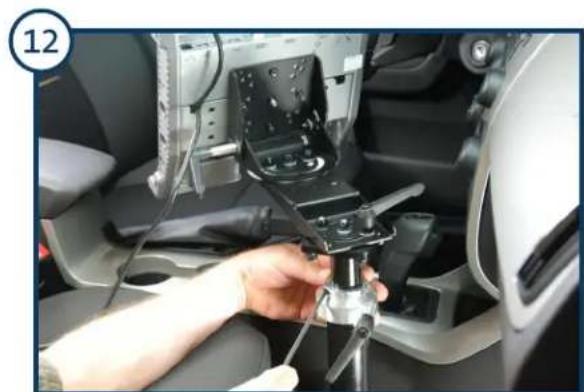

Adjust the shaft collar to desired height and fully tighten.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

Close-up of a mechanical assembly with metallic components and a numbered label (13) in the corner, no readable text or symbols on the main subject.

To attach the optional two-piece support collar to the Pole, attach the side support arm to the two-piece support collar. Attach the side support arm to the underside of the dash with the supplied L bracket. Make sure all hardware is fully tightened.

Close-up of a hand pressing a small electronic device on a black surface, with no visible text or symbols.

Congratulations, the installation is complete. To properly dock your computer into the Havis Docking Station, you must first open the docking connector door on the bottom of your computer or damages may occur.

a) With the computer seated, turn the docking latch to the DOCK position. b) Secure by locking the barrel lock with the supplied key.

Close-up of a yellow automotive electrical contactor with black wiring and red connectors, mounted on a perforated metal surface (no visible text or symbols)

If you are installing the optional ChargeGuard® Power Management System, run power wires to the ChargeGuard and connect to the fused, 12 volt battery. (Additional instructions inside the ChargeGuard box.)

Two-step photo showing hands installing a device component from a battery pack, labeled (a) and (b), with no visible text or symbols.

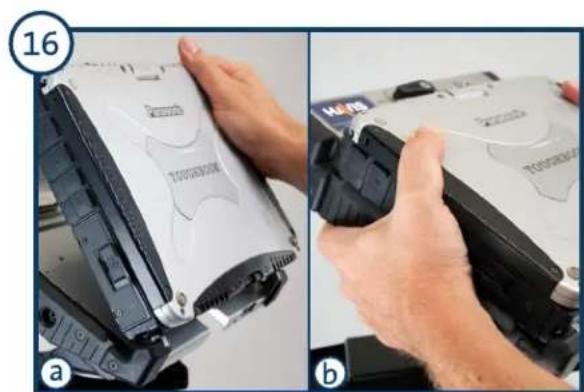

a) Load the front of the computer into the front hooks of the Docking Station. b) Gently lower the back of the laptop down into the docking connector.

Interior view of a car with hands using a laptop on the steering wheel (no visible text or symbols)

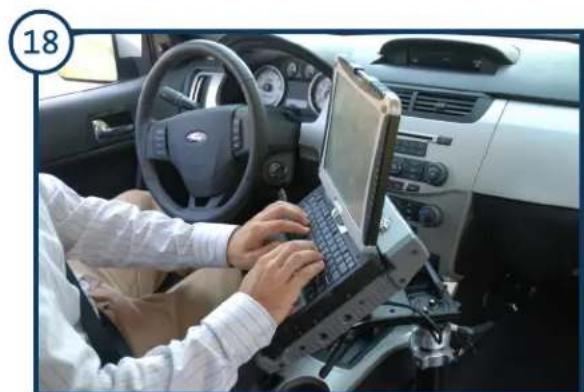

You have successfully and safely docked your computer. Please visit www.Havis.com for more mounting and computing accessories.
