miTab Iowa - Tablet Wolder - Free user manual and instructions

Product Type	Tablet
Brand	Wolder
Model	miTab Iowa
Category	Consumer Electronics
Display Size	7 inches
Display Resolution	1024 x 600 pixels
Operating System	Android (estimated version 4.x)
Processor	Quad-core 1.2 GHz
RAM	1 GB
Internal Storage	8 GB
Battery Capacity	3000 mAh
Battery Life	Up to 6 hours of mixed use
Wi-Fi	802.11 b/g/n
Bluetooth	Yes, version 4.0
Front Camera	0.3 MP
Rear Camera	2 MP
Sensors	Accelerometer, G-sensor
Dimensions	Approx. 190 x 110 x 10 mm
Weight	Approx. 320 g
Power Supply	DC 5V via micro USB
Cleaning and Maintenance	Clean with a soft dry cloth; avoid liquids
Safety	Do not disassemble; avoid extreme temperatures
Spare Parts and Repairability	Limited spare parts; professional repair recommended
General Information	User manual available for free download

Frequently Asked Questions - miTab Iowa Wolder

How do I perform a factory reset on the Wolder miTab Iowa?

To factory reset, go to Settings > Backup & Reset > Factory Data Reset. Confirm and the tablet will reset to default settings. Ensure you back up important data first.

How can I insert an SD card into the miTab Iowa?

Locate the SD card slot on the side of the tablet. Push the microSD card in until it clicks. To remove, push it in again to eject.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, turn it on, select your network, enter the password, and tap Connect.

What should I do if the screen is not responding?

Try a soft reset by holding the power button for 10 seconds. If the issue persists, perform a factory reset or contact support.

How do I update the operating system?

Go to Settings > About Tablet > System Updates. If an update is available, download and install it. Keep the battery charged above 50%.

Can I expand the storage?

Yes, the miTab Iowa supports microSD cards up to 32 GB for additional storage.

How long does the battery last?

The 3000 mAh battery provides up to 6 hours of mixed usage, depending on screen brightness and apps used.

How do I charge the tablet?

Connect the included micro USB cable to the tablet and a USB power adapter. Plug into a wall outlet. Charging time is approximately 3-4 hours.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for 2 seconds. The screenshot will be saved in the Gallery.

The tablet is frozen. What can I do?

Hold the Power button for 10-15 seconds to force a reboot. If it continues to freeze, consider a factory reset.

USER MANUAL miTab Iowa Wolder

Te presentamos a miTab IOWA

Discover you new Wolder device. Welcome to our family :)

Thank you for choosing us. To turn on your tablet and start enjoying an intuitive and enriching experience hold and press for a few seconds the power button. To turn it off hold and press the same button until the device options appear on the screen.

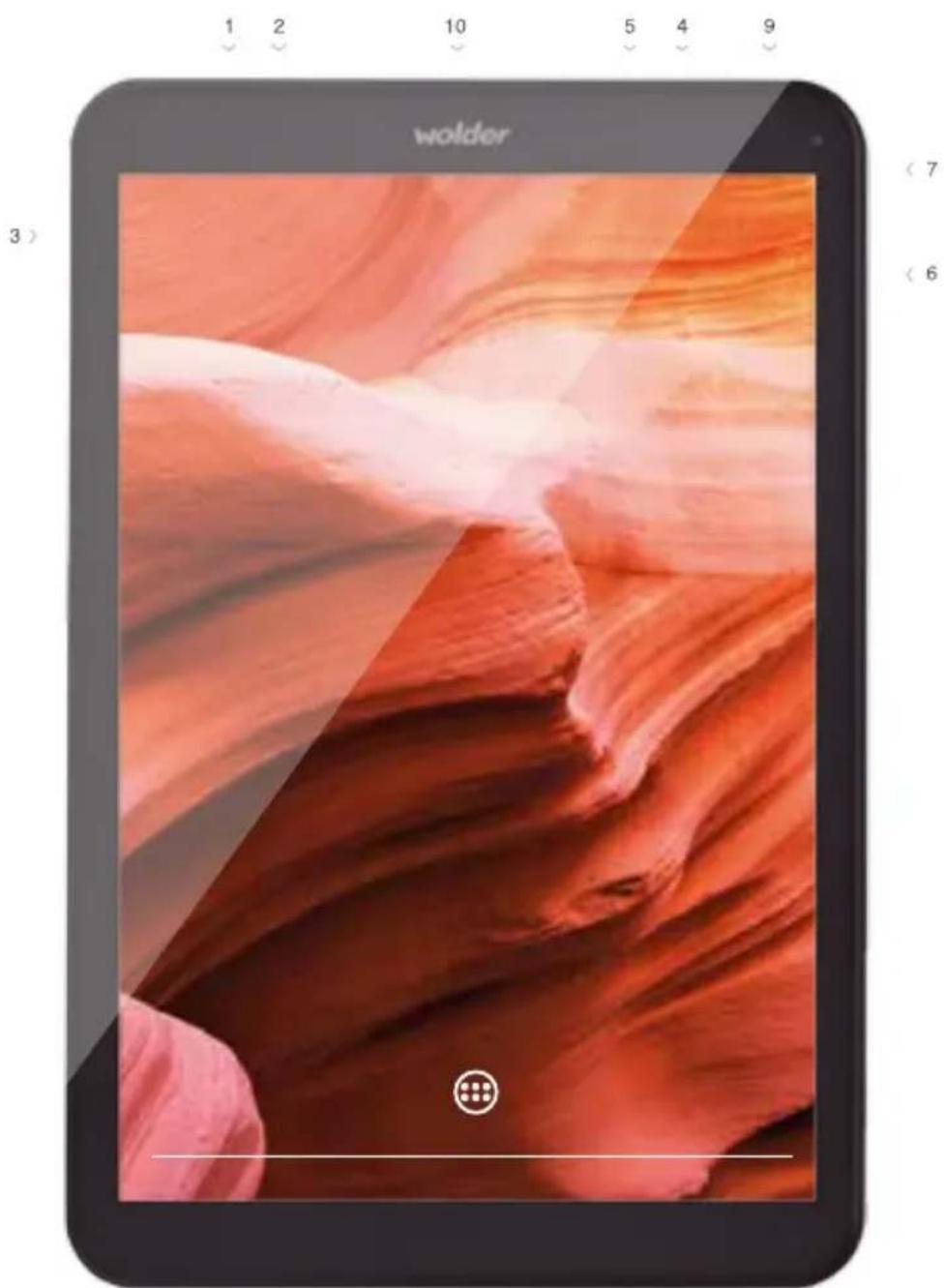

Introducing miTab IOWA

1. Earphone hole
2. USB/charger
3. Micro SD
4. Power button (hold and press to switch on or off or airplane mode/press for sleep mode)
5. Volume keys
6. Screen
7. Camera
8. Speaker
9. Microphone

How is miTab IOWA? Technical features

·7.85" IPS G+G

· 1024×768 (4:3)

· Multitouch

·160×120mm

-Flash 8GB

·RAM IGB

·WIFI 802.11 b/g/n

-Webcam

- Acelerómetro

- Accelerometer

- Acelerómetro

· JPG, JPEG, GIF, BMP, PNG

· MP3, WMA, MP2, AAC, -MA4, FLAC, APE, 3-GP, WAV

-199×137×9 mm

329gr.

· CPU Quad Core 1,3GHz

· GPU Dual Core

·3.000mAh.

·4 h video

- microUSB

mini Jack 3.5mm

microSD

- Android 4.4.

·MPEG1, MPEG2, MPEG4 SP/ASP

GMC, XVID, H.263, H.264

BP/MP/HP,WMV7/8,WMV9/VCI

BP/MP/AP,VP6/8,AVS,JPEG/MJPEG

· Cargador /Charger / Carregador

· Cable USB /USB Cable / Cabo USB

· Cable USB OTG / USB OTG cable Cabo USB OTG

· Manual/ Manual / Manual

• Do not expose your miTab to high temperatures, humidity or dust. Keep it away from direct sunlight.
• Do not drop the tablet. Any hit on the device may cause damage or malfunction.
• Use miTab at an appropriate volume to never use the headphones at high volume.
• As long as your tablet is in file transfer mode, do not disconnect the unit suddenly. You can cause system errors.
• Do not disassemble the tablet for yourself. This device must be manipulated by qualified personnel.
• Do not use alcohol, thinner or benzene to clean miTab.
• Do not use the tablet in place in which the use of electronic devices is restricted.
• Do not use miTab while driving or walk down the street.

Charge and use of the battery

Remember that it is recommended to fully charge the battery of your tablet before first use. To do this, simply plug the adapter or the USB cable to your tablet and plug it into the wall outlet. For the first two loads, you will need at least 6 hours. Then, with just 4 hours will be enough.

【NOTE】: During charging, the battery icon appears on the screen moving. When the battery is fully charged, the icon will remain static.

【NOTE】: To ensure a longer life to your battery, it is advisable to consume it completely before recharging. What's more, in the event that you will not use the tablet for a long period of time, charge and use the tablet once a month. This way you will avoid damage to the battery. 2. When the battery is fully consumed, connect the adapter and wait a few moments before it has enough charge to access the main menu. 3. While charging the battery, the unit goes into standby mode until it has sufficient charge. The screen consumes a considerable amount of energy, so the charging time will be greater if it stays on during charging. When the tablet is on, you can turn off to save battery. Just press the power button once to turn off the screen. Press again the power button to turn on the screen.

Status and notification icons

Your tablet will tell you what's going on by showing you simple icons. Here's what they mean:

Setting up miTab IOWA for the first time

- Unlock your screen

The screen of your tablet Wolder will lock every time the screen is suspended. To unlock just drag the closed padlock icon.

- Modify Settings

Pressing Menu Key, you will have access to all applications installed on your tablet. Among them you can find the button from which you can configure the main settings of your device: keyboard, language, sound, brightness and contrast of the screen, data usage, Internet, storage options, rotating screen (to make your screen rotate according to the position of your tablet-vertically or horizontally), etc.

Connecting miTab to a PC

miTab Wolder offers multiple connectivity options. Through the mini USB plug you can connect your tablet to a computer (for battery charging or to use it as a storage unit). USB connection notification will be automatically displayed on the screen of your device.

In order to use your tablet as an external disk select the Enable USB storage option you'll find at the bottom of your screen. This way you can share files between the PC and the tablet.

Getting connected to the Internet

Another one of the connectivity options that miTab Wolder gives you is the ability to connect to the Internet via Wi-Fi. To do so, you just have to go to the 🎨 button and slide the tab to the right to enable connection through Wi-Fi. When wireless connection is on, the tablet will look for and display a list of available wireless networks.

Choose which one you want to connect to. If the network is open, the tablet will display a message to confirm if you want to connect to that network. Click "Connect" to confirm.

Once the connection to the wireless network has been established, and icon of wireless network signal will be displayed in the notification bar.

NOTE: If the access point has security settings, you will need to provide a password.

Surf on the Internet

Once you have connected to the Internet, you can use the browser 📄, to surf on the websites you want to.

Install Apps

Your tablet has a number of preloaded apps to improve your user experience. But you can download all you want and need. You will have to use the marketplace you'll find on your device or download them directly from the Internet, on the official website of each App.

To manage the applications you have installed (in case, for instance, that you want to delete) you have to go to the button ⚙️, select the Apps option and, once there, the app you want to manage.

More info and support

For more information about our products, practical advices, frequent questions, users manuals, updates, etc. visit http://www.wolderelectronics.com.

To contact our technical support visit:

http://www.wolderelectronics.com/soporte/servicio-tecnico

Declaration of conformity

GLOBAL WOLDER GROUP S.L, Polígono Industrial de Barros n°29, 39408 Barros, Cantabria. España, certifies that this product, referenced as miTab IOWA, complies with the provisions of the Directive 99/05/CE about Radio Equipment and Telecommunications Terminal (R&TTE), the Directive 2006/95/CEE about Low Voltage and the Directive 2011/65/EU about Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.

CE

See you :)

Bem - vindo
