3KRP7766 - Refrigerator BALAY - Free user manual and instructions

Product Type	Freestanding Refrigerator
Model Number	3KRP7766
Brand	Balay
Total Net Capacity	280 L
Refrigerator Capacity	200 L
Freezer Capacity	80 L
Energy Efficiency Class	A+
Annual Energy Consumption	180 kWh
Dimensions (H x W x D)	177 cm x 55 cm x 55 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	150 W
Climate Class	SN-T (10-38 °C)
Noise Level	42 dB(A)
Refrigerant	R600a
Main Functions	LED interior lighting, electronic temperature control, super cool mode, bottle rack, humidity-controlled drawer, door alarm
Interior Features	3 adjustable glass shelves, 1 salad drawer, 4 door balconies, 1 egg tray, ice cube tray
Freezer Features	Frost free, 3 drawers, fast freeze function
Cleaning and Maintenance	Clean interior with mild detergent and water, avoid abrasive cleaners; defrost freezer every 6 months if not frost free
Safety Features	Child safety lock (optional), door alarm, high temperature alarm
Spare Parts Availability	Parts available via Balay official service or authorized dealers (model 3KRP7766)
User Manual	Free PDF download from official website or notice-facile.com

Frequently Asked Questions - 3KRP7766 BALAY

How do I set the temperature on my Balay 3KRP7766 fridge?

Use the electronic control panel inside the fridge. Press the Temp button repeatedly to cycle through settings. Recommended temperature: 4°C for fridge and -18°C for freezer.

Why is my refrigerator not cooling properly?

Check if the door is closed properly, ensure vents are not blocked, and clean the condenser coils if dusty. If problem persists, contact Balay support.

How often should I defrost the freezer?

This model is Frost Free, so automatic defrosting occurs. No manual defrost needed.

Can I adjust the shelf height?

Yes, the glass shelves are adjustable. Remove them by lifting slightly and pulling out, then reposition at desired height.

What should I do if the door alarm sounds?

The alarm sounds if the door is left open for more than 60 seconds. Close the door firmly to stop the alarm.

How do I activate the super cool function?

Press the Super button on the control panel. It will cool the fridge rapidly for a few hours, ideal after loading groceries.

What is the energy consumption of this fridge?

Approximately 180 kWh per year, which is typical for an A+ energy class appliance.

How do I clean the interior?

Unplug the fridge, remove all food, and wipe interior with a soft cloth dampened with mild soapy water. Rinse and dry thoroughly before plugging back in.

Where can I find spare parts?

Order genuine Balay parts through their official website or contact an authorized service center with your model 3KRP7766.

Is the fridge noisy?

Noise level is about 42 dB(A), which is standard. Some noise from compressor and fans is normal. If unusually loud, check leveling or call support.

USER MANUAL 3KRP7766 BALAY

Diagram showing a wrench and screwdriver inserted into a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram showing a wrench and screwdriver interacting with a mechanical component, with directional arrows indicating movement (no text or symbols)

Diagram of a vertical cylindrical structure with internal airflow arrows and a power outlet, no text or symbols present.

3

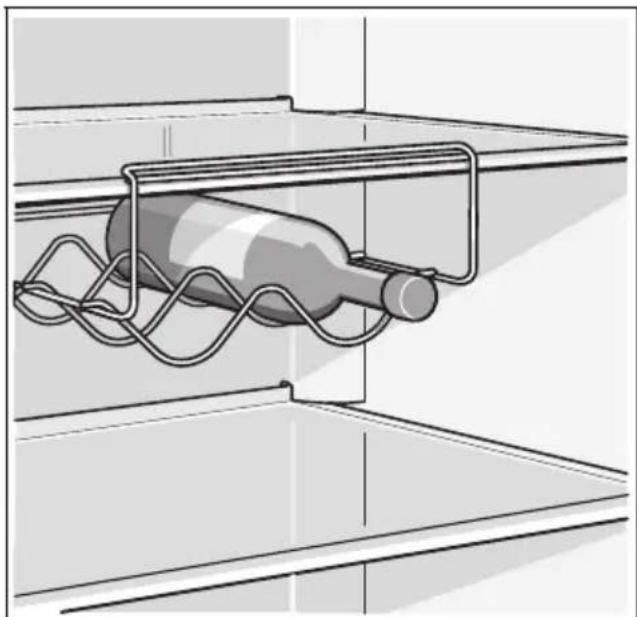

Illustration of a wine bottle wrapped in a coiled wire inside a storage shelf (no text or symbols)

4

Diagram of a refrigerator interior showing a horizontal shelf and a double door, with no text or symbols present.

5

Illustration of a refrigerator interior showing the door, drawer, and storage compartments (no text or symbols)

6

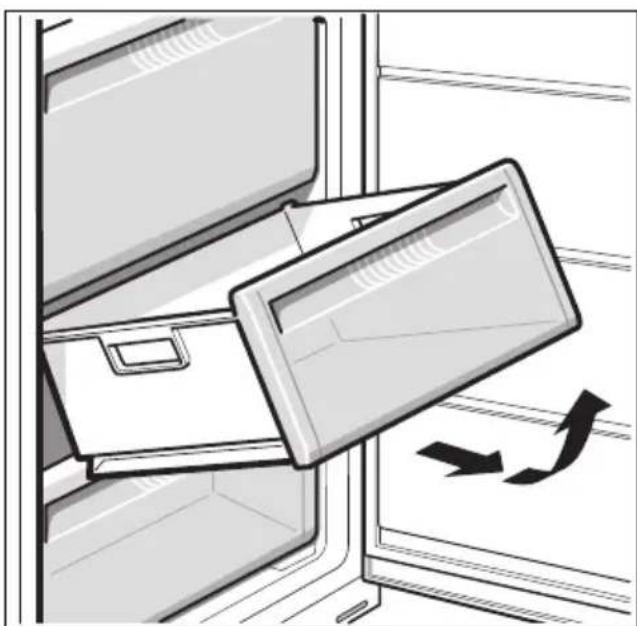

Illustration of a refrigerator with an open drawer and a closed door, showing a curved arrow indicating flow or movement (no text or symbols)

7

Illustration of a refrigerator interior with an open refrigerator and a black arrow indicating the handle (no text or symbols present)

8

9

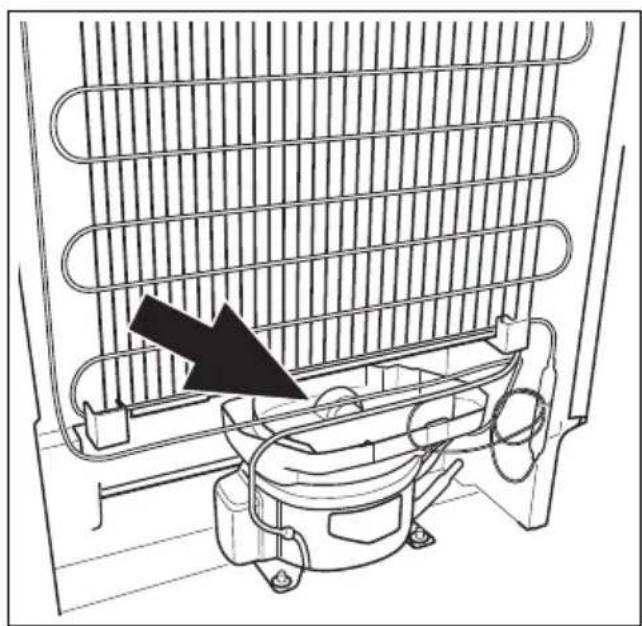

Line drawing of a refrigerator interior with cooling fins and a black arrow pointing to a component (no text or symbols)

10

11
