3FIB3720 - Refrigerator BALAY - Free user manual and instructions

Product Type	Freestanding Refrigerator
Brand	Balay
Model	3FIB3720
Dimensions (H x W x D)	84.5 x 60 x 65 cm
Net Weight	34 kg
Energy Class	A+
Power Supply	220-240 V, 50 Hz
Annual Energy Consumption	120 kWh/year
Total Net Volume	98 L
Refrigerator Net Volume	88 L
Freezer Net Volume	10 L
Climate Class	SN-ST
Noise Level	39 dB
Temperature Control	Adjustable thermostat
Defrosting	Automatic (refrigerator), Manual (freezer)
Interior Lighting	LED
Number of Shelves	3 glass shelves
Door Reversibility	Yes
Color	White
Warranty	2 years

Frequently Asked Questions - 3FIB3720 BALAY

How do I install the refrigerator?

Place the refrigerator on a level, stable surface away from heat sources. Allow at least 5 cm of clearance on the sides and back for ventilation. Plug into a grounded outlet. Wait 4 hours before loading food to allow the refrigerant to settle.

What is the ideal temperature setting?

Set the thermostat to medium (around 4-5 on the dial) for a fridge temperature of 3-5°C (37-41°F). The freezer compartment should be at -18°C (0°F) or colder.

How often should I defrost the freezer?

Defrost the freezer compartment when ice buildup reaches 5 mm (0.2 inches). Unplug the appliance, remove food, and leave the door open to melt the ice. Clean and dry before restarting.

How do I clean the refrigerator?

Unplug the appliance before cleaning. Use a soft cloth with warm water and mild detergent. Do not use abrasive cleaners or sharp objects. Clean the condenser coils annually with a vacuum cleaner.

How can I save energy with this refrigerator?

Keep the appliance away from heat sources and direct sunlight. Ensure good ventilation around the unit. Avoid frequent door openings and close the door properly. Keep the condenser coils clean.

Why is my refrigerator making noise?

Normal sounds include humming from the compressor, clicking from the thermostat, and occasional gurgling from the refrigerant. If the noise is loud or unusual, check if the appliance is level and the back panel is secure.

Can I reverse the door opening direction?

Yes, the door can be reversed. Follow the instruction manual: remove the door, unscrew the hinge brackets, and reattach them on the opposite side. Some models may require additional parts.

What should I do if water leaks into the refrigerator?

Water leakage is often due to a blocked defrost drain. Clean the drain hole at the back of the fridge with a pipe cleaner or soft wire. Also check that the door seal is intact and the fridge is level.

Where can I find spare parts for the Balay 3FIB3720?

Spare parts such as shelves, door seals, and handles can be ordered from the Balay website or through authorized service centers. Use the model number 3FIB3720 to ensure compatibility.

How do I troubleshoot a refrigerator that is not cooling?

Check if the power cord is plugged in and the thermostat is set correctly. Ensure the condenser coils are clean and the door closes properly. If the problem persists, contact a qualified technician.

USER MANUAL 3FIB3720 BALAY

2

Diagram of a window with raindrops falling into the floor, showing no text or symbols

3 4

Illustration of a hand placing a tray with liquid and a curved arrow indicating flow or movement (no text or symbols)

Diagram of a multi-level mechanical or architectural structure with directional arrows indicating movement (no text or symbols)

5

Line drawing of a refrigerator interior showing two shelves and a door handle (no text or symbols)

6

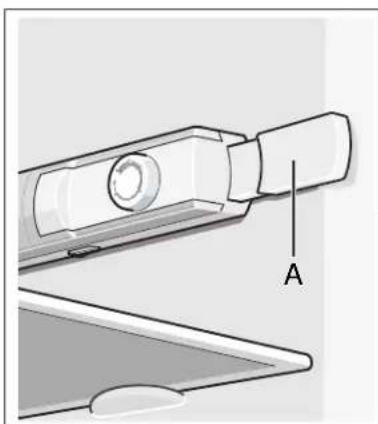

Diagram of a mechanical device with labeled component A, showing a cylindrical component inserted into a base plate (no text or symbols beyond label)

7

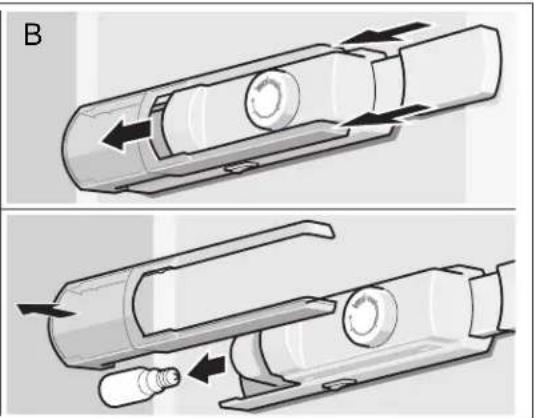

Mechanical assembly diagrams showing two stages of a sliding contact device with arrows indicating movement (no text or symbols present)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

8

BSHELECTRODOMÉSTICOS,S.A.

C/Itaroa,n°1

31620Harte

Pamplona(NAVARRA)

A-28-893550

9000124999(8601)es/pt/el/tr
