UT 30L 2KW - Electric water heater Ursus Trotter - Free user manual and instructions
Find the device manual for free UT 30L 2KW Ursus Trotter in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Electric water heater |
| Brand | Ursus Trotter |
| Model | UT 30L 2KW |
| Capacity | 30 liters |
| Power | 2 kW |
| Power supply | 220-240 V ~ 50 Hz |
| Installation type | Wall-mounted, vertical |

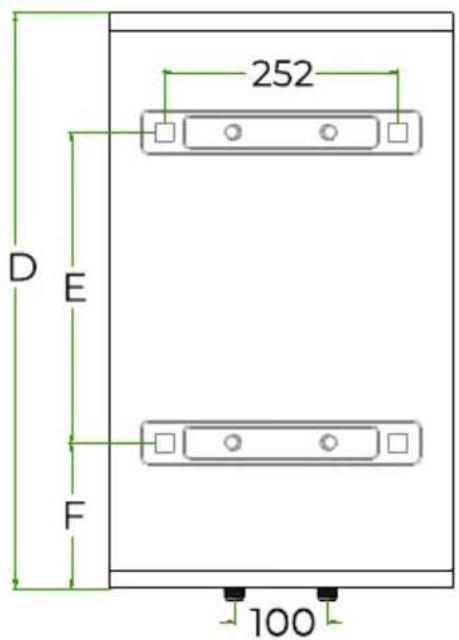

| Dimensions (approx.) | 450 x 450 x 600 mm |
| Weight (approx.) | 15 kg |
| Tank material | Enameled steel with magnesium anode |
| Insulation | Polyurethane foam, 42 mm thick |
| Max temperature | 75 °C (adjustable) |
| Nominal pressure | 0.6 MPa (6 bar) |

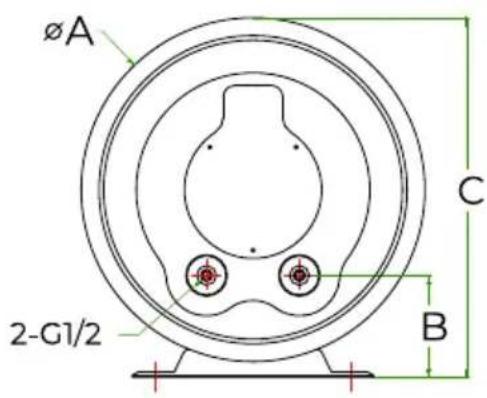

| Water connection | G 1/2 BSP |
| Protection class | IP24 (splash-proof) |
| Heating time (ΔT 45°C) | Approx. 70 minutes |
| Features | Adjustable thermostat, overheat protection, safety valve included |
| Maintenance | Annual descaling, check anode every 2 years |
| Cleaning | Wipe with damp cloth; do not use abrasive cleaners |
| Included accessories | Safety valve, drain hose, installation kit |
| Standards | CE, RoHS, WRAS |
Frequently Asked Questions - UT 30L 2KW Ursus Trotter
How do I adjust the water temperature?
Turn the thermostat dial located behind the front cover. The recommended setting is 60°C to save energy and prevent scale buildup. Use a screwdriver to adjust.
How should I install the water heater?
Mount the unit on a solid wall using the provided brackets. Ensure the safety valve is fitted to the cold water inlet. Connect to mains water and electrical supply as per local codes. Leave at least 200 mm clearance above for maintenance.
What does the safety valve do and how to use it?
The safety valve releases excess pressure if the internal pressure exceeds 0.7 MPa. It also allows draining of the tank. Test it monthly by lifting the lever for a few seconds; water should flow and stop.
Why is there no hot water coming out?
Check if the circuit breaker or RCD has tripped. Ensure the thermostat is set above 50°C. If still no hot water, the heating element may be faulty or the safety valve is blocked. Contact a service technician.
How do I descale the water heater?
Unplug the heater and drain it. Remove the heating element and soak it in descaling solution (e.g., vinegar or commercial descaler). Flush the tank with fresh water and reassemble. Descale every 6-12 months depending on water hardness.
Can I use this water heater with solar panels?
This model is not designed for direct solar connection. However, you can use a transfer valve and control system to preheat water with solar before entering the heater. Consult a professional for proper integration.
What is the energy consumption and efficiency?
With a 2 kW element, it consumes 2 kWh per hour of operation. The standby heat loss is minimal due to polyurethane foam insulation. Estimated standby consumption is about 0.5 kWh per day.
How do I drain the water heater for maintenance?
Turn off power and close the cold water supply. Attach a hose to the drain outlet (safety valve) or use the drain plug at the bottom. Open a hot water tap to allow air in. Drain the tank completely.
Why does the safety valve leak water intermittently?
Slight dripping during heating is normal due to thermal expansion. However, constant dripping indicates excessive pressure or a faulty valve. Check the pressure reducing valve (if installed) or replace the safety valve.
What is the warranty period and how to claim?
Ursus Trotter offers a 2-year warranty from date of purchase covering manufacturing defects. To claim, contact the dealer with the purchase receipt and a description of the issue. Warranty does not cover scale damage or improper installation.
