Product Type	HDBaseT Wall Plate Receiver
Model Numbers	AT-HDWP, AT-HDWP-IR
Video Resolution	Up to 4Kx2K and 1920x1200
Maximum Distance	230 ft (70 m) @ 1080p over CAT6a/7; 197 ft @ 1080p over CAT5e/6; 130 ft @ 4Kx2K over CAT5e/6
Audio Support	Lossy and lossless multi-channel including Dolby TrueHD and DTS-HD Master Audio
Power Supply	PoCc (Power over Category cable) from compatible transmitter (e.g., AT-HDTX, AT-HDTX-IR, PRO3HD44M); no external power required
Power Consumption	8.7 W (with AT-HDTX or AT-HDTX-IR)
IR Control	Yes (AT-HDWP-IR only) via captive screw connectors for IR emitter and receiver
Firmware Update	Via Mini USB port
HDCP Compliance	Yes
3D Pass-through	Yes
Installation	2-gang wall box, Decora faceplate included; screws provided
Dimensions (Installation Opening)	2.68 inches (H) x 3.58 inches (W)
Weight	0.49 lbs (0.22 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Certifications	CE, FCC, RoHS, cULus for power supplies (if used)
Package Contents	Receiver module, Decora faceplate, 4 mounting screws, 4 faceplate screws, captive screw connector (5-pin), IR emitter and receiver (IR model only), user manual
Safety	Avoid moisture, use only recommended accessories, unplug before cleaning, do not open unit
Spare Parts / Repairability	Captive screw connector included; IR emitter/receiver included for IR model; not user-serviceable; contact authorized Atlona reseller for repairs

Frequently Asked Questions - AT-HDWP Atlona

What is the maximum distance supported by the AT-HDWP?

The AT-HDWP can extend signals up to 230 ft (70 m) at 1080p over CAT6a/7 cable, 197 ft at 1080p over CAT5e/6, and 130 ft at 4Kx2K over CAT5e/6.

Can the AT-HDWP support 4K resolution?

Yes, the AT-HDWP supports 4Kx2K pass-through, allowing high-resolution video to be transmitted over a single category cable.

How do I install the wall plate receiver?

Install a compatible 2-gang electrical box (inner opening >3.58" wide x 2.68" high). Connect the category cable to the Decora HDBaseT module, mount the module into the box using the provided screws, then attach the Decora faceplate. Do not overtighten screws to avoid cracking.

Does the AT-HDWP require a power supply?

No, the AT-HDWP uses PoCc (Power over Category cable) and receives power from a compatible transmitter such as the AT-HDTX, AT-HDTX-IR, or PRO3HD44M. No external power supply is needed.

How do I connect IR control with the AT-HDWP-IR?

Connect the IR receiver to the IR IN port and the IR emitter to the IR OUT port using the included captive screw connectors. Wire colors: White = IR signal, Red = + (power) for IR receiver; Red = PWR, White = IR, Black = ± for IR emitter. Ensure correct polarity.

What should I do if the Link LED is blinking?

A blinking yellow Link LED indicates a cable or signal issue. Check the category cable connections, ensure the cable is not damaged, and verify that the transmitter is powered and connected properly.

How can I update the firmware?

Connect a Mini USB cable from the Firmware Update port to a Windows computer. Download the latest firmware from Atlona's website and follow the update instructions provided.

Can I use the AT-HDWP with any HDBaseT transmitter?

The AT-HDWP is designed to work with compatible Atlona transmitters such as the AT-HDTX, AT-HDTX-IR, and PRO3HD44M. For best performance, use Atlona transmitters that support PoCc.

How do I clean the wall plate?

Unplug the device before cleaning. Use a soft, damp cloth to wipe the surface. Do not use cleaning fluids, aerosols, or abrasive materials, as they may damage the unit or cause electric shock.

What is the warranty period for the AT-HDWP?

For products purchased on or after June 1, 2013, Atlona offers a 10-year limited warranty for hardware/electronics. The warranty covers defects in materials and workmanship under normal use. Proof of purchase is required.

USER MANUAL AT-HDWP Atlona

Atlona HDBaseT Wall Plate Receivers

AT-HDWP, AT-HDWP-IR

AT-HDWP

AT-HDWP-IR

User Manual

Table of Contents

1. Introduction 3
2. Package Contents 3
3. Features
4. Panel Descriptions 4
5. Electrical Box 4
6. Wall plate installation 5-6
7. Captive Screw 7
8. Connection 8-10
9. Specifications 11
10. Safety Information 12
11. Warranty 13-14
12. Atlona Product Registration 14

Introduction

Extend uninterrupted 1080p signal up to 230ft (70m) with the Atlona HDBaseT Wall Plate Receivers. With pass through support of 4Kx2K, 1920x1200, lossy & lossless audio, and bi-directional IR* signals over a single category cable, the HD extenders provide affordable, high quality, solutions for your audio/video and IR* control needs.

Package Contents

• 1 x AT-HDWP Receiver
- 1 x Decora® Faceplate
- 1 x Female Captive Screw Connector (5 pin*)
- 4 x 5/16" Phillips head screws for electrical box
- 4 x 5/16" PK/20 screws for the face plate
• 1 x IR Emitter (HDWP-IR only)
• 1 x IR Receiver (HDWP-IR only)
- 1 x User Manual

Features

• Extends IR and audio/visual content up to 230ft @ 1080p over a single category cable
  • Supports 4Kx2K pass through
  • Built to be hidden, the wall plate form allows the receiver to be hidden behind wall mounted TVs
• USB updating for easy, in the field, firmware updates
• Captive screw IR I/O ports for emitting and receiving IR control signals for use with IR remote controls and 3rd party control boxes (HDWP-IR only)
• PoCc (Power over Category cable) feature removes the need for a power supply when paired with a compatible transmitter. (Ex. HDTX, HDTX-IR, PRO3HD44M, etc.)
• Lossy and lossless multi-channel audio formats pass through (including Dolby TrueHD and DTS-HD Master Audio)
  • Full 3D pass through
• HDCP compliant

Panel Description

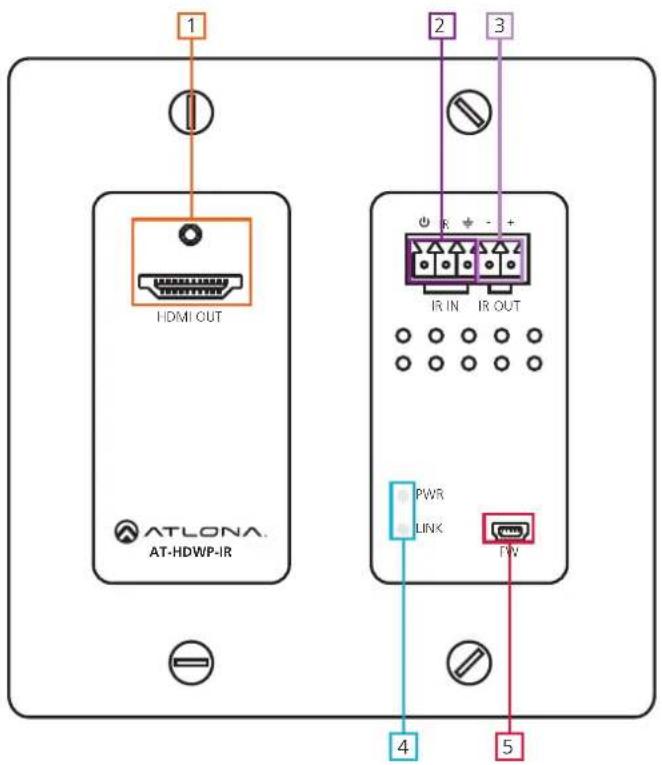

Diagram of a device rear panel with four connectors and a central connector (no text or symbols)

1. HDMI OUT Port: Connect to HDMI display.
2. IR IN Port: Connect the IR receiver to this port.*
3. IR OUT Port: Connect the IR Emitter to this port.*
4. Yellow Link LED: Signal Indicator for the CAT5e/6/7 OUT port. LED will remain solid, unless there is an issue with the cable or signal, then it will blink.

Green Power LED: Power indicator. If plugged in light will remain solid. If LED starts blinking power is intermittent or there is a problem with the cable. If LED is off, no power is passing to the receiver (check your outlet or the power cable).

1. Firmware Update Port: Use a Mini USB to USB A cable to connect to a Windows computer for updating.

2. CAT5e/6/7 IN Port: Connect a category cable from a compatible transmitter to this port.

\*For IR products only

Electrical Box

Compatible electrical boxes (see below)

Type: Plastic old-work electrical box or mud ring

Size: 2 Gang

Dimensions: Inner opening must be greater than 3.58" wide and 2.68" high

Wall Plate Installation

There are four pieces that will need to be interconnected in order for the AT-HDWP / AT-HDWP-IR to be installed in the wall. The electrical box (picture A), the Decora HDBaseT module (picture B), the Decora face plate (picture C) and the CAT cable.

The first step in installation is to connect the cat cable to the Decora HDBaseT module and install it into the electrical box (as seen above).

Note: Use the four 5/16" Phillips head screws to install into the electrical box, these screws will be unpainted.

Install the Decora face plate over the Decora HDBaseT module using the four remaining screws (these screws will have painted white heads).

Note: Do not overtighten the screws or the wall plate will crack and possibly break.

Captive Screw

IR captive screw connector is an added feature on the HDWP-IR. The Captive screw connector allows you to cut cables down to a suitable length, reducing cable clutter, and provides a more reliable connection.

Connecting

When connecting the cables to the female captive screw connector it is important that the wires be terminated correctly. The female captive screw connector (see picture A) has a contact plate at the top and must have the wires touching it for signal to pass. When wired correctly (see picture B) the signal will pass, incorrectly (see picture C) no signal will pass.

The captive screw connectors have a contact bar that is moved to compress the wire to the top contact plate. Use the screws at the top of the connector to compress the wire against the contact plate.

Clockwise

Turn the screws clockwise to raise the contact bar to the upper contact plate and hold the wires in place.

Counter Clockwise

Turn the screws counter clockwise to lower the contact bar to release the wires.

Green electronic component with four slots and a label 'A' in the top left corner (no readable text or symbols on the component itself)

For your convenience the cables do not come pre-terminated. Each item, whether it's an IR receiver (picture 1) or IR emitter (picture 2), will have wires exposed. Each wire is encased in a different colored cover. Female captive screw connectors are included: IR (see picture 3).

Close-up of a black electrical cable with three wires (red, gray, black) attached, no visible text or symbols.

Close-up of a black cable with two exposed wires, one red and one gray, labeled with number 2 (no text or symbols on the wires themselves)

Green electrical terminal block with six pins and a label 'IR' at the bottom (no other text or symbols visible)

IR pin outs have been included for the included IR emitter and IR receiver (see picture 6 & 7). The wires are colored for each pin (see picture 8 and 9). *IR used with HDTX-IR and HDRX-IR only*

White: - Red:+

Red: PWR White: IR Black: ±

Close-up of a green terminal block with three red and black wires, no visible text or symbols

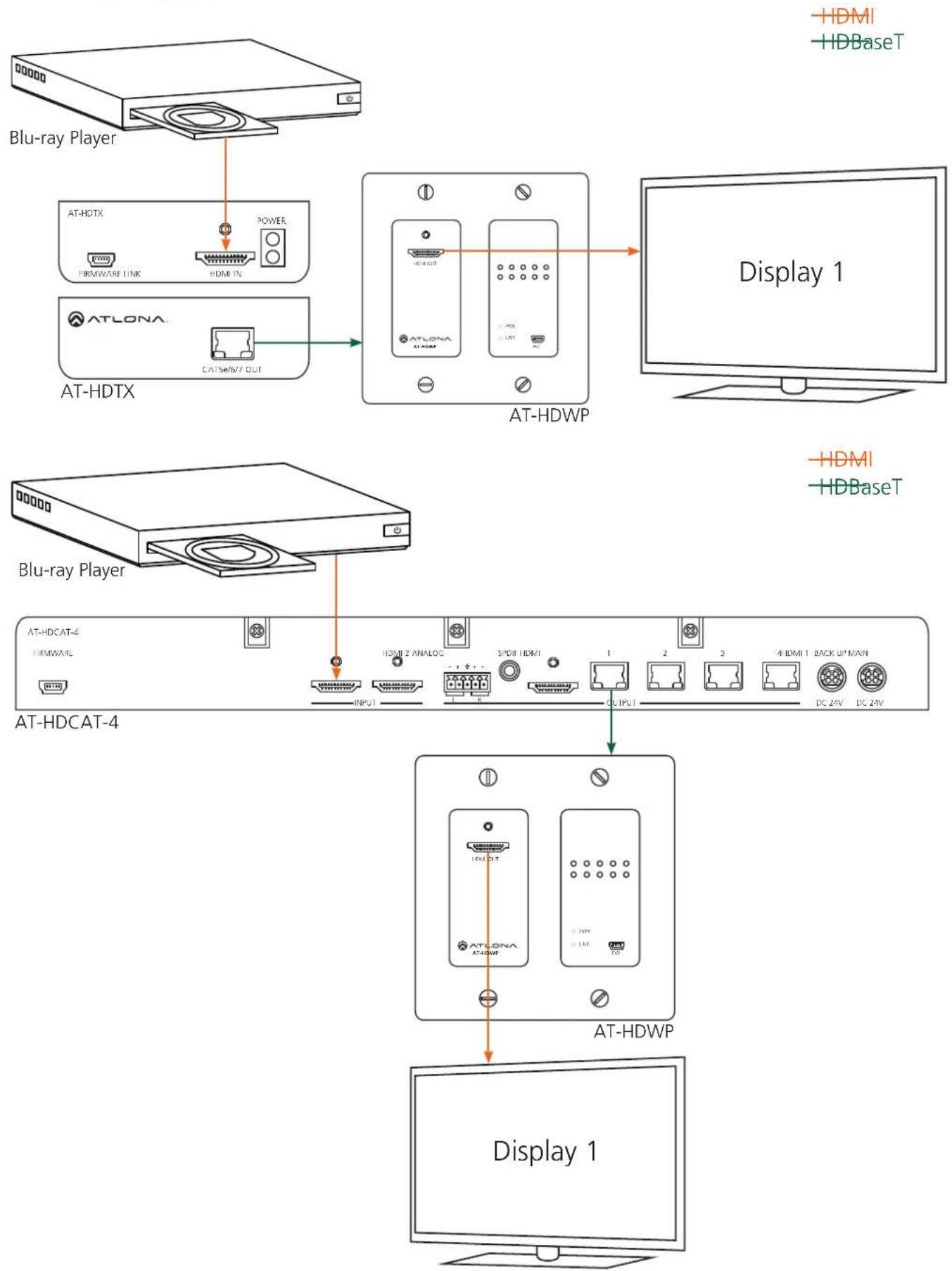

HDWP Connection


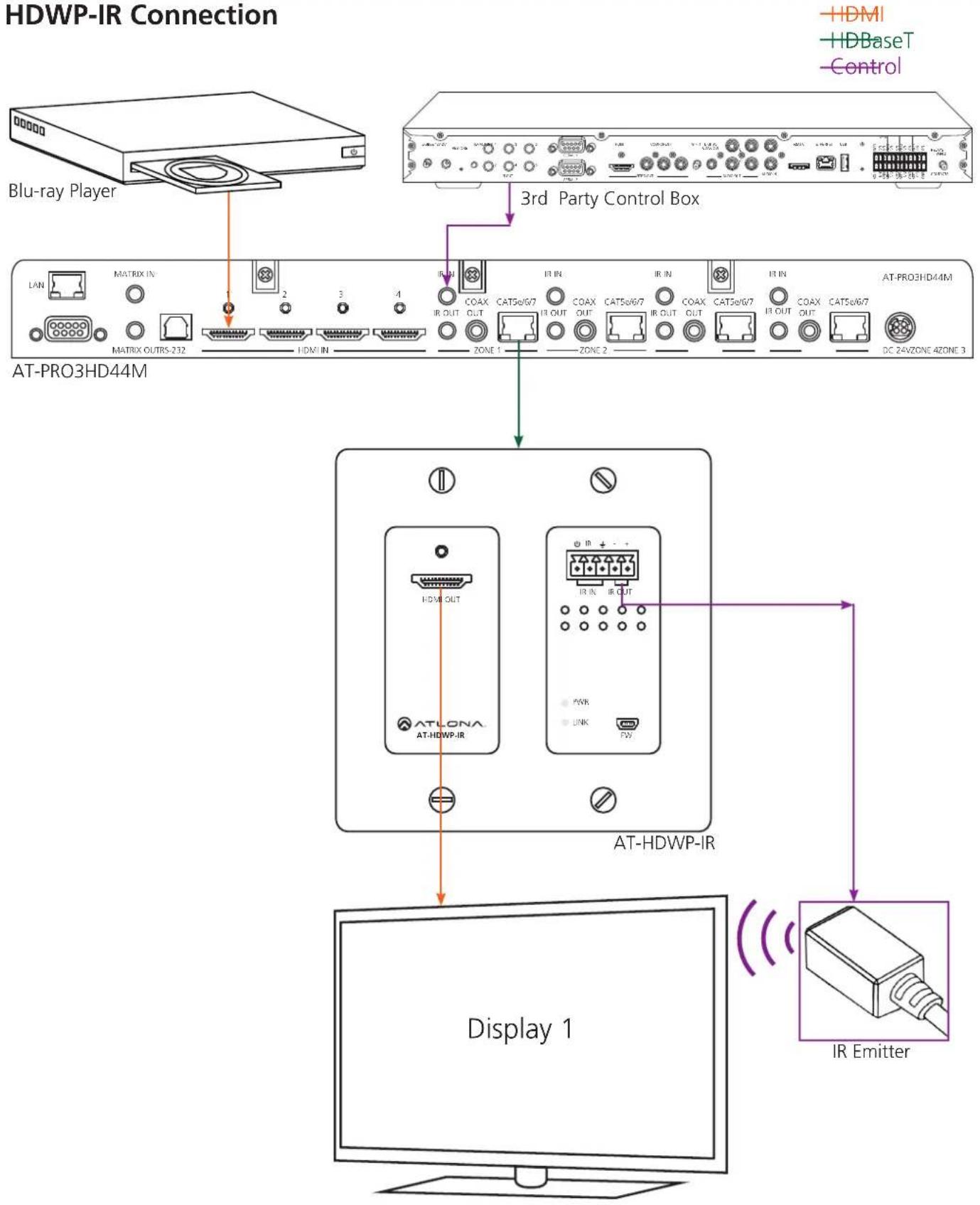

HDWP-IR Connection

HDWP-IR Connection cont.

Specifications

Bandwidth 10.2Gbps
PortsA/V inputA/V outputIR inputIR outputFirmware update	AT-HDWP1 x RJ451 x HDMI	AT-HDWP-IR1 x RJ451 x HDMI1 x Captive Screw1 x Captive Screw1 x Mini USB
Power Consumption 8.7W (with AT-HDTX or AT-HDTX-IR)
Audio Passes up to Dolby TrueHD	or DTS-HD Master Audio
Resolution Video: up to 4Kx2K	VESA: up to 1920x1200
Distance 230ft @ 1080p over CAT6a/7	197ft @ 1080p over CAT5e/6130ft @ 4Kx2K over CAT5e/6
Size	2 Gang
Installation Dimensions (H x W)	2.68 x 3.58 (inch)
Weight	0.49 lbs0.22 kg
Temperature Operating	32°F to 104°F0°C to 40°C	Storage-4°F to 140°F20°C to 60°C
Certifications CE, FCC, RoHS, cULus for power supplies

Safety Information

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HDWP and AT-HDWP-IR. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

Atlona, Inc. ("Atlona") Limited Product Warranty Policy

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

A) repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping OR

B) replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products

OR

C) refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona's products is the purchaser's exclusive remedy and Atlona's liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona's products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona's Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013

• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013

• Lifetime Limited Product Warranty for all cable products

Limited Product Warranty Terms – Refurbished (B-Stock) Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or after June 1, 2013

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at www.atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packing or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

- Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

- Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).

- Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a “Consumer Product” under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com .

Atlona, Inc Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
