Brand	Emilia
Model	EDW63W
Product Type	Dishwasher
Place Settings	12
Dimensions (H x W x D)	845 x 598 x 600 mm
Energy Rating	Not specified
Power Supply	220-240 VAC / 50 Hz
Current / Fuse	10 A
Water Pressure (min/max)	0.04 MPa / 1.0 MPa
Water Connection	3/4 inch threaded connector, cold water only
Drain Hose Length	Up to 4 m with extension
Programs	Intensive, Heavy, ECO, Glass, 90 mins, Rapid
Wash Cycles Details	Intensive (170 min, 1.6 kWh, 18.5 L), Heavy (160 min, 1.4 kWh, 15 L), ECO (170 min, 0.69 kWh, 10.2 L), Glass (125 min, 0.9 kWh, 14.5 L), 90 mins (1.2 kWh, 11.5 L), Rapid (30 min, 0.6 kWh, 11.5 L)
Rinse Aid Dispenser Capacity	Approx. 110 ml
Rinse Aid Adjustment	6 settings, factory set at 4
Detergent Compartment	Main wash (A) and pre-wash (B)
Filter System	Coarse, flat (main), and micro (fine) filters
Noise Level	Not specified
Control Panel	Push buttons with LED indicators
Special Features	Delay start (3h/6h/9h), Extra dry, Child lock
Safety	Grounding required, child lock, door interlock
Installation	Freestanding, adjustable feet, leveling required
Maintenance	Clean filters weekly, spray arms regularly, door seals with damp cloth
Spare Parts / Repairability	Contact service agent for replacements

Frequently Asked Questions - EDW63W Emilia

How do I start the dishwasher?

Close the door, press the On/Off button to switch on, select a program using the Program button, then press Start/Pause. The machine will start after about 10 seconds.

How do I add forgotten dishes during a cycle?

Press Start/Pause to stop the washing, open the door carefully after spray arms stop, add dishes, close the door, and press Start/Pause again. The dishwasher will resume after 10 seconds.

What should I do if the dishwasher doesn't start?

Check the fuse/circuit breaker, ensure power is on and door is closed securely. Verify water supply is turned on and the plug is properly inserted. If error code E1 appears, check water pressure.

How do I clean the filters?

Turn the filter assembly counterclockwise and lift it out. Rinse the coarse, main, and fine filters under running water. Use a brush if needed. Reassemble and reinsert, turning clockwise to lock. Clean filters at least once a week.

What do the error codes mean?

- Rapid: Longer inlet time (check faucet, water pressure). - 90 mins + Rapid: Not reaching temperature (heating element issue). - Glass: Overflow (leak). Contact service if needed.

How do I adjust the rinse aid dosage?

Open the rinse aid dispenser cap, rotate the dial to a higher setting (e.g., from 4 to 5) if spots or poor drying occur. Lower the setting if sticky white stains appear. The factory setting is 4.

Can I use regular dish soap?

No. Only use detergent and rinse aid specifically designed for automatic dishwashers. Never use soap, laundry detergent, or hand washing liquid, as they cause excessive suds.

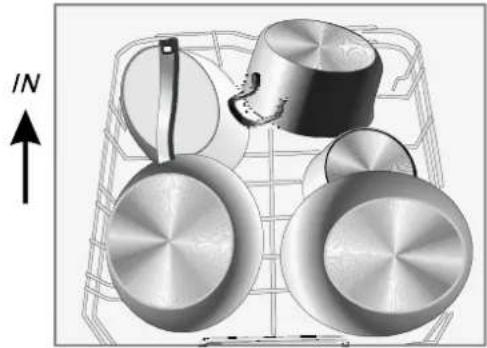

How should I load the baskets for best results?

Place large/pots in lower basket, delicate items like glasses in upper basket. Face downward hollow items, tilt deep pots, and ensure spray arms can rotate freely. Knives point down or horizontally. Do not overload.

What is the recommended program for normally soiled dishes?

The ECO program is the standard cycle for normally soiled tableware. It is the most efficient in energy and water consumption (0.69 kWh, 10.2 L, 170 min).

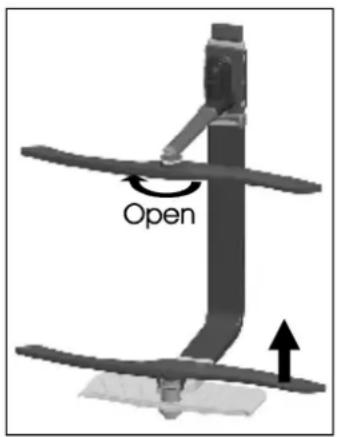

How do I clean the spray arms?

Remove upper spray arm by holding the nut and rotating clockwise. Lower spray arm pulls upward. Wash in warm soapy water, clean jets with a soft brush, rinse, and reassemble. Clean regularly to prevent clogging.

USER MANUAL EDW63W Emilia

USER MANUAL & INSTALLATION GUIDE

Emilia Dishwasher Model EDW63SS

12 Place settings - Delay start

Call 1 300 307 917 for Service

Quick Operation Guide

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance

Open the door, press the On/Off button to switch on the appliance.

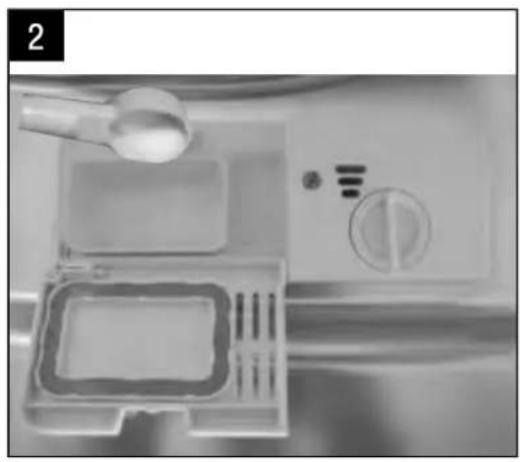

Fill the detergent dispenser

Compartment A:

For each wash cycle.

Compartment B:

For programs with pre-wash only.

(Follow the user instructions)

Check the rinse aid level

Mechanical indicator C.

Electric indicator on control panel (if provided).

Load the baskets

Scrape off any large food particles. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.

Select a programme

Close the door, press the Program Button until the selected program lights up. ( See the section entitled "Operation instruction")

Running the dishwasher

Turn on the water tap and press the Start/Pause Button. The machine will start working after about 10 seconds.

- Changing the programme

- 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If in this case, the detergent dispenser must be refilled.

1. Press the Start/Pause button, the machine will be in standby state, press the program button more than 3 seconds then you can change the program to the desired cycle setting.

2. Press the Start/Pause Button, the dishwasher will run after 10 seconds.

- Add forgotten dishes in the dishwasher.

- 1. Press the Start/Pause Button to stop the washing.

2.Open the door a little.

1. After the spray arms stop working, you can open the door completely.

4.Add forgotten dishes.

5.Close the door.

1. Press the Start/Pause Button, the dishwasher will run after 10 seconds.

WARNING!

Open the door carefully. Hot steam may escape when the door is opened

- If the appliance is switched off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state).

Switch off the appliance

When the working cycle is finished, the buzzer of the dishwasher will sound 8 times, then stop.

Turn off the appliance using the On/Off Button.

If the appliance was under standby mode, it will be power off automatically after 30 minutes without any operation.

Turn off the water tap, unload the baskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald, as the dishes and utensils are still hot and more susceptible to break.

They could also dry better.Unload the appliance, starting from the lower basket.

Read this Manual

Dear Customer,

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.

- Keep it for reference in future.

■ Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips etc.

This dishwasher must be installed by a suitably qualified or experienced installer.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.

If you can not solve the problems by yourself, please ask for the help from professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1

2) Operating Instructions....2

Control Panel....2

Dishwasher Features....2

3) Prior using for the first time....3

A、Fill the Rinse Aid Dispenser....3

B、Function of Detergent 4

4) Loading the Dishwasher Basket......6

Attention before or after loading the Dishwasher Baskets....6

The Method Loading Normal Dishware....7

5) Starting a washing programme....8

Wash Cycle Table....8

Turning on the Appliance....8

Change the Programme....9

At the End of the Wash Cycle....9

6) Maintenance and cleaning....10

Filtering System....10

Caring for the Dishwasher....11

7) Installation instruction.....12

Positioning the Appliance....12

About Power Connection....12

Water Connection....13

Start of dishwasher....14

8) Troubleshooting Tips....15

Before calling for service....15

Error codes....16

Technical information....17

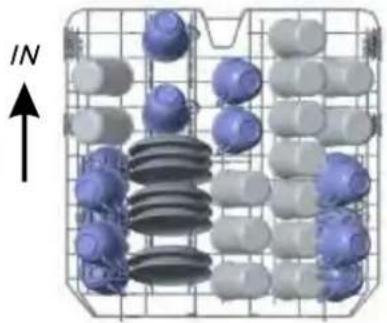

Loading the baskets according to (*AS/NZS 2007.1)

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

▲ WARNING!

■ Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.
■ Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
■ Do not touch the heating element during or immediately after use. (This instruction is only applicable to machines with a visual heating element.)
■ Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
■ Do not place any heavy objects onor standon the door when it is open. The appliance could tip forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
■ Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Children should be supervised to ensure that they do not play with the appliance.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
  ■ The door should not be left open, since this could increase the risk of tripping.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
  ■ Please dispose of packing materials properly.
  ■ Use the dishwasher only for its intended function.
  ■ During installation, the power supply must not be excessively or dangerously bent or flattened. — Do not tamper with controls.
  The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
  ■ The maximum number of place settings to be washed is 12
  ■ The maximum permissible inlet water pressure is 1Mpa.
  ■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2. Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

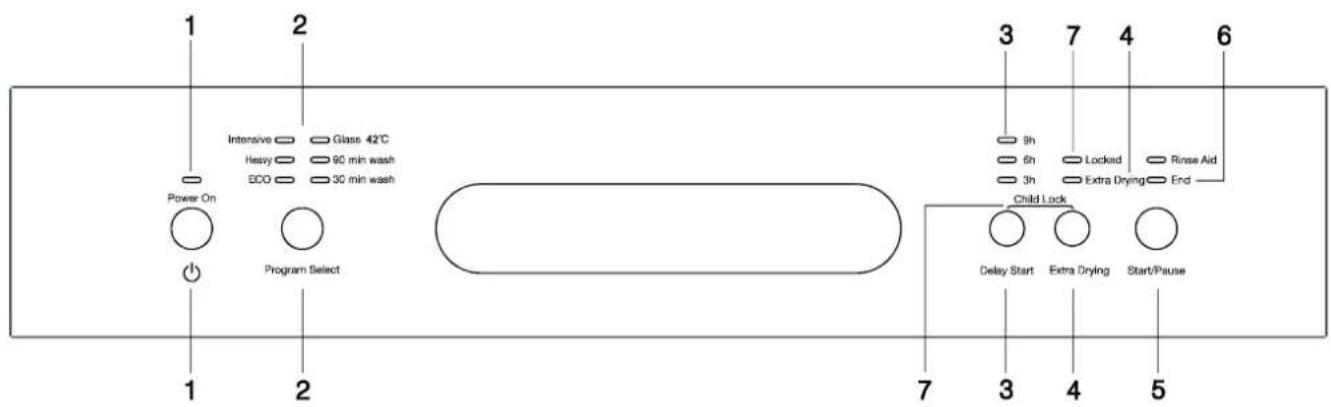

Control Panel

1---Power button and indicator: to switch On/Off the appliance and to show when the power on.
2---Program button and indicators: to press the button to select a wash program, and the indicator to show which wash program you have chose.
3---Delay button and indicators: to show the delay time (3h/6h/9h)
4---Extra dry Button: Press the button to select the Extra dry function.

5---Start /Pause Button: To start the selected washing program or pause the washing program when the machine is working.

6---Cycle finish and rinse aid warning lights: To show when the washing program is finished, the dispenser need to be refilled.

7---Attention:

Child lock function: press delay button and Half load functions Button simultaneously to lock the program.

Dishwasher Features

1 Upper Basket
2 Inner pipe
3 Lower Basket

4 Dispenser
5 Cup Shelf
6 Spray arms

Back view of a computer monitor with exposed cable and mesh base (no text or symbols)

7 Filter assembly
8 Inlet pipe connector
9 Drain pipe

3. Prior to using for the first time

Before using your dishwasher for the first time:

A. Fill the rinse aid dispenser
B. Fill in detergent

A. Rinse Aid Dispenser Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases.

You should never let the rinse aid get below 1 / 4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3 / 4 full
1/2full
- 1 / 4 full - Should refill to eliminate spotting
Empty

How to fill the Rinse Aid Dispenser

Close-up of a hand holding a small circular device with buttons, next to an air conditioner unit (no visible text or symbols)

Close-up of a white plastic bottle inserted into a container with ventilation slots (no visible text or symbols)

Close-up of a hand pressing down on a white electronic device with a circular button and indicator lights (no visible text or symbols)

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.

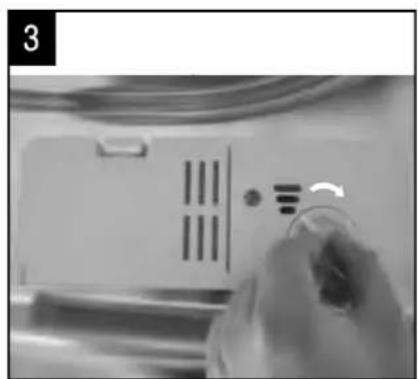

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close dishwasher door.

Attention!

Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming during the next wash.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming

during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

B. Detergent

Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ Conventional, alkaline detergents with caustic components
■ Low alkaline concentrated detergents with natural enzymes

The use of “normal” washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason

“normal” wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Adding detergent to dispenser

Fill in Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

Close-up of a kitchen appliance with a spoon and control knob (no visible text or symbols)

A For main wash detergent.
B For pre-wash detergent.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ If the lid is closed: push the latch to open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent and rinse aid for dishwasher.
■ You see information about the amount of detergent for the single programme on page 8.
■ Please be aware that soiling levels and water hardness can effect wash results.
■ Please observe the manufacturer's recommendations on the detergent packaging.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

4. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low temperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

Suitability of use in the dishwasher

Not suitable for use

■ Cutlery with wooden, horn china or mother-of-pearl handles.
■ Plastic items that are not heat resistant.
■ Older cutlery with glued parts that are not temperature resistant.
■ Bonded cutlery items or dishes.
■ Pewter or cooper items.
■ Crystal glass.
■ Steel items subject to rusting.
■ Woodenplatters.
■ Items made from synthetic fibres.

Limited suitability

■ Some types of glasses can become dull after a large number of washes.
■ Silver and aluminum parts have a tendency to discolour during washing.
■ Glazed patterns may fade if machine washed frequently.

Attention before or after loading the Dishwasher Baskets

(For the best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large food particles. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water unless there are excessive food scraps.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not be touched.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

3D diagram of a grid structure with blue and gray spheres, no text or symbols present

Please be reminded that:
Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Illustration of a basket containing various kitchen utensils and a pot, with an upward arrow labeled 'IN' indicating direction (no text or symbols on the objects themselves)

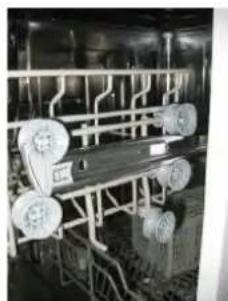

Adjusting the Upper Basket

The height of the upper basket can be adjusted for order to stacking of pots and pans, create more space for large utensils both from the spider can be folded down as /lower basket. The height of the show in the picture basket. can be

adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms..

Lower position

Industrial piping system with multiple valves and gauges (no visible text or labels)

Industrial machinery setup with metal frame and circular components (no visible text or symbols)

Wheels

Folding back the cup shelves

For order better stacking of pots and pans, one the spiper can be folded down as show in pphe picture basket. can be

Technical line drawing of a mechanical assembly with no visible text or symbols

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as

Close-up of a hand holding a grid-patterned object with diagonal lines, possibly a tool or device (no visible text or symbols)

Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

WARNING!

• Do not let any item extend through the bottom.
  ■ Always load sharp utensils with the sharp point down!

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the handles-down.
■ But place knives and other potentially dangerous utensils are placed handles-up.

Two 3D architectural models of a building facade with internal compartments, shown in side-by-side rotation (no text or symbols)

5. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse aid into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.	Pre-wash(50°C)Wash (60°C)RinseRinseRinse(65°C)Drying	5/27.5g(Or\ All\ in\ 1)	170	1.6	18.5
Heavy	For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-wash(45°C)Wash (55°C)RinseRinse (65°C)Drying	5/27.5g(Or\ All\ in\ 1)	160	1.4	15
ECO(AS/NZ 2007.1)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	Pre-washWash (45°C)Rinse(50°C)Drying	5/27.5g(Or\ All\ in\ 1)	170	0.69	10.2
Glass(ATZD)	For lightly soiled loads, such as glasses, crystal and fine china.	Pre-washwash(42°C)RinseRinse(60°C)Drying	5/27.5g(Or\ All\ in\ 1)	125	0.9 14.5
90 mins[TK37]	For lightly soiled crockery and glass.	Wash(65°C)RinseRinse (65°C)Drying	25g(Or\ All\ in\ 1)	90	1.2	11.5
Rapid(ZYHC)	A shorter wash for lightly soiled loads that do not need drying.	Wash (40°C)RinseRinse (45°C)	25g	30	0.6	11.5	/

NOTE:

*AS/NZS 2007.1 : This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1 , as follows:

■ Capacity: 12 setting
■ Position Upper basket: upper wheels on rails
■ Rinse aid setting: 6
■ Open the door slightly 50mm to assist in drying of the dishes after every wash

Turning On the Appliance

Starting a cycle wash

Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled “Loading the Dishwasher basket”).
2 Pour in the detergent (see the section entitled “Detergent and Rinse Aid”).
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door, press the On/Off button to switch on the machine.
5 Press the program button, the wash program will be changed as following direction:

ECO->Glass->90mins->Rapid->Intensive->Heavy

If a program is selected, the responding light will be on. Then press the Start/Pause button, the dishwasher begins to start.

Change the Program

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. In this case, the detergent dispenser must be refilled (see the section entitled "Detergent").
2 Press the Start/Pause button, the machine will be in standby state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled "Starting a wash")

NOTE:

If you open the door during a wash cycle, the machine will pause. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish

A forgotten dish can be added any time before the detergent cup opens.

1 Press the Start/Pause Button to stop the washing.

4 Add forgotten dishes.

2 Open the door a little.

5 Close the door

3 After the spray arms stop working, you can open the door completely.

6 Press the Start/Pause Button, the dishwasher will run after 10 seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid scald the dishes and utensils are still hot and more susceptible to breakage. They will also dry better.

■ Switch Off the Dishwasher

The Led screen is on but the colon icon is not blinking, only in this case the programme has ended.

1. Switch off the dishwasher by pressing the ON/OFF button.

2. Turn off the water tap.

■ Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

6. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) and a microfilter(Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarse filter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by this filter, gently squeeze the tap on the top of this filter and lift it out.

Fine filter 3

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

1

Step 1: Turn the filter in anti-clockwise direction.

2

3D rendered mechanical component with a lever and arrow indicator (no text or symbols)

Step 2: Lift the filter assy up.

NOTE: When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Notes:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect Against Freezing

please take frost protection measures on the dishwasher in winter. Every timea fter washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

7. Installation instruction

This dishwasher must be installed by a suitably qualified or experienced installer

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet.

About Power Connection

WARNING!

For personal safety:

■ DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

■ DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER CORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠️ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

Improper connection of the equipment earthing conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the outlet, please have a qualified electrician to install a proper outlet.

Water Connection Water Connection

Cold Water Connection

Line drawing of a hand holding a faucet handle (no text or symbols)

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING!

Please close the hydrant after using.

Drain hose Connection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B

How to Drain Excess Water From Hoses

If the sink is more than 1000mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres, otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed.

Check for leaks on all connections.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 That the dishwasher is level and installed correctly.
2 The water is connected and on.
3 There are no water leaks at any connection.
4 The power lead is clear and connected safely.
5 The power is switched on.
6 The inlet and drain hoses are clear and unkinked.
7 All packing and leaflets have been removed from inside the dishwasher.

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuitbreakeracted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
	Power supply is not turnedon	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall s ocket.
	Error code:E1;Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Doorofdishwasher notproperly c l osed.	Make sure to close the door properly and latch it.
water not pumped from dishwasher	Kink in drainhose	Check drainhose.
	Filter clogged	Check the coarse filter(see section titled " Cleaning The Filter ")
	Kitchen sink clogged	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub	Improperdetergent	Use only the special dishwasher detergent to avoid suds.If this occurred, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step. Open the door after draining is stop and check if the suds is disappeared.Repeat if necessary.
	Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
Stained tub interior	Detergent with colourant w as used	Make sure that the detergent is the one without colourant.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.	The items should be corrosion resistant.
Knocking noise in the wash cabinet	A spray arm is knocking against an item in a basket	Interrupt the program, and rearrange the items which are obstructing the spray arm.
Rattling noise in the wash cabinet	Items of crockery are loosein t h e washcabinet	Interrupt the program,and rearrange the items of crockery.
Knocking noise in the water pipes	This m ay be c aused by on-site installation or the cross-section of thepiping.	This has no influence on the dishwasher function.if in doubt, contact a suitably qualified plumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	The dishes were no t loaded correctly.	See notes in " Loading the Dishwasher Baskets ".
		The program was not powerful enough.	Select a more intensive programme.See" Wash Cycle Table".
		Not enoughdetergent wasdispensed.	Use more detergent, or change your detergent.
		Itemsareblocking the path of spray arms.	Rearrange the items so that the sprayer can rotate freely.
		The filter combination isnot c I eanor is not correctly fitted.This may cause the spray arm jets get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray Arms".
	Cloudiness on glassware	Combinationof soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them c I ean.
	Black or gray marks on dishes	Aluminum utensils have r ubbedagainst dishes.	Use a mild abrasive cleaner to eliminate those marks.
	Detergent left in dispenser cups	Dishes block detergent c upopens.	Re-loading the dishes properly.
Unsatis-factory drying result	The dishes are not drying	Improper lo a d i n g	Load the dishwasher as suggested in the directions.
		Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser.
		Dishes are removed too s oon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm by touching. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
		Wrongprogram hasbeen s elected	In short program the rinse temperature is lower.This also lowers cleaning performance. Choose a program with a long high rinse temperature.
		Use of cutlery with a low-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error Codes

When some malfunctions occur, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
Rapid	Longer inlet time.	Faucet is not opened, or water intake is restricted,or water pressure is too low.
90mins+Rapid	Not reaching required temperature	Malfunction of heating element.
Glass	Overflow.	Some element of dishwasher leaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.
■ If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Height :	845mm
Width :	598 mm
Depth :	600mm(with the door closed)
Water pressure:	0.04-1.0MPa
Power supply:	see rating label
Capacity:	12 place settings

■ Capacity: 12 place settings
■ Position of the upper basket: lower position
■ Programme: Eco
■ Rinse aid setting: 6 or max
■ Open the door slightly 50mm to assist in drying of the dishes after every wash
