Brand	Kalley
Model	K-STVBF1342
Product Type	Full Motion TV Wall Mount
VESA Compatibility	Up to 600x400 mm
Maximum Weight Capacity	50 kg (110 lbs)
Screen Size Compatibility	26" - 60"
Material	Cold Rolled Steel
Finish	Black Powder Coated
Movement Type	Articulating (Swing, Tilt, Swivel)
Tilt Range	+5° / -15°
Swivel Range	±90°
Extension Distance	Up to 500 mm from wall
Wall Profile at Maximum Retraction	70 mm
Level Adjustment	Yes, ±3°
Cable Management	Yes, through bracket arms
Included Hardware	Screws, washers, spacers, anchors
Installation Tools Required	Phillips screwdriver, wrench, level
Wall Type Compatibility	Wood stud, concrete, brick
Cleanliness and Maintenance	Wipe with dry cloth; avoid solvents
Safety Features	Safety screws, anti-tip design, weight tested
Spare Parts Availability	Contact Kalley customer support

Frequently Asked Questions - K-STVBF1342 Kalley

What is the weight capacity of the Kalley K-STVBF1342 wall mount?

The maximum weight capacity is 50 kg (110 lbs). Always verify your TV's weight before installation.

What VESA patterns does this mount support?

It supports VESA patterns up to 600x400 mm. It includes various screw sizes (M4, M5, M6, M8) for compatibility.

Can this mount be used on concrete walls?

Yes, it is suitable for concrete walls. Use the included concrete anchors and appropriate drill bit for installation.

Does the mount allow tilting and swiveling?

Yes, it offers tilt adjustment (+5°/-15°) and swivel (±90°) for optimal viewing angles.

How far does the mount extend from the wall?

The mount can extend up to 500 mm from the wall and retract to a profile of 70 mm.

What tools are needed for installation?

You will need a Phillips screwdriver, a wrench, and a level. A stud finder is recommended for wood stud walls.

Is cable management included?

Yes, the bracket arms have channels to route cables neatly, keeping them hidden.

How do I ensure the mount is level?

Use a level during installation. The mount also has ±3° level adjustment after installation for fine-tuning.

What is the warranty period?

Kalley typically offers a 5-year warranty on wall mounts. Check the product packaging or contact support for confirmation.

Can I mount a TV larger than 60 inches?

While the mount fits screens up to 60 inches, always verify the TV's weight does not exceed 50 kg and the VESA pattern is compatible.

USER MANUAL K-STVBF1342 Kalley

75x75/100x100

200x100/200x200

Manual de Usuario

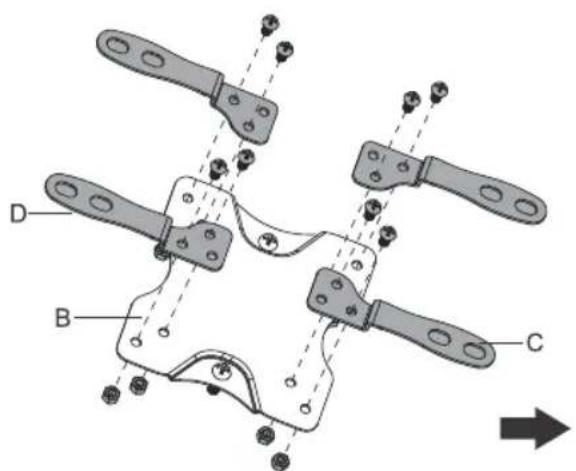

A (x1)

B (×1)

M4×50 (×4) M-D

D5 (x4) M-E

W-A (x3)

C (×2)

D (x2)

E (x2)

F (x1)

G (x1)

H (×1)

I (×8)

J (×8)

M5×14 (×4) M-B

M6×14 (×4) M-C

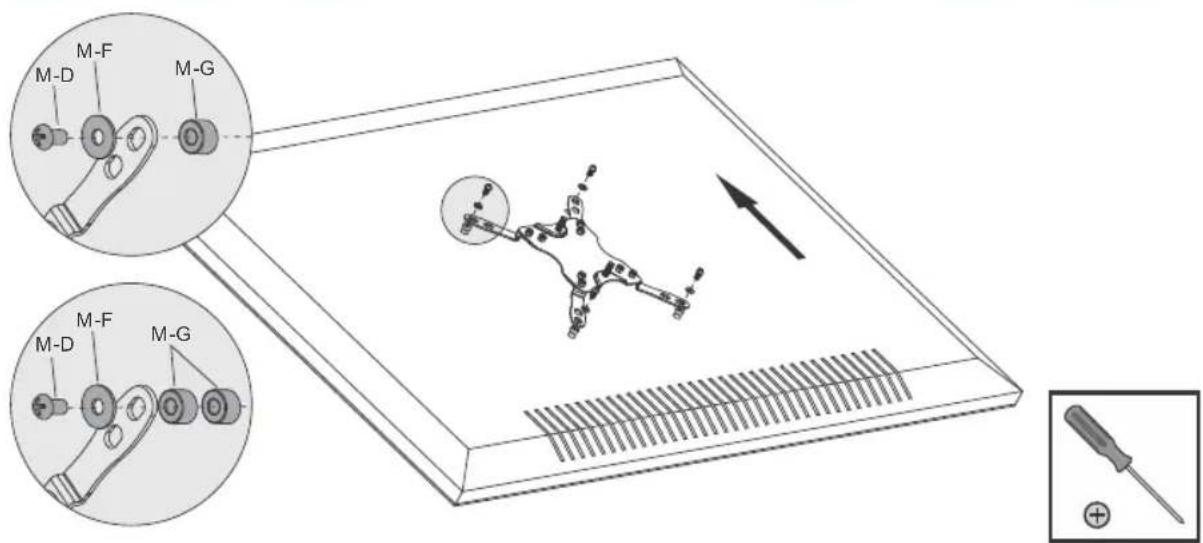

M8x20 (x4) M-D

D8 (×4) M-F

M-G (x8)

W-B (x3)

W-C (x3)

Manual de Usuario

2

Manual de Usuario

Manual de Usuario

4

Manual de Usuario
