Product Type	Tripod
Brand	Magnus
Model	DLX-367
Maximum Height	160 cm (63 in)
Minimum Height	50 cm (19.7 in)
Folded Length	65 cm (25.6 in)
Weight	2.5 kg (5.5 lbs)
Load Capacity	5 kg (11 lbs)
Material	Aluminum
Leg Sections	4
Leg Lock Type	Twist locks
Head Type	3-way pan/tilt
Quick Release Plate	Yes, with 1/4" screw
Bubble Level	Yes
Feet	Rubber with retractable spikes
Center Column	Yes, reversible
Warranty	2 years
Recommended Use	DSLR, mirrorless, camcorders
Included Accessories	Quick release plate, carrying bag, hex key

Frequently Asked Questions - DLX-367 Magnus

How do I set up the Magnus DLX-367 tripod?

Extend the legs by loosening the twist locks, adjust each section to desired height, and lock securely. Attach the head and camera plate. Ensure the bubble level is centered for perfect balance.

What is the maximum load capacity of the DLX-367?

The DLX-367 supports up to 5 kg (11 lbs). It is suitable for most DSLRs with telephoto lenses.

Can I use this tripod with a smartphone?

Yes, but you will need a smartphone adapter (not included) that uses a standard 1/4-inch thread.

How do I clean and maintain the tripod?

Wipe with a dry soft cloth. Avoid harsh chemicals. If sand or dirt gets into locks, rinse with fresh water and dry thoroughly. Lubricate twist locks with light silicone grease annually.

What type of head does the DLX-367 have?

It features a 3-way pan/tilt head with separate locks for pan, tilt, and lateral movement, allowing precise framing.

Is the tripod compatible with Arca-Swiss quick release plates?

No, the DLX-367 uses its own proprietary quick release plate. However, you can replace the head with an Arca-Swiss compatible one if needed.

How do I attach the camera to the tripod?

Unscrew the thumbscrew on the quick release plate to remove it. Attach the plate to your camera's tripod socket (1/4-inch screw). Then slide the plate back onto the head and tighten.

What is the folded length of the DLX-367?

The folded length is 65 cm (25.6 in), making it easy to store in a backpack or carry-on luggage.

Does the tripod come with a carrying bag?

Yes, a padded carrying bag is included for protection and transport.

How do I adjust the height of the center column?

The center column is reversible. To adjust, loosen the collar at the top of the legs, raise or lower the column, and tighten. Always keep the column as low as possible for stability.

USER MANUAL DLX-367 Magnus

Portage Series

Owner's Manual

MAGNUS®

Photo/Video Tripod

Thank you for choosing Magnus.

Congratulations on the purchase of your new Magnus tripod. This deluxe tripod features a geared center column for smooth and precise camera height adjustment. The telescoping legs with flip-locks allow for fast and easy setup, breakdown, and leg length adjustments. A three-way pan-and-tilt head employs a quick-release mounting plate with a universal 1/4"-20 mounting screw that is compatible with most cameras' mounting sockets.

Please read and follow these instructions, and keep this manual in a safe place.

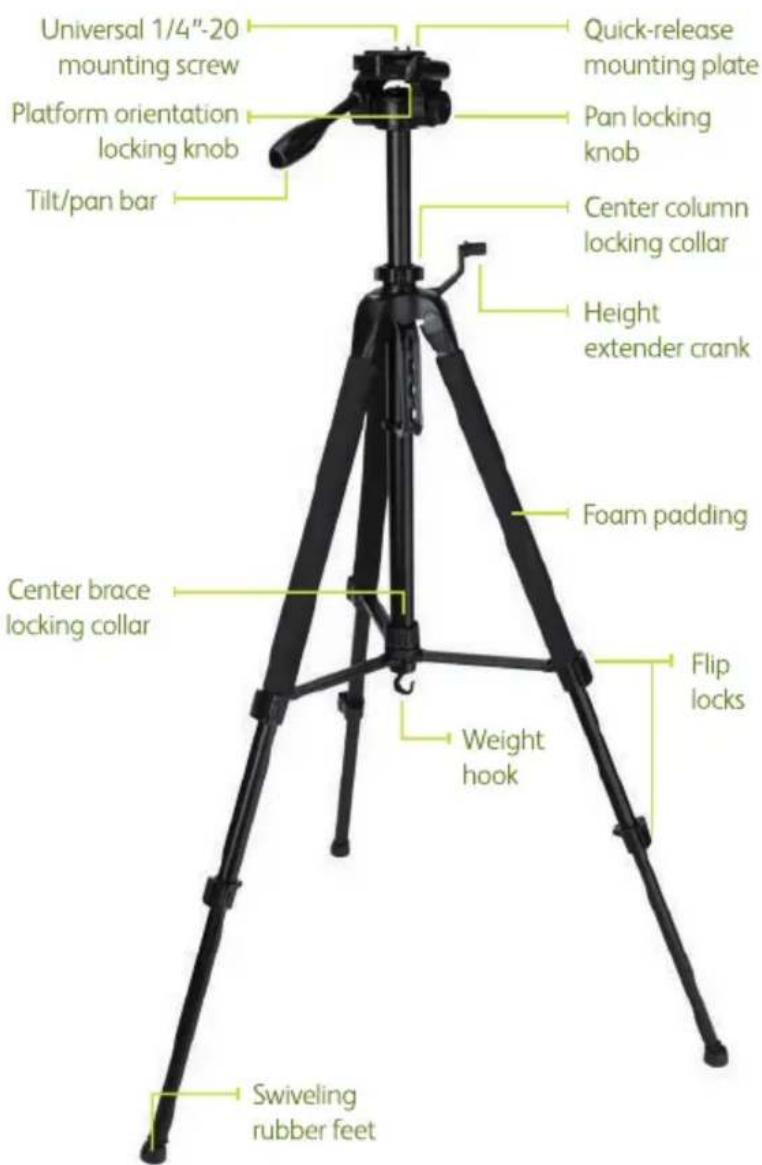

Photo/Video Tripod Components

Opening the Tripod

1 Always extend the legs from the top flip-locks first. Pull out on each flip-lock, and extend the legs to the desired height. Relock each leg. (Fig. A-B)

Close-up of a hand adjusting a black tripod-mounted camera module with a green arrow indicating the adjustment (no text or symbols visible)

Figure A

Close-up of hands holding a black mechanical device with a green arrow indicating motion (no text or symbols visible)

Figure B

2 Rotate the locking collar counterclockwise to release the center brace, and gently pull the legs out. Push down on the center brace, and then rotate the locking collar clockwise to lock the legs in place. (Fig. C)

Close-up of a hand adjusting a black tripod stand (no text or symbols visible)

Figure C

Mounting the Quick-Release Plate to the Camera

To remove the quick-release plate from the tripod head, pull and hold the plate locking lever, and remove the quick-release plate. (Fig. D)

Close-up of hands assembling a black plastic object with a clip (no visible text or symbols)

Figure D

2 Line up the quick-release plate lengthwise with the bottom of the camera. Match the quick-release plate screw to the camera's mounting thread, and mount the plate to the camera by rotating the screw clockwise until snug. (Fig. E)

Close-up of hands holding a black camera module with adjustment knobs (no visible text or symbols)

Figure E

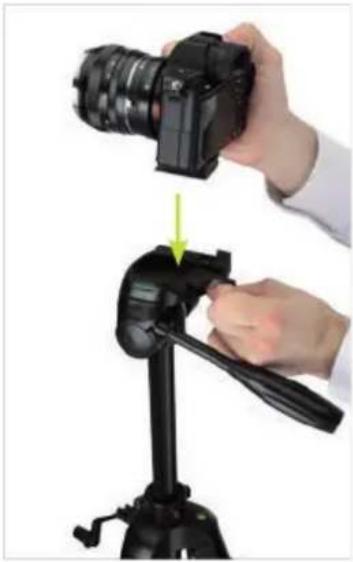

Make sure the screwhead handle is flat against the bottom of the quick-release plate. Mount the camera/quick-release plate assembly to the tripod head by pulling and holding back on the plate locking lever. Insert the camera/quick-release plate assembly, and push the plate locking lever to lock it in place. (Fig. F)

Person using a DSLR camera to press down a black tripod-mounted device (no text or symbols visible)

Figure F

Using the Pan & Tilt Head

To use the tilt feature, loosen the tilt/pan bar by rotating it counterclockwise. Tilt the tripod head to the desired angle, and then rotate the pan & tilt bar clockwise to lock the new position. (Fig. G)

Hand holding a camera on a tripod with a green arrow indicating motion (no text or symbols visible)

Figure G

To use the 360° panning feature, loosen the pan locking knob by rotating it counterclockwise. Pan as necessary, and then rotate the pan locking knob clockwise to lock the new position. (Fig. H)

Close-up of a hand adjusting a camera tripod-mounted device with a yellow arrow pointing to the handle (no text or symbols visible)

Figure H

To change the camera orientation from horizontal to vertical position, loosen the platform orientation

locking knob by rotating it counterclockwise. Rotate the platform 90°, and then rotate the platform locking knob clockwise to lock the new position. (Fig. I)

Close-up of a hand adjusting a black camera lens on a tripod (no text or symbols visible)

Figure 1

Adjusting the Center Column Height

To raise or lower the center column, loosen the center locking column collar by rotating it counterclockwise. (Fig. 1)

Close-up of hands adjusting a black tripod-mounted camera setup (no visible text or symbols)

Figure 1

2 Wind the crank clockwise to raise the center column to the desired height, or counterclockwise to lower it. Rotate the center column collar clockwise to lock the new position. (Fig. K)

Make sure to keep one hand on the camera while adjusting the height.

Close-up of a hand adjusting a black tripod-mounted camera mount, no visible text or symbols

Figure K

All images are for illustration purposes only. Features vary by model.

User Cautions

• Never set up or pull down a tripod while a camera is mounted.
• Do not move the tripod or adjust the legs while a camera is mounted
• Do not exceed the maximum weight capacity of the tripod
  • Never leave a camera unattended on the tripod
• The camera should be securely fastened to the quick-release mounting plate before mounting onto the tripod
• Never mount a camera to the tripod until all tripod legs are locked and stabilized
• Do not stand on, rest on, or hang anything from the mid-level spreader
• Do not attempt to remove the mid-level spreader
• Do not lift or move the tripod by the head
• Keep hands clear of the inside of the legs to avoid trapping fingers
• The safe operation of the tripod is the responsibility of the user

ONE-YEAR LIMITED WARRANTY

This Magnus product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function. This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state. To obtain warranty coverage, contact the Magnus Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Magnus along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.magnustripods.com or call Customer Service at 212-594-2353.
