RM/479 - Hob Ramtons - Free user manual and instructions

Product Type	Built-in Induction Hob
Brand	Ramtons
Model	RM/479
Number of Cooking Zones	4
Cooking Technology	Induction
Control Type	Touch Controls
Power Levels	9
Boost Function	Yes
Child Lock	Yes
Residual Heat Indicator	Yes
Timer	Yes, with automatic shut-off
Safety Shut-off	Yes
Product Dimensions (W x D x H)	590 mm x 520 mm x 55 mm
Cut-out Dimensions	560 mm x 490 mm
Net Weight	8 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	7200 W
Cord Length	1.5 m
Surface Material	Ceramic Glass
Color	Black
Energy Efficiency Class	A+
Warranty	2 years

Frequently Asked Questions - RM/479 Ramtons

How do I install the Ramtons RM/479 hob?

Installation should be performed by a qualified electrician. Ensure the cut-out dimensions (560x490 mm) are accurate and there is adequate ventilation underneath the hob.

Why is my hob not turning on?

Check that the power supply is connected and the circuit breaker is on. Ensure the child lock is not activated. If the issue persists, consult the user manual.

How do I clean the ceramic glass surface?

Use a cleaner specifically designed for ceramic glass hobs or mild soapy water. Apply with a soft cloth or sponge. Avoid abrasive pads or harsh chemicals to prevent scratches.

What does the residual heat indicator mean?

The indicator shows that the cooking zone is still hot after use. Do not touch the zone until the indicator turns off to avoid burns.

How do I use the timer function?

Select the cooking zone you wish to set a timer for. Press the timer key and adjust the time using the +/- controls. The hob will automatically shut off that zone when the timer expires.

Can I use any cookware on this induction hob?

No, only cookware with a magnetic bottom is compatible. Test with a magnet: if it sticks, the cookware is suitable. Examples include cast iron and some stainless steel pots.

My hob shows error code E0 or E1. What should I do?

Error codes indicate a malfunction. E0 may mean overheating, E1 a faulty sensor or no pan detection. Turn off the hob, let it cool, and check if cookware is properly placed. If the error persists, contact customer service.

How to activate the child lock?

Press and hold the child lock button (usually marked with a lock icon) for 3 seconds until the indicator lights up. Repeat to deactivate.

Does the RM/479 have a boost function?

Yes, the boost function provides extra high power for rapid heating. Press the boost key for the desired zone to activate it temporarily.

What is the power consumption of the hob?

The maximum rated power is 7200 W. Actual consumption depends on the number of zones used and power levels selected.

USER MANUAL RM/479 Ramtons

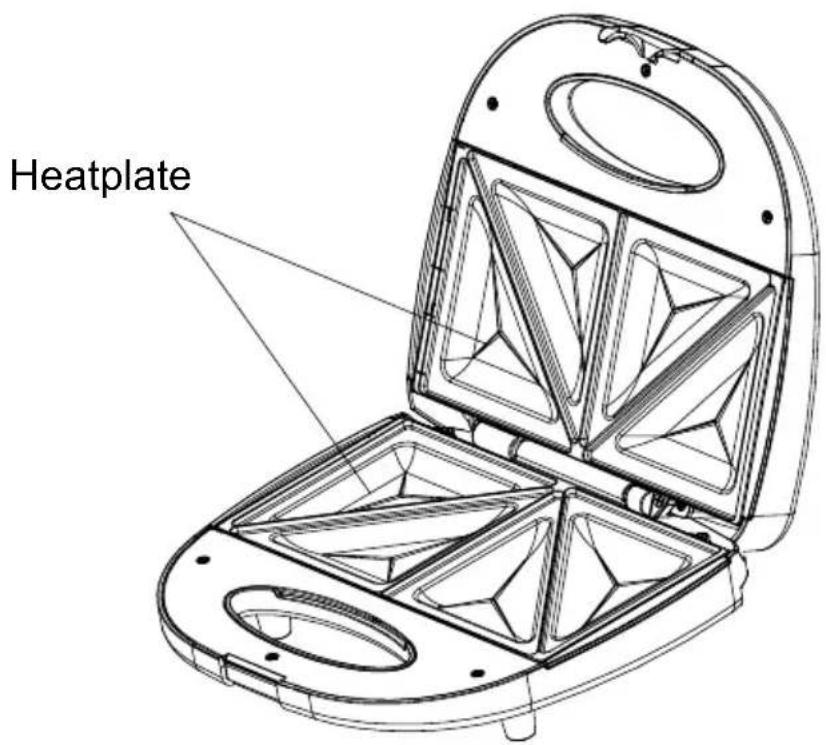

Line drawing of a mechanical device with two circular components and a triangular top (no text or symbols)

MODEL: RM/479

Read this manual thoroughly before using and save it for future reference

KNOWYOURSANDWICHMAKER

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, the below basic precaution should always be followed, including the following.

1. Readallinstructions.
2. Makesurethatyouroutletvoltagecorrespondstothevoltagestatedontheratinglabel oftheSandwichmaker.

3. Donotletcordhangoveredgeoftableorcounter, ortouchhotsurface.

4. Donotoperate any appliance with damaged cordor plug or after the appliance malfunction or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.

6. Children should be supervised to ensure that they don't play with the appliance.

7. The use of accessory not recommended by the appliance manufacturer may result in fire, electric shockor injury topersons.

8. Unplugfromoutletwhennotinuseandbeforecleaning.Alwaysallowtocoolbeforeputtingonortakingoffparts,andbeforecleaningtheappliance.

9. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

10. Keep the appliance and its cordout of reach of children less than 8 years.

11. Toprotectagainstfire,electricshockandinjurytopersons,donotimmersethe appliance,cordorpluginwaterorotherliquid.Ifthishashappened,donotusethis applianceanymore;disposeoftheappliance.

12. This appliance has been incorporated with agrounded plug. Please ensure the wall outlet in your house is well earthed.

13. Donotleavethemachineonunattended.

14. Alwaysusetheapplianceonasecure, dry levelsurface.

15.Donotplaceonornearahotgasorelectricburner,orinaheatedoven.

16.Donotuseoutdoors.

1. Donotuse appliance for other than its intended use.

2. Donotcleancontainerwithcleansers,steelwoolpads,orotherabrasivematerial.

3. Neverinsertoversized foodormetalfoil or other utensils into the appliance.

4. Donottouchhotsurface. Use handleorknobsonly.
5. This appliance is intended to be used in household and similar applications such as:
   -Staffkitchenareasinshops,officesandotherworkingenvironments;
   -Farmhouses;
   -Byclientsinhotels,motelsandotherresidentialtypeenvironments;
   -Bedandbreakfasttypeenvironments.
6. The appliance is not intended to be operated by means of an external timer or separate remote-controlled system.
7. The the outersurface may get hot when the appliance is operating.

FORFIRSTUSE

Note: This appliance with triangle heating plate is only used to toast bread. For the first use, smear the heating plate with oil and to as t waves of bacon according to the following steps. After toasting, unplug from the power outlet and let it cooldown, wipe the heating plates with damp cloth, the first toasted bacon should be discarded.

OPERATION

1. Connecttheplugintoratedvoltage, thePowerindicatorisilluminatedred, theunit beginspreheating.
2. During preheating, respectively brushoneside of bacon.
3. Oncethecookingsurface has reached the preset temperature, the Ready indicator is illuminated green and this SandwichMaker is ready to toast.
4. When ready indicator is on, baking 6-8 minutes. After cooking bacon, open the appliance and remove bacon with apairof plastictongs. sandwichmaker can also be stopped at any time by unplugging the power cord out of the outlet.

CAUTION:

1. If toomuch food is inserted into the appliance and the Sandwich Maker cannot be closed. Never close it with undue force as this would damage to the handle.
2. Never usingsharp forkorknifetoremovethe food asthis would damagethenon - stick coating of cookings surface. Use heat-resistant wood or plasticutensilsonly.

3. Before unclipping the heating plate make sure the appliance has been disconnect from powersupply and heating plate is cool enough.

4. Warning: Nevertouchtheheatingplateduringoperation.Astheheatingplates areveryhotscaldingmayoccuriftouchedtheheatingplates.

CLEANINGANDMAINTENANCE

CleantheSandwichMakereverytimeafteruse.

Unplugtheappliancefrompowersupplyandwaititcompletelycoolbeforecleaning INSIDE:useasoftwetclothtowipetheheatingsurfacesanddrythoroughly.

Alternatively, you can pull the twot about outward store lease the heating plates and raise the heating plates upward to remove them out (See Figure 1) and then put them into a dishwasher for cleaning.

1. OUTSIDE: Wipewithasoftcloth which has been rinsed almost dry in warm soapy water, and dry with asoft cloth.
2. Note: Never use the abrasive cleaner or rough scouring pad to wipe the heating plates otherwisethenon-stickcoatingwouldbeeasilydamaged.
3. Aftercleaning, close and lock the appliance by snapping the handle fastener into the handle.
4. Storetheapplianceinacooldryplaceoutofthereachofchildren. Youmayrestthe applianceverticallytominimizethestoragespace.
5. If any problem has been found, please contact the authorized service center for help.

ENVIRONMENTFRIENDLYDISPOSAL

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Youcanhelpprotecttheenvironment!

Pleaseremembertorespectthelocalregulations:handinthe non-workingelectricalequipmentstoanappropriatewaste disposalcentre
