Product Type	Centrifugal Juicer
Brand	Swan
Model	SP10100N
Power Consumption	800W
Voltage	220-240V, 50-60Hz
Dimensions (HxWxD)	38 cm x 25 cm x 24 cm
Weight	3.5 kg
Juice Capacity	1.0 L
Pulp Container Capacity	1.5 L
Feed Chute Width	7.5 cm (whole fruit)
Material	Stainless steel micro-mesh filter, BPA-free plastic
Speed Settings	2 speeds (low/high)
Safety Features	Safety locking arm, non-slip feet, overload protection
Dishwasher Safe Parts	Yes, all removable parts except motor base
Cleaning Brush Included	Yes, for filter
Anti-Drip Function	Yes, drip-stop spout
Cord Length	1.2 m
Warranty	2 years
Spare Parts Available	Yes, online

Frequently Asked Questions - SP10100N SWAN

How do I assemble the Swan SP10100N juicer?

Place the motor base on a flat surface. Attach the pulp container, then the filter basket, and secure with the locking arm. Finally, place the juice jug under the spout.

Can I juice whole fruits with the SP10100N?

Yes, the feed chute is wide enough to accommodate whole apples or oranges up to 7.5 cm in diameter.

Is the Swan SP10100N dishwasher safe?

All removable parts (pulp container, juice jug, lid, filter) are dishwasher safe. The motor base should be wiped with a damp cloth.

What is the best way to clean the filter?

Rinse immediately after use under running water. Use the included cleaning brush to remove pulp from the stainless steel micro-mesh.

How do I switch between speeds?

Use the dial on the front of the motor base. Low speed for soft fruits, high speed for hard vegetables like carrots.

What does the safety locking arm do?

The locking arm ensures the lid is securely closed before operation. The juicer will not start if not properly locked.

Can I make nut milk with this juicer?

No, the SP10100N is designed for juicing fruits and vegetables only. It is not suitable for nuts or grains.

What is the warranty period for the Swan SP10100N?

Swan offers a 2-year warranty against manufacturing defects. Register online for extended coverage.

Why does my juicer stop suddenly during use?

This may be due to overload protection. Turn off, unplug, and let it cool down for 15 minutes before restarting.

Where can I buy spare parts?

Spare parts like filters and jugs are available on the official Swan website or authorized retailers.

USER MANUAL SP10100N SWAN

500ml Citrus Press

Model: SP10100N

Helpline

01733 404703

v1.0

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

When using any electrical appliance, basic safety precautions should always be followed including the following:

• Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
• Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
• Never immerse the unit in water or any other liquid for cleaning purposes.
• Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Always unplug the unit when not in use, before cleaning or when adding or removing parts.
• The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
• Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
• Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use the appliance on a gas or electric cooking top or over or near an open flame.
• Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
• This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
• Do not carry the appliance by the power cord.
• Do not leave the appliance unattended during use. Always unplug the unit when not in use or before cleaning.
• Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
• Ensure that the unit is switched off after use.
  • The manufacturer does not accept responsibility for any damage or injury caused by

IMPORTANT INFORMATION - RETAIN FOR FUTURE USE

improper or incorrect use, or for repairs carried out by unauthorised personnel.

• In case of technical problems, switch off the product and do not attempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
• Your appliance must never be switched on through an external timer or any kind of separate remote control system
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas, in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• Do not touch moving parts with fingers or any utensil during operation!

TECHNICAL DATA

Description: Citrus Press

Model: SP10100N

Input Voltage: 220-240V

Frequency: 50Hz

Power consumption: 30 Watts

Parts references:

SP10100N / 01 = Transparent Cover

SP10100N/02 = Extractor Cone

SP10100N/03=Containerjug

HOW TO USE

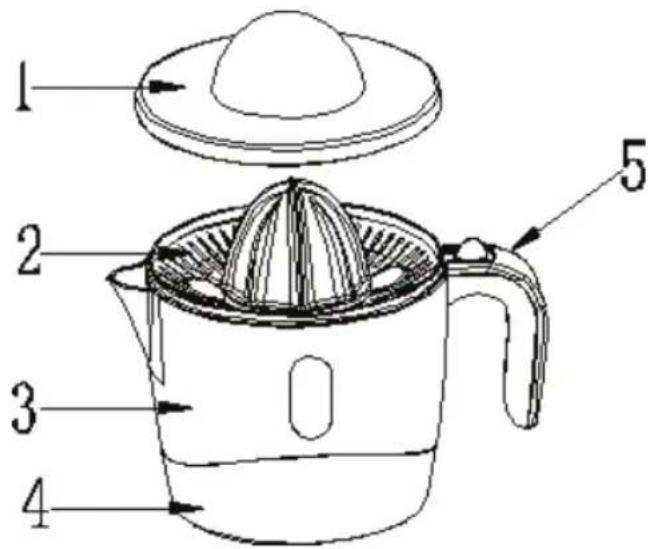

PARTS:

1. Transparent Cover
2. Extractor Cone
3. Container jug
4. Motor base
5. Handle

BEFORE FIRST USE

• Remove all packaging
• Wash the removeable parts in warm soapy water, rinse and dry thoroughly
  • Reassemble the juicer

Operation

• Cut the citrus fruit in half (at right angles to the stalk)
- Connect the citrus press to the mains supply
- Remove the transparent cover
- Press the fruit on to the cone and the machine will start automatically. The motor will stop when you release pressure on the cone.
- When the juice from the fruit has been extracted, repeat the process with another piece.
- Monitor the juice level using the viewing window to the side. Do not allow the level to exceed max.
- On completion of extraction, pull the sieve pan with extractor cone from the central shaft.
- Then unlock the container, you must turn it right. Now you can remove the container with the juice and serve

4

HOW TO USE

CLEANING

• To clean the motor base, please use only a damp cloth and then dry thoroughly
• Never immerse the motor base in water or put in the dishwasher.
• The other parts of the juice extractor may be washed with mild deterrent solution, rinsed and dried thoroughly before using again.
• It is safe to put the removable parts in the dishwasher. However the higher water temperatures may dull the transparent plastic parts after many washes.
• Avoid using harsh or abrasive cleaning agents

DOCUMENTATION

We Swan Products Ltd declare that this product conforms to the following product legislation in accordance with the following directive[s]:

• 2004/108/EEC The EMC Directive (the Electromagnetic Compatibility Directive).
• 2006/95/EC. The LVD Directive (Low Voltage Directive).
• 2011/65/EU. The RoHS directive (Restriction of Hazardous Substances Directive)
• EC 1935/2004 Food Contact
• 2009/125/EC Eco Design Directive

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
- The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

DISPOSAL OF UNIT

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeireland.ie for access to information about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in

August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

SWAN BRAND HERITAGE

In 1933 Swan were the first to develop an electric heating element that could be immersed in water. This led to the Swan kettle range that could boil up to six pints of water in just over nine minutes - pretty hot for the time! These days it takes about two minutes for a Swan kettle to boil.
