BrilliantCare Keratin Advance PHS5987GB - Styler BOSCH - Free user manual and instructions

Product Type	Hair Straightener / Styler
Model	BrilliantCare Keratin Advance PHS5987GB
Brand	Bosch
Plates Material	Ceramic with Keratin infusion
Heat Settings	Variable temperature control
Temperature Range	140°C - 230°C
Heat-up Time	Approx. 30 seconds
Auto Shut-off	Yes, after 30 minutes
Cord Length	2.5 m
Swivel Cord	Yes
Voltage	220-240 V, 50-60 Hz
Power	45-50 W
Weight	Approx. 350 g
Dimensions (L x W x H)	28 x 4 x 3 cm
Plate Width	25 mm
Safety Features	Heat-resistant tip, auto shut-off, cool-touch housing
Cleaning	Wipe plates with damp cloth after unplugging
Storage	Hanging loop for easy storage
Warranty	2 years
Included Accessories	None

Frequently Asked Questions - BrilliantCare Keratin Advance PHS5987GB BOSCH

What is the maximum temperature of the Bosch BrilliantCare Keratin Advance PHS5987GB?

The maximum temperature is 230°C, suitable for all hair types. For fine or damaged hair, use lower heat settings.

Does it have an auto shut-off feature?

Yes, the styler automatically switches off after 30 minutes of inactivity for safety.

What are the plates made of?

The plates are ceramic with keratin infusion for smooth gliding and reduced frizz.

How long does it take to heat up?

It heats up to the selected temperature in approximately 30 seconds.

Is the cord swivel?

Yes, the cord swivels to prevent tangling during use.

Can I use it on wet hair?

It is recommended for use on dry hair only to avoid damage.

How do I clean the plates?

Unplug the device and let it cool. Wipe the plates with a damp cloth. Do not use abrasive cleaners.

What is the plate width?

The plates are 25 mm wide, ideal for medium to long hair.

Does it come with a warranty?

Yes, Bosch offers a 2-year warranty for this product.

What voltage does it support?

It operates on 220-240 V, 50-60 Hz. Not suitable for 110 V systems without a converter.

USER MANUAL BrilliantCare Keratin Advance PHS5987GB BOSCH

Close-up of a bundle of light brown fibrous material, possibly dried plant fibers or fiber, with no visible text or symbols.

Bosch iron curling iron with black band and white body (no visible text or symbols)

Register your new Bosch now:

www.bosch-home.co.uk

Close-up of a textured brown surface with parallel lines, resembling wood grain or fiber texture (no text or symbols)

PHS 5987GB

BOSCH

en Instruction manual

Illustration of hands using a tool to interact with a textured surface, showing motion direction (no text or symbols)

Illustration of a hand holding a pen with arrows indicating force or movement (no text or symbols)

Illustration of a person's face with shoulder-length hair and a simple line drawing style (no text or symbols)

B

Illustration of hands using a tool to cut a curved object, no text or symbols present

Illustration of hands performing a medical procedure on a cylindrical object, showing motion and rotation (no text or symbols)

Illustration of hands using a tool to lift or lift a curved object, with an arrow indicating direction (no text or symbols)

Diagram showing a curved pipe or stream flowing from a cylindrical object, with directional arrows indicating flow direction (no text or symbols)

Illustration of a woman's face with curly hair and smile (no text or symbols)

C

Illustration of hands using a tool to cut a curved object, no text or symbols present

Illustration of a hand using a tool to press or brush on a curved object, with no visible text or symbols.

Illustration of a hand using a tool to apply a curved tool to a surface (no text or symbols present)

Diagram showing a curved pipe or stream flowing from a rectangular block, with directional arrows indicating flow direction (no text or symbols)

Illustration of a woman's face with wavy hair and a smile (no text or symbols)

D

Illustration of a hand holding a pen with a curved arrow indicating motion or force (no text or symbols)

Illustration of a hand holding a cylindrical object with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a pen with a curved object wrapped around it, no text or symbols present

Illustration of a hand holding a pen or ruler, with a curved line and arrow indicating motion (no text or symbols)

Illustration of a curved ramp with motion arrows, no text or symbols present

Illustration of a person with curly hair and facial features (no text or symbols)

Safety notes

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else.

This appliance is designed for domestic use or for use in non-commercial, household-like environments. Household-like environments include, for example, use in staff kitchens in shops, offices, agricultural and other small businesses, as well as use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

⚠️ Danger of electric shock and fire!

Connect and operate the appliance only according to the type plate specifications.

Children younger than 8 years may not operate the appliance.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance may not be carried out by children without supervision.

Use only if power cord and appliance show no signs of damage.

Unplug after every use or if defective.

To avoid potential hazards, repairs such as replacing a damaged cable, must only be carried out by our customer service personnel.

The power cord must not

• touch hot parts;
  • be pulled over sharp edges;
• be used as a carrying handle.

Unplug the appliance before cleaning it.

Never immerse the appliance in water.

Do not use a steam cleaner.

The heating plates will become hot. Hold the appliance only by its handle. Only use on dry hair; under no circumstances use the appliance on artificial hair.

Place the appliance on heat-resistant surfaces only.

Do not use near water contained in bath tubs, sinks or other containers.

⚠️ Risk of fatal injury!

Never allow the appliance to come into contact with water.

Even an appliance that has been switched off poses a danger; therefore unplug the appliance after every use or when interrupted in its use. Installing a ground fault circuit interrupter up to 30 mA in the house offers additional protection. Please consult an electrician.

⚠️ Risk of suffocation!

Do not allow children to play with packaging material.

Risk of burns!

Avoid any skin contact.

Congratulations on purchasing this Bosch appliance. You have acquired a high-quality product that will bring you a lot of enjoyment.

These operating instructions describe a hair straightener.

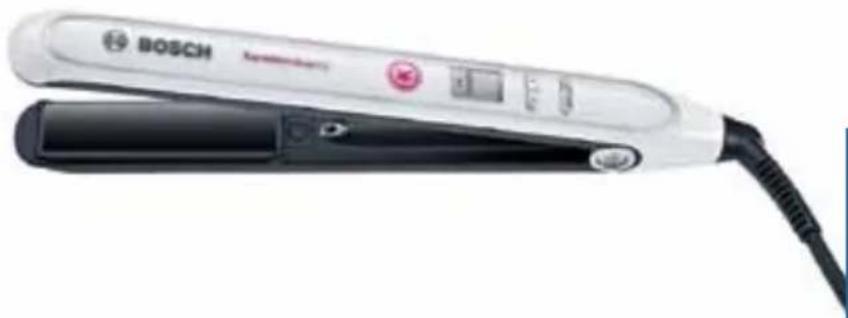

Parts and operating controls

1 Locking device 🔒 / 🔒
2 on/off switch
3 Temperature selector +/- (min 100 °C - max 200 °C)
4 Display, illuminated
5 Keratin button ^® , illuminated
6 Heating plates, flexibly mounted
7 lonic nozzle

Operation

• Plug in the appliance and place on a level, heat-resistant surface.
• Turn on with switch 2. The preset temperature lights up on the display 4.
• The desired temperature can now be set using the temperature selector 3 at intervals of 10 between 100 °C and 200 °C:
• The appliance heats up, the preset temperature flashes in the display. The appliance is ready for use when the preset temperature is illuminated and no longer flashing.

Recommended temperatures for especially gentle straightening and shine:

Hair type	Structure	Recommended temperature
wavy healthy 160 °C
wavy damaged 150 °C
wavy unhealthy 140 °C
curly healthy 180 °C
curly damaged 160 °C
curly unhealthy 140 °C
very curly	healthy 180 °C
very curly	damaged	160 °C
very curly	unhealthy	140 °C

This information was calculated under laboratory conditions: settings for your own hair may vary.

Button lock

To make handling the appliance easier, you can lock the buttons “+”, “−” and Ⓚ. If the button lock has been activated, the set temperature cannot be changed by accidentally pressing the buttons.

• Set the desired temperature.
• Press and hold the “—” button for three seconds.
• The button lock is activated, and the display shows the 0 symbol.
• To deactivate the button lock, press and hold the “—” button again for three seconds; the button lock symbol 0—disappears.

Note: The on/off switch 2 can not be locked.

Use

Risk of burns!

Never allow appliance to come into contact with skin (scalp or ears).

You can use the hair straightener to straighten or curl your hair.

- Only use the appliance on dry hair.

Note: Fine hair responds particularly quickly to the treatment with the heating plates.

Please take note of the temperature recommended for your own hair type under "Operation".

The even heat emission of the heating plates is especially gentle on the hair.

The result is smooth hair with an intensive, silky shine.

Important: Never apply in one place for longer than 2 seconds.

Button Ⓚ

Keratin is a very strong protein that forms the main component of human hair. It gives the hair its stability, elasticity and keeps it healthy. Daily styling, especially using heat, can lead to long-term damage of the cuticle and the keratin in the hair, resulting in split ends or even breakage. With the “Keratin” function, the delicate keratin structure of the hair is protected against excess heat and drying out. By pressing button 5 Ⓚ, the hair straightener automatically switches to the temperature setting that protects the hair against damage. Press the button Ⓚ to activate the setting. The button will then light up and “Keratin” will appear in the display. The word “Keratin” will flash until the temperature required has been reached. To switch off the setting, press the button Ⓚ again. The button will no longer light up and the word “Keratin” will disappear from the display.

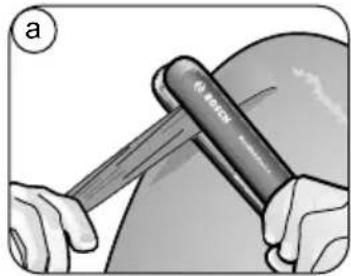

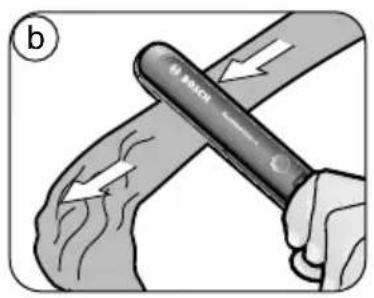

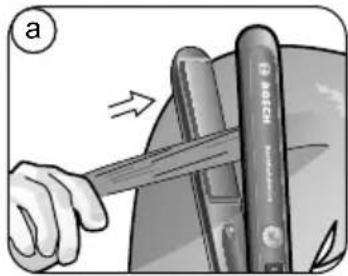

Straightening your hair

(Image sequence A)

The appliance is suitable for both long and short hair.

• Comb the hair and section it into even strands (approx. 5 cm wide).
• Set the locking device to 📄.
• Starting from the roots, place a strand of hair between the plates (Figure a).
• Press the plates together and pull down gently and evenly toward the ends of the hair (Figure b).
• Treat all strands in the same manner. Allow hair to cool completely before styling.

Tip: For shoulder-length hair, each strand should take about 10 seconds.

Curling your hair

There are three methods for curling hair. For each method, separate dry hair into even sections, roughly 2 cm wide. The finer the strand, the tighter the curl.

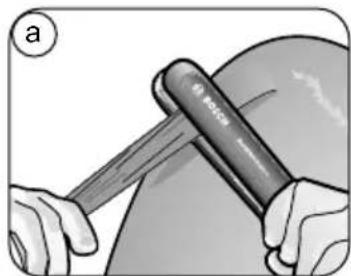

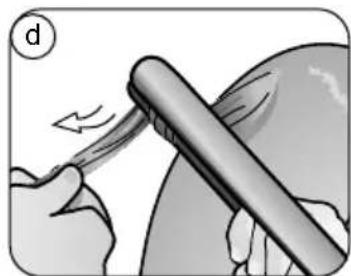

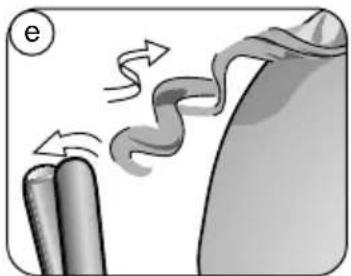

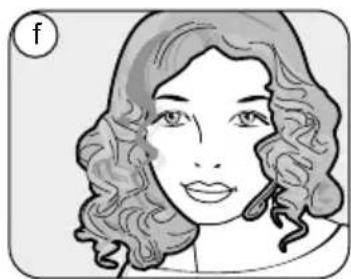

Curling with volume in the entire hair (Image sequence B)

• Hold the hair straightener level, place the strand of hair between the heating plates and close them.

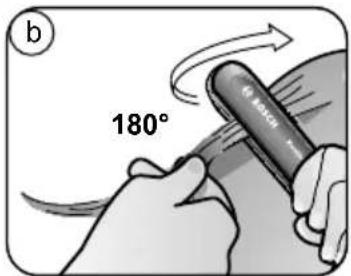

• Turn the straightener 180° and wrap the strand once around the upper heating plate.

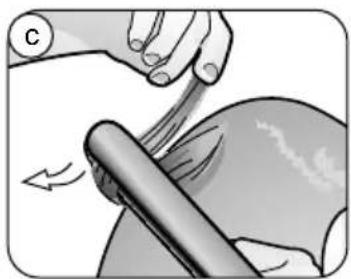

• Press the plates firmly together and pull the straightener down to the ends of the hair at a steady pace. Hold down the section of hair to be straightened using your free hand.
• Now open the plates.

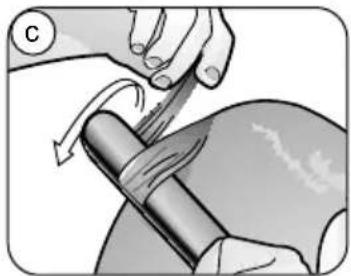

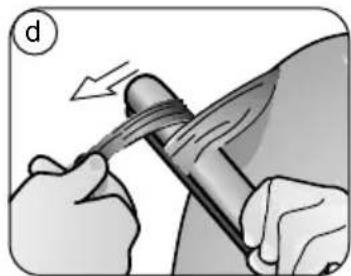

Curling with volume in the length (Image sequence C)

• Hold the hair straightener level, place the strand of hair between the heating plates and close them.

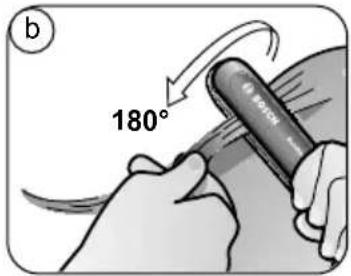

• Turn the straightener 180° and wrap the strand once around the lower heating plate.
• Press the plates firmly together and pull the straightener down to the ends of the hair at a steady pace. Hold down the section of hair to be straightened using your free hand.
• Now open the plates.

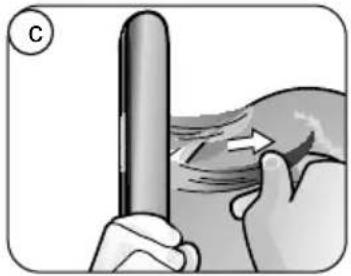

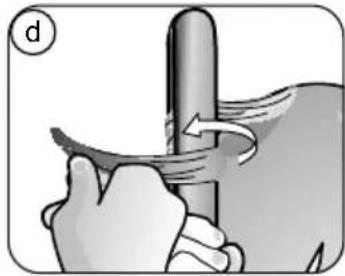

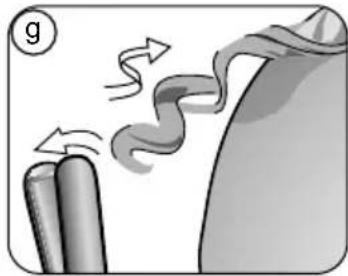

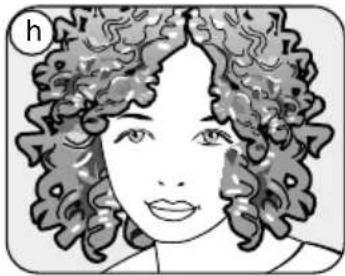

Spiral curls (Image sequence D)

• Hold the hair straightener vertically, place the strand of hair between lower half of the heating plates and close them.

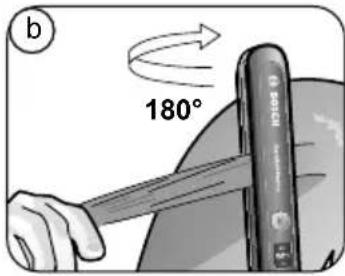

• Turn the straightener 180° and wrap the strand once around the free heating plate.
• Press the plates firmly together and pull the straightener down tilted to the ends of the hair at a steady pace. Hold down the section of hair to be straightened using your free hand.
• Now open the plates.

N.B.: Make sure that the curl is not pulled straight when removing the straightener.

Tip for a longer lasting hair style: Roll up the curl when it's still hot and fix with a hair clip until cool.

Warning: The best and most gentle temperature setting depends primarily on the speed at which the appliance is pulled down the hair (the specified values refer to approx. 2 cm / sec.):

• For short hair (approx. 10 cm in length), the appliance should be pulled evenly down the strand in approximately 5 seconds.

• For shoulder-length hair (approx. 20 cm in length), the appliance should be pulled evenly down the strand in approximately 10 seconds.

• For long hair (40 cm in length), the appliance should be pulled evenly down the strand in approximately 20 seconds.

• If the appliance is pulled down the hair faster, a higher temperature is necessary (the same result is achieved, but it is more damaging to the hair).

For more information on Bosch styling, visit www.bosch-home.co.uk/haircare

Permanent ionisation

This hair straightener has an ionic generator that is always active. This is shown by the word ion in the display.

The hair can become electrostatically charged from combing, the use of hair care products or friction caused by the heating plates. The ions generated (natural electrically loaded particles) reduce this charging and make the hair easier to manage.

Your hair is smoother and more glossy, the colour more vibrant.

Automatic shut-off

For safety reasons this appliance is equipped with an automatic shut-off function.

• The appliance switches off automatically approx. 70 minutes after it was switched on or after the temperature selector 3 was adjusted for the last time. The display will go dark.

Note: Use the on/off switch 2 to switch the appliance back on.

Cleaning and maintenance

Danger of electric shock!

Allow the appliance to cool and unplug it before cleaning.

Never submerse the appliance in water.

Do not use a steam cleaner.

Wipe off the appliance with a damp cloth and dry off with a clean, dry cloth. Do not use strong or abrasive cleansers.

Storage

Allow the appliance to cool and unplug it before storage.

Disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EG

concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline

determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Technical data

Power connection(voltage/frequency)	100 – 240 V50 / 60 Hz
Heater wattage 37 W

الضمان

التخلص من الجهاز

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

FR France

BSH Electroménager S.A.S.

50 rue Ardoin – BP 47

93401 SAINT-OUEN cedex

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]

Fax: [phone]

www.bosch-home.co.uk

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Customer Service Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road, Andheri East

Mumbai 400093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, لبنان

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

SA Kingdom Saudi Arabia,

Bin Hamran Commercial Centr.

6th Floor 603B

Jeddah 21481

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/sa

SE Sverige, Sweden

www.bosch-home.com/tr

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, Україна

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/za

UK [phone]

IRL [phone]

Customer Service

Great Britain

Bosch Customer Service

Grand Union House

Old Wolverton Road Milton Keynes

MK12 5PT

www.bosch-home.co.uk

9000978239
