Product Type	Network Audio Amplifier
Brand	Axis
Model	C8210
Power Supply	Power over Ethernet (PoE) IEEE 802.3af/at
Internal Battery (RTC)	3.0V BR/CR1220 lithium coin cell
Storage	microSD/microSDHC/microSDXC slot
Network Interface	Ethernet 10/100/1000 Base-T (shielded STP cable required)
Audio Surveillance	Supported (check local laws)
Compliance	CE, FCC Class A, RoHS, WEEE
Installation	Professional installation recommended, use Axis PoE+ midspans or switches
Cleaning	Use a clean cloth dampened with pure water; no chemicals or aerosol cleaners
Safety	Use only with applicable tools; do not attempt to repair; use only Axis-recommended accessories and spare parts
Transportation	Use original or equivalent packaging to prevent damage
Disposal & Recycling	Dispose according to local regulations; see WEEE symbol

Frequently Asked Questions - C8210 AXIS

How do I install the AXIS C8210 Network Audio Amplifier?

Connect the device to your network using a shielded Ethernet cable (STP). Power it via PoE from a compliant switch or midspan. Follow the installation guide for mounting and wiring audio inputs/outputs. Ensure local laws allow audio surveillance.

What power supply does the AXIS C8210 require?

The C8210 is powered via Power over Ethernet (PoE) conforming to IEEE 802.3af/at. Use Axis PoE+ midspans or switches for best compatibility. No external power adapter is needed.

How do I insert a microSD card?

Locate the microSD slot on the device. Gently push the card in until it clicks. To remove, push again to eject. Supports microSD, microSDHC, microSDXC cards.

How long does the internal RTC battery last?

The 3.0V CR1220 lithium coin cell battery for the real-time clock (RTC) lasts a minimum of five years under normal conditions. Replace only with an identical battery.

Can I use the AXIS C8210 for home audio streaming?

Yes, the C8210 is a network audio amplifier designed for audio streaming and surveillance. It can be integrated with Axis network systems and third-party software for audio playback and recording.

What should I do if the device does not power on?

Check the Ethernet cable connection and ensure the PoE switch or midspan is delivering power. Verify that the cable is shielded (STP) and properly terminated. If the issue persists, contact Axis support.

How do I clean the AXIS C8210?

Use a soft, lint-free cloth slightly dampened with pure water. Do not use chemicals, caustic agents, or aerosol cleaners. Avoid getting moisture into any openings.

Can I repair the device myself?

No, the device contains no user-serviceable components. Unauthorized modifications will void certifications. Contact Axis support or your reseller for service and repairs.

What are the legal considerations for using audio surveillance?

Audio surveillance laws vary by country. Always check local regulations before using this product for surveillance. The device must be used in compliance with applicable laws.

Where can I find the latest user manual and support?

Download the manual from axis.com. For technical assistance, contact your Axis reseller or visit axis.com/support. The Axis Learning Center at axis.com/academy offers tutorials and webinars.

USER MANUAL C8210 AXIS

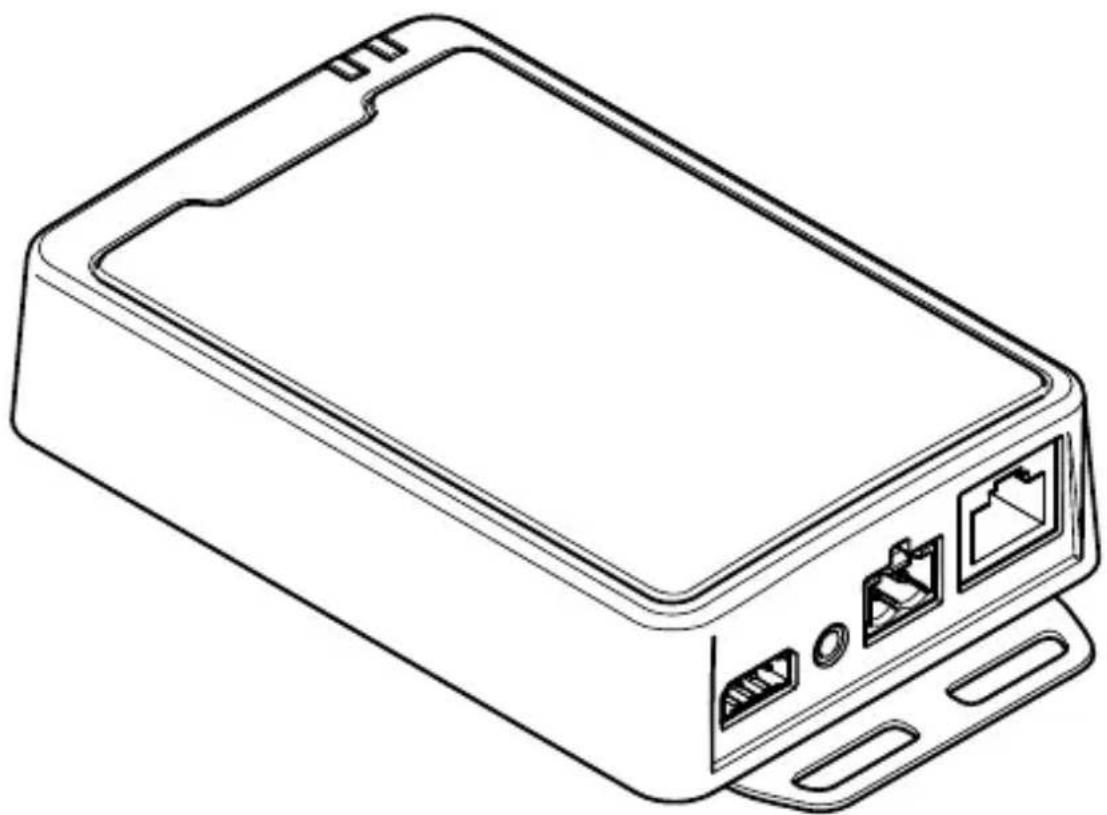

AXISC8210NetworkAudioAmplifier

Line drawing of a rectangular electronic device casing with ports and connectors (no text or symbols)

InstallationGuide

Readthisfirst

ReadthroughthisInstallationGuidecarefullybefore installingtheproduct.KeeptheInstallationGuide forfuturereference.

Legalconsiderations

Audiosurveillancecanberegulatedbylawsthatvary fromcountrytocountry.Checkthelawsinyour localregionbeforeusingthisproductforsurveillance purposes.

Liability

Everycarehasbeentakeninthepreparationofthis document.PleaseinformyourlocalAxisofficeof anyinaccuraciesoromissions.AxisCommunications ABcannotbeheldresponsibleforanytechnical or typographicalerrorsandreservestherighttomake changestotheproductandmanualswithoutprior notice.AxisCommunicationsABmakesnowarranty ofanykindwithregardtothematerialcontained withinthisdocument,including,butnotlimitedto, theimpliedwarrantiesofmerchantabilityandfitness foraparticularpurpose.AxisCommunicationsAB shallnotbeliablenorresponsibleforincidental orconsequentialdamagesinconnectionwiththe furnishing,performanceoruseofthismaterial.This productisonlytobeusedforitsintendedpurpose.

Intellectualpropertyrights

AxisABhasintellectualpropertyrightsrelatingto technologyembodiedintheproductdescribedin thisdocument.Inparticular,andwithoutlimitation, theseintellectualpropertyrightsmayincludeoneor moreofthepatentslistedataxis.com/patentand oneormoreadditionalpatentsorpendingpatent applicationsintheUSandothercountries.

Equipmentmodifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Trademarkacknowledgements

AXISCOMMUNICATIONS, AXISandVAPIXare registeredtrademarksortrademarkapplicationsof AxisABinvariousjurisdictions. Allothercompany namesandproductsaretrademarksorregistered trademarksoftheirrespectivecompanies.

microSD, microSDHC, and

microSDXCLogosaretrademarksofSD-3CLLC. microSD,microSDHC,microSDXCaretrademarksor registeredtrademarksofSD-3C,LLCintheUnited States,othercountriesorboth.

Regulatoryinformation

Europe

ThisproductcomplieswiththeapplicableCEmarking directivesandharmonizedstandards:

• Electromagnetic Compatibility (EMC) Directive 2014/30/EU. See Electromagnetic compatibility (EMC) on page 2.
  ● LowVoltageDirective(LVD)2014/35/EU.See Safetyonpage3.
• RestrictionofHazardousSubstances (RoHS)Directive2011/65/EU,includingany amendments,updatesorreplacements.See Disposalandrecyclingonpage3.

Acopyoftheoriginaldeclarationofconformity maybeobtainedfromAxisCommunicationsAB.See Contactinformationonpage3.

Electromagneticcompatibility(EMC)

This equipment has been designed and tested to fulfill applicable standards for:

• Radiofrequencyemissionwheninstalled accordingtotheinstructionsandusedinits intendedenvironment.
• Immunitytoelectricalandelectromagnetic phenomenonwheninstalledaccordingto theinstructionsandusedinitsintended environment.

USA

Thisdevicecomplieswithpart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested using a shielded network cable (STP) and found to comply with the limits for a Class Adigital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiater radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference or communication. Operation of this equipment in residential area is likely to cause harmful interference in which case the user will berequired to correct the interference at this own expense. The product shall be connected using a shielded network cable (STP) that is properly grounded.

Contactinformation

AxisCommunicationsInc.

300ApolloDrive

Chelmsford, MA01824

UnitedStatesofAmerica

Tel:[phone]

Canada

ThisdigitalequipmentfulfillstherequirementsforRF emissionaccordingtotheClassAlimitofEN55032. Theproductshallbeconnectedusingashielded networkcable(STP)thatisproperlygrounded.Notice! ThisisaClassAproduct.Inadomesticenvironment thisproductmaycauseRFinterference,inwhichcase theusermayberequiredtotakeadequatemeasures.

Australia/NewZealand

Thisdigitalequipmentfulfillstherequirements forRFemissionaccordingtotheClassAlimitof AS/NZSCISPR32.Theproductshallbeconnected usingashieldednetworkcable(STP)thatisproperly grounded. Notice!ThisisaClassAproduct.Ina domesticenvironmentthisproductmaycauseRF interference,inwhichcasetheusermayberequired totakeadequatemeasures.

Japan

When used with PoweroverEthernet(PoE), the PowerSourcingEquipment(PSE) shall comply with IEEE802.3af/802.3at and Limited PowerSource(LPS) according to clause 2.5 of IEC/EN/UL60950-1 or annex Qof IEC/EN/UL62368-1.

WerecommendtheuseofAxisPoE+midspansor AxisPoE+switches.

Disposalandrecycling

Whenthisproducthasreachedtheendofits usefullife, disposeofitaccordingtolocallaws andregulations. For information about your nearest designated collection point, contact your local authority responsible for wasted disposal. In accordance with local legislation, penalties maybe applicable for incorrect disposal of this waste.

Europe

Thissymbolmeansthattheproductshall notbedisposedoftogetherwithhouseholdor

commercialwaste.Directive2012/19/EUonwaste electricalandelectronicequipment(WEEE)is applicableintheEuropeanUnionmemberstates. Topreventpotentialharmtohumanhealthandthe environment,theproductmustbedisposedofinan approvedandenvironmentallysaferecyclingprocess. Forinformationaboutyournearestdesignated collectionpoint,contactyourlocalauthority responsibleforwastedisposal.Businessesshould contacttheproductsupplierforinformationabout howtodisposeofthisproductcorrectly.

Thisproductcomplieswiththerequirements of Directive201 1/65/EUontherestrictionoftheuse of certainhazardoussubstancesinelectrical and electronicequipment(RoHS).

China

Thisproductcomplieswiththerequirements of SJ/T11364-2014, Marking for the restriction of hazardous substances in electrical and electronic products.

ForinformationaboutAxis'productwarrantyand theretorelatedinformation,gotoaxis.com/warranty

Support

Should you require any technical assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channel to ensure a rapid response. If you are connected to the Internet, you can:

• downloaduserdocumentationandsoftware updates
• findanswerstoresolvedproblemsintheFAQ database,searchbyproduct,category,orphrase
  • reportproblemstoAxissupportstaffbylogging intoyourprivatesupportarea
• chatwithAxissupportstaff
• visitAxisSupportataxis.com/support

Learnmore!

VisitAxislearningcenteraxis.com/academyforusefultrainings,webinars,tutorialsandguides.

1.1

Line drawing of a rectangular electronic device with a connector and internal components (no text or symbols)

i

2.1

2.2

Diagram of a battery pack with two compartments and directional arrows indicating flow or movement (no text or symbols)

2.3

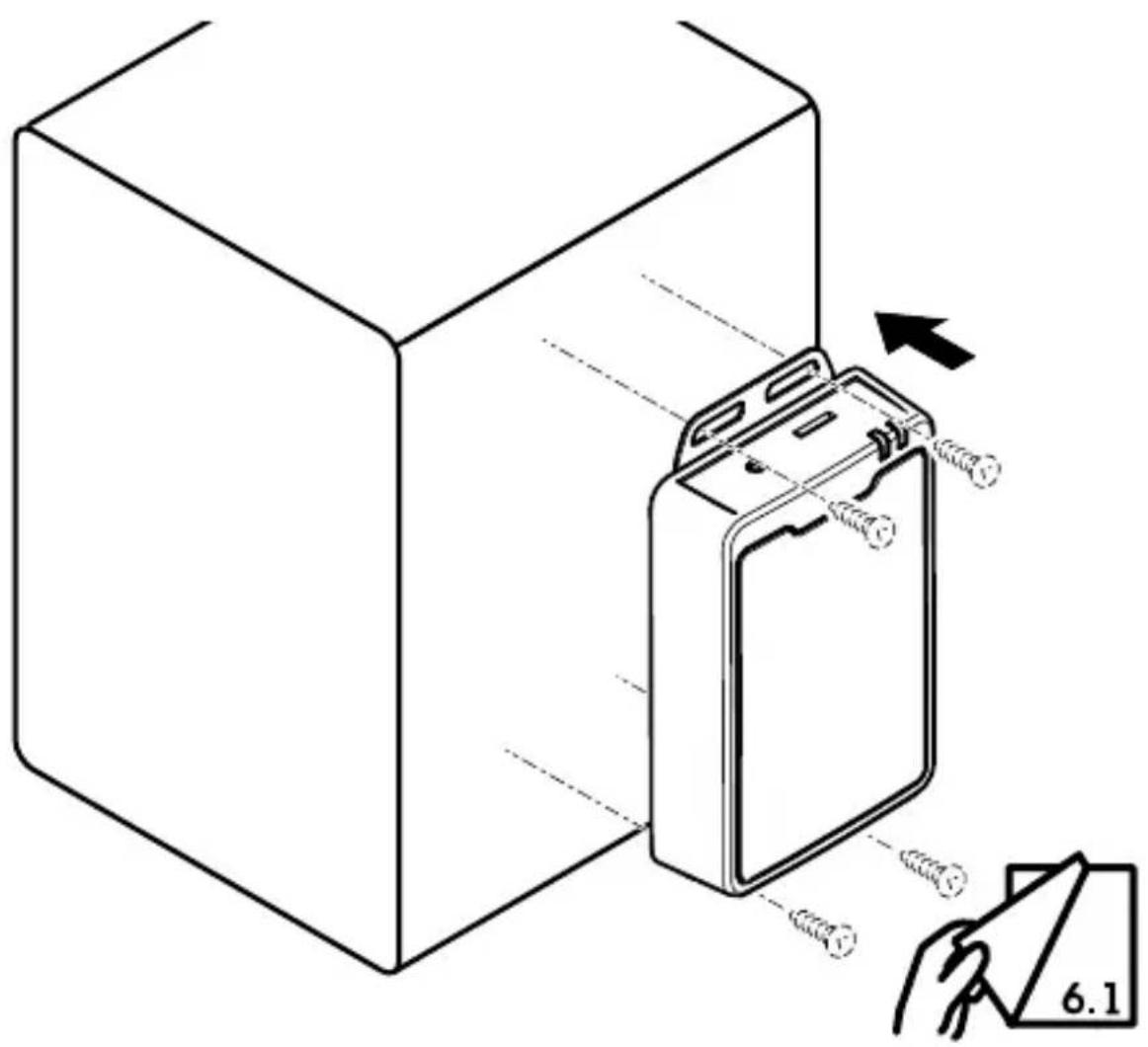

Line drawing of a 3D cube next to a device with an arrow pointing to it, and a hand holding a card labeled '6.1' (no text or symbols on the device itself)

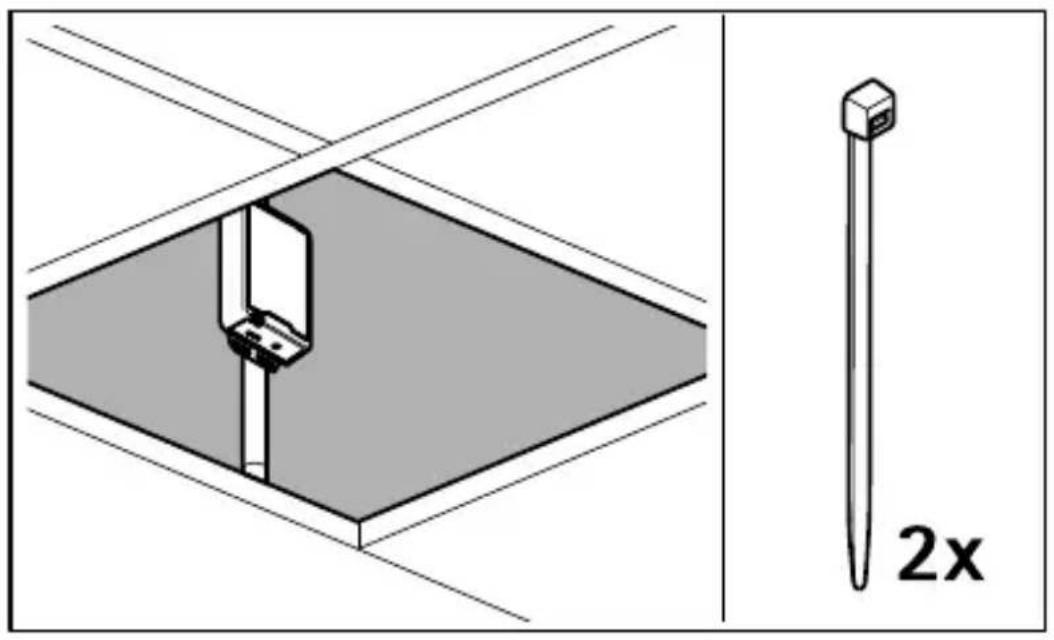

3.1

4.1

5.1

Technical diagram showing a mechanical component inside a hexagonal frame with diagonal lines, alongside a 2x scale indicator (no text or symbols on the diagram itself)

i

6.1

7.1

English

Safetyinformation

Hazardlevels

DANGER

Indicatesahazardoussituationwhich,ifnotavoided, willresultindeathorseriousinjury.

WARNING

Indicatesahazardoussituationwhich,ifnotavoided, couldresultindeathorseriousinjury.

CAUTION

Indicatesahazardoussituationwhich,ifnotavoided, couldresultinminorormoderateinjury.

NOTICE

Indicatesasituationwhich,ifnotavoided,could resultindamagetoproperty.

Othermessagelevels

Important

Indicatessignificantinformationwhichisessential fortheproducttofunctioncorrectly.

Note

Indicates useful information which helps ingetting them out of the product.

Safetyinstructions

NOTIAND

●TheAxisproductshallbeusedincompliance withlocalawsandregulations.
- StoretheAxisproductinadryandventilated environment.
- UseonlyapplicabletoolswheninstallingtheAxis product.Usingexcessiveforcewithpowertools couldcausedamagetotheproduct.
- Donotusechemicals, causticagents, or aerosol cleaners.
- Useacleanclothdampenedwithpurewaterfor cleaning.
- Useonlyaccessoriesthatcomplywiththe technicalspecificationofyourproduct. These canbeprovidedbyAxisorathirdparty.Axis recommendsusingAxispowersourceequipment compatiblewithyourproduct.
- Useonly spare parts provided by or recommended by Axis.
- Donotattempttorepairtheproductyourself. ContactAxissupportoryourAxisresellerfor servicematters.

Transportation

NOTICE

- WhentransportingtheAxisproduct, use the original packagingorequivalenttoprevent damagetotheproduct.

Battery

TheAxisproductusesa3.0VBR/CR1220lithium batteryasthepowersupplyforitsinternalreal-time clock(RTC).Undernormalconditionthisbatterywill lastforaminimumoffiveyears.

Lithiumcoincell3.0Vbatteriescontain 1,2-dimethoxyethane;ethyleneglycoldimethylether (EGDME),CASno.1 10-71-4.

WARNING

• Riskofexplosionifthebatteryisincorrectly replaced.
• The battery should be replaced with an identical battery only.
• Usedbatteriesshouldbedisposedofaccording tolocalregulationsorthebatterymanufacturer's instructions.

Français

©AxisCommunicationsAB,2019

Ver.M1.11

Date: March2019

PartNo.1860950
