MW-ST - Rack Mount Middle Atlantic - Free user manual and instructions

Product Type	Rack Mount Top / Enclosure Top
Brand	Middle Atlantic
Model	MW-ST
Series	MW Series
Material	Aluminum (removable panel)
Features	Two-space removable aluminum access panel for top removal without disturbing cabling; removable panel allows easy field drilling; factory-installed bonding stud
Included Hardware	Grommet nuts, screws, two 6/32 x 5/16 star screws (for bonding panel)
Tools Required	#2 Phillips driver; T-10 star wrench (for bonding panel)
Installation	Mount onto enclosure using provided grommet nuts and screws; tighten securely without overtightening
Bonding	Top can be bonded via factory-installed bonding stud; two-space panel bonded using supplied star screws
Warranty	3 years from shipment date against defects in material or workmanship
Compliance	ISO 9001 and ISO 14001 registered
Dimensions (Estimated)	Compatible with standard 19" rack width; depth varies; two rack units high (3.5")
Weight (Estimated)	Approximately 2-3 lbs (0.9-1.4 kg)
Cleaning	Wipe with a dry or slightly damp cloth; avoid harsh chemicals
Manufacturer Contact	Middle Atlantic Products, Inc.; Phone: [phone]; Web: middleatlantic.com

Frequently Asked Questions - MW-ST Middle Atlantic

What is the Middle Atlantic MW-ST?

The MW-ST is a rack mount top (also called a top panel) for use with MW Series enclosures. It provides a removable aluminum access panel for easy cable management.

What tools are needed for installation?

You will need a #2 Phillips driver for the screws. For bonding the two-space panel, a T-10 star wrench is required.

How do I install the MW-ST top?

First, install the grommet nut into the five (5) holes in the enclosure. Then position the top as required, thread all screws evenly, and tighten securely without overtightening.

Can the top be bonded for grounding?

Yes, the MW top includes a factory-installed bonding stud for bonding the top to the enclosure. Additionally, the two-space panel can be bonded using the provided 6/32 x 5/16 star screws.

Is the removable panel field-drillable?

Yes, the removable aluminum panel is designed to allow easy field drilling for custom cable pass-through or mounting.

What is the warranty period?

The MW Series Top is warranted to be free from defects in material or workmanship for a period of three (3) years from the date of shipment.

Does the warranty cover damage from improper installation?

No, the warranty does not cover damage due to improper handling, assembly, installation, or maintenance. It also excludes damage from misuse, abuse, or modification.

What are the dimensions of the MW-ST?

The exact dimensions are not specified in the manual, but it is designed to fit standard 19-inch rack enclosures and occupies two rack units (3.5 inches) in height. The depth is typical for MW Series tops.

Can I use this top with other brands of racks?

The MW-ST is specifically designed for Middle Atlantic MW Series enclosures. Use with other brands may require modifications and is not covered by warranty.

How do I clean the top?

Clean with a dry or slightly damp cloth. Avoid abrasive or chemical cleaners that could damage the aluminum finish.

USER MANUAL MW-ST Middle Atlantic

Thank you for purchasing the MW Series Top. Please read these instructions thoroughly before installing this product.

PRODUCT FEATURES

• Two space removable aluminum access panel allows for top removal without disturbing cabling.
• Removable aluminum panel allows for easy field drilling.

TOOLS REQUIRED: #2 Phillips Driver

INSTALLATION

1) Install the grommet nut into the five (5) holes in the enclosure as shown.
2) Position the top as required. Thread all screws evenly then tighten the screws securely - DO NOT OVERTIGHTEN.

NOTE: For MW Series Top bonding, and bonding of the two space panel to the MW top, see page 2.

BONDING OF MW TOP

- The MW top can be bonded with the factory installed bonding stud. (FIGURE A)

BONDING THE TWO SPACE PANEL

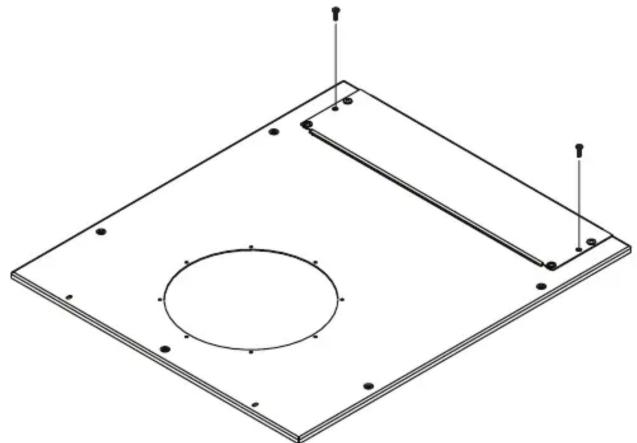

- The two space panel can be bonded to the top using the two provided 6/32 X 5/16 star screws using a T-10 star wrench. (FIGURE B)

Isometric technical drawing of a square plate with a circular cutout and mounting holes (no text or symbols)

(FIGURE B)

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the MW Series Top to be free from defects in material or workmanship under normal use and conditions for a period of (3) three years from date of shipment by the company.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory. This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
