UMS1-5.5K - Wall shelf Middle Atlantic - Free user manual and instructions

Brand	Middle Atlantic
Model	UMS1-5.5K
Product Type	Universal Mounting Shelf Panel Kit
Series	UMS Series
Rack Width	19 inches (standard EIA)
Shelf Depth	5.5 inches
Material	Steel with black powder coat finish
Weight Capacity	Not specified; supports typical AV components
Weight (Kit)	Approximately 1.5 lbs
Included Hardware	(4) #6 3/16" screws, (16) #4 3/16" screws
Compatible Panels	UMSFP1-1/8, UMSFP1-1/4, UMSFP1-1/2
Installation	Secure panel to shelf with included #4 screws; adhesive tape on UMSFP1-1/8
Warranty	Lifetime warranty against defects
Certifications	ISO 9001 and ISO 14001 registered
Application	Mounting AV components in rack systems

Frequently Asked Questions - UMS1-5.5K Middle Atlantic

What is the UMS1-5.5K used for?

The UMS1-5.5K is a universal mounting shelf panel kit designed to support and organize AV components within a standard 19-inch rack.

What panels are compatible with this kit?

Compatible panels include the UMSFP1-1/8, UMSFP1-1/4, and UMSFP1-1/2. These are sold separately and attach to the shelf with included screws.

How do I install the panel onto the shelf?

Use the included #4 x 3/16" screws to secure the panel to the shelf. For the UMSFP1-1/8 panel, remove the backing on the adhesive tape to attach it to components.

What is the weight capacity of the UMS1-5.5K?

The exact weight capacity is not specified by the manufacturer but it is designed to support typical AV components securely.

Does the UMS1-5.5K come with mounting hardware?

Yes, it includes (4) #6 3/16" screws and (16) #4 3/16" screws for mounting the shelf and panels.

What is the warranty on this product?

Middle Atlantic offers a lifetime warranty against defects in material and workmanship under normal use.

Is the shelf adjustable for depth?

No, the shelf has a fixed depth of 5.5 inches, as indicated by the model number.

Can I use this shelf with non-Middle Atlantic panels?

It is designed for Middle Atlantic UMSFP panels. Using other panels may require custom modification.

What tools are needed for installation?

A screwdriver compatible with the included screws is required. No special tools are needed.

How do I clean and maintain the shelf?

Wipe with a dry cloth; avoid abrasive cleaners to maintain the powder coat finish.

USER MANUAL UMS1-5.5K Middle Atlantic

UNIVERSAL MOUNTING SHELF

PANELS KITS
UMSFP1-1/8 UMSFP1-1/4 UMSFP1-1/2	UMS1-3.5K UMS1-5.5K UMS1-11.5K
SHELVES
UMS1-3.5 UMS1-5.5 UMS1-11.5

HARDWARE/ITEMS SUPPLIED WITH SHELVES AND KITS

• (4) #6 3/16" screws
• (16) #4 3/16" screws

NOTE: All panels include (2) #4 3/16 screws

INSTALLATION

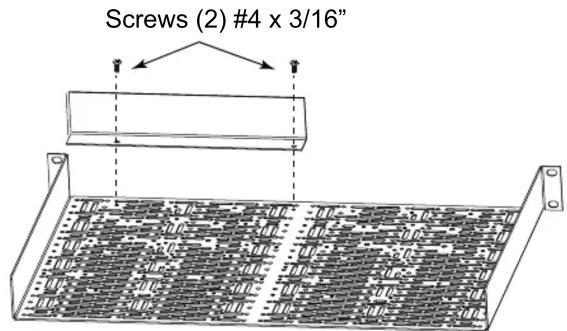

1. Secure panel to shelf using (2) #4 x 3/16" screws. (FIGURE A)

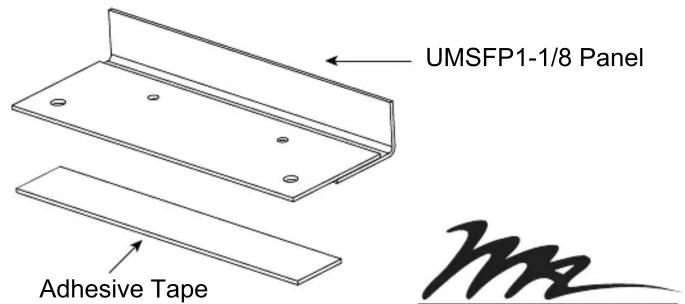

NOTE: Remove backing on adhesive tape to secure UMSFP1-1/8 panel to components.

(FIGURE B)

FIGURE A

FIGURE B
Middle Atlantic Products
I-00596 Rev A

Middle Atlantic Products

what great systems are built on™

middleatlantic.com ■ 800.266.7225

WARRANTY

Middle Atlantic Products (the "Company") warrants the UMS Series Universal Mounting Shelf to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
