Product Type	Newborn-to-Toddler Bath Center and Shower
Brand	Summer Infant
Model	18295
Stages	5 stages: Newborn sling in sink, newborn sling in toddler tub, toddler tub alone, shower unit in toddler tub, separate shower unit in full-size tub
Battery Type	6 AA alkaline batteries (not included)
Temperature Range	Recommended bath water 90°F – 100°F (32.2°C – 37.8°C); indicated by green strip on reservoir
Water Capacity	Sufficient for a complete bath; fill only to divider inside reservoir (approx. 2 inches below opening)
Material	Plastic; pump and sling made in China; tub and bucket/lid made in USA
Cleaning	Surface wash only with damp cloth, mild soap and warm water; do not submerge battery compartment
Safety Warning	Not a safety device; never leave infant unattended; use only 1 inch (2.5 cm) or less water in tub/sink; test water temperature before use
Usage	Place in sink or full-size tub; newborn sling for infants; toddler tub for older child; shower unit for rinsing
Storage	Pull drain plug on bottom of toddler tub to release water
Customer Service	1-800-268-6237 (US); [e-mail]
Manufacturer	Summer Infant, Inc., 1275 Park East Drive, Woonsocket, RI 02895 USA
European Office	Summer Infant Europe, LTD., 20 Sparrows Herne, Bushey, Hertfordshire WD23 1FX UK

Frequently Asked Questions - 18295 Summer Infant

How do I install batteries in the shower pump?

Twist the pump unit lid counter-clockwise to remove. Loosen the screw on the pump that holds the battery compartment cover. Insert 6 new alkaline 'AA' batteries, ensuring correct polarity. Tighten the screw and replace the cover, then screw the lid clockwise. Place the pump unit into the removable top and twist clockwise to secure.

What is the correct water temperature for my baby?

The recommended bath water temperature is between 90°F and 100°F (32.2°C – 37.8°C). The temperature strip on the front of the reservoir shows green for this range. Red indicates too hot, blue too cold. Never rinse baby when indicator is in red.

How do I fill and use the Baby Bath Shower?

Place the Baby Bath Shower into the toddler tub. Fill the reservoir through the opening on top up to the divider (about 2 inches below the rim). Check temperature strip for green. Point the spray handle toward baby and press the button to turn on. Release to stop. Only use in tub/sink with 1 inch (2.5 cm) or less of water.

The shower sprayer is not working – what should I do?

Air may be trapped in the hose. Press and hold the button a few times until water spray resumes. If still not working, check that batteries are installed correctly and that hose connections are tight.

At what stage should I stop using the newborn sling?

Discontinue use of the tub if the child can sit up unassisted. The product has 5 stages: from newborn sling in sink/tub, to toddler tub, to using the shower unit separately.

Can I use the bath center in a sink?

Yes, for newborn stage: place the bath sling in the sink with 1 inch or less of lukewarm water. Always keep sink drain open to prevent water accumulation. Never leave child unattended.

How do I clean the bath center and shower?

Surface wash only with a damp cloth, mild soap, and warm water. Do not submerge the battery compartment or run water directly on it. Ensure all hose connections and battery screws are tight after cleaning.

What safety precautions should I follow?

This is not a safety device – always keep infant within arm's reach. Never leave child unattended. Use minimal water (1 inch or less). Test water temperature before bathing. Never lift or carry the tub with infant inside. Check for damage before each use.

Can I use the shower unit without the toddler tub?

Yes, in stage 5, place the Baby Bath Shower directly in a full-size tub. Always ensure the tub has no more than 1 inch (2.5 cm) of water. Verify temperature on the strip before use.

Where can I find customer support or a replacement manual?

Contact Summer Infant customer service at 1-800-268-6237 (US) or email [e-mail]. Visit www.summerinfant.com for additional resources. The manual is also available for free download on notice-facile.com.

USER MANUAL 18295 Summer Infant

Black-and-white photo of a woman gently interacting with a baby in a bathtub, both smiling (no text or symbols visible)

NEWBORN-TO-TODDLER™ BATH CENTER AND SHOWER

Thank you for buying the Newborn-To-Toddler Bath Center and Shower from Summer Infant. There are 5 stages to grow with your child:

Stage 1 - Newborn bath sling fits easily in sinks

Stage 2 - Newborn bath sling fits easily in toddler tub

Stage 3 - Toddler tub for growing child

Stage 4 - Shower unit fits in toddler tub

Stage 5 - Separate shower unit to use in full size tub

WARNING: NOT A SAFETY DEVICE

• ALWAYS keep infant within adult's reach.
• NEVER lift or carry tub with infant in it.
- Do not use tub if child can sit up unassisted.
- When using tub inside a sink or adult tub, NEVER allow water to collect in sink or adult tub. ALWAYS keep sink or adult tub drain open.
- Never place child in tub until you have tested the water temperature by touch.
- Bath water should never exceed 100^ (37.8°C).
- Infants can drown in as little as 1" of water. ALWAYS bathe your infant using as little water as necessary.
- Infants can drown even when other children are present near the bather. DO NOT allow other children to substitute for an adult.
- Never use on uneven or elevated surfaces.
- Discontinue use of product if damaged, broken or disassembled.
• NEVER leave infant unattended.

BATTERY WARNING:

• Do not mix old and new batteries.
• Do not mix alkaline, standard, or rechargeable batteries.
• Remove batteries when product is stored for long period of time or when batteries are exhausted.
• Dispose of exhausted batteries properly.

FEATURES AND COMPONENTS:

BATTERY INSTALLATION:

Step 1: Twist lid of pump unit counter-clockwise (Figure A).
Step 2: Loosen screw on pump that holds the battery compartment cover in place (Figure B).

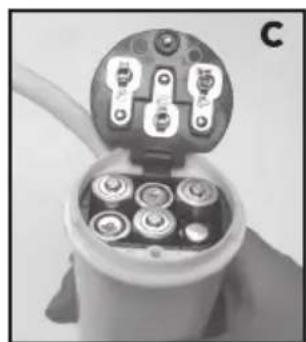

Step 3: Insert 6 new alkaline "AA" batteries into battery compartment (Figure C). Be careful

to install the batteries properly and in the right direction. Tighten and replace cover. DO NOT OVERTIGHTEN. Replace pump unit lid, turning clockwise.

Step 4: Place pump unit into removable top (Figure D).

Step 5: Turn unit over and twist clockwise until securely in place (Figure E).

Step 6: Place shower unit lid onto reservoir body (Figure F).

Close-up of hands holding a cup with a lid, no visible text or symbols

Close-up of hands pouring dark liquid into a white container with a curved handle (no text or symbols visible)

Close-up of a battery pack with multiple charging terminals and internal components (no visible text or symbols)

Close-up of a hand holding a white plastic container with tubing, showing liquid levels and a black arrow pointing to a component (no text or symbols visible)

Close-up of a hand holding a cylindrical device with a handle, showing internal components and an arrow indicating motion (no text or symbols)

Close-up of a hand holding a white tool inside a bucket with a handle, showing a circular opening and a downward arrow (no text or symbols visible)

SET UP:

Close-up of a plastic container with a curved lid and a downward arrow indicator (no text or symbols)

Step 1: Place the Baby Bath Shower into the Toddler Tub (Figure G).

SET UP (continued):

Close-up of a medical device with a black arrow pointing to a dark cavity (no visible text or symbols)

Step 2: Fill the reservoir with water through the opening on top (Figure H). Looking down into the opening, fill only to the divider inside the reservoir (about 2" below bottom edge of opening).

Step 3: Observe the temperature strip on the front of the reservoir body to make sure the water is at the proper temperature to rinse your baby (Figure I). The green range in the middle of the strip indicates water between 90^ and 100^ F. (32.2^ - 37.8^) . This is the recommended range for bath water. The red range means the water is too hot. NEVER RINSE YOUR BABY WHEN THE INDICATOR IS IN THE RED RANGE. The blue range means the water is too cold. Add warmer water until the temperature indicator goes back into the green range.

Step 4: Never use shower in a tub or sink with more than 1 inch (2.5 cm) of water. Point the spray handle towards baby and press the button on the side of the sprayer handle to turn the sprayer on.

Step 5: Release the button to turn the sprayer off.

The Baby Bath Shower contains enough water for a complete bath. If necessary, refill the reservoir. NOTE: Occasionally, air gets trapped inside the sprayer hose and prevents water spray. To remove air from the hose, press and hold button a few times until water spray resumes.

TO USE:

Black-and-white photo of a man examining a baby on a bed, with a baby bottle nearby (no visible text or symbols)

Newborn Use: Newborn Bath Sling in Sink or Tub

To use in sink: Position bath sling on the bottom of the sink. Fill sink with 1 inch or less of lukewarm water. Place newborn on the bath sling to bathe. Never leave child unattended while in the sink.

NOTE: BEFORE USING BABY BATH SHOWER UNIT, BE SURE TO CHECK THAT THE WATER TEMPERATURE STRIP IS IN THE GREEN RANGE ON THE BABY SHOWER UNIT.

Black-and-white photo of a woman gently holding a baby in a bathtub (no text or symbols visible)

To use in tub: Position tub in a full size bathroom tub where you are bathing your child. Position bath sling on the bottom of the tub. Fill the tub with 1 inch (2.5 cm) or less of lukewarm water. Place infant on bath sling to bathe. Never leave child unattended while in tub.

NOTE: BEFORE USING BABY BATH SHOWER UNIT, BE SURE TO CHECK THAT THE WATER TEMPERATURE STRIP IS IN THE GREEN RANGE ON THE BABY SHOWER UNIT.

Point the spray handle toward baby and press the button on the top of the sprayer handle to turn the sprayer on.

Release the button to turn the sprayer off.

Black-and-white photo of a woman bathing a baby in a bathtub, no text or symbols visible

Toddler Use: Tub for Growing Child

Position tub in a full size bathroom tub where you are bathing your child. Fill the infant tub with 1 inch or less of lukewarm water. Place child in tub to bathe. Never leave child unattended while in tub.

NOTE: BEFORE USING BABY BATH SHOWER UNIT, BE SURE TO CHECK THAT THE WATER TEMPERATURE STRIP IS IN THE GREEN RANGE ON THE BABY SHOWER UNIT.

TO USE (continued):

Black-and-white photo of a man feeding a baby in a bathtub, no visible text or symbols

Shower Unit to Use in Full Size Tub

Position the Baby Bath Shower on the bottom of the full size tub where you are bathing your child. Never use in a tub or sink with more than 1" of water.

NOTE: BEFORE USING BABY BATH SHOWER UNIT, BE SURE TO CHECK THAT THE WATER TEMPERATURE STRIP IS IN THE GREEN RANGE ON THE BABY SHOWER UNIT.

TO STORE:

Pull drain plug on bottom of Toddler Tub to release water.

TO CLEAN:

To clean the Newborn-to-Toddler Bath Center and Shower, surface wash only with damp cloth, mild soap and warm water. Do not submerge the battery compartment in water or run a stream of water directly on it.

MAINTENANCE:

Make sure all hose connections are tight. Make sure all screws on the battery compartment are tight.

We at Summer Infant stand behind all of our products. If you are not completely satisfied or have any questions, please contact our customer service department at 1-800-268-6237 or email us at [e-mail]

www.summerinfant.com

Summer Infant, Inc.

1275 Park East Drive

Woonsocket, RI 02895 USA

1-800-268-6237

© 2003 Summer Infant, Inc.

Colors and styles may vary.

Summer Infant Europe, LTD.

20 Sparrows Herne

Bushey, Hertfordshire

WD23 1FX UK

44 (0)20 8420 4429

Tub and shower bucket/lid MADE IN USA.

Pump and sling MADE IN CHINA.

MANUEL D'UTILISATION

Black-and-white photo of a woman gently interacting with a baby in a bathtub, no visible text or symbols

BAIN ET DOUCHE NEWBORN-TO-TODDLER™

Close-up of hands holding a white cup with a dark lid, no visible text or symbols

Close-up of hands pouring dark liquid into a white container with a handle (no visible text or symbols)

Close-up of a battery pack with multiple charging terminals and a circular socket (no visible text or symbols)

Close-up of a hand holding a cylindrical object over a basin, with a black arrow pointing to a small object (no text or symbols visible)

Close-up of a hand holding a white cylindrical device with a black arrow indicating rotation (no text or symbols visible)

Close-up of a white plastic container with a handle and a curved lid, being inserted by a tool (no visible text or symbols)

INSTALLATION :

Close-up of a baby water dispenser with a black arrow indicating a drop (no text or symbols visible)

Close-up of a car's side panel showing the vent and handle (no text or symbols visible)

A man gently holding a baby's blanket while another person is lying on the blanket; no visible text or symbols.

Black-and-white photo of a woman gently holding a baby in a bathtub (no text or symbols visible)

NOTE : AVANT D'UTILISER LE MODULE BAIN-DOUCHE POUR BEBE, ASSUREZ-VOUS QUE LA TEMPERATURE DE L'EAU DU MODULE DE DOUCHE POUR BEBE, TELLE QU'INDIQUEE PAR LA BANDE, EST DANS LA ZONE VERTE.

Black-and-white photo of a woman bathing a baby in a bathtub, no text or symbols visible

Black-and-white photo of a man feeding a baby in a bathtub, no visible text or symbols

© 2003 Summer Infant, Inc.

Bushey, Hertfordshire

WD23 1FX UK

44 (0)20 8420 4429

Baignoire FABRIQUÉE AUX ÉTATS-UNIS

Black-and-white photo of a woman gently interacting with a baby in a bathtub, both smiling (no text or symbols visible)

BAÑERA CON DUCHA NEWBORN-TO-TODDLER™

Paso 6: Place shower unit lid onto reservoir body (Figure F).

Close-up of hands holding a cup with a lid, no visible text or symbols

Close-up of hands pouring dark liquid into a white cup with a handle (no visible text or symbols)

Close-up of a battery pack with multiple charging terminals and a circular socket (no visible text or symbols)

Close-up of a hand holding a white plastic container with a pipe, partially submerged in a basin (no visible text or symbols)

Close-up of a hand holding a white cylindrical object with a black arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a tool to lift a white plastic cup (no text or symbols visible)

PARA USAR:

Close-up of a white plastic container with a lid and a curved side, showing a black arrow pointing to the bottom (no text or symbols visible)

Close-up of a metallic object with a downward arrow pointing to a dark interior (no text or symbols visible)

A man examining a baby wrapped in a blanket, with a cup and tray nearby (no visible text or symbols)

Black-and-white photo of a woman gently comforting a baby in a bathtub (no text or symbols visible)

Black-and-white photo of a woman and a baby washing in a bathtub, smiling (no text or symbols visible)

Black-and-white photo of a man feeding a baby in a bathtub, holding a tube near the child's abdomen (no text or symbols visible)

© 2003 Summer Infant, Inc.

Bushey, Hertfordshire

WD23 1FX UK

44 (0)20 8420 4429
