VS-50609 - Television MITSUBISHI - Free user manual and instructions
Find the device manual for free VS-50609 MITSUBISHI in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Rear-projection television |
| Brand | Mitsubishi |
| Model | VS-50609 |
| Screen Size (Diagonal) | 50 inches |
| Display Technology | CRT-based rear projection |
| Aspect Ratio | 4:3 (standard definition) |
| Video Inputs | Composite, S-Video, Component (Y/Pb/Pr) |
| Audio Output | Built-in stereo speakers, audio out (RCA) |
| Power Supply | 120V AC, 60 Hz |
| Power Consumption | Approx. 250 W (max) |
| Dimensions (W x H x D) | 48.5 x 41.3 x 24.2 inches (123 x 105 x 61.5 cm) |
| Weight | Approx. 115 lbs (52 kg) |
| Remote Control | Infrared remote included |

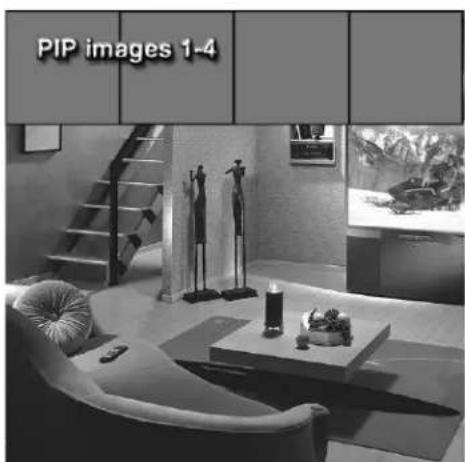

| Key Features | Picture-in-picture, sleep timer, closed captioning |
| Cleaning Instructions | Wipe screen and cabinet with a soft, dry cloth; do not use liquid cleaners |
| Safety Warnings | Place on a stable surface; ensure adequate ventilation; do not block vents |
| Spare Parts Availability | Replacement remote (model M-RB-10), projection lamp (model 915P063010) |
| Repair Information | Refer to service manual; contact Mitsubishi authorized service |
Frequently Asked Questions - VS-50609 MITSUBISHI
How do I turn on the Mitsubishi VS-50609 TV?

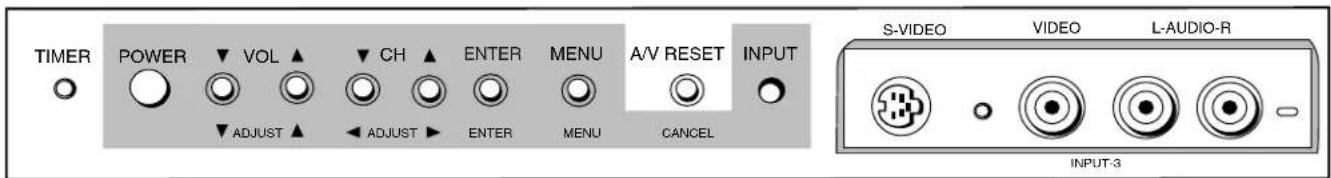

Press the Power button on the front panel or the Power button on the remote control. Wait a few seconds for the picture to appear.
The remote control is not working. What should I check?

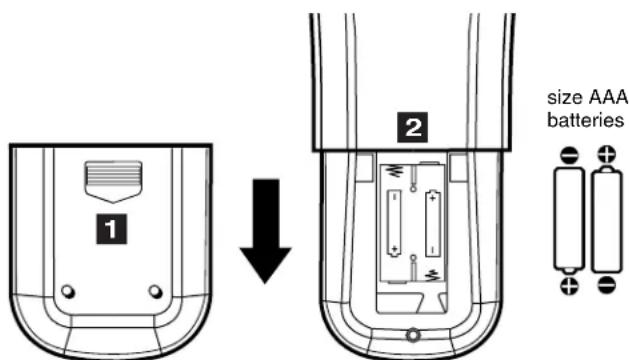

First, ensure the batteries are fresh and installed correctly. Point the remote directly at the TV's sensor. If still not working, try resetting the remote by removing batteries and pressing all buttons for 10 seconds, then reinsert.
How do I connect external devices like a DVD player?

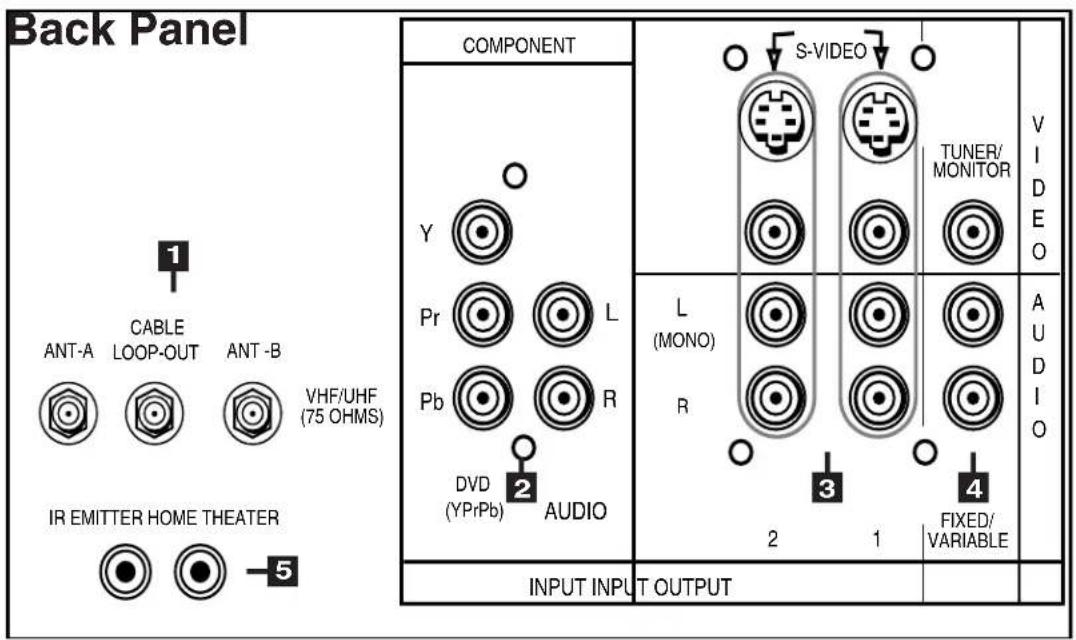

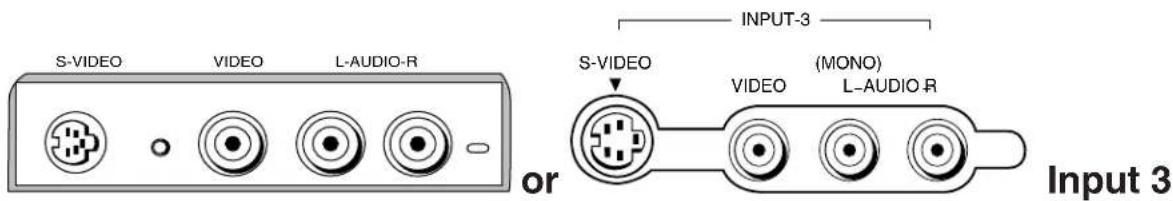

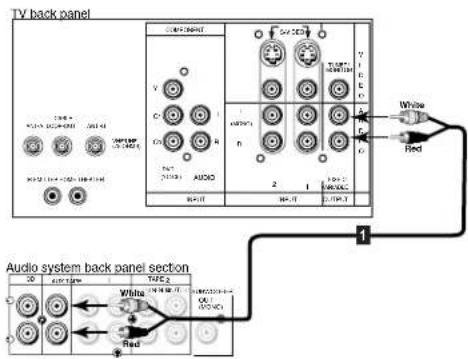

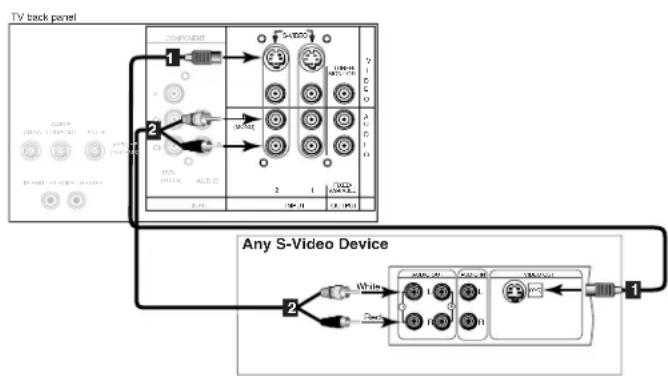

Use the Video Inputs on the back panel. For standard definition, connect to the yellow (video) and red/white (audio) RCA jacks. For better quality, use S-Video or Component inputs. Then press Input on the remote to select the correct source.
Why is there no picture but sound is working?

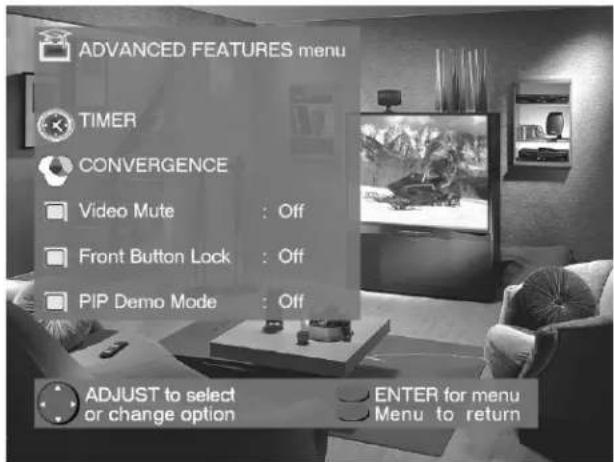

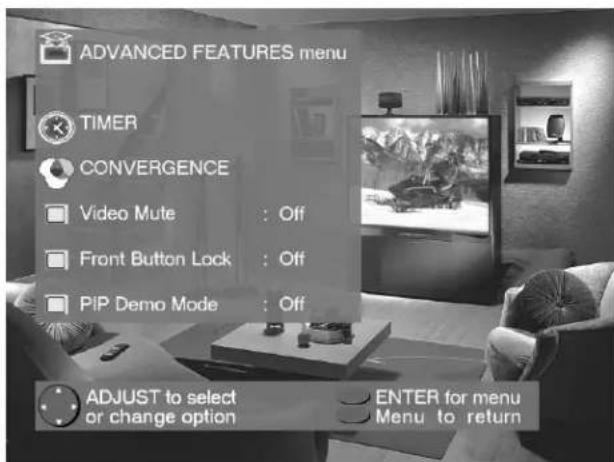

This may indicate a problem with the projection lamp. Check if the lamp indicator is lit. If the lamp is burned out, replace it following the instructions in the manual. Also ensure the Video Mute mode is not active.
How can I clean the TV screen?
Use a soft, lint-free cloth slightly dampened with water or a specialized screen cleaner. Wipe gently in a straight motion. Do not spray liquid directly on the screen or use abrasive cleaners.
Does the TV support high definition (HD) signals?
The VS-50609 is a standard definition (SD) TV. It can display 480i signals. It does not support HD resolutions (720p, 1080i). For HD, you would need an external converter or a newer TV.
How do I adjust the picture settings?

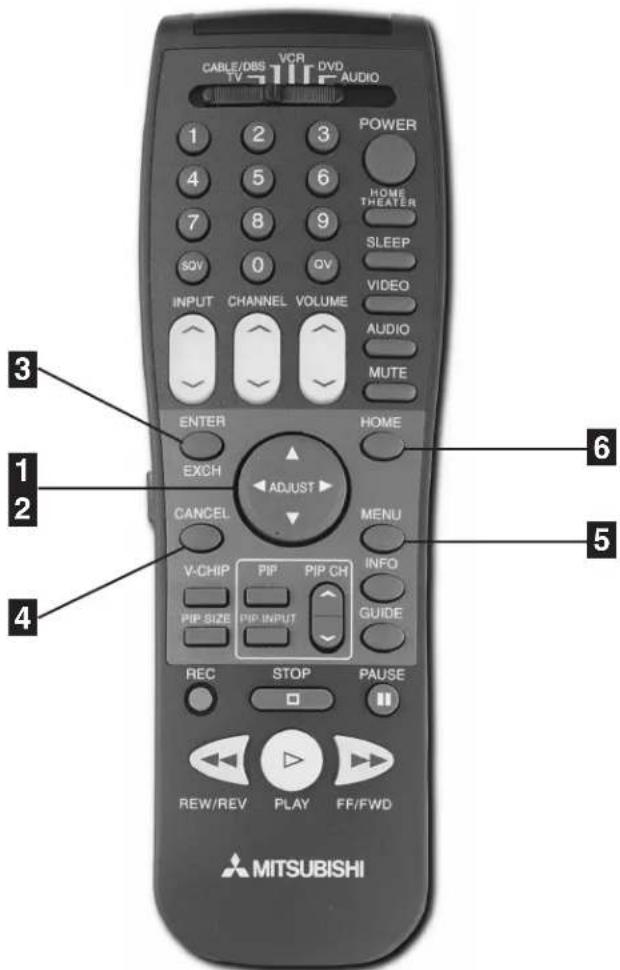

Press the Menu button on the remote. Use the arrow keys to navigate to Picture settings. Adjust Brightness, Contrast, Color, Tint, and Sharpness to your preference. Press Menu again to exit.
The TV turns off by itself. What could be the cause?

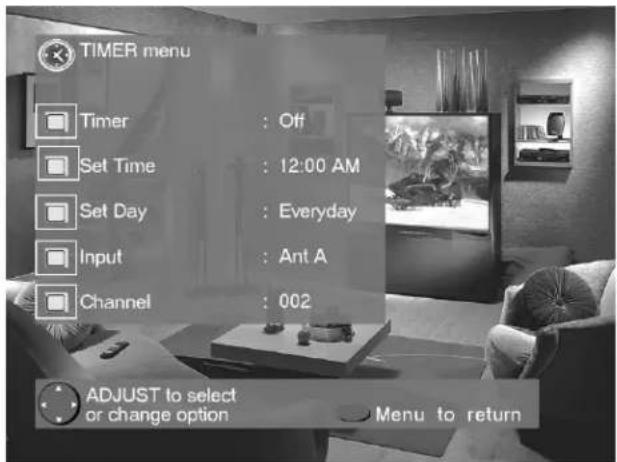

This may be due to the Sleep Timer being set, or the TV may be overheating. Check if the ventilation slots are blocked. If the problem persists, it may be a hardware fault; contact a service technician.
How do I replace the projection lamp?
Turn off the TV and unplug it. Wait 30 minutes for the lamp to cool. Open the lamp door (usually on the front or back). Remove the old lamp and insert the new one (Mitsubishi model 915P063010). Close the door, plug in, and reset the lamp timer via the menu.
Where can I find the user manual for this TV?
You can download the manual in PDF format from notice-facile.com by entering the model VS-50609. Alternatively, contact Mitsubishi support or search online using the model number.
