Product Type	Washing Machine
Brand	RCA
Model	YBXR1060
Energy Class	A+
Capacity	6 kg
Spin Speed	1200 rpm
Dimensions (W x H x D)	60 x 85 x 50 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Water Connection	Cold water
Noise Level (Wash/Spin)	56 / 76 dB
Programs	Cotton, Synthetics, Delicates, Quick Wash, Spin, Rinse, Eco, Hand Wash
Additional Functions	Delay Start, Child Lock, Overflow Protection, Drum Clean
Display	LED
Control Type	Rotary + Buttons
Drum Material	Stainless Steel
Safety Features	Child Lock, Overfill Protection, Door Lock
Maintenance	Clean filter after every 10 cycles; drum clean program monthly
Spare Parts	Available via RCA service centers or authorized dealers
Manual Languages	English, French, Spanish, German, Italian, Dutch, Portuguese

Frequently Asked Questions - YBXR1060 RCA

How do I install the washing machine?

Place the machine on a level, firm surface. Connect the water inlet hose to a cold water tap and the drain hose to a standpipe or sink. Plug into a grounded outlet. Level the machine by adjusting the feet.

What should I do if the machine does not start?

Check that the door is properly closed, the power cord is plugged in, the water supply is open, and the circuit breaker is not tripped. Also ensure the child lock is disabled.

How do I clean the filter?

Open the filter cover at the bottom front, place a tray to catch water, unscrew the filter counterclockwise, remove lint and debris, then screw it back and close the cover. Perform this after every 10 cycles.

Why is the machine vibrating excessively?

Ensure the transport bolts are removed (if first use), the machine is level, and the load is balanced. Overloading or underloading can cause vibration.

What do error codes mean?

Common codes: E1 (water inlet issue), E2 (drain problem), E4 (door lock error), E9 (overfill). Refer to the manual for full list. Try restarting the cycle first.

How much detergent should I use?

Use the manufacturer's recommended amount for your water hardness and soil level. Typically 1-2 tablespoons for a full load. Over-sudsing can cause leaks or poor rinsing.

Can I wash delicate items like silk or wool?

Yes, use the Hand Wash or Delicate program with cold water and a gentle detergent. Place items in a mesh bag to prevent damage.

How do I use the delay start function?

Press the Delay Start button repeatedly to set a delay from 1 to 24 hours. Then press Start. The machine will begin at the set time.

What is the drum clean program?

Run the Drum Clean program monthly with an empty drum and a drum cleaner tablet or a cup of white vinegar. This removes mold and odor.

Where can I find spare parts?

Contact RCA customer service or visit authorized dealers. Common parts like filters, hoses, and belts are available. Use genuine parts for safety.

USER MANUAL YBXR1060 RCA

Illustration of a white three-wheeled laundry machine with control panel and door (no text or symbols visible)

YBXR1060

RCA

Welcome to the RCA family. We're proud of our quality products and we are committed to providing dependable service. You'll see it in this easy-to-use manual and you'll hear it in the friendly voices of our customer service department.

Congratulations! You Are Now Part Of The RCA Family.

Best of all, you'll experience these values each time you do the laundry. That's important, because your new washer will be part of your family for many years. And we hope you will be part of ours for a long time to come.

We thank you for buying RCA. We appreciate your purchase, and hope you will continue to rely on us whenever you need quality appliances for your home.

Simple black-and-white icon of a lightbulb with exclamation mark, no text or symbols present

Important!

Staple sales slip or cancelled check here.

Proof of the original purchase date is needed to obtain service under the warranty.

Illustration of a pencil writing on a black square with a curved line (no text or symbols)

Write the model and serial numbers here.

#

#

You can find them in the upper right corner on the back of your washer.

RCA & You, A Service Partnership.

Ask any RCA appliance owner and they will tell you we stand behind our products with unmatched quality service. However, did you know that most questions result from simple problems that you can easily fix yourself in just a few minutes? This Owner's Manual can tell you how.

Simple line drawing of a pair of eyeglasses on a black background (no text or symbols)

Read this Manual

Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer.

Magnifying glass icon with a question mark inside, no text or symbols present

Review the Section on Troubleshooting Tips

You'll find many answers to common problems here. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Simple line drawing of a classic telephone handset with keypad (no text or symbols)

If You Need Service

If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customer service numbers is included in the back section.

Safety Information .....4-7

Operating Instructions

Control Panel ....8 Control Settings ....8 Washer Features ....9, 10 Loading and Using the Washer ....11, 12

Troubleshooting Tips

Before You Call For Service .....13–17

Customer Service

Warranty ....19 Service Telephone Numbers ....Back Cover

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

Black and white graphic with a central exclamation mark surrounded by radiating lines (no text or symbols)

WATER HEATER SAFETY

Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

Simple icon of a wrench inside a square frame (no text or symbols)

PROPER INSTALLATION

This washer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet, you can receive one by calling us toll-free at the GE Answer Center ^® , 800.626.2000.

■ Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.

■ Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.

Simple line drawing of a basket with a grid pattern (no text or symbols)

YOUR LAUNDRY AREA

- Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.

■ Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.

IMPORTANT SAFETY INSTRUCTIONS. READ ALL INFORMATION BEFORE USING.

WARNING!

Use this appliance only for its intended purpose as described in this Owner's Manual.

WHEN USING THE WASHER

■ Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the lid.
■ Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas which may cause death.
- Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.

The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.
■ To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.

NOTE: Turning the Cycle Selector knob to an off position does NOT disconnect the appliance from the power supply.

■ Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

WHEN NOT IN USE

■ Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they may need replacement after 5 years.
■ Before discarding a washer, or removing it from service, remove the washer lid to prevent children from hiding inside.

• Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner's Manual, or in published user-repair instructions that you understand and have the skills to carry out.
  ■ Do not tamper with controls.

Simple black-and-white icon of an exclamation mark with radiating lines, no text or symbols present.

REMEMBER...

Your continued health and safety are important to us.

Please read and follow this Safety Information carefully.

We want you to remain a happy and healthy part of our family.

SAVE THESE INSTRUCTIONS

About the washer control panel.

You can locate your model number behind the top edge of the control panel.

Abstract icon of a magnifying glass over a black square, no text or symbols present

Control Settings

Load Size

The water level should just cover the clothes. Adjust the load size accordingly. Loosely load clothes no higher than the top row of holes in the washer tub.

Wash/Rinse Temp

Select the water temperature for the wash and rinse cycles. Always follow fabric manufacturer's care label or instructions when laundering. Follow the water temperature guide on washer lid.

Wash Cycle

The wash cycle controls the length of the washing process. The chart below will help you match the wash cycle setting with your clothing.

COTTONS REGULAR For heavy to lightly soiled cottons, household linens, work and play clothes.

PERMANENT PRESS For easy care and wrinkle-resistant items.

KNITS Specially designed for normally soiled knits.

DELICATES For lingerie and delicate fabrics with light to normal soil.

Simple line drawing of a circular mechanical component with no text or symbols

Agitator Cap or Fabric Softener Dispenser (depending on model)

The agitator cap fits into the top of the agitator. If it accidentally comes off, simply put it back on.

Illustration of a hand pouring liquid into a container on a laptop (no text or symbols)

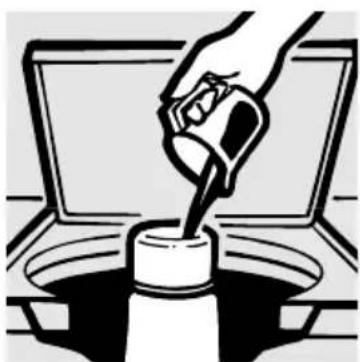

The fabric softener dispenser automatically releases liquid fabric softener at the proper time during the cycle.

To use, follow these steps:

1 Make sure dispenser is securely attached to agitator.
2 Use only liquid fabric softener. Pour into dispenser, using amount recommended on package.
3 Add water to dispenser until it reaches the maximum fill line.

Do not stop the washer during the first spin. This will cause the dispenser to empty too soon.

Never pour fabric softener directly on clothes. It may stain them.

Illustration of a hand using a tool to remove a leaf from a laptop screen (no text or symbols)

Do not pour anything into the agitator if the top is removed.

Simple line drawing of a capacitor and a glass with upward and downward arrows (no text or symbols)

Separate for cleaning.

Cleaning the Fabric Softener Dispenser

1 Remove the dispenser from the top of the agitator.

2 Separate the dispenser cup from the cover by grasping the top and pushing down on the inside of the cup with your fingers. Dispenser cup will pop free from the cover.

3 To clean dispenser, soak both the dispenser cup and the dispenser cover in the following solution:

■ 1 US gallon (3.8 liters) warm water

■ 1/4 cup (60 ml) heavy duty liquid detergent

1 cup (240 ml) bleach

4 If necessary, loosen build-up with a clean, soft cloth after soaking. Do not use a stiff brush; you may roughen the surface of the dispenser.

5 Rinse and reassemble dispenser. Place dispenser back on the agitator.

Always follow fabric manufacturer's care label when laundering.

Simple line drawing of a basket with a mesh pattern (no text or symbols)

Sorting Wash Loads

Colors Whites Lights Darks

Soil Heavy Normal Light

Fabric Delicates Easy Care Sturdy Cottons

Lint Lint Producers Lint Collectors

Abstract composition of white spheres on a black background (no text or symbols)

Proper Use of Detergent

Add detergent and start the washer before adding clothes so that the detergent can work effectively. Follow the detergent package directions. Using too little detergent is a common cause of laundry problems. Use more detergent if you have hard water, large loads, greasy or oily soils or lower water temperature.

Loading the Washer

Load dry items loosely, no higher than the top row of holes in the washer tub. When loading wet items make sure you set the load/water level high enough to allow the items to move freely. Water level should just cover the clothes. To add items after washer has started, push in Cycle knob and submerge additional items next to the agitator. Close the lid and pull Cycle knob out to restart.

Do not wrap large items like sheets around the agitator.

Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).

Washer will not start with the lid up.

Care and Cleaning of Your Washer

Wash Basket: Leave the lid open after washing to allow moisture to evaporate. If you want to clean the basket use a clean soft cloth dampened with liquid detergent, then rinse. (Do not use harsh or gritty cleaners.)

Fill Hoses: Hoses connecting washer to faucet should be replaced every 5 years.

Lint Filter: It is self-cleaning, requires no maintenance, and is located under the agitator.

Exterior: Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. Contact the service location nearest you for information on how to keep the tub stationary when moving the washer.

Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Troubleshooting Tips

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Washer won't operate	Washer is unplugged	Make sure cord is plugged securely into a working outlet.
	Water supply is turned off	Turn both hot and cold faucets fully on.
	Controls are not set properly make sure Cycle knob is pulled out to ON position.	Check controls and
	Lid is open	Close lid and pull Cycle knob out to ON position.
	Circuit breaker/fuse is tripped/blown breakers /fuses. Replace fuses or reset breaker. Washer should have separate outlet.	Check house circuit
Water temperature is incorrect	Control is not set properly	Check water temperature control and adjust.
	Water supply is turned off or improperly connected	Turn both hot and cold faucets fully on and make sure hoses are connected to correct faucets.
	Water valve screens are stopped up	Turn off the water source and remove the water connection hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on.
	House water heater is not set properly	Make sure house water heater is delivering water at 120°F.-140°F. (48°C.-60°C.).

Before you call for service...

Troubleshooting Tips

Problem Possible Causes What To Do
Water won't drain	Drain hose is kinked or improperly connected make sure washer is not sitting on it.·Top of drain outlet should be less than 8 ft. above floor.
Water leaks	Fill hoses or drain hose is improperly connected connections are tight at faucets and make sure end of drain hose is correctly inserted in and secured to drain facility.
	Household drain may be clogged plumbing. You may need to call a plumber.
	Constant water pressure to the fill hoses at the faucets and turn the water water source off after each use.·Check condition of the fill hoses; they may need replacement after 5 years.
Washer is noisy	Washer is uneven	Make sure washer is level and firm to the floor.
	Washer load is unbalanced	Push the Cycle knob in to stop the washer, open the lid and redistribute the load evenly. Close the lid and restart.
Washer pauses in cycle	The washer normally pauses between washing steps
Clothes too wet	Incorrect cycle selected	Make sure the cycle selected matches the load you are washing.
Lint or residue on clothes	Incorrect sorting	Separate lint producers from lint collectors.
	Washing too long	Wash small loads for a shorter time than larger loads.
	Detergent not dissolving	Add detergent as wash basket fills with water, before you load clothes.Try a liquid detergent.Use warmer water temperature.
	Overloading	Load clothes no higher than the top row of holes in the washer tub.Make sure load size selector matches clothes load size.
	Incorrect use of fabric softener package for instructions and follow directions for using dispenser.	Check fabric softener
Colored spots	Incorrect use of fabric softener package for instructions and follow directions for using dispenser.Pretreat stain and rewash.	Check fabric softener
	Dye transfer	Sort whites or lightly colored items from dark colors.

Before you call for service...

Troubleshooting Tips

Problem Possible Causes What To Do
Wrinkling	Improper sorting	· Avoid mixing heavy items (like work clothes) with light items (like blouses). · Try a fabric softener.
	Overloading or incorrect water level clothes have enough room to move freely.	· Load your washer so
	Incorrect wash and dry cycles the type of fabric you are washing (especially for easy care loads).	· Match Cycle selection to
	Repeated washing in water that is too hot with plenty of detergent.	· Wash in warm or cold water
Too many suds	Type of detergent	· Switch to a lower sudsing detergent brand and follow instructions on package.
	Very soft water	· Try less detergent.
Snags, holes, tears, rips or excessive wear	Pins, snaps, hooks, sharp buttons, belt buckles, zippers, and sharp objects left in pockets	· Fasten snaps, hooks, buttons, and zippers. · Remove loose items like pins, objects in pockets and sharp buttons. · Turn knits (which snag easily) inside out.
	Undiluted chlorine bleach	· Check bleach package instructions for proper amount. · Never add undiluted bleach to wash or allow clothes to come in contact with undiluted bleach.
	Chemicals like hair bleach or dye, permanent wave solution	· Rinse items that may have chemicals on them before washing.
Pilling	Result of normal wear on poly-cotton blends and the washer, you can slow fuzzy fabrics the pilling process by washing garments inside out.	While this is not caused by
Grayed or yellowed clothes	Not enough detergent	Use more detergent (especially with larger loads).
	Hard water	Use a water conditioner like Calgon brand or install a water softener.
	Water is not hot enough	Make sure water heater is delivering water at 120°F.-140°F.(48°C.-60°C.).
	Washer is overloaded	Select load size to match clothes load.
	Detergent is not dissolving basket fills with water before you load clothes.	Add detergent as wash
	Dye transfer	Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated.

Notes

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. For service, call 800-GE-CARES.

For The Period Of: We Will Replace, At No Charge To You:

One Year Any partFrom the date of the original purchase warranty,	of the washer which fails due to a defect in materials or workmanship. During this full one-year we will also provide, free of charge, all labor and in-home service to replace the defective part.
Five Years The transmission, From the date of the original purchase warranty,	if it should fail due to a defect in materials or workmanship. During this five-year limited you will be responsible for any labor or in-home service costs.
Twenty Years The washer basket, From the date of the original purchase limited warranty,	if it should fail due to a defect in materials or workmanship. During this twenty-year you will be responsible for any labor or in-home service costs.

What Is Not Covered:

■ Service trips to your home to teach you how to use the product.
■ Improper installation.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.

■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage to personal property caused by possible defects with this appliance.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Service Telephone Numbers.

Simple line drawing of a house with windows and cloud-like shapes (no text or symbols)

In-Home Repair Service 800-GE-CARES (800-432-2737)

Expert GE repair service is only a phone call away.

Special Needs Service 800.626.2000

TDD 800-TDD-GEAC (800-833-4322)

Consumers with impaired hearing or speech who have access to a TDD or a conventional teletypewriter may call to request information or service.

Service Contracts 800-626-2224

Purchase a GE service contract while your warranty is still in effect and you'll receive a substantial discount. GE Consumer Service will still be there after your warranty expires.

Parts and Accessories 800-626-2002

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted).

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Simple hand-drawn sketch of a smiling face with raised hands, no text or symbols present

Service Satisfaction

If you are not satisfied with the service you receive, follow these three steps. First, contact the people who serviced your appliance. Next, if you are still not pleased, write all the details—including your phone number—to: Manager, Consumer Relations, RCA Appliances, Appliance Park, Louisville, KY 40225. Finally, if your problem is still not resolved, write:

Major Appliance Consumer Action Program

20 North Wacker Drive, Chicago, IL 60606.

Printed in Louisville, KY 10-96 CG (JR)
