AD 2812 - Beard trimmer ADLER - Free user manual and instructions

Product Type	Beard Trimmer
Brand	Adler
Model	AD 2812
Dimensions (approx.)	15 x 4 x 4 cm
Weight (approx.)	180 g
Power Source	Rechargeable battery (Lithium-ion)
Charging Time	Approx. 8 hours
Operating Time	Approx. 45 minutes
Blade Material	Stainless steel
Cutting Length Settings	Adjustable (1-10 mm)
Precision Trimmer	Yes, for detail work
Washable	Yes, detachable head for cleaning
Waterproof	Yes, IPX7 rated
Safety Lock	Travel lock function
LED Indicator	Battery level indicator
Accessories Included	Comb attachments, cleaning brush, charging cable
Replacement Parts Available	Blade set, battery (service center)
Maintenance	Oil blades regularly for optimal performance
Warranty	2 years (EU)
Country of Origin	China

Frequently Asked Questions - AD 2812 ADLER

How do I clean the Adler AD 2812 beard trimmer?

Remove the blade head and rinse it under running water. Use the included brush to remove hair. Dry thoroughly before reassembly.

How long does the battery last on a full charge?

The lithium-ion battery provides about 45 minutes of cordless use after an 8-hour charge.

Can I use the trimmer while charging?

No, the AD 2812 is designed for cordless use only. Do not operate while plugged in.

How do I adjust the cutting length?

Turn the adjustable dial on the body to select between 1 mm and 10 mm. Attach the desired comb for longer lengths.

Is the Adler AD 2812 waterproof?

Yes, it has an IPX7 rating, meaning it can be rinsed under water. Suitable for wet and dry use.

What should I do if the blades become dull?

Replace the blade set with a genuine Adler part. Contact customer service for ordering.

How often should I oil the blades?

Oil the blades once a month or after every 5 uses. Use a drop of sewing machine oil on the cutting edges.

The trimmer won't turn on. What's wrong?

Check if the battery is charged. Press the power button for 3 seconds. If still not working, reset by charging for 10 minutes.

Can I use the trimmer on wet hair?

Yes, due to the waterproof design, you can use it in the shower. Apply shaving cream for a smoother cut.

What accessories come with the AD 2812?

It includes comb attachments (4 lengths), a cleaning brush, and a USB charging cable.

USER MANUAL AD 2812 ADLER

Black hairbrush with multiple teeth and a small handle, no visible text or symbols

Black and silver Odler brush with toothed handle and textured grip (no visible text or symbols)

AD2812 AD2818

(GB) user manual

(F) mode d'emploi

Line drawing of a hairpin with teeth and decorative elements (no text or symbols)

Diagram of a medical device with internal components and directional arrows (no text or labels)

Technical line drawing of a hairpin with mesh texture and internal components (no text or symbols)

Diagram of a biological or mechanical structure with internal components and directional arrows (no text or symbols)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical tool or plunger mechanism with no visible text or symbols

ENGLISH

GENERAL SAFETY CONDITIONS

IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The appliacable voltage is 230V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

7. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

8. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

9. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

10. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to

electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

1. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

2. Never use the product close to combustibles.

3. Do not let cord hang over edge of counter.

1. Always unplug the device after using and before cleaning.

2. Never use this device close to water, e.g.: Under shower, in bathtub, or above sink filled with water.

3. If using the device in bathroom after use remove the power plug from the socket, because water proximity presents risk, even if the device is turned off.

4. Do not allow the device or power adaptor to wet. If the device falls into water, immediately remove the power plug or power adaptor from the socket. If the device is powered, do not put hands in the water. Have the device checked by the qualified electrician before using it again.

5. Do not touch the device or power adaptor with wet hands.
6. The device has to be turned off after every use.
7. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.
8. If the device utilises a power adaptor, do not cover it, because this can cause a dangerous temperature rise and can damage the device. Always connect the power adaptor cable to the device, and then connect the power adaptor to the power socket.

DESCRIPTION OF THE DEVICE

1. Indicator light
2. Thinning out adjuster

3. Blades

4. Transparent window

5. Power switch (ON/OFF)

6. Additional comb attachment

7. Length adjustment wheel

8. Comb attachment
9. Adaptor

CHARGING BATTERIES

Charging is required before you can use the device. To start charging the batteries, connect the power cord to a power socket (230V \~ 50Hz). Then insert the plug of the power cord into the plug receptacle of the clipper. The "charge" indicator light will start to glow. It will be glowing until the device has been disconnected from the mains. Charging should take about 8 hours. A fully charged battery is enough to provide 45 minutes of continuous operation. When the batteries are fully charged, remove the charger from the power socket. When the hair clipper is not used for a long period of time, it should be charged at least once every 6 months to preserve the right capacity of the battery.

When the battery is empty, you can continue clipping by using the charger. For this purpose, insert the charger cable plug into the plug receptacle of the clipper. You can continue clipping after 3 minutes.

HOW TO USE THE DEVICE WITH THE ATTACHED COMB

Place the comb attachment on the hair clipper. Turn on the clipper (5). Start by moving the clipper with the comb attachment against the direction of hair growth. This step should be performed slowly and at a constant speed. Remember to systematically remove hair from the clipper and the cutting head. Use the length adjustment wheel (3) to adjust the clipping length. You can obtain a thinning out effect by using the thinning out adjuster (4).

CLEANING

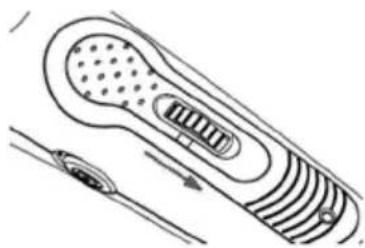

Disconnect the device from the power supply. Open the cutting head in a way that is shown in the drawing. Clear the blades with the supplied brush. After cleaning, there should be no hair between the blades. After every few haircuts, oil the cutting head pouring 2 to 3 drops of the supplied oil into the space between the fixed blade and the movable blade. Close the blades (you should hear a snapping sound). Clean the housing with a dry or slightly damp cloth.

TECHNICAL DATA

Power: 7W

DC engine voltage: 2.4V

Charging time: 8 hours

Power supply: 230V \~50Hz

Device is made in class II of insulation.
Device is compliant with EU directives:
- Low voltage directive (LVD)
- Electromagnetic compatibility (EMC)
Device marked CE mark on rating label

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
